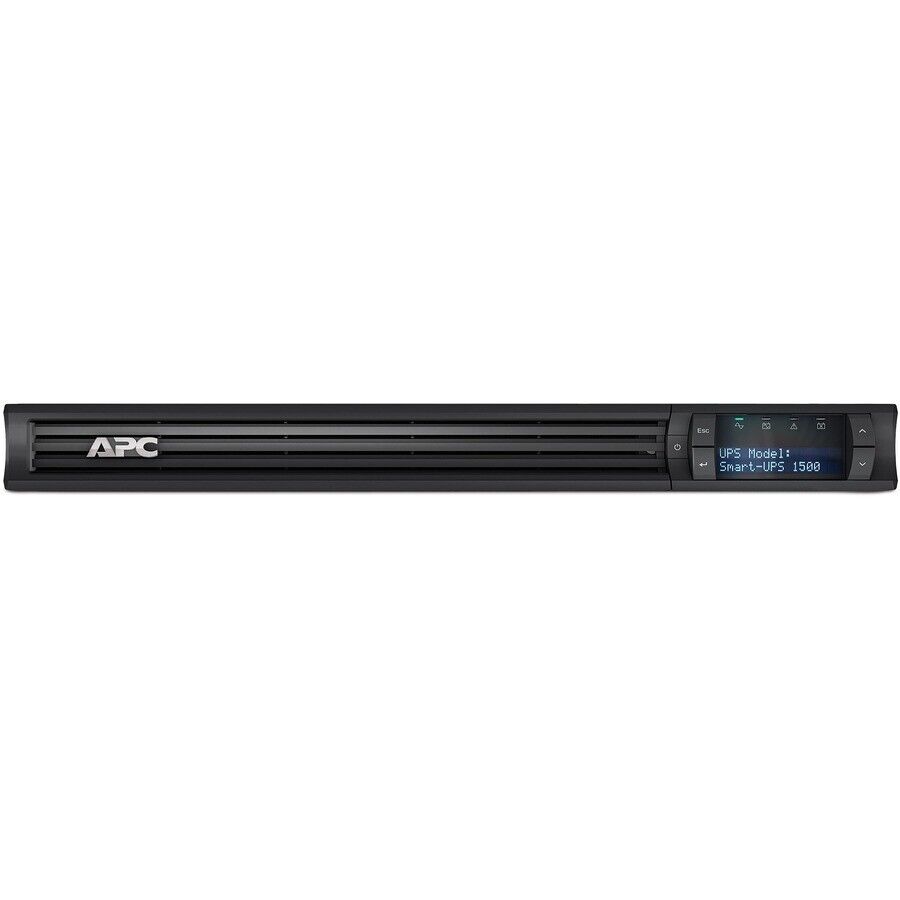

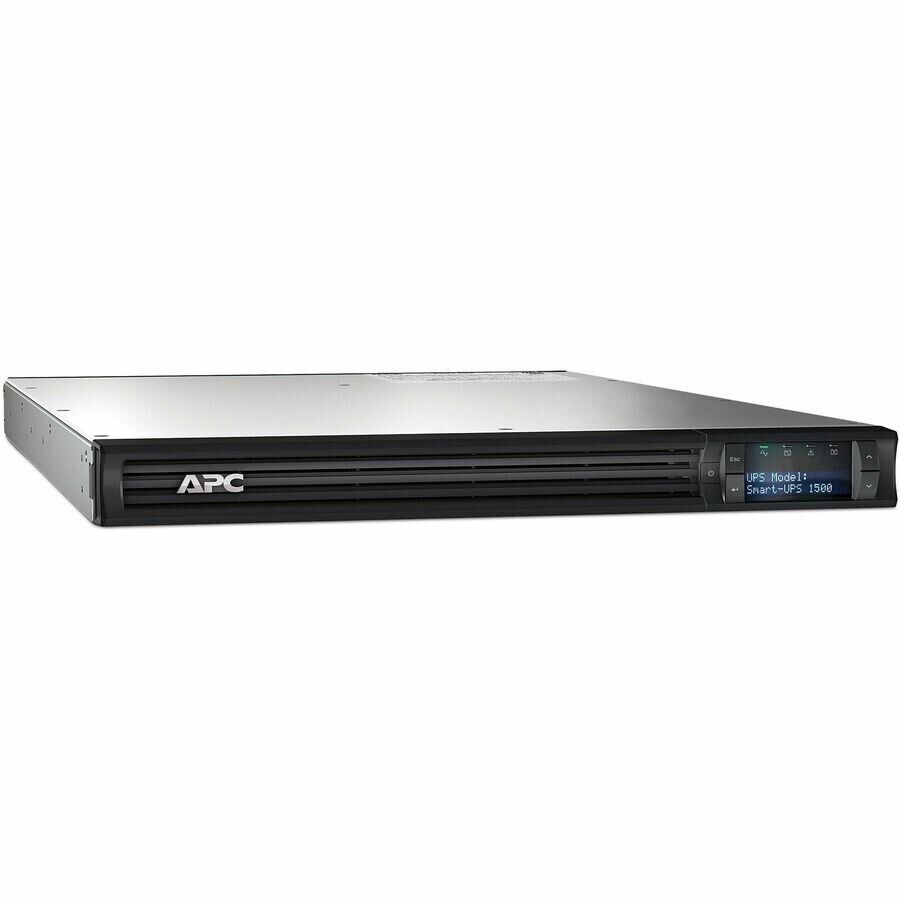

APC SMT1500RM1UC Smart UPS 1U SmartConnect+S.Slot 4x Outlets 1440VA 1000W 645J

MARKETING INFORMATION:

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1440VA line interactive 1U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with 4 NEMA 5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional NMC purchase that enables network-based UPS monitoring & management via PowerChute Network Shutdown and the ability to connect to EcoStruxure IT or third-party management platform. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

GENERAL INFORMATION

• Manufacturer: Schneider Electric SA
• Manufacturer Part Number: SMT1500RM1UC
• Brand Name: APC by Schneider Electric
• Product Line: Smart-UPS
• Product Series: SMT
• Product Name: Smart-UPS SMT 1500VA Rack-mountable UPS
• Packaged Quantity: 1
• Product Type: Line-interactive UPS

TECHNICAL INFORMATION

• AVR: Yes
• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15P
• Receptacle Detail: 4 x NEMA 5-15R
• Cord Length: 8 ft
• Transfer Time: 4 ms

APPLICATION/USAGE:

• IT
• Network Device
• Business
• Critical System
• Electronic
• Server
• POS
• Router
• Switch
• Hub
• VoIP
• Network Closet
• Storage
• Edge Computing
• Healthcare
• Education
• Retail

POWER DESCRIPTION

• Load Capacity (VA): 1440 VA
• Load Capacity (Watt): 1000 W
• Input Voltage: 120 V
• Input Voltage Range:
  • 93.5 V AC - 143 V AC
  • 85 V AC - 155 V AC
• Input Current: 12 A
• Output Voltage: 120 V AC
• Input Frequency: 60 Hz
• Output Frequency: 60 Hz
• Waveform Type: Sine Wave
• Surge Energy Rating: 645 J
• Input Power Factor: 0.7

DISPLAY & GRAPHICS

• Display: LCD

MANAGEMENT

• Network Management: SmartConnect
• Alarm:
  • On Battery
  • Low Battery
  • Configurable Delay

CONTROLS/INDICATORS

• Status Indicators: Console d'état et de contrôle LCD multifonction

INTERFACES/PORTS

• Serial Port: Yes
• Network (RJ-45): Yes
• USB: Yes
• EPO Port: Yes

BATTERY INFORMATION

• Battery Chemistry: Lead Acid
• Battery Size: 36V
• Battery Capacity: 54000 mAh
• Battery Energy: 1054.8 kJ
• Backup/Run Time (Full Load): 4.75 Minute
• Backup/Run Time (Half Load): 16.57 Minute
• Battery Life: 5 Year
• Typical Battery Recharge Time: 4 Hour
• Replaceable Battery: Yes

ENVIRONMENTAL CONDITIONS

• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: 5°F (-15°C) - 113°F (45°C)
• Maximum Operating Elevation: 10000 ft
• Maximum Storage Elevation: 50000 ft
• Storage Relative Humidity: 0% - 95%
• Sound Emission: 46 dB
• Thermal Dissipation: 34 W

PHYSICAL CHARACTERISTICS

• Color Family: Black
• Product Color: Black
• Height: 1.7"
• Width: 17"
• Depth: 26.2"
• Rack Height: 1U
• Form Factor: Rack-mountable
• Mounting Preference: Lower
• Mounting Location: Front
• Weight (Approximate): 54.01 lb

Package Contents:

• Smart-UPS SMT 1500VA Rack-mountable UPS
• Installation Guide
• Rack Mounting Support Rails
• Smart UPS Signalling RS-232 Cable
• USB Cable
• Safety Guide
• 2 x IEC Jumper Cable

CERTIFICATIONS & STANDARDS:

• ENERGY STAR V2.0 (USA)|CSA|UL 1778 5th edition|FCC part 15 class A|cUL
• Software Included: Powerchute Serial Edition
• Energy Star: Yes
• Optimized Energy Efficiency: Yes
• Product Take Back Program: No
• Mercury Free: Yes

Limited Warrany: 3 Year direct from APC
