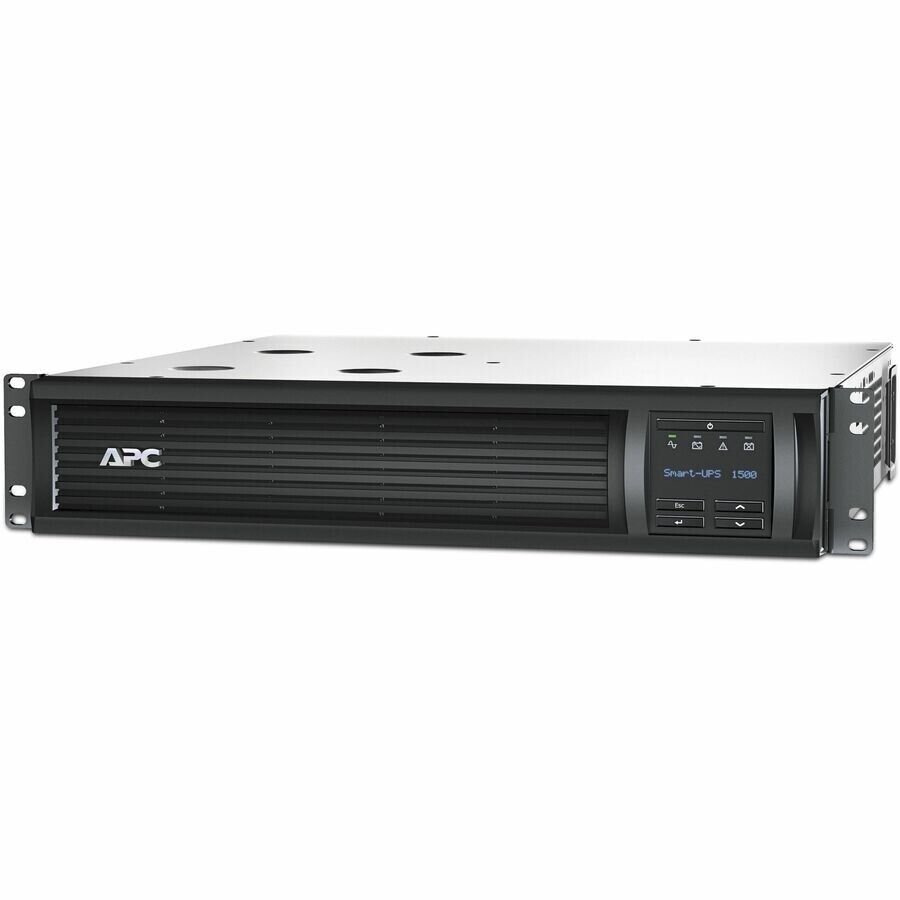

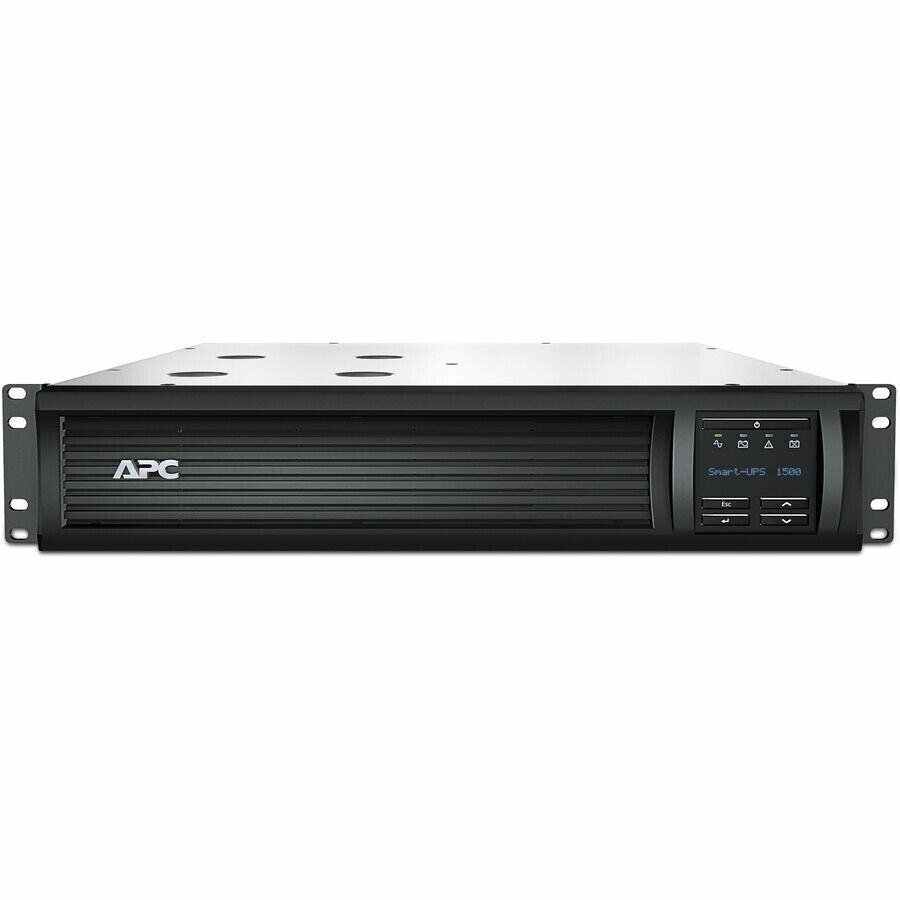

APC SMT1500RM2UC Smart UPS 2U SmartConnect+Slot 6x Outlets 1440VA 1000W 680J AVR

MARKETING INFORMATION:

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1440VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges.

GENERAL INFORMATION

• Manufacturer: Schneider Electric SA
• Manufacturer Part Number: SMT1500RM2UC
• Brand Name: APC by Schneider Electric
• Product Line: Smart-UPS
• Product Name: Smart-UPS 1500VA LCD RM 2U 120V with SmartConnect
• Packaged Quantity: 1 Each
• Product Type: Line-interactive UPS

TECHNICAL INFORMATION

• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15P

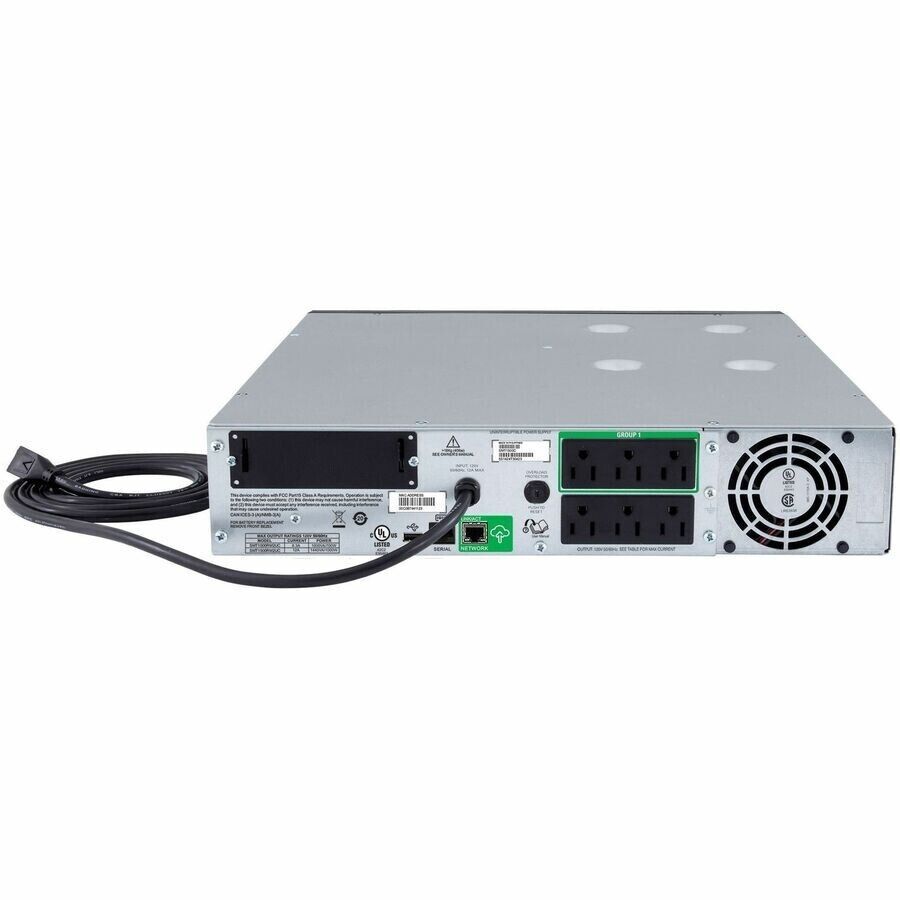

• Receptacle Detail: 6 x NEMA 5-15R
• Number of Battery & Surge Outlets: 6
• Cord Length: 8 ft
• Transfer Time: 10 ms

POWER DESCRIPTION

• Load Capacity (VA): 1440 VA
• Load Capacity (Watt): 1000 W
• Input Voltage: 120 V
• Input Voltage Range: 82 V AC - 144 V AC
• Output Voltage: 120 V AC
• Input Frequency: 60 Hz
• Output Frequency: 60 Hz
• Waveform Type: Sine Wave
• Surge Energy Rating: 680 J

MANAGEMENT

• Network Management: SmartConnect
• Alarm:
  • Low Battery
  • Configurable Delay
• Controls/Indicators
  • Status Indicators: LCD Status

INTERFACES/PORTS

• Serial Port: Yes
• Network (RJ-45): Yes
• USB (HID Compliant) Port: Yes

BATTERY INFORMATION

• Number of Batteries: 1
• Battery Chemistry: Lead Acid
• Battery Energy: 1555.2 kJ
• Battery Life: 6 Year
• Typical Battery Recharge Time: 3 Hour

ENVIRONMENTAL CONDITIONS

• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: 41°F (5°C) - 235.4°F (113°C)
• Maximum Operating Elevation: 10000 ft
• Maximum Storage Elevation: 50000 ft
• Operating Humidity: 0% - 95%
• Storage Relative Humidity: 0% - 95%
• Sound Emission (A-Weighted): 45 dB(A)
• Thermal Dissipation: 65.94 W

PHYSICAL CHARACTERISTICS

• Color Family: Black
• Product Color: Black

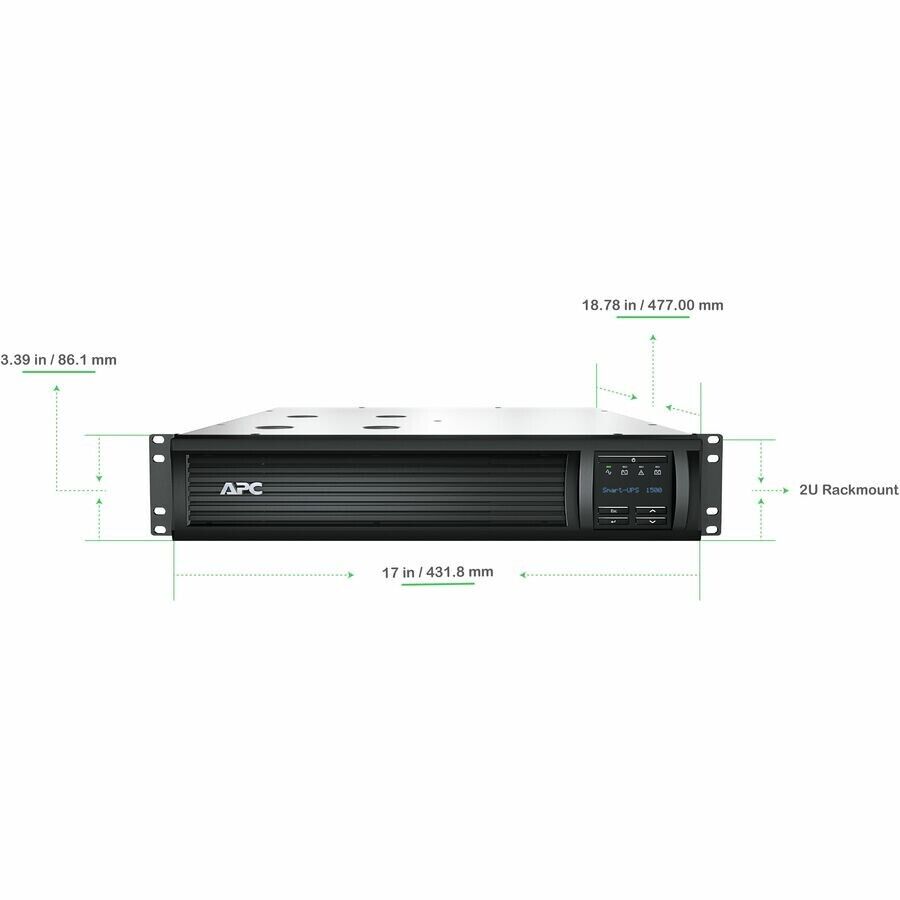

• Height: 3.4"
• Width: 17"
• Depth: 18.8"
• Rack Height: 2U
• Form Factor: Rack-mountable
• Mounting Preference: Lower
• Mounting Location: Front
• Weight (Approximate): 58.42 lb

PACKAGE CONTENTS:

• Smart-UPS 1500VA LCD RM 2U 120V with SmartConnect
• Installation guide
• Rack mounting support rails
• USB cable

CERTIFICATIONS & STANDARDS:

• cULus|ENERGY STAR V2.0 (USA)
• Software Included: Powerchute Serial Edition
• Energy Star: Yes
• Optimized Energy Efficiency: Yes
• Product Take Back Program: Yes
• Mercury Free: Yes

Limited Warrany: 3 Year direct from APC
