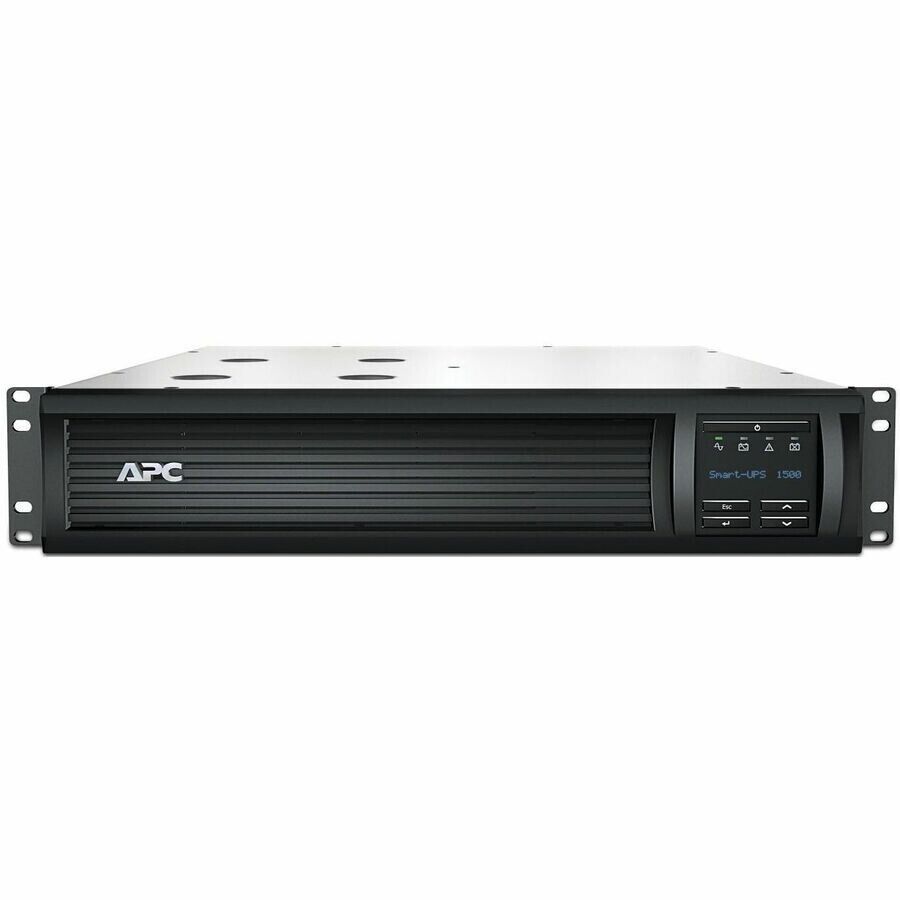

APC SMT1500RM2UCNC Smart UPS 2U SmartConnect+Network 6 Outlets 1440VA 1000W 680J

MARKETING INFORMATION:

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1440VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges.

GENERAL INFORMATION

• Manufacturer: Schneider Electric SA
• Manufacturer Part Number: SMT1500RM2UCNC
• Brand Name: APC by Schneider Electric
• Product Line: Smart-UPS
• Product Name: Smart-UPS 1500VA Rack-Mountable UPS
• Packaged Quantity: 1
• Product Type: Line-interactive UPS

TECHNICAL INFORMATION

• AVR: Yes
• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15P

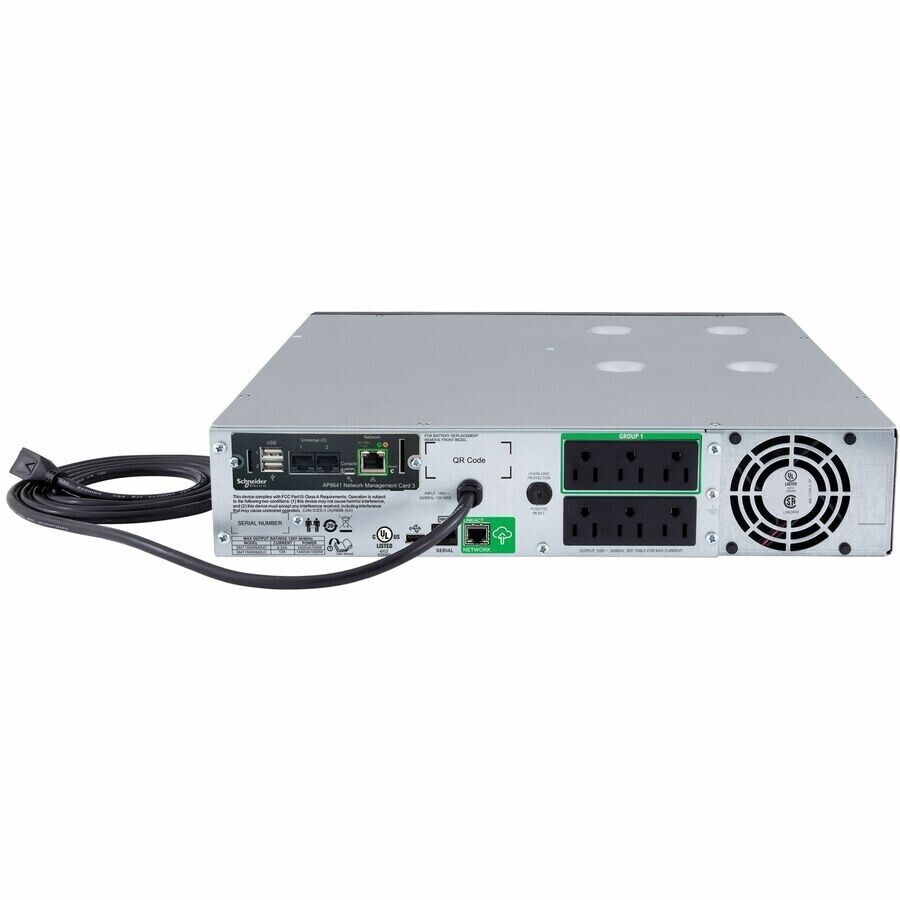

• Receptacle Detail: 6 x NEMA 5-15R
• Cord Length: 8 ft
• Transfer Time: 10 ms

APPLICATION/USAGE:

• Server
• POS
• Router
• Switch
• Hub
• Network Device
• IT
• Business
• Critical System
• Virtual Machine
• Hyperconverged Infrastructure (HCI)

POWER DESCRIPTION

• Load Capacity (VA): 1440 VA
• Load Capacity (Watt): 1000 W
• Input Voltage: 120 V
• Input Voltage Range:
  • 75 V AC - 154 V AC
  • 82 V AC - 144 V AC
• Output Voltage: 120 V AC
• Input Frequency: 60 Hz
• Output Frequency: 60 Hz
• Waveform Type: Sine Wave
• Surge Energy Rating: 680 J

DISPLAY & GRAPHICS

• Display: LCD

MANAGEMENT

• Network Management: SmartConnect

ALARM:

• Low Battery
• On Battery
• Configurable Delay

CONTROLS/INDICATORS

• Status Indicators: État LCD multifonction

INTERFACES/PORTS

• USB: Yes

BATTERY INFORMATION

• Number of Batteries: 1
• Battery Chemistry: Lead Acid
• Battery Energy: 1555.2 kJ
• Backup/Run Time (Full Load): 7.15 Minute
• Backup/Run Time (Half Load): 25.85 Minute
• Battery Life: 6 Year
• Typical Battery Recharge Time: 3 Hour
• Replaceable Battery: Yes

ENVIRONMENTAL CONDITIONS

• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: 5°F (-15°C) - 113°F (45°C)
• Maximum Operating Elevation: 10000 ft
• Maximum Storage Elevation: 50000 ft
• Storage Relative Humidity: 95%
• Sound Emission (A-Weighted): 45 dB(A)
• Thermal Dissipation: 65.94 W

PHYSICAL CHARACTERISTICS

• Color Family: Black
• Product Color: Black
• Height: 3.4"
• Width: 17"
• Depth: 18.8"
• Rack Height: 2U
• Form Factor: Rack-mountable
• Mounting Preference: Lower
• Mounting Location: Front
• Weight (Approximate): 58.42 lb

PACKAGE CONTENTS:

• Smart-UPS 1500VA Rack-Mountable UPS
• Installation Guide
• Rack Mounting Support Rails
• USB Cable

CERTIFICATIONS & STANDARDS:

• cULus|ENERGY STAR V2.0 (USA)
• Energy Star: Yes
• Product Take Back Program: No
• Mercury Free: Yes

Limited Warranty: 3 Year direct from APC
