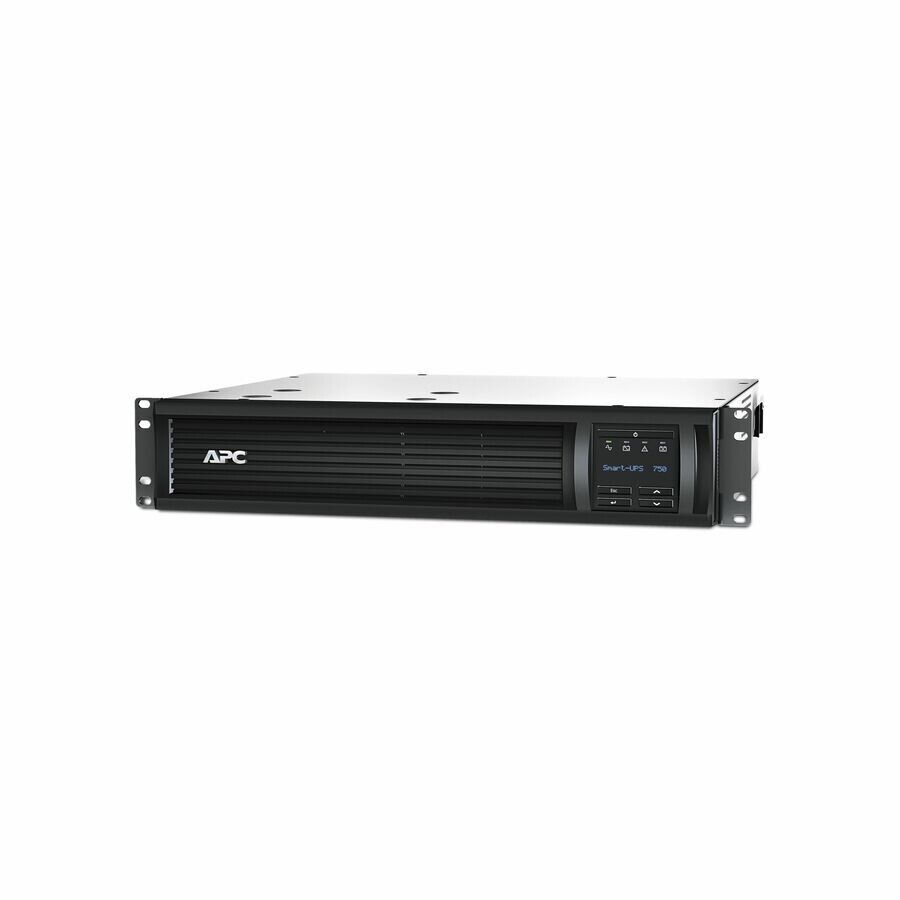

APC SMT750RM2UC Smart UPS 2U Rackmount 6x NEMA 5-15R Outlets 750VA 500W 680J

MARKETING INFORMATION:

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

GENERAL INFORMATION

• Manufacturer: Schneider Electric SA
• Manufacturer Part Number: SMT750RM2UC
• Brand Name: APC by Schneider Electric
• Product Line: Smart-UPS
• Product Name: Smart-UPS 750VA RM 2U 120V with SmartConnect
• Product Type: Line-interactive UPS

TECHNICAL INFORMATION

• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15P

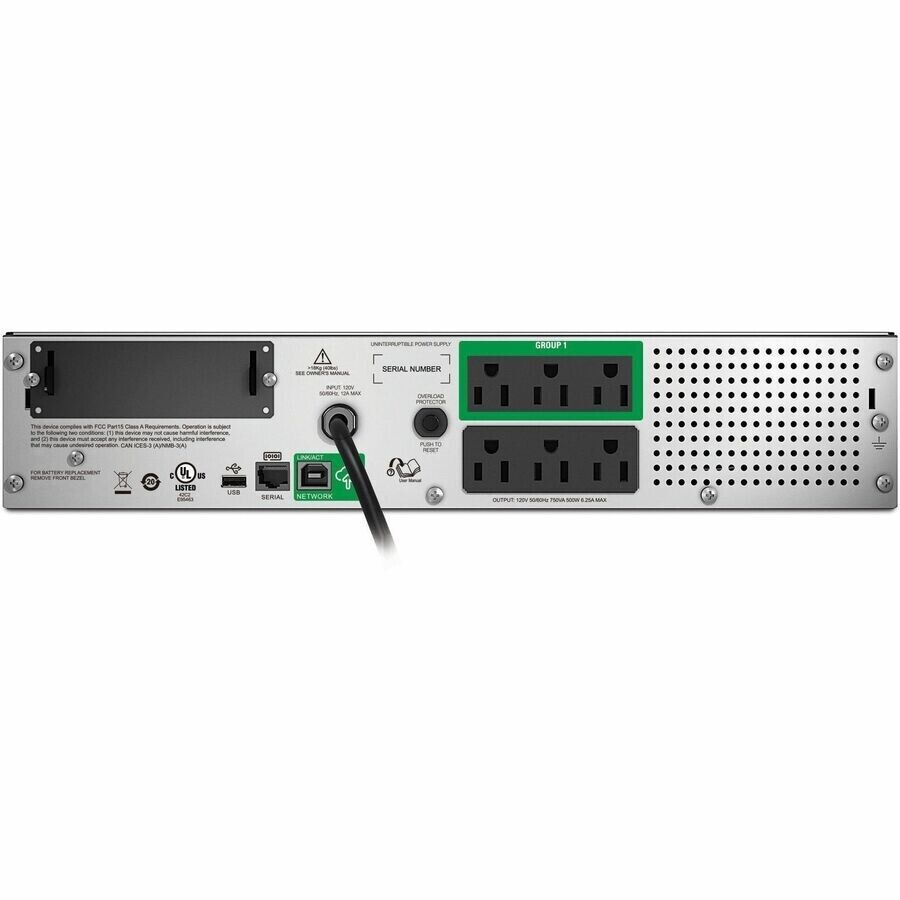

• Receptacle Detail: 6 x NEMA 5-15R
• Number of Battery & Surge Outlets: 6
• Cord Length: 8 ft
• Transfer Time: 10 ms

POWER DESCRIPTION

• Load Capacity (VA): 750 VA
• Load Capacity (Watt): 500 W
• Input Voltage: 120 V
• Input Voltage Range: 75 V AC - 154 V AC
• Output Voltage: 120 V AC
• Waveform Type: Sine Wave
• Surge Energy Rating: 680 J

MANAGEMENT

• Network Management: SmartConnect

BATTERY INFORMATION

• Battery Chemistry: Lead Acid
• Backup/Run Time (Full Load): 5 Minute
• Typical Battery Recharge Time: 3 Hour
• Hot Swappable: Yes

PHYSICAL CHARACTERISTICS

• Color Family: Black
• Product Color: Black
• Height: 3.4"
• Width: 17"
• Depth: 16.1"
• Rack Height: 2U
• Form Factor: Rack-mountable
• Mounting Preference: Lower
• Mounting Location: Front
• Weight (Approximate): 39.02 lb

PACKAGE CONTENTS:

• Smart-UPS 750VA RM 2U 120V with SmartConnect
• Installation guide
• Rack mounting support rails
• USB cable

CERTIFICATIONS & STANDARDS:

• cULus | ENERGY STAR V2.0 (USA)
• Software Included: Powerchute Serial Edition
• Energy Star: Yes
• Optimized Energy Efficiency: Yes
• Mercury Free: Yes

Limited Warranty: 3 Year direct from APC
