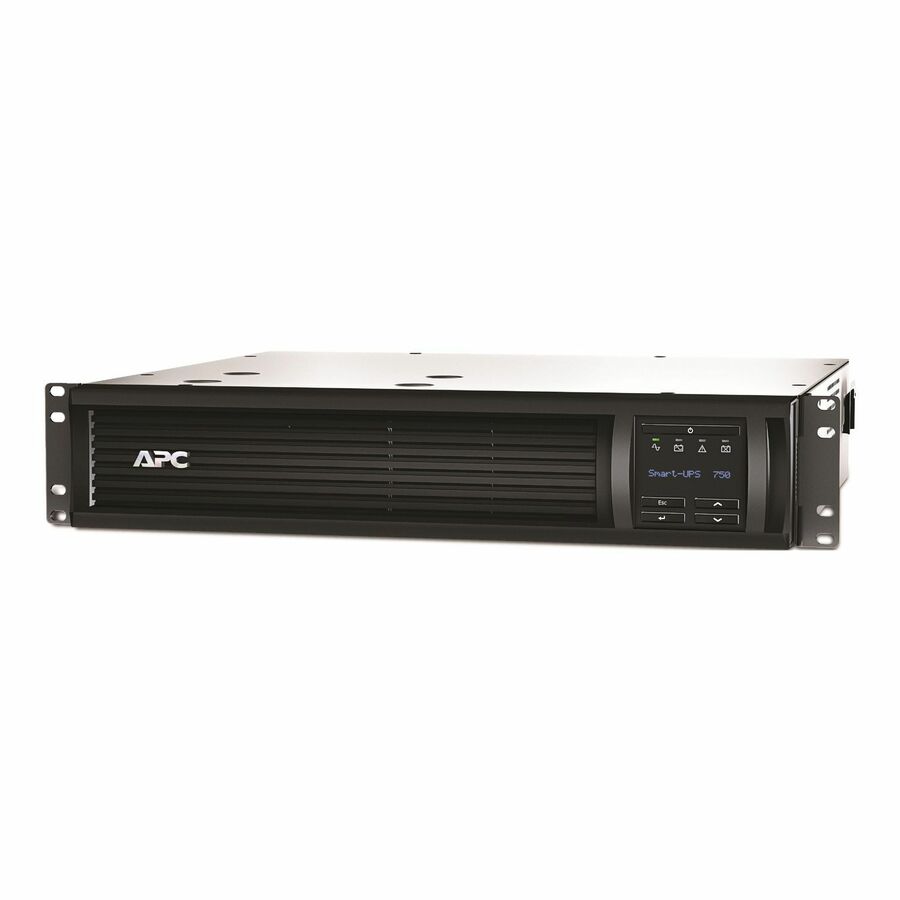

APC SMT750RM2UCNC Smart-UPS, Line Interactive, 750VA, Rackmount 2U

General Information

• Manufacturer: Schneider Electric SA
• Brand Name: APC by Schneider Electric
• Manufacturer Part Number: SMT750RM2UCNC
• Product Line: Smart-UPS
• Product Name: Smart-UPS 750VA Rack-mountable UPS
• Packaged Quantity: 1
• Product Type: Line-interactive UPS

Marketing Information:

• This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

Technical Information

• AVR: Yes
• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15P
• Receptacle Detail: 6 x NEMA 5-15R
• Cord Length: 8 ft
• Transfer Time: 10 ms
• Application/Usage:
  • IT
  • Network
  • Business
  • Critical System
  • Server
  • Virtual Machine
  • Hyperconverged Infrastructure (HCI)
  • Edge Computing
  • Office
  • Infrastructure

Power Description

• Load Capacity (VA): 750 VA
• Load Capacity (Watt): 500 W
• Input Voltage: 120 V
• Input Voltage Range:
• 75 V AC - 154 V AC
• 82 V AC - 144 V AC
• Output Voltage: 120 V AC
• Input Frequency: 60 Hz
• Output Frequency: 60 Hz
• Waveform Type: Sine Wave
• Surge Energy Rating: 680 J

Display & Graphics

• Display: LCD

Management

• Network Management:
• SmartConnect
• Alarm:
  • On Battery
  • Low Battery
  • Configurable Delay

Interfaces/Ports

• USB: Yes

Battery Information

• Battery Chemistry: Lead Acid
• Battery Energy: 604.8 kJ
• Backup/Run Time (Full Load): 5.45 Minute
• Backup/Run Time (Half Load): 16.06 Minute
• Battery Life: 6 Year
• Typical Battery Recharge Time: 3 Hour
• Replaceable Battery: Yes

Environmental Conditions

• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: 5°F (-15°C) - 113°F (45°C)
• Maximum Operating Elevation: 10000 ft
• Maximum Storage Elevation: 50000 ft
• Storage Relative Humidity: 95%
• Sound Emission (A-Weighted): 41 dB(A)
• Thermal Dissipation: 20.51 W

Physical Characteristics

• Color Family: Black
• Product Color: Black
• Height: 3.4"
• Width: 17"
• Depth: 16.1"
• Rack Height: 2U
• Form Factor: Rack-mountable
• Mounting Preference: Lower
• Mounting Location: Front

Miscellaneous

• For Country/Region: United States
• Package Contents:
  • Smart-UPS 750VA Rack-mountable UPS
  • Installation Guide
  • Rack Mounting Support Rails
  • USB Cable
• Energy Star: Yes
• Optimized Energy Efficiency: Yes
• Environmentally Friendly: Yes

Warranty

• Limited Warranty: 3 Year from APC
