APC SMTL750RM2UC Smart-UPS Li-Ion 120V Rack-Mountable 3hr Recharge 6x Outlets

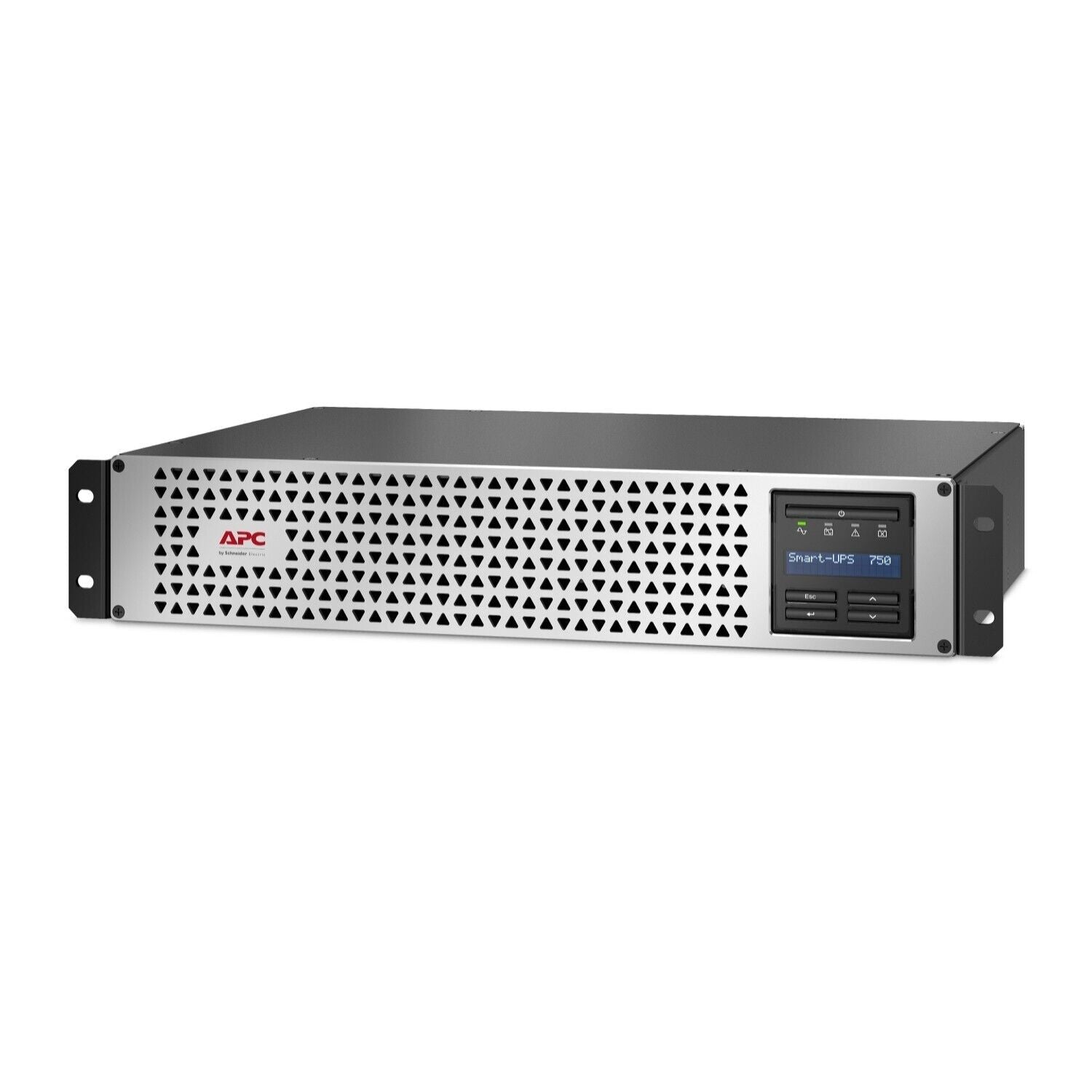

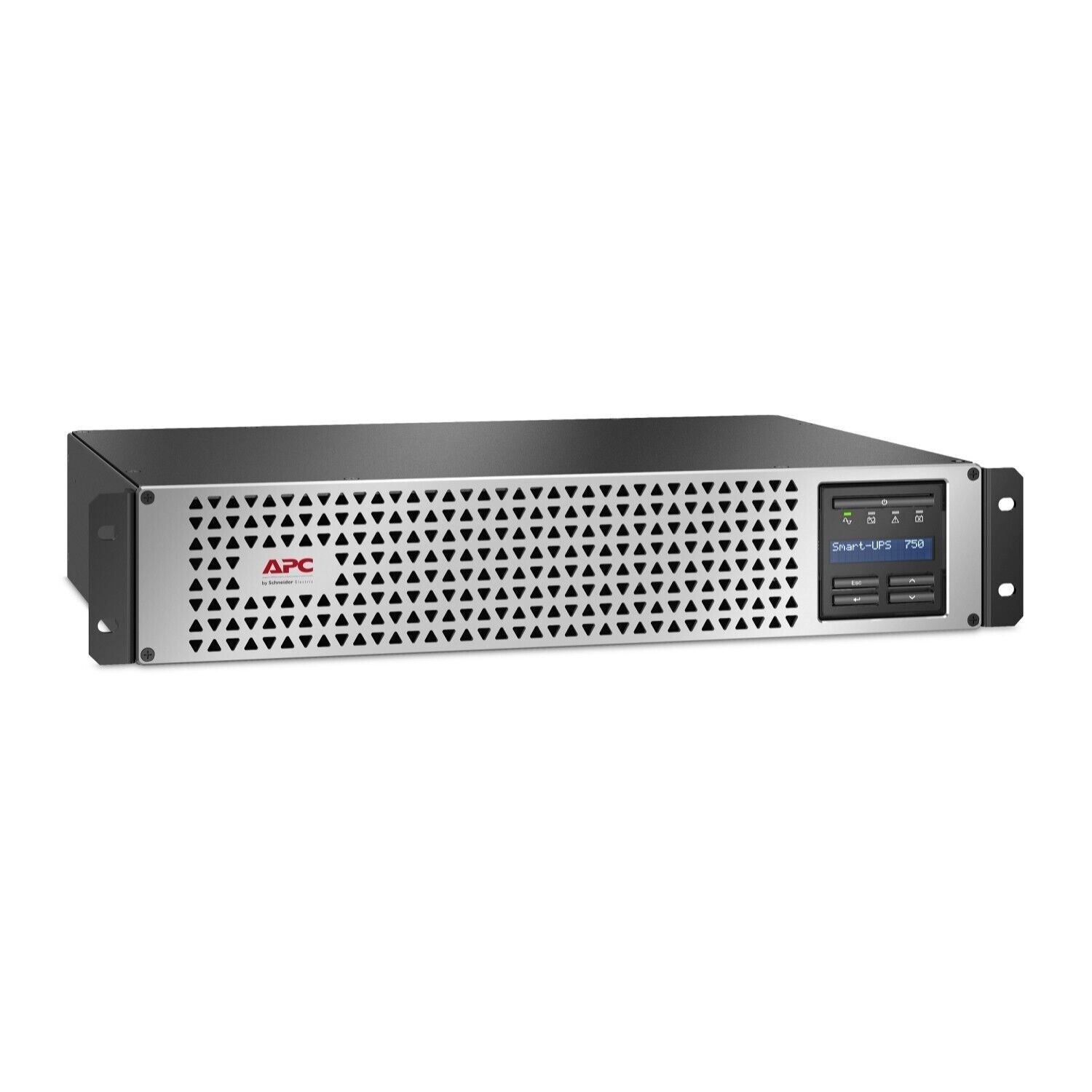

APC by Schneider Electric Smart-UPS SMTL750RM2UC Rack-mountable 750VA UPS (Not for sale in Vermont)

• 2U Rack-mountable-AVR
• 3 Hour Recharge
• 5.70 Minute Stand-by
• 120 V AC Input
• 120 V AC Output
• 6 x NEMA 5-15R

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Smart-UPS™ are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently. Available in a variety of forms factors and classes (entry level, standard and extended run), there is a model for nearly every application and budget. Standard models are the most popular UPS in the world for business servers, storage and network devices and have long been considered the benchmark for reliability and manageability. Entry level Smart-UPS models are an economical choice for small and medium businesses looking to protect small networking devices, point-of-sale (POS) equipment and entry level servers. The extended run models accept external battery packs for long runtime to power critical servers, security and communication systems through outages that could last hours.

Features

• 750VA/600W line interactive pure sine wave 2U rackmount UPS
• Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
• Lithium-ion battery minimizes the need to replace battery during the lifetime of UPS
• Short depth UPS provides extra space for cable management
• Tower convertible with stabilizing feet (sold separately)
• Cloud-based remote power monitoring via SmartConnect Ethernet Port
• Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
• Peace of mind with a 5-year warranty on UPS and battery

General Information

• Product Type: Line-interactive UPS
• Manufacturer Part Number: SMTL750RM2UC
• Manufacturer: Schneider Electric SA
• Product Model: SMTL750RM2UC
• Product Name: Smart-UPS SMTL750RM2UC Rack-mountable 750VA UPS
• Product Line: Smart-UPS
• Brand Name: APC by Schneider Electric

Power Description

• Input Voltage: 120 V
• Output Voltage: 120 V AC
• Surge Energy Rating: 680 J
• Waveform Type: Sine Wave
• Input Voltage Range: 82 V AC - 144 V AC
• Output Frequency: 60 Hz
• Input Frequency: 60 Hz
• Load Capacity (VA): 750 VA
• Load Capacity (Watt): 600 W

Technical Information

• Application/Usage
  • Router
  • POS Terminal
  • Network Hub
  • Switch
  • Communication System
  • Server
  • Security System
  • Network Device
• Overload Protection: Yes
• Plug/Connector Type: NEMA 5-15P
• Cord Length: 8 ft
• Receptacle Type: NEMA 5-15P
• AVR: Yes
• Number of Battery & Surge Outlets: 6
• Transfer Time: 10 ms
• Receptacle Detail: 6 x NEMA 5-15R

Controls/Indicators

• Status Indicators
• LED status indicators: Quickly understand unit and power status with visual indicators.

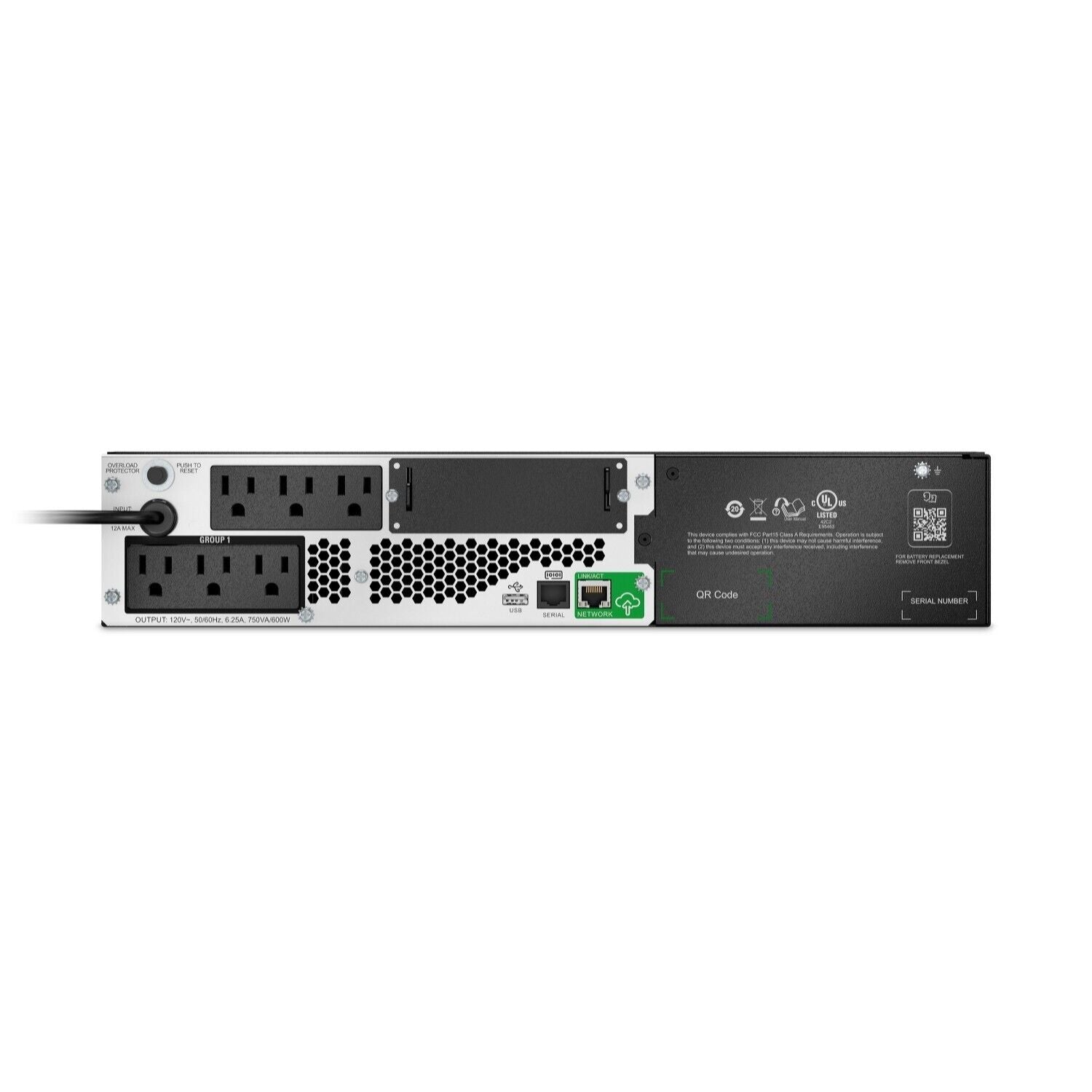

Interfaces/Ports

• Network (RJ-45): Yes
• Serial Port: Yes
• USB (HID Compliant) Port: Yes

Warranty

• Additional Warranty Information 5 year repair or replace
• Limited Warranty 5 Year direct from APC

Management

• Network Management SmartConnect
• Alarm
  • Low Battery
  • Configurable Delay
  • On Battery

Battery Information

• Battery Chemistry: Lithium Ion (Li-Ion)
• Hot Swappable: Yes
• Backup/Run Time (Half Load): 13.80 Minute
• Backup/Run Time (Full Load): 5.70 Minute
• Replaceable Battery: Yes
• Typical Battery Recharge Time: 3 Hour

Physical Characteristics

• Weight (Approximate): 34 lb
• Form Factor: Rack-mountable
• Rack Height: 2U
• Height: 3.4"
• Width: 17.2"
• Depth: 12.5"
• Product Color: Black, Silver
• Mounting Preference: Lower

Package Contents

• Smart-UPS SMTL750RM2UC Rack-mountable 750VA UPS
• CD with software
• Documentation CD
• Installation guide
• Rack mounting support rails
• Smart UPS signalling RS-232 cable
• USB cable
