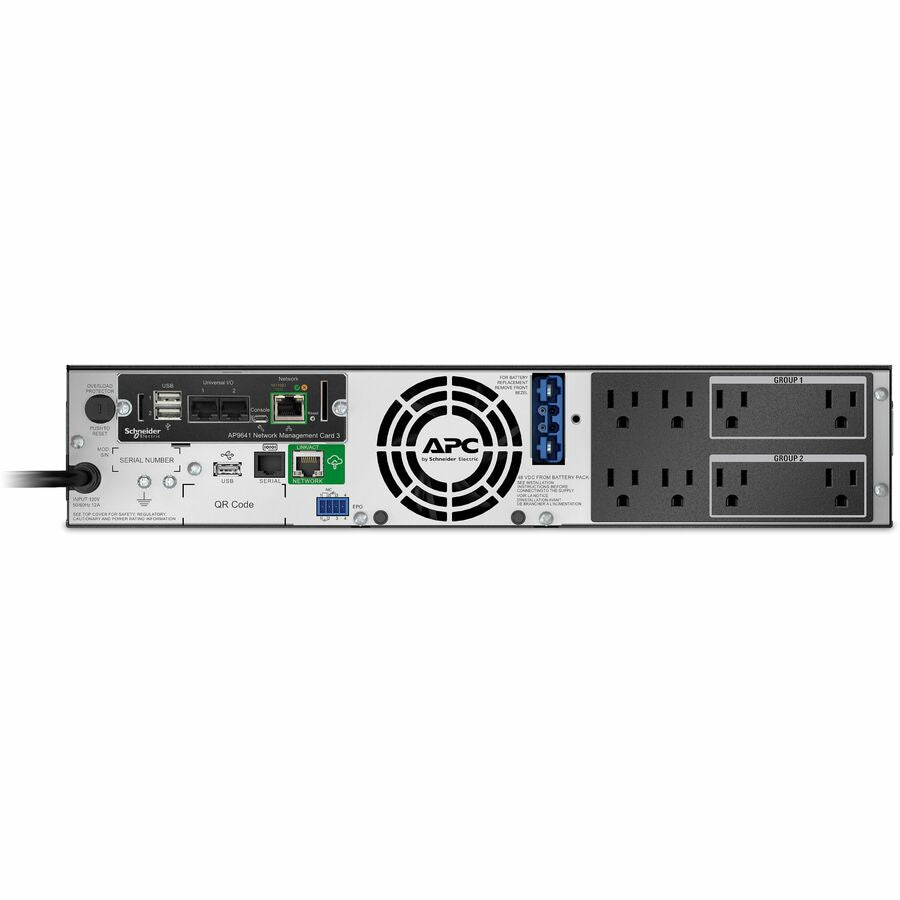

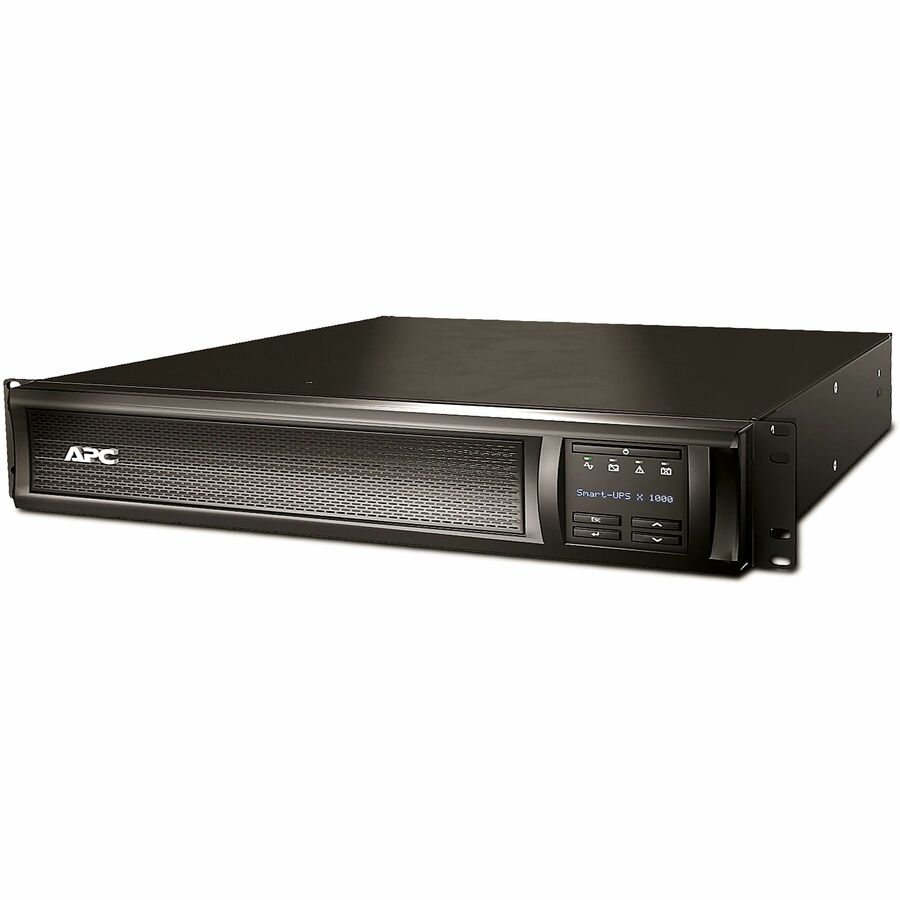

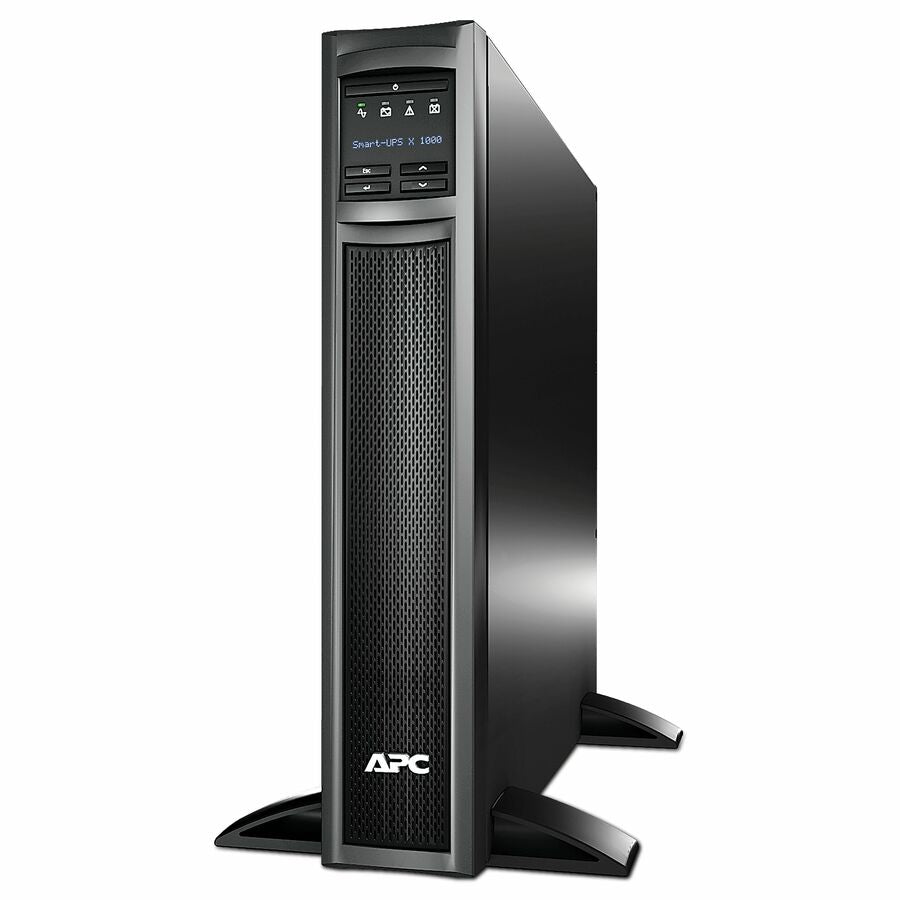

APC SMX1000CNC Smart-UPS X, Line Interactive, 1000VA, Rack/tower convertible 2U

General Information

• Manufacturer: Schneider Electric SA
• Brand Name: APC by Schneider Electric
• Manufacturer Part Number: SMX1000CNC
• Product Name: Smart-UPS SMX 1000VA Tower/Rack Convertible UPS
• Product Line: Smart-UPS
• Product Series: SMX
• Product Type: Line-interactive UPS

Physical Characteristics

• Rack Height: 2U
• Height: 17"
• Width: 3.5"
• Depth: 19.3"
• Product Color: Black
• Color Family: Black
• Mounting Location: Front
• Mounting Preference: Lower

Miscellaneous

• Certifications & Standards: ENERGY STAR V2.0 (USA)|cUL Listed
• Country of Origin: Philippines
• Environmentally Friendly: Yes
• Mercury Free: Yes

Battery Information

• Number of Batteries: 1
• Backup/Run Time (Half Load): 19.70 Minute
• Backup/Run Time (Full Load): 8 Minute
• Typical Battery Recharge Time: 3 Hour

Management

Network Management SmartConnect

Alarm

• Overload
• Low Battery
• On Battery

Power Description

• Surge Energy Rating: 693 J
• Waveform Type: Sine Wave
• Input Frequency: 63 Hz
• Load Capacity (VA): 1000 VA
• Load Capacity (Watt): 900 W

Interfaces/Ports

• Network (RJ-45): Yes
• EPO Port: Yes
• USB (HID Compliant) Port: Yes

Technical Information

• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15P
• Receptacle Detail: 8 x NEMA 5-15R

Warranty

• Additional Warranty Information: 3 years repair or replace for hardware. 2 years for battery, plus 1 additional year if customers registers device to SmartConnect
• Limited Warranty: 3 Year from APC
