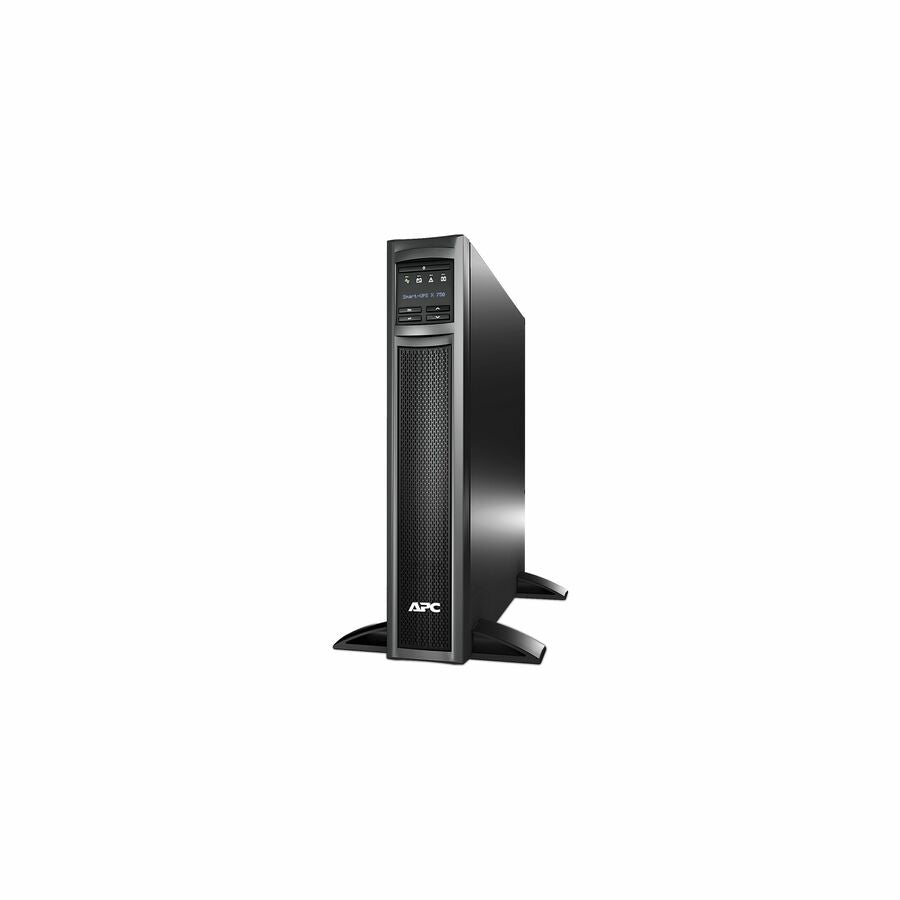

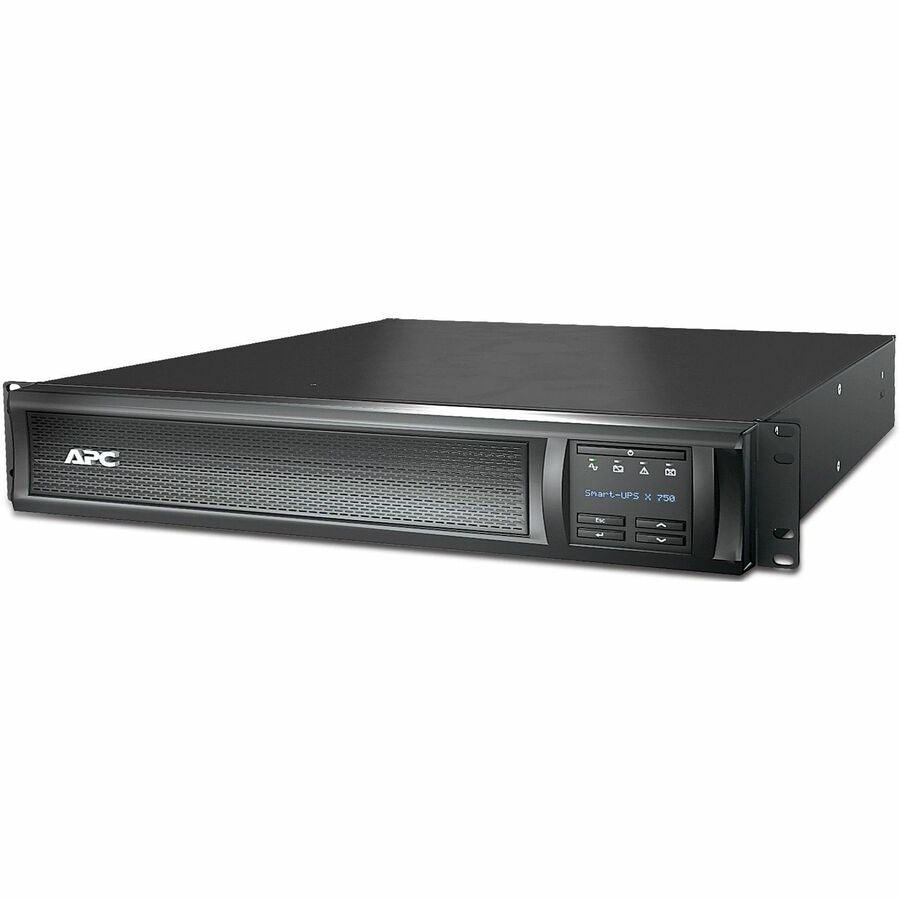

APC SMX750CNC Smart-UPS X, Line Interactive, 750VA, Rack/tower convertible 2U

General Information

• Manufacturer: Schneider Electric SA
• Manufacturer Part Number: SMX750CNC
• Brand Name: APC by Schneider Electric
• Product Line: Smart-UPS
• Product Series: X
• Product Name: Smart-UPS X 750VA Tower/Rack 120V with Network Card and SmartConnect
• Packaged Quantity: 1 Each
• Product Type: Line-interactive UPS

Marketing Information:

• This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 750VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 1 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

Technical Information

• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15P
• Receptacle Detail: 8 x NEMA 5-15R
• Number of Battery & Surge Outlets: 8
• Overload Protection: Yes
• Cord Length: 8 ft
• Application/Usage:
• Server
• POS Terminal
• Router
• Switch
• Network Hub
• Network Device
• IT Equipment
• Electronic Equipment
• Communication System
• Security System
• Business
• IT Infrastructure
• Power Description
• Load Capacity (VA): 750 VA
• Load Capacity (Watt): 675 W
• Input Voltage: 120 V
• Input Voltage Range: 82 V AC - 144 V AC
• Output Voltage: 120 V AC
• Input Frequency: 63 Hz
• Waveform Type: Sine Wave

• Surge Energy Rating: 645 J

Management

• Network Management:
• SmartConnect
• Alarm:
• On Battery
• Low Battery
• Overload
• Error (Continuous Tone)

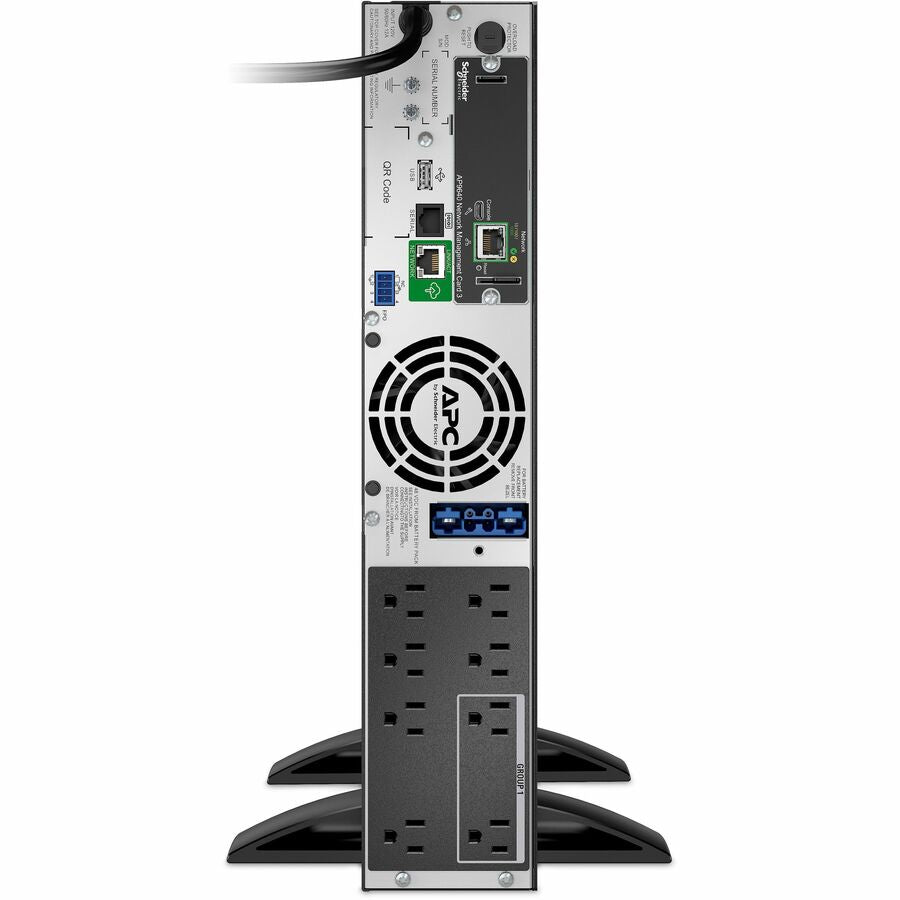

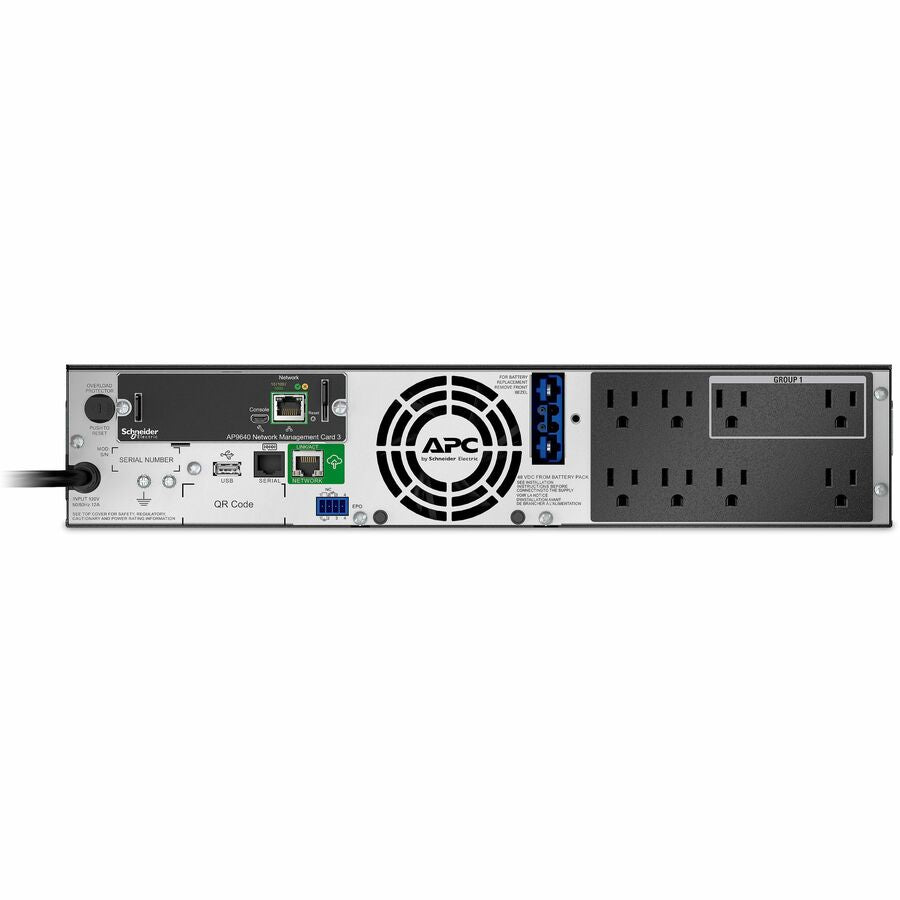

Interfaces/Ports

• Serial Port: Yes
• Network (RJ-45): Yes
• EPO Port: Yes
• USB (HID Compliant) Port: Yes

Battery Information

• Number of Batteries: 5
• Battery Chemistry: Lead Acid
• Backup/Run Time (Full Load): 12 Minute
• Backup/Run Time (Half Load): 25.60 Minute
• Typical Battery Recharge Time: 3 Hour
• Hot Swappable: Yes
• Replaceable Battery: Yes

Physical Characteristics

• Color Family: Black
• Product Color: Black
• Height: 17"
• Width: 3.5"
• Depth: 19.3"
• Rack Height: 2U
• Form Factor: Rack-mountable
• Mounting Preference: Lower

Miscellaneous

• For Country/Region: United States
• Package Contents:
  • Smart-UPS X 750VA Tower/Rack 120V with Network Card and SmartConnect
  • Cat 5 Ethernet cable
  • Installation guide
  • Rack mounting brackets
  • Removable mobile power pack
  • Smart UPS signalling RS-232 cable
  • USB cable
• Country of Origin: Philippines
• Environmentally Friendly: Yes

Warranty

• Limited Warranty: 3 Year from APC
