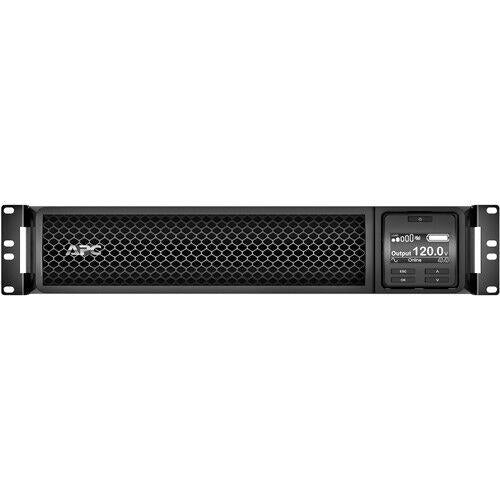

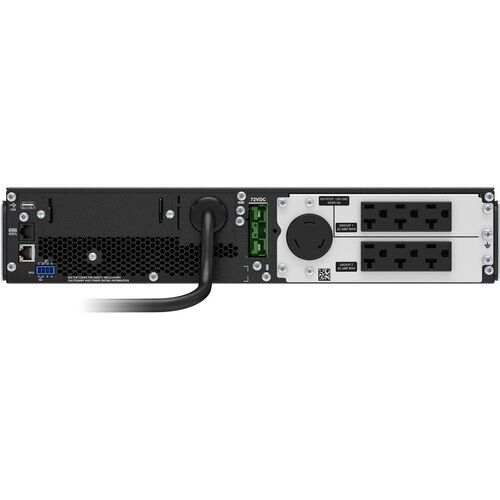

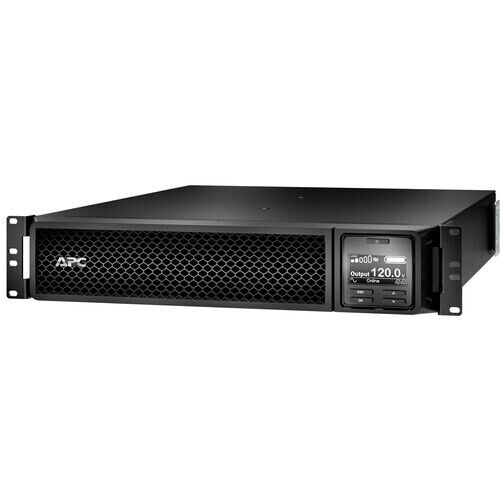

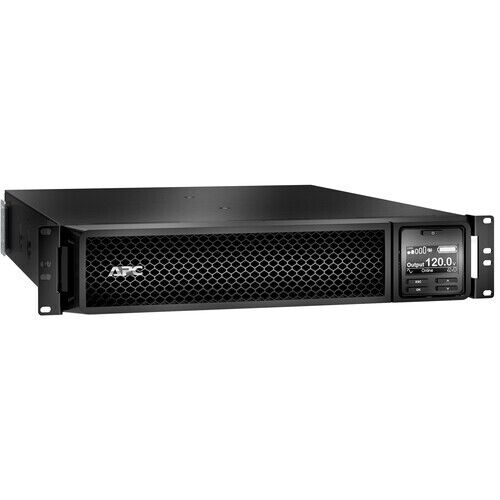

APC SRT2200RMXLA Smart UPS Online 2U Rack 6x Outlets S.Slot 2200VA 1800W 340J

MARKETING INFORMATION:

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-20P input, 6x NEMA 5-20R and 1x NEMA L5-20R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.

GENERAL INFORMATION

• Manufacturer: Schneider Electric SA
• Manufacturer Part Number: SRT2200RMXLA
• Brand Name: APC by Schneider Electric
• Product Line: Smart-UPS
• Product Name: Smart-UPS SRT 2200VA RM 120V
• Product Type: Double Conversion Online UPS

TECHNICAL INFORMATION

• Plug/Connector Type: NEMA 5-20P
• Receptacle Type: NEMA 5-20P
• Receptacle Detail:
  • 1 x NEMA L5-20R
  • 6 x NEMA 5-20R
• Number of Battery & Surge Outlets: 7
• Cord Length: 6 ft

APPLICATION/USAGE:

• Server
• Network Workstation
• POWER DESCRIPTION
• Load Capacity (VA): 2200 VA
• Load Capacity (Watt): 1800 W
• Input Voltage: 120 V
• Output Voltage: 120 V AC
• Input Frequency: 70 Hz
• Waveform Type: Sine Wave
• Surge Energy Rating: 340 J

MANAGEMENT

• Network Management: SmartSlot

CONTROLS/INDICATORS

• Status Indicators: LCD Display

INTERFACES/PORTS

• EPO Port: Yes

BATTERY INFORMATION

• DC System Voltage: 72 V DC
• Number of Batteries: 1
• Battery Chemistry: Lead Acid
• Battery Energy: 1101.6 kJ
• Battery Life: 5 Year
• Typical Battery Recharge Time: 3 Hour
• Hot Swappable: Yes
• Replaceable Battery: Yes

ENVIRONMENTAL CONDITIONS

• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: -4°F (-20°C) - 122°F (50°C)
• Maximum Operating Elevation: 10000 ft
• Maximum Storage Elevation: 50000 ft
• Storage Relative Humidity: 0% - 95%
• Sound Emission (A-Weighted): 55 dB(A)
• Thermal Dissipation: 156.79 W

PHYSICAL CHARACTERISTICS

• Color Family: Black
• Product Color: Black
• Height: 3.3"
• Width: 17"
• Depth: 23"
• Rack Height: 2U
• Form Factor: Rack-mountable
• Mounting Preference: Lower
• Weight (Approximate): 55.01 lb

PACKAGE CONTENTS:

• Smart-UPS SRT 2200VA RM 120V
• CD with software
• Documentation CD
• Installation guide
• Rack mounting brackets
• Rack mounting hardware
• Rack mounting support rails
• USB cable
• Warranty card

CERTIFICATIONS & STANDARDS:

• ENERGY STAR V2.0 (USA)
• Software Included: Powerchute Serial Edition
• Energy Star: Yes
• Optimized Energy Efficiency: Yes
• Product Take Back Program: Yes
• Mercury Free: Yes

Limited Warranty: 3 Year direct from APC
