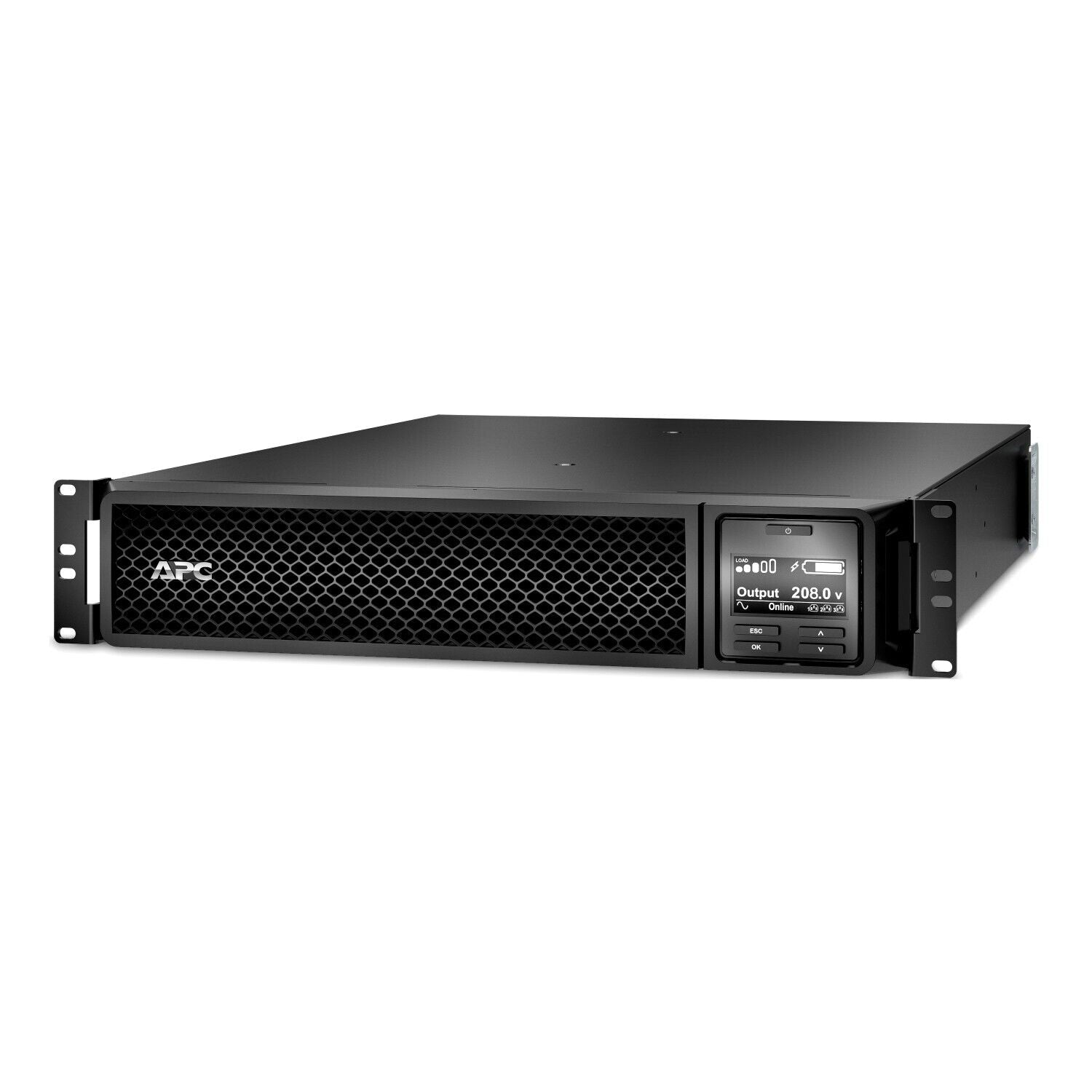

APC SRT3000RMXLT-NC Smart-UPS SRT 2U Rack-Mountable 6x Battery/Surge Outlets

APC by Schneider Electric Smart-UPS SRT 3000VA RM 208V Network Card

• 2U Rack-mountable
• 3 Hour Recharge
• 208 V Input
• 208 V AC Output
• Sine Wave

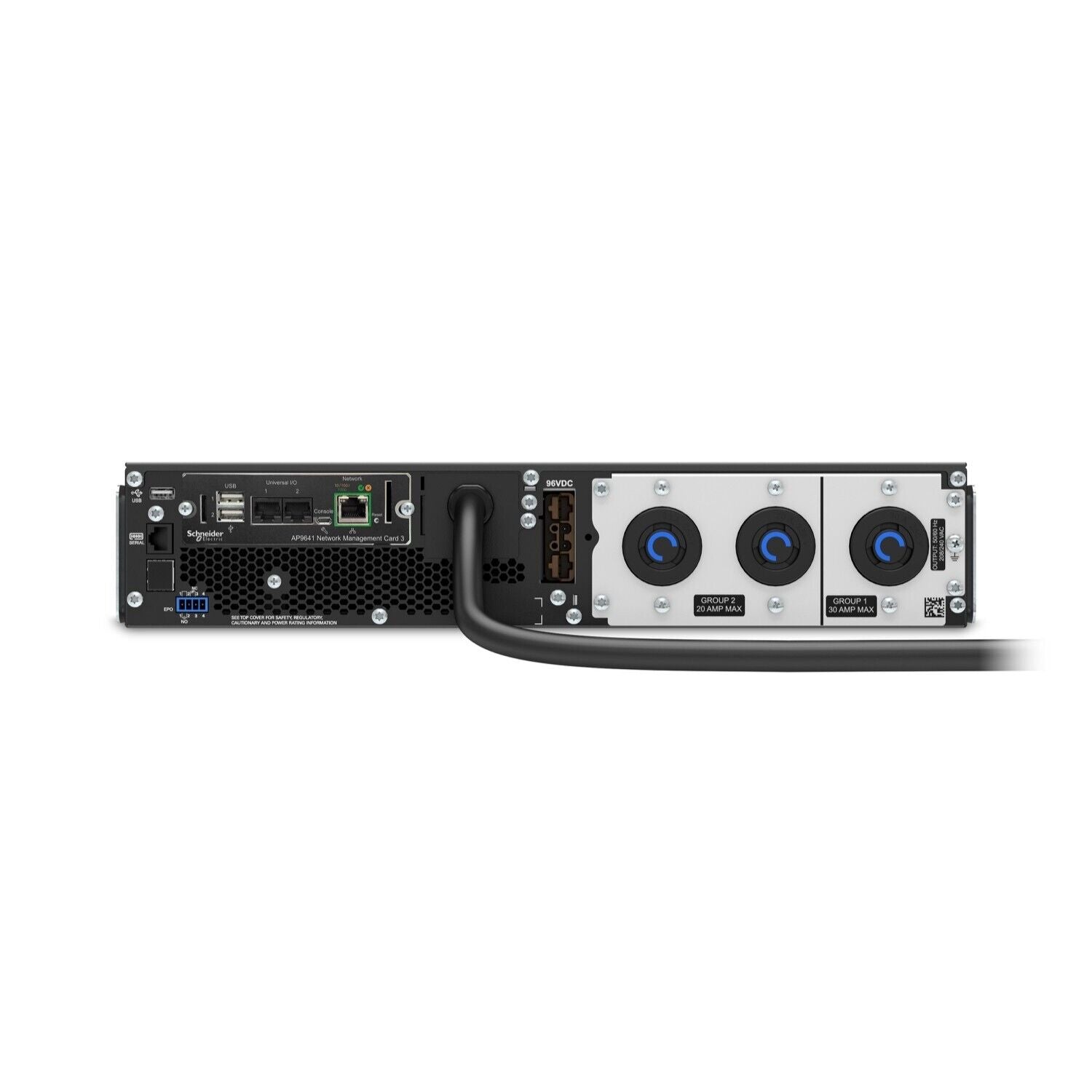

• 1 x NEMA L6-30R
• 2 x NEMA L6-20R
• 3 x Battery/Surge Outlet

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Features

• Battery failure notification - Provides early-warning fault analysis on batteries enabling timely preventive maintenance
• ECO Mode - Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
• Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
• LCD graphics display - Text and mimic diagrams that display modes of operation, system parameters and alarms.
• Rack/Tower convertible - Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

General Information

• Product Type: Double Conversion Online UPS
• Manufacturer Part Number: SRT3000RMXLT-NC
• Manufacturer: Schneider Electric SA
• Product Name: Smart-UPS SRT 3000VA RM 208V Network Card
• Product Line: Smart-UPS
• Brand Name: APC by Schneider Electric

Technical Information

• Plug/Connector Type: NEMA L6-20P
• Cord Length: 10 ft
• Receptacle TypeL NEMA L6-20P
• Number of Battery & Surge Outlets: 3
• Receptacle Detail: 1 x NEMA L6-30R
• 2 x NEMA L6-20R

Power Description

• Input Voltage: 208 V
• Output Voltage: 208 V AC
• Surge Energy Rating: 340 J
• Waveform Type: Sine Wave
• Load Capacity (VA): 3000 VA
• Load Capacity (Watt): 2700 W

Battery Information

• Battery Chemistry: Lead Acid
• Typical Battery Recharge Time: 3 Hour

Warranty Direct from APC

• Additional Warranty Information: 3 years repair or replace (excluding battery) and 2 years for battery
• Limited Warranty: 3 Year

Physical Characteristics

• Weight (Approximate): 69 lb
• Form Factor: Rack-mountable
• Rack Height: 2U
• Height: 3.3"
• Width: 17"
• Depth: 25"
• Product Color: Black
• Color Family: Black
• Mounting Preference: Lower

Package Contents

• Smart-UPS SRT 3000VA RM 208V Network Card
• CD with software
• Documentation CD
• Installation guide
• Network management card
• Rack mounting brackets
• Rack mounting hardware
• Rack mounting support rails
• USB cable
• Warranty card
