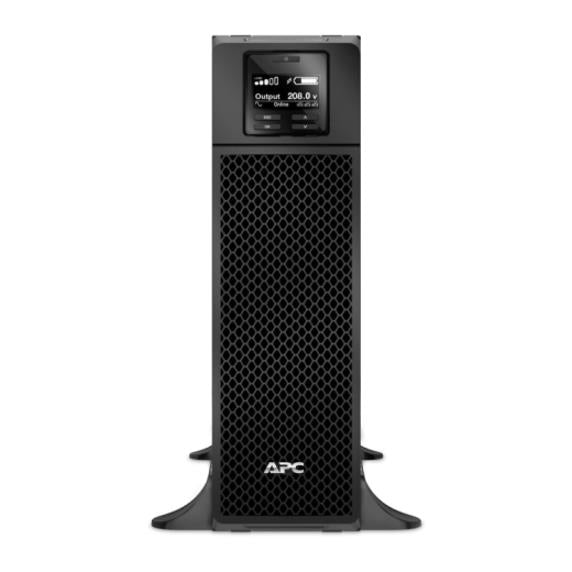

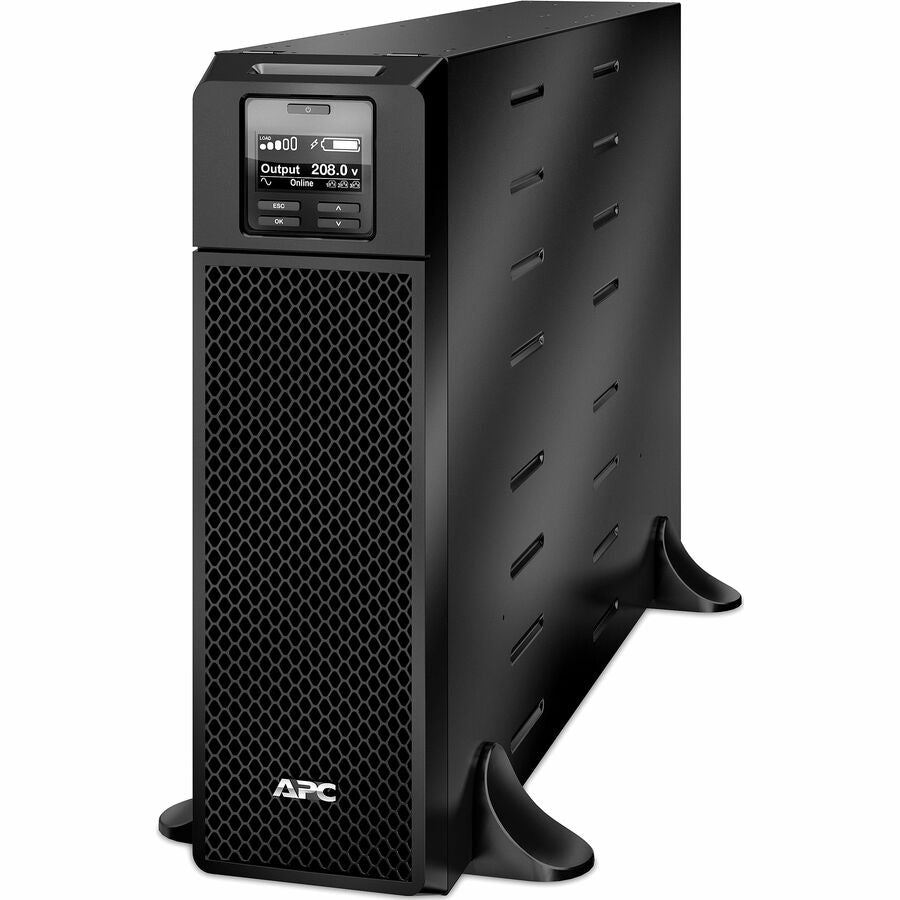

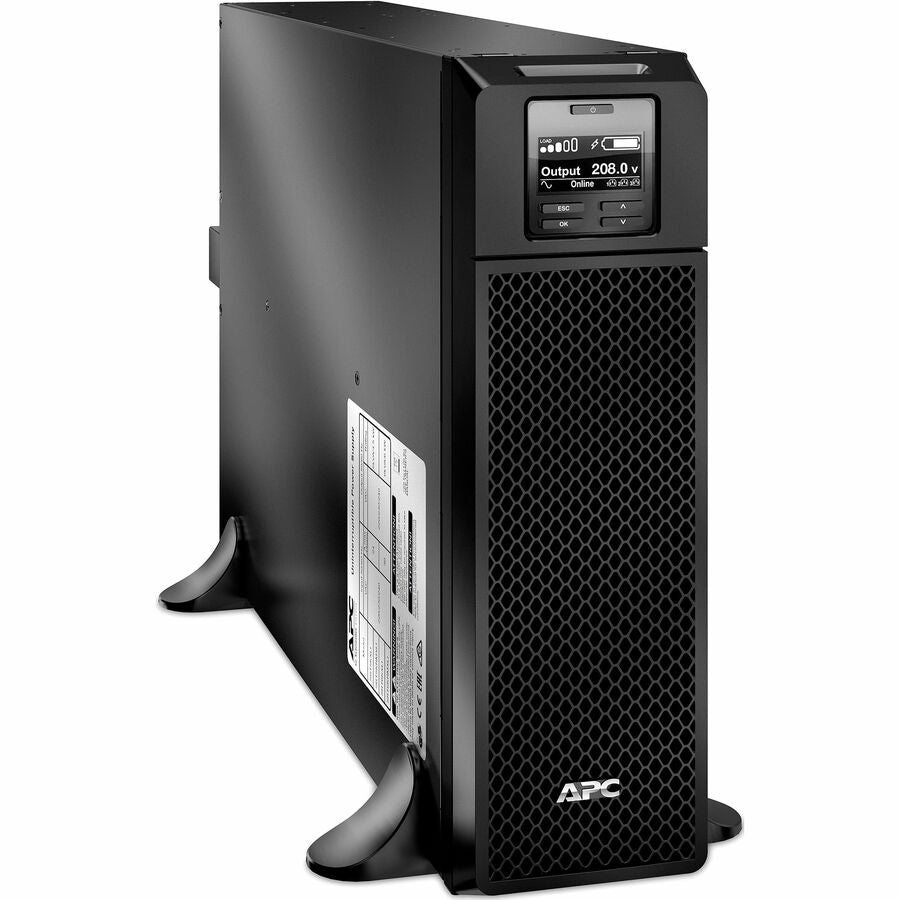

APC SRT5KXLT Smart-UPS On-Line, 5.4kVA, Tower, 208V, 2x L6-20R+2x L6-30R

General Information

• Manufacturer: Schneider Electric SA
• Brand Name: APC by Schneider Electric
• Manufacturer Part Number: SRT5KXLT
• Product Line: Smart-UPS On-Line
• Product Name: Smart-UPS SRT 5000VA 208V
• Product Type: Double Conversion Online UPS

Marketing Information:

• This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA L6-30P input, 2x NEMA L6-30R and 2x L6-20R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately.

Technical Information

• Plug/Connector Type: NEMA L6-30P
• Receptacle Type:
• NEMA L6-30P

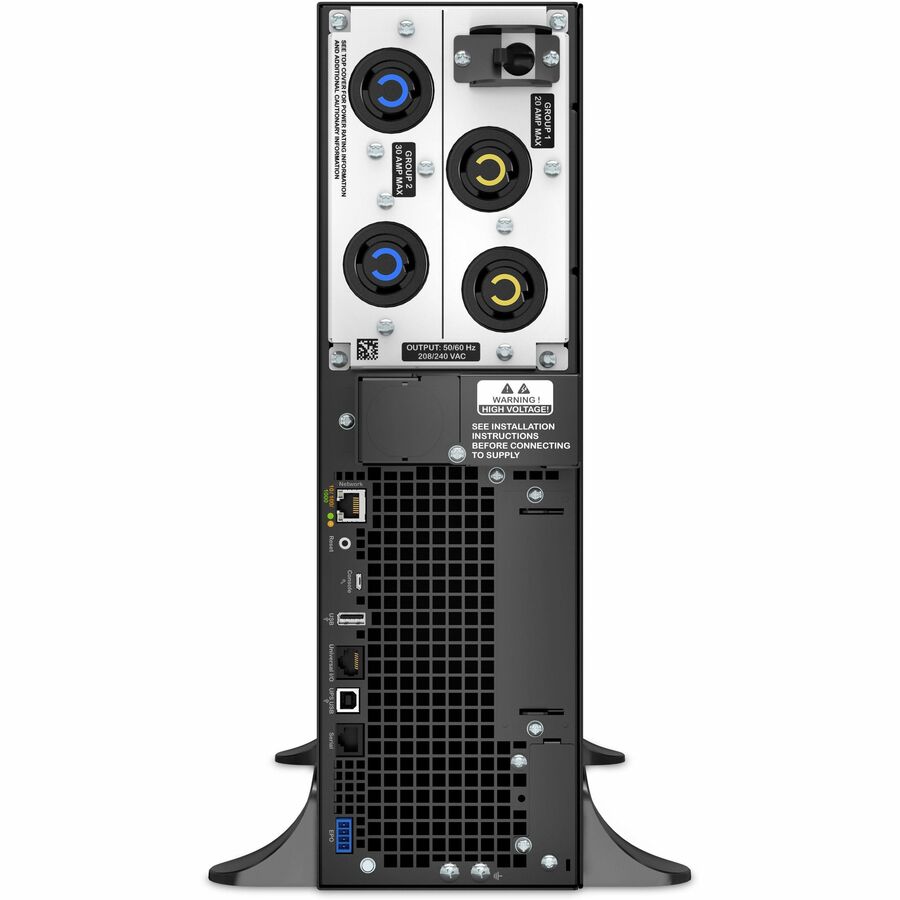

• Receptacle Detail:
• 2 x NEMA L6-20R
• 2 x NEMA L6-30R
• Number of Battery & Surge Outlets: 4
• Cord Length: 10 ft

Power Description

• Load Capacity (VA): 5400 VA
• Load Capacity (Watt): 4250 W
• Input Voltage: 208 V
• Output Voltage: 208 V AC
• Waveform Type: Sine Wave
• Surge Energy Rating: 480 J

Battery Information

• Battery Chemistry: Lead Acid
• Typical Battery Recharge Time: 1.50 Hour

Physical Characteristics

• Color Family: Black
• Product Color: Black
• Height: 17"
• Width: 5.1"
• Depth: 28.3"
• Form Factor: Rack-mountable
• Mounting Preference: No Preference
• Mounting Location: Front

Miscellaneous

• For Country/Region: United States
• Package Contents:
  • Smart-UPS SRT 5000VA 208V
  • CD with software
  • Documentation CD
  • Installation guide
  • Removable support feet
  • Temperature probe
  • USB cable
  • Warranty card
  • Web/SNMP management card
• Certifications & Standards: ENERGY STAR V2.0 (USA)|NOM
• Energy Star: Yes
• Optimized Energy Efficiency: Yes
• Environmentally Friendly: Yes

Warranty

• Limited Warranty: 3 Year from APC
