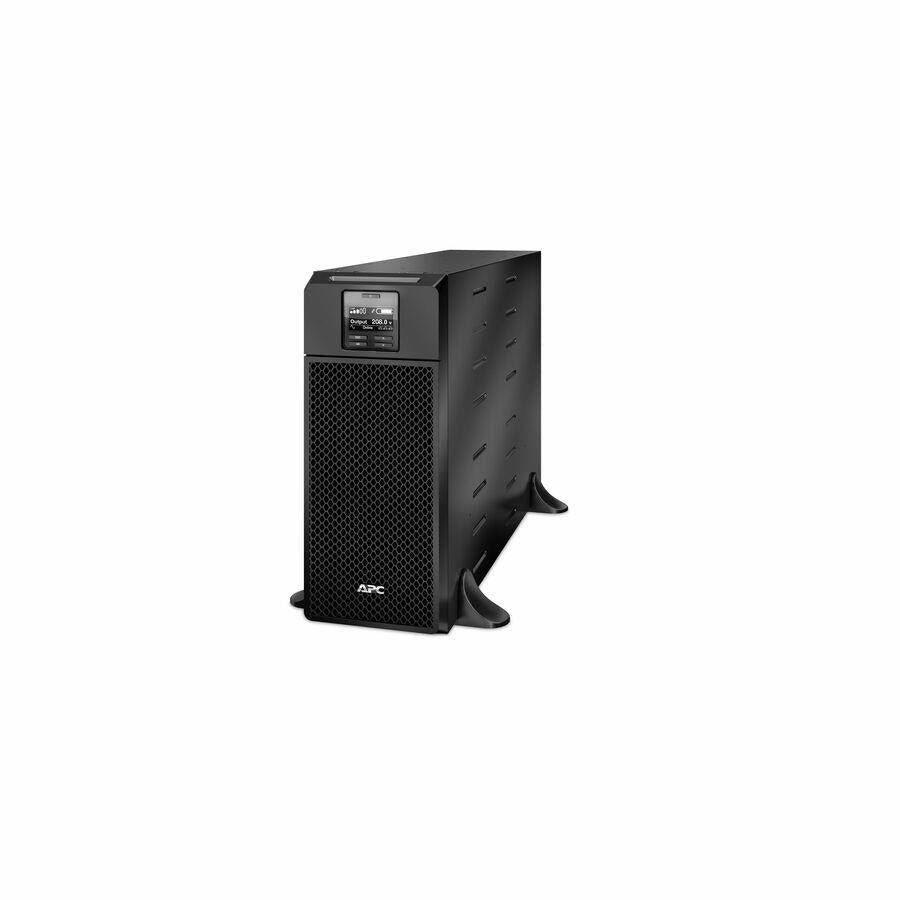

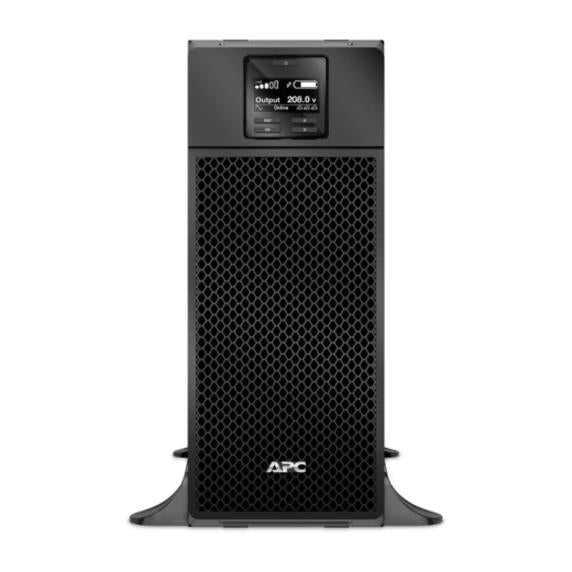

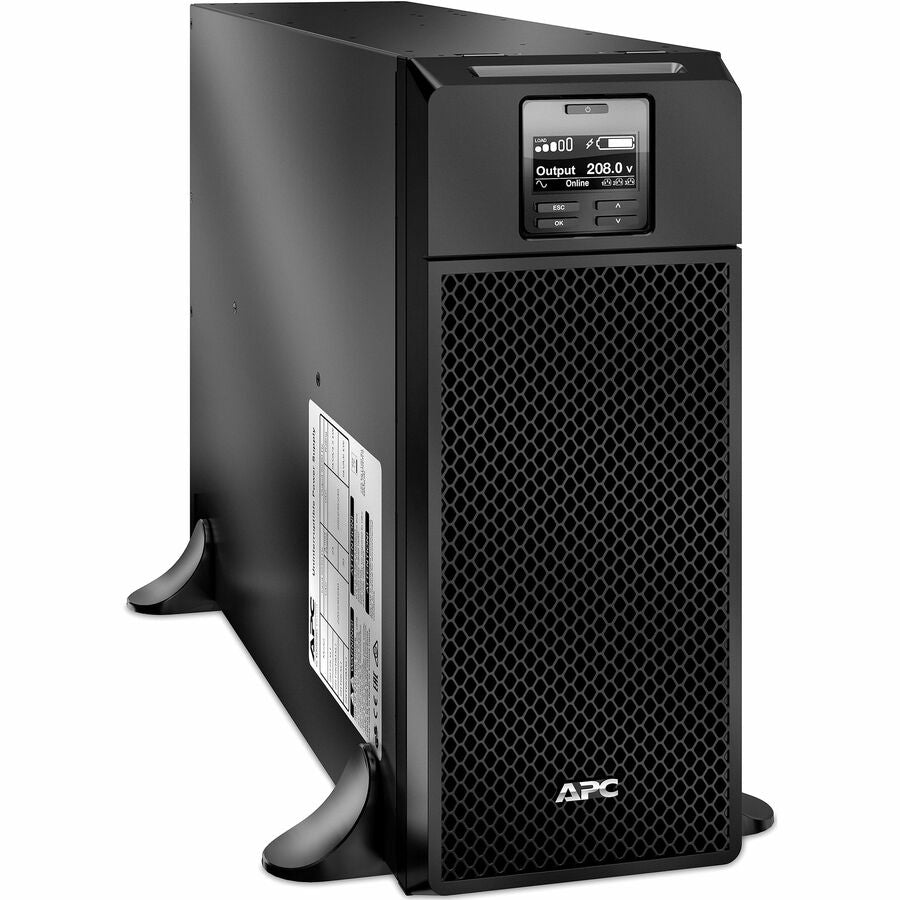

APC SRT6KXLT Smart-UPS On-Line, 6kVA/6kW, Tower, 208V, 2x L6-20R+3x L6-30R NEMA

General Information

• Manufacturer: Schneider Electric SA
• Brand Name: APC by Schneider Electric
• Manufacturer Part Number: SRT6KXLT
• Product Line: Smart-UPS On-Line
• Product Name: Smart-UPS SRT 6000VA 208V
• Marketing Information:
• This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 3x NEMA L6-30R and 2x L6-20R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately.

Packaged Quantity: 1 Each

• Product Type: Double Conversion Online UPS

Technical Information

• Receptacle Type:
• NEMA L6-20R
• NEMA L6-30R

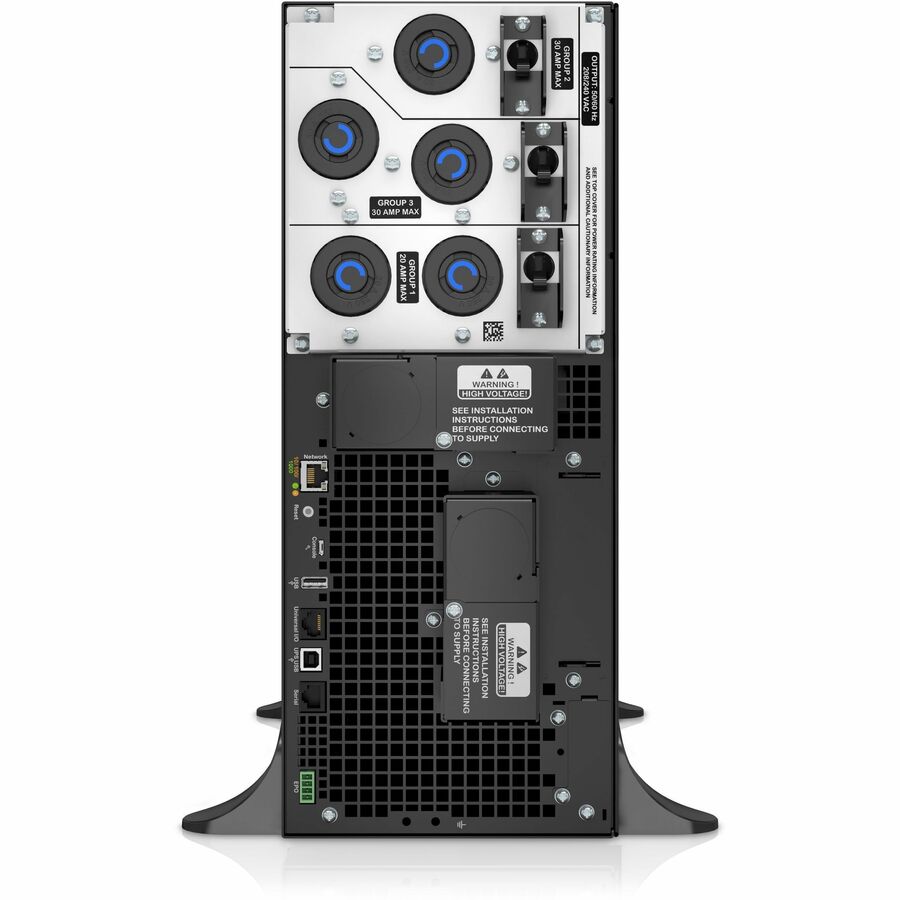

• Receptacle Detail:
• 1 x Hard Wire 3-wire (2PH + G)
• 2 x NEMA L6-20R
• 3 x NEMA L6-30R
• Number of Battery & Surge Outlets: 5

Power Description

• Load Capacity (VA): 6000 VA
• Load Capacity (Watt): 6000 W
• Input Voltage: 208 V
• Output Voltage: 208 V AC
• Waveform Type: Sine Wave
• Surge Energy Rating: 480 J

Battery Information

• Battery Chemistry: Lead Acid
• Backup/Run Time (Full Load): 2 Minute
• Typical Battery Recharge Time: 1.50 Hour

Physical Characteristics

• Color Family: Black
• Product Color: Black
• Height: 17"
• Width: 6.9"
• Depth: 28.3"
• Form Factor: Rack-mountable
• Mounting Preference: No Preference
• Mounting Location: Vertical

Miscellaneous

Package Contents:

• Smart-UPS SRT 6000VA 208V
• CD with software
• Documentation CD
• Installation guide
• Removable support feet
• Temperature probe
• USB cable
• User manual
• Warranty card
• Web/SNMP management card

Certifications & Standards: ENERGY STAR V2.0 (USA)|FCC part 15 class A|NOM|UL 1778

Energy Star: Yes

Warranty

• Limited Warranty: 3 Year from APC
