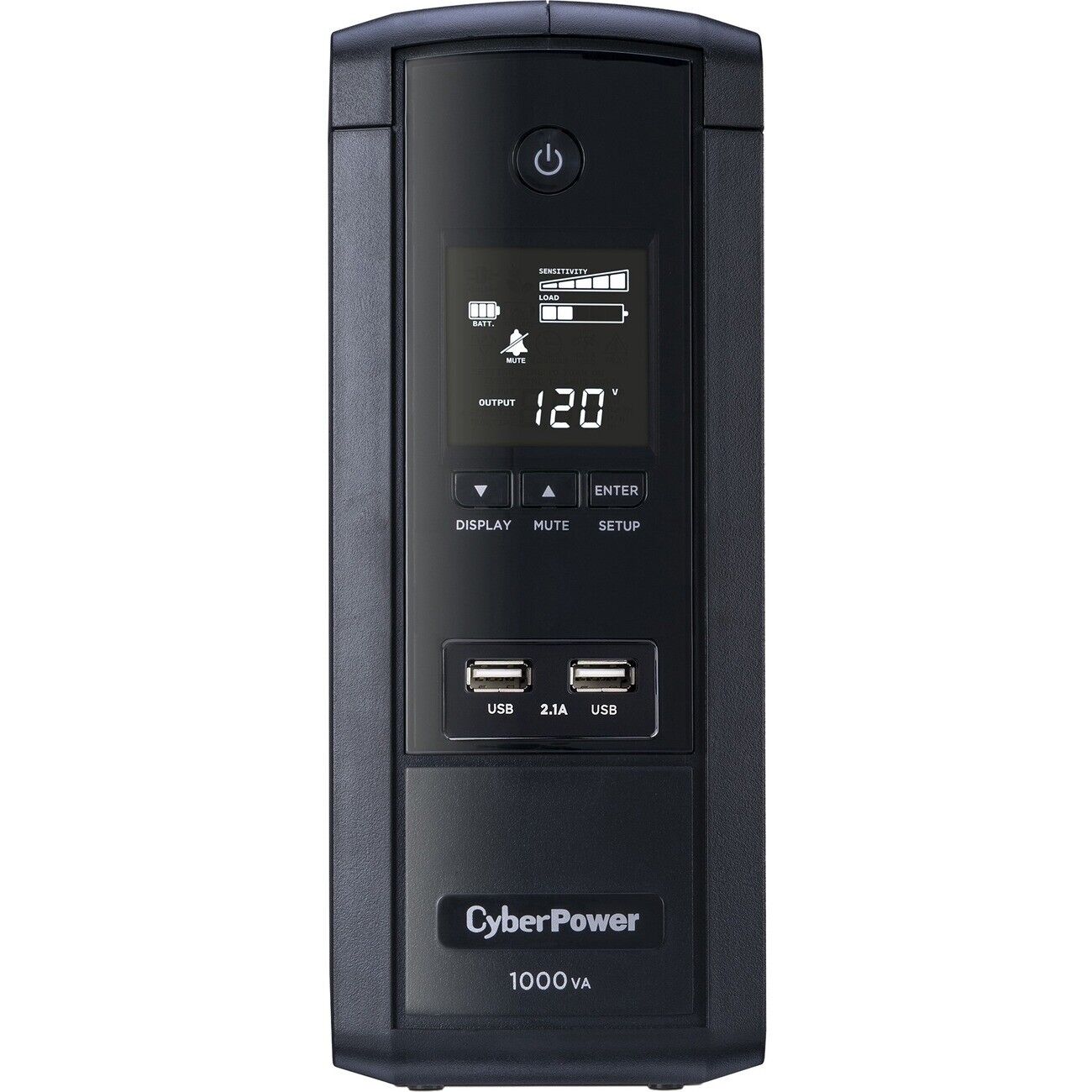

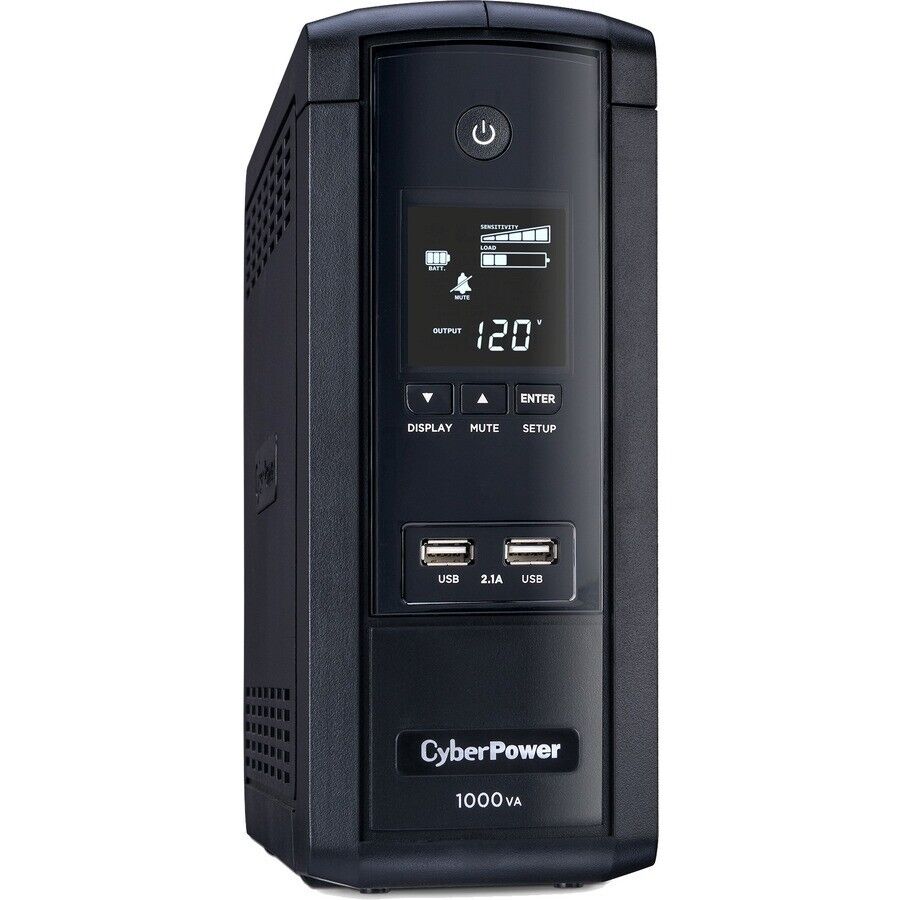

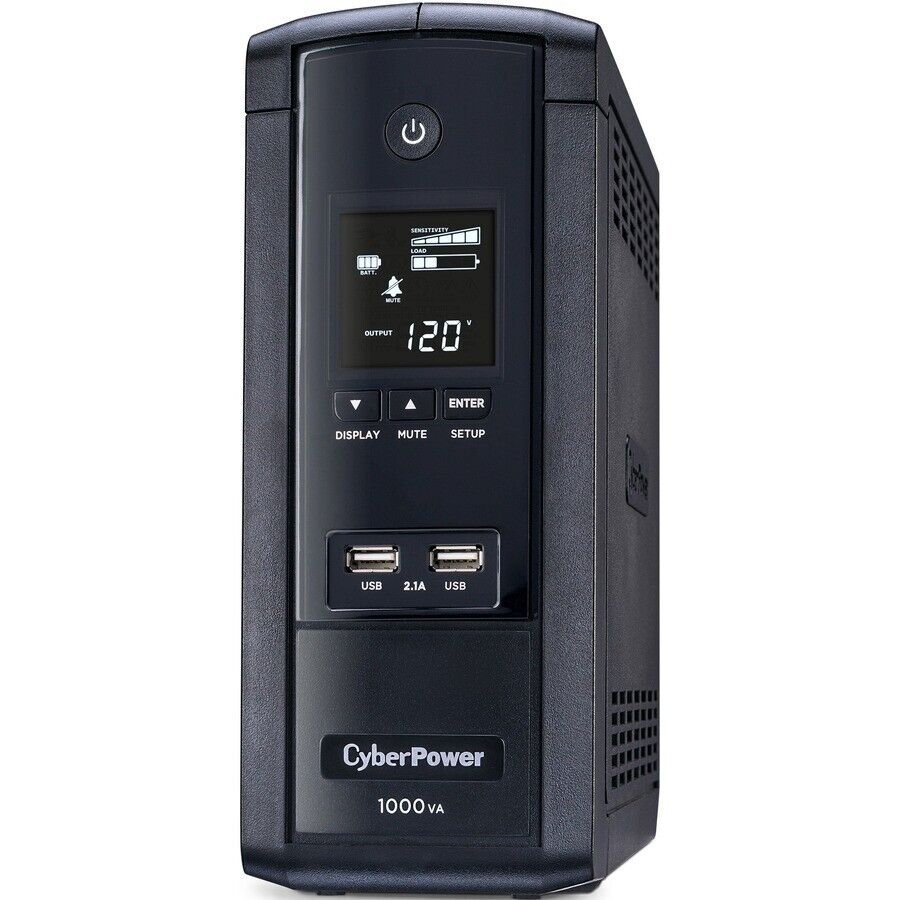

CyberPower BRG1000AVRLCD 10 Outlets Intelligent LCD UPS System 1000VA 600W 120V

General Information

• Manufacturer: CyberPower Systems, Inc
• Manufacturer Part Number: BRG1000AVRLCD
• Brand Name: CyberPower
• Product Series: Intelligent LCD UPS
• Product Model: BRG1000AVRLCD
• Product Name: 1000VA BRG1000AVRLCD UPS with 600W, AVR, LCD, and 2.1 USB Charging
• Product Type: Line-interactive UPS

Marketing Information

A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD Series BRG1000AVRLCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems.

The BRG1000AVRLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. Two USB charge ports power portable devices such as mobile phones and tablets, even during a utility power failure.

Technical Information

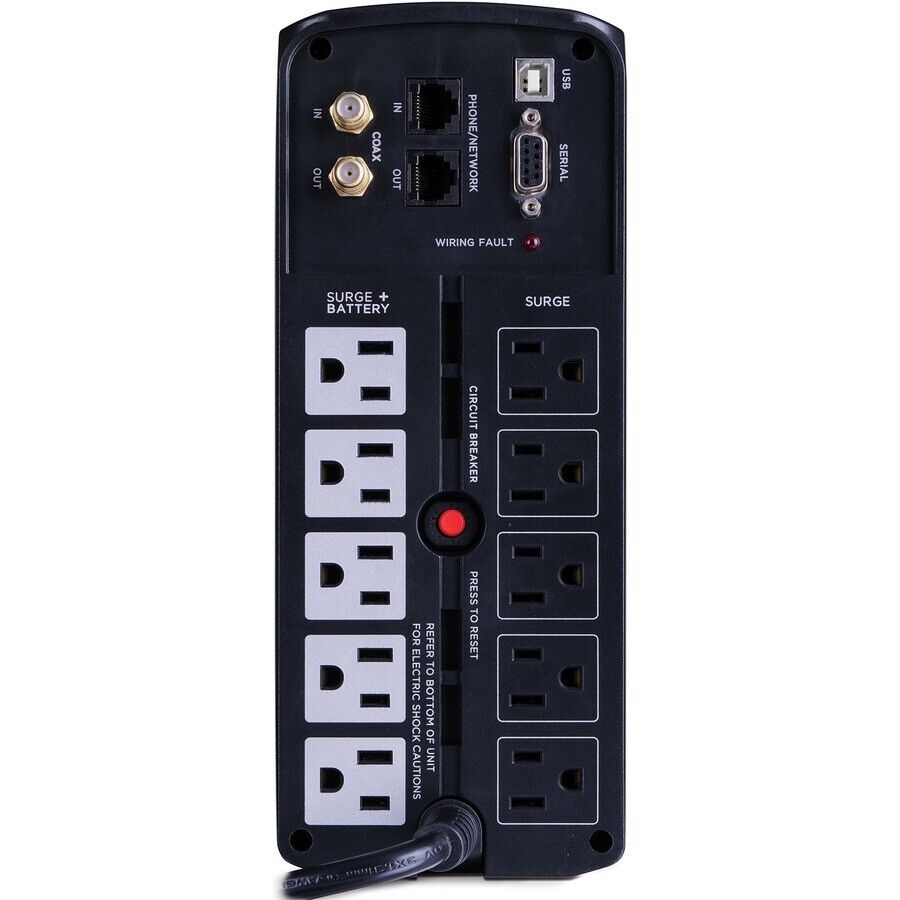

• Plug/Connector Type: NEMA 5-15P
• Receptacle Type:
  • NEMA 5-15R
  • USB
• Receptacle Detail:
  • 10 x NEMA 5-15R
  • 2 x USB
• Number of Battery & Surge Outlets: 5
• Number of Surge-only Outlets: 5
• Dataline Protection:
  • RJ-45
  • RG-6
• Overload Protection: Yes
• Cord Length: 6 ft
• Transfer Time: 4 ms
• EMI/RFI Noise Filter: Yes
• Energy Saving: GreenPower UPS™ Bypass Technology

Power Description

• Load Capacity (VA): 1000 VA
• Load Capacity (Watt): 600 W
• Input Voltage: 120 V AC
• Input Voltage Range: 90 V AC - 148 V AC
• Output Voltage: 120 V AC
• Input Frequency: 63 Hz
• Waveform Type: Simulated Sine Wave
• Surge Energy Rating: 1080 J
• Circuit Breaker: Yes

Management

• Alarm: Battery Mode

Status Indicators:

• LCD : Multifunction LCD
• LED Indicators : Power On

Interfaces/Ports

• Serial Port: Yes
• USB (HID Compliant) Port: Yes

Battery Information

• Number of Batteries: 1
• Battery Characteristics: Maintenance-free
• Battery Chemistry: Lead Acid
• Battery Size: 12V
• Battery Capacity: 9000 mAh
• Backup/Run Time (Full Load): 1 Minute
• Backup/Run Time (Half Load): 9 Minute
• Typical Battery Recharge Time: 8 Hour
• Hot Swappable: No
• Replaceable Battery: Yes

Environmental Conditions

• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: 5°F (-15°C) - 113°F (45°C)
• Maximum Operating Elevation: 10000 ft
• Maximum Storage Elevation: 50000 ft

Physical Characteristics

• Color Family: Black
• Product Color: Black
• Height: 9.7"
• Width: 3.9"
• Depth: 10.2"
• Form Factor: Mini-tower
• Weight (Approximate): 15 lb

Package Contents:

• 1000VA BRG1000AVRLCD UPS with 600W, AVR, LCD, and 2.1 USB Charging
• User's Manual
• USB A+B Cable
• Software Download Card

Additional Information:

• Replacement Battery Cartridge Quantity | 1
• Plug Style | Right Angle - 45° Offset
• Automatic Voltage Regulation | Single Boost
• On Battery Frequency | 60 Hz ± 1%
• On Battery Voltage | 120 VAC ± 5%
• USB Charge Port Amperage COMPUTED | 2.1 Amps (Shared)
• Coax Protection RG6 COMPUTED | 1 in
• Network Protection RJ45 | 1-in / 1-Out (10/100/1000)
• Management Cable | USB Cable
• Serial Port | 1 Serial
• Software (Free Download) | PowerPanel® Personal
• Operating Relative Humidity | 0 - 90 % (non-condensing)

Certifications & Standards:

• UL1778
• cUL No 107
• FCC DOC Class B
• Software Included: PowerPanel Personal Edition Software
• Energy Star: Yes
• Country of Origin: China
• Environmentally Friendly: Yes
• Limited Warranty: 5 Year from CyberPower
