CyberPower BRG1500AVRLCD2 6+6 Outlets Intelligent LCD 1500V Mini Tower UPS Tower

General Information

• Manufacturer: CyberPower Systems, Inc
• Manufacturer Part Number: BRG1500AVRLCD2
• Brand Name: CyberPower
• Product Line: Intelligent LCD
• Product Model: BRG1500AVRLD2
• Product Name: Intelligent LCD BRG1500AVRLD2 1500VA Mini-tower UPS
• Product Type: Line-interactive UPS

Marketing Information:

A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The BRG1500AVRLD2 uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The BRG1500AVRLD2 comes with a five year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.

Technical Information

• AVR: Yes
• AVR Range: Boost +10% / Buck --10%
• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R

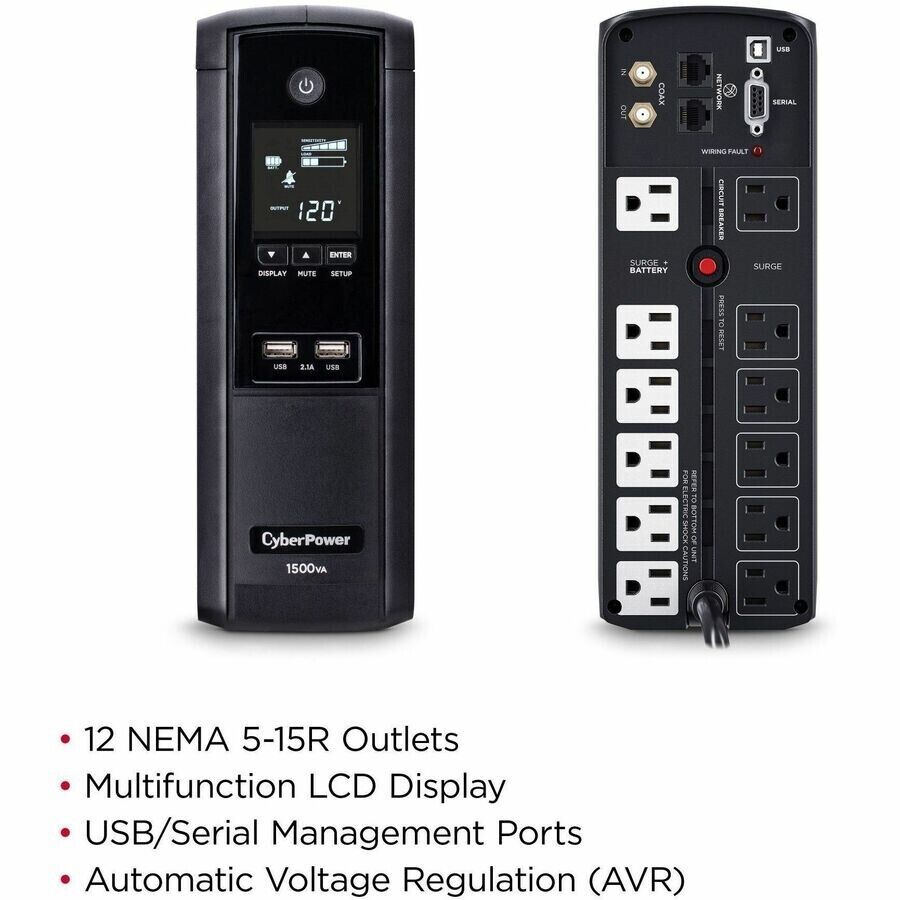

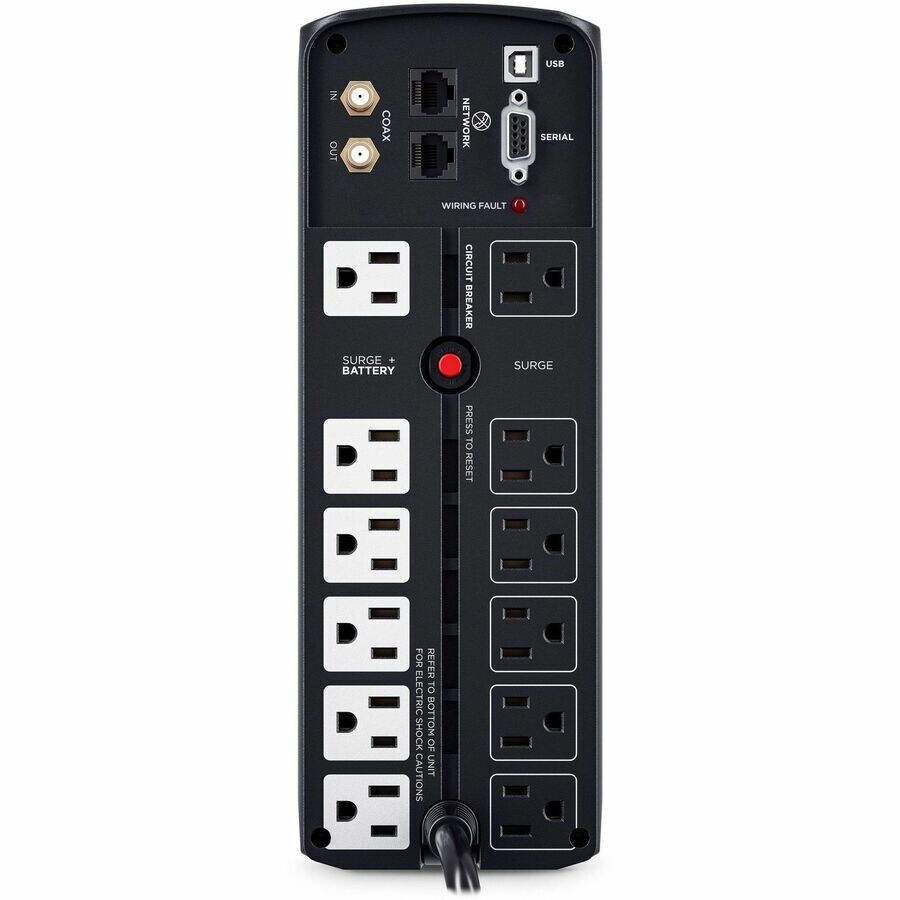

• Receptacle Detail: 12 x NEMA 5-15R
• Number of Battery & Surge Outlets: 6
• Number of Surge-only Outlets: 6
• Dataline Protection: RJ-45
• Overload Protection: Yes
• Transfer Time: 4 ms
• EMI/RFI Noise Filter: Yes
• Energy Saving: GreenPower UPS Bypass Technology
• Application/Usage:
  • Desktop Computer
  • Workstation
  • Network Device
  • Home Entertainment System
  • Personal Electronic
  • Home Network
  • Router
  • Modem
  • VoIP Phone System

Power Description

• Load Capacity (VA): 1500 VA
• Load Capacity (Watt): 900 W
• Input Voltage: 120 V AC
• Output Voltage: 120 V AC
• Input Frequency: 63 Hz
• Output Frequency: 60 Hz
• Waveform Type: Simulated Sine Wave
• Surge Energy Rating: 1500 J

Management

• Network Management: SNMP/HTTP Remote Monitoring
• Alarm:
  • Battery Mode
  • Low Battery
  • Overload
  • Fault

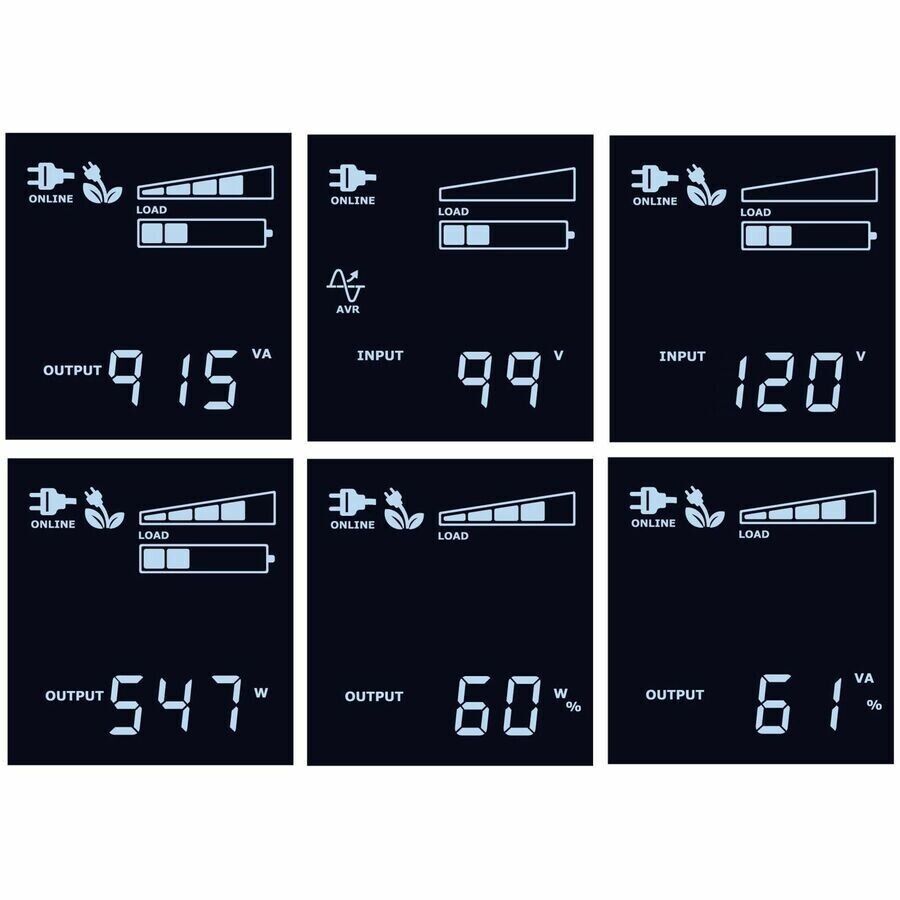

LED Indicators:

• Power On
• Wiring Fault

Interfaces/Ports

• Serial Port: Yes
• Network (RJ-45): Yes
• USB (HID Compliant) Port: Yes

Battery Information

• Number of Batteries: 2
• Battery Characteristics: Sealed
• Battery Chemistry: Lead Acid
• Battery Size: 12V
• Battery Capacity: 9000 mAh
• Backup/Run Time (Full Load): 2 Minute
• Backup/Run Time (Half Load): 12 Minute
• Typical Battery Recharge Time: 8 Hour
• Replaceable Battery: Yes

Environmental Conditions

• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: 5°F (-15°C) - 113°F (45°C)
• Maximum Operating Elevation: 10000 ft
• Maximum Storage Elevation: 50000 ft
• Operating Humidity: 0% - 95%
• Storage Relative Humidity: 0% - 95%

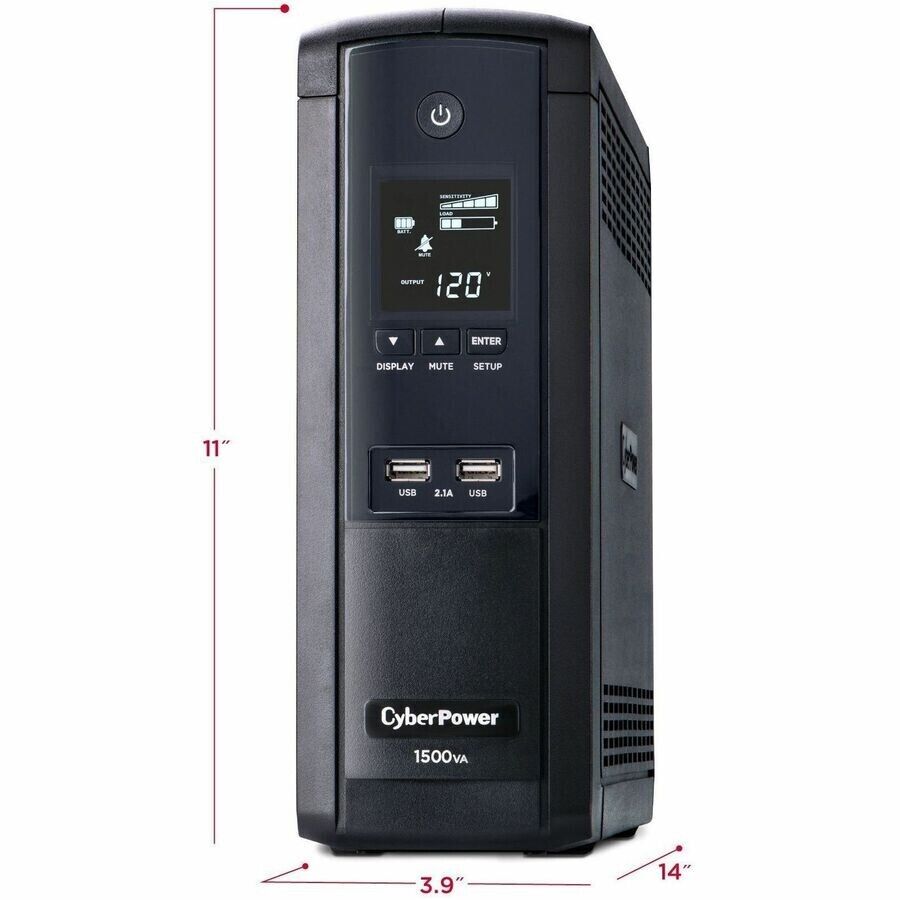

Physical Characteristics

• Color Family: Black
• Product Color: Black
• Height: 10.2"
• Width: 3.9"
• Depth: 13.8"
• Form Factor: Mini-tower
• Weight (Approximate): 23.81 lb

Energy Star: Yes

Environmentally Friendly: Yes

Limited Warranty: 5 Year from CyberPower
