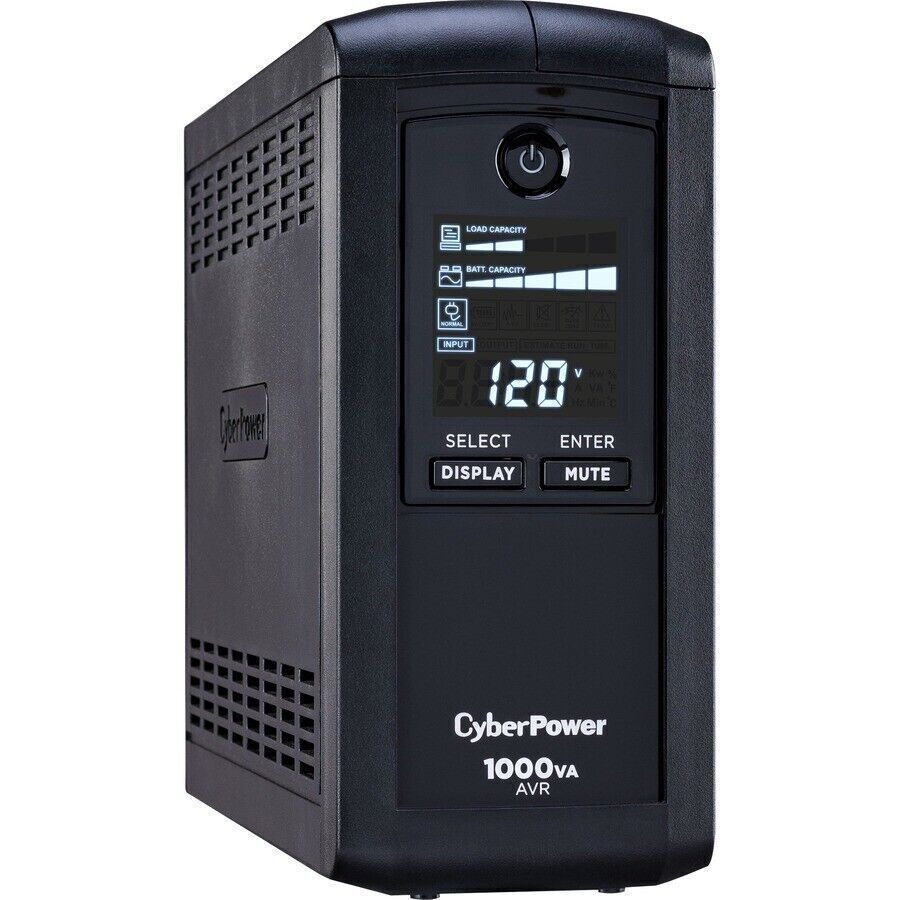

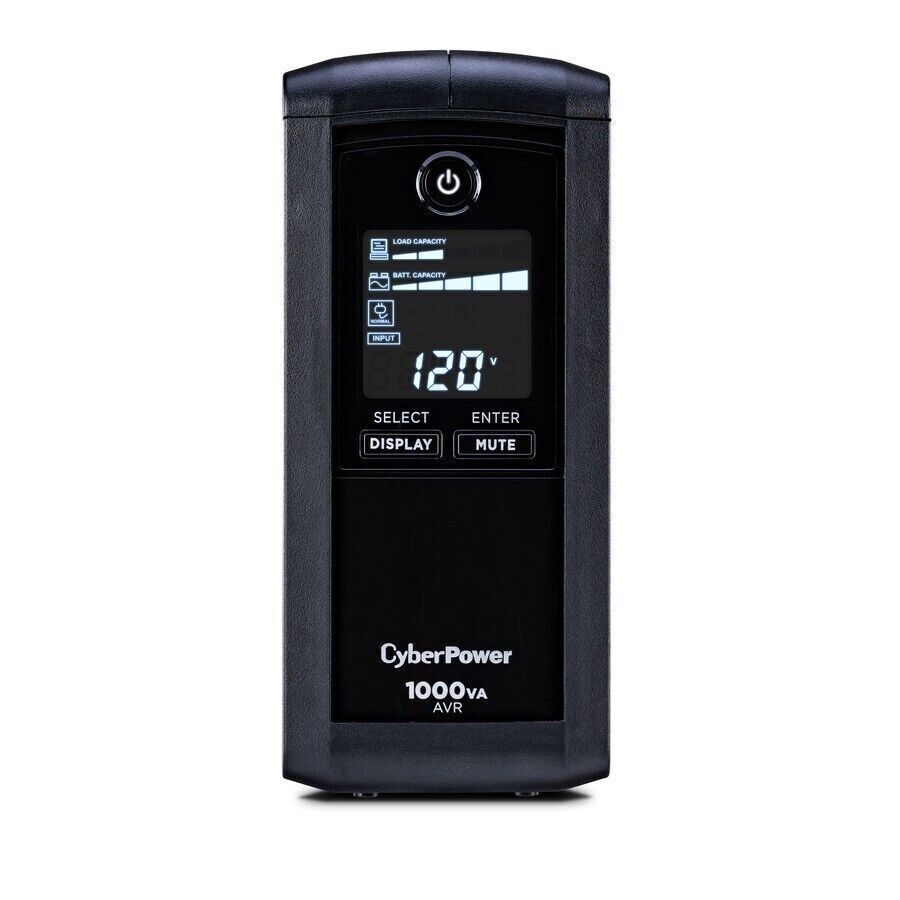

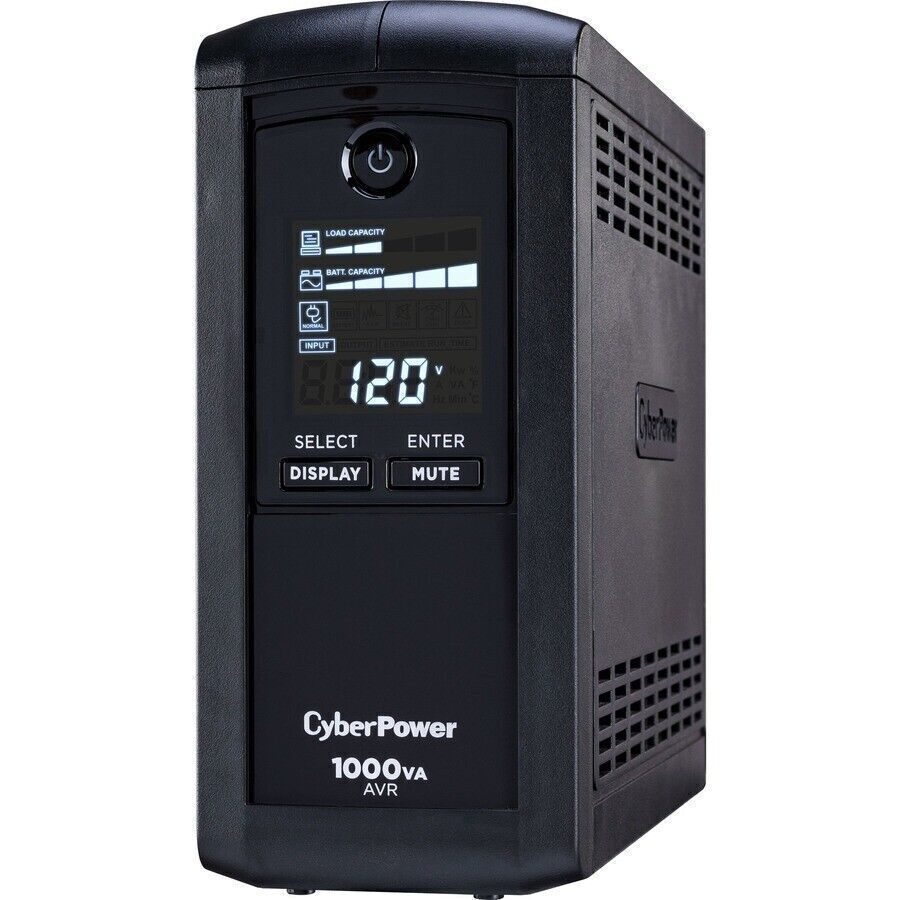

CyberPower CP1000AVRLCD Intelligent LCD UPS Systems - 1000VA/600W, 120 VAC

General Information

Manufacturer:   CyberPower Systems, Inc
Brand Name:   CyberPower
Manufacturer Part Number:   CP1000AVRLCD
Product Series:   Intelligent LCD UPS
Product Model:   CP1000AVRLCD
Product Name:   Intelligent LCD CP1000AVRLCD 1000VA Tower UPS

Marketing Information:
A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP1000AVRLCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP1000AVRLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1000AVRLCD comes with a three-year warranty (including coverage of batteries) and a $350,000 Connected Equipment Guarantee.

Product Type:   Line-interactive UPS

Technical Information
Plug/Connector Type:   NEMA 5-15P
Receptacle Type:   NEMA 5-15R

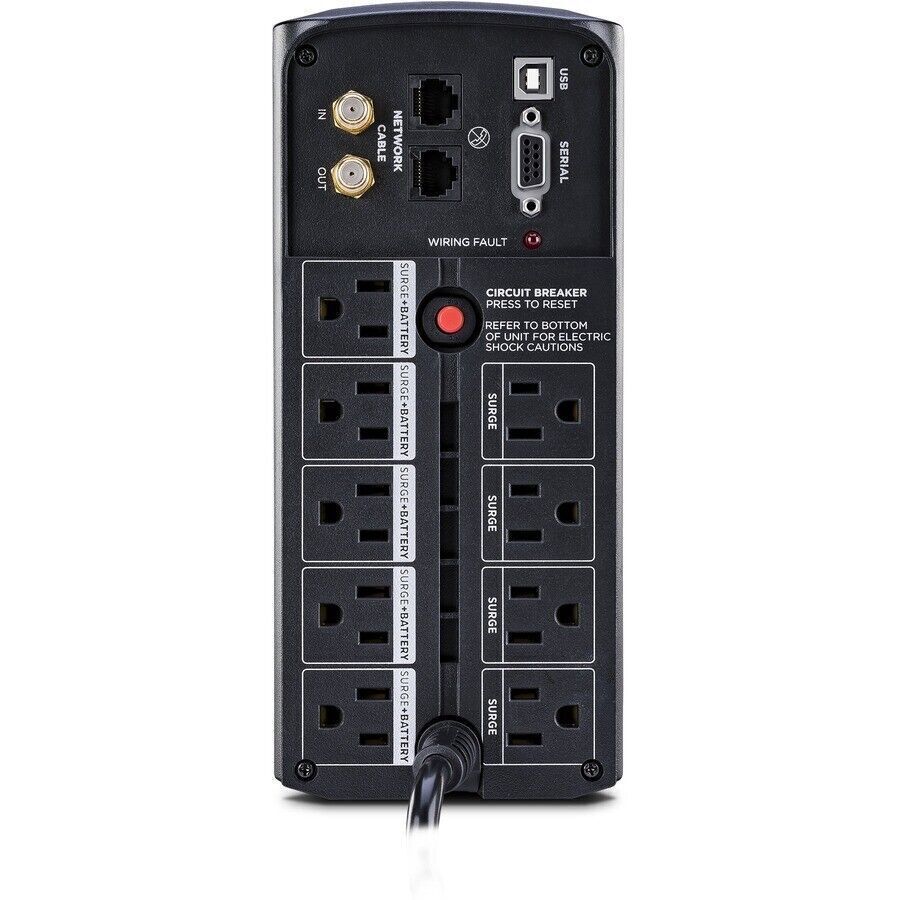

Receptacle Detail:   9 x NEMA 5-15R
Number of Battery & Surge Outlets:   5
Number of Surge-only Outlets:   4
Dataline Protection:   RG-6
Dataline Protection:   RJ-45
Overload Protection:   Yes
Cord Length:   6 ft
Transfer Time:   4 ms
EMI/RFI Noise Filter:   Yes
Energy Saving:   GreenPower UPS™ Bypass Technology

Power Description
Load Capacity:   1000 VA/600 W
Input Voltage:   120 V AC
Input Voltage Range:   90 V AC - 142 V AC
Output Voltage:   120 V AC
Input Frequency:   63 Hz
Waveform Type:   Simulated Sine Wave
Surge Energy Rating:   1080 J
Management
Alarm:   Battery Mode

Controls/Indicators
Status Indicators:   Power on

Interfaces/Ports
Serial Port:   Yes
USB:   Yes
USB (HID Compliant) Port:   Yes

Battery Information
Number of Batteries:   1
Battery Chemistry:   Lead Acid
Battery Size:   12V
Battery Capacity:   9000 mAh
Backup/Run Time (Full Load):   2 Minute
Backup/Run Time (Half Load):   9 Minute
Typical Battery Recharge Time:   8 Hour
Environmental Conditions
Maximum Operating Temperature:   104°F (40°C)
Storage Temperature:   5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation:   10000 ft
Maximum Storage Elevation:   50000 ft
Storage Relative Humidity:   0% - 95%

Physical Characteristics
Product Color:   Black
Height:   9"
Width:   3.9"
Depth:   10.2"
Form Factor:   Mini-tower
Weight (Approximate):   15 lb

Miscellaneous
Package Contents:
Intelligent LCD CP1000AVRLCD 1000VA Tower UPS
User's Manual
USB Cable
Software Download Card
Registration Information Card

Additional Information:
Replacement Battery Cartridge Quantity : 1
Plug Style : Right Angle - 45° Offset
Automatic Voltage Regulation : Single Boost
On Battery Frequency : 60 Hz ± 1%
On Battery Voltage : 120 VAC ± 5%
Under/Over-Voltage Correction : +10%
Coax Protection RG6 COMPUTED : 1 in
Network Protection RJ45 : 1-in / 1-Out (10/100/1000)
LCD : Multifunction LCD
Management Cable : USB Cable
Software (Free Download) : PowerPanel® Personal
Operating Relative Humidity : 0 - 90 % ()

Certifications & Standards:
UL1778
cUL 107 5th
FCC Class B

Software Included:   PowerPanel Personal Edition Software
Energy Star:   Yes
Environmentally Friendly:   Yes
Environmental Certification:   RoHS

Country of Origin:   China

Warranty
Limited Warranty:   3 Year - Direct from the Manufacturer
