CyberPower CP1350PFCLCD 6+6 Outlets Sinewave LCD UPS System 1350VA 880W 1445J

General Information

• Manufacturer: CyberPower Systems, Inc
• Manufacturer Part Number: CP1350PFCLCD
• Brand Name: CyberPower
• Product Series: PFC Sinewave UPS
• Product Model: CP1350PFCLCD
• Product Name: PFC Sinewave CP1350PFCLCD 1350VA Mini-Tower UPS
• Product Type: Line-interactive UPS

Marketing Information:

A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave CP135PFCLCD provides battery backup (using sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems requiring active PFC power source compatibility.

The CP1350PFCLCD features an advanced multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. The screen tilts for easy viewing when the UPS is placed in a low position such as under a desk.

The CP1350PFCLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1350PFCLCD comes with a three-year warranty (including coverage of batteries) and a $425,000 Connected Equipment Guarantee.

Technical Information

• AVR: Yes
• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R
• Receptacle Detail: 12 x NEMA 5-15R
• Number of Battery & Surge Outlets: 6
• Number of Surge-only Outlets: 6
• Dataline Protection: RJ-45
• Overload Protection: Yes
• Emergency Power OFF: No
• Cord Length: 5 ft
• Transfer Time: 4 ms
• EMI/RFI Noise Filter: Yes
• Energy Saving: GreenPower UPS™ Bypass Technology
• Application/Usage:
  • Network Device
  • Desktop Computer
  • Workstation
  • Home Entertainment System

Power Description

• Load Capacity (VA): 1350 VA
• Load Capacity (Watt): 880 W
• Input Voltage: 120 V AC
• Input Voltage Range: 88 V AC - 144 V AC
• Output Voltage: 120 V AC
• Input Frequency: 63 Hz
• Output Frequency: 60 Hz
• Waveform Type: Sine Wave
• Surge Energy Rating: 1445 J
• Circuit Breaker: Yes

Management

• Alarm:
  • Battery Mode
  • Low Battery
  • Overload
  • Fault

Status Indicators:

• LED Indicators:
  • Power On
  • Wiring Fault

Interfaces/Ports

• Serial Port: Yes
• Modem (RJ-11): Yes
• Network (RJ-45): Yes
• USB (HID Compliant) Port: Yes

Battery Information

• Number of Batteries: 2
• Battery Characteristics: Maintenance-free
• Battery Chemistry: Lead Acid
• Battery Size: 12V
• Battery Capacity: 7000 mAh
• Backup/Run Time (Full Load): 2 Minute
• Backup/Run Time (Half Load): 8 Minute
• Typical Battery Recharge Time: 8 Hour
• Hot Swappable: Yes
• Replaceable Battery: Yes

Environmental Conditions

• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: 5°F (-15°C) - 113°F (45°C)
• Maximum Operating Elevation: 10000 ft

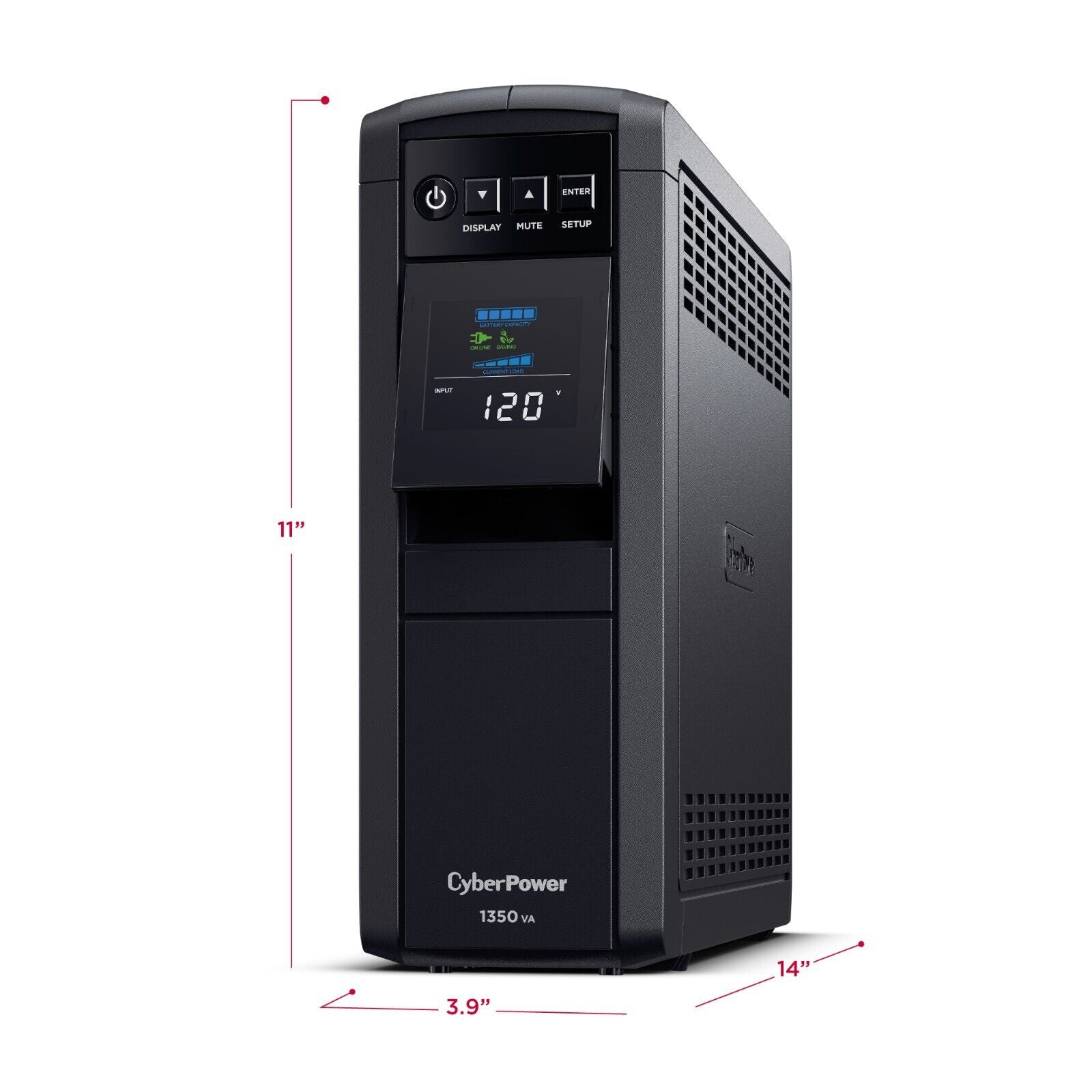

Physical Characteristics

• Color Family: Black
• Product Color: Black
• Height: 11"
• Width: 3.9"
• Depth: 14"
• Form Factor: Mini-tower
• Weight (Approximate): 22.70 lb

Package Contents:

• PFC Sinewave CP1350PFCLCD 1350VA Mini-Tower UPS
• PowerPanel Personal Edition Software CD
• Phone/Network Cable
• Coax Cable

Additional Information:

• Active PFC Compatible: Yes
• Circuit Breaker: 15A
• Plug Style: Right Angle - 45° Offset
• Automatic Voltage Regulation: Single Boost
• On Battery Frequency: 60 Hz ± 1%
• On Battery Voltage: 120 VAC ± 5%
• Outlets - Widely Spaced: 2
• Output Power Factor: 0.6
• Overload Protection: Internal Circuitry Limiting
• Under/Over-Voltage Correction: +11.5%
• Network Protection RJ45: 1-in / 1-Out (10/100/1000) + PoE Compatible
• Dry Contacts: Yes
• HID Compliant USB Port: Yes
• LCD: Multifunction LCD
• Management Cable: USB Cable
• Material of Construction: Plastic
• Operating Elevation: 0 - 10000 ft (0 - 3048 m)
• Operating Relative Humidity: 0 - 95 % (non-condensing)
• Operating Temperature: 32 - 104 °F (0 - 40 °C)

Certifications & Standards:

• UL1778
• cUL 107.3
• FCC DOC Class B

Software Included: PowerPanel® Personal

Energy Star: Yes

Country of Origin: China

Environmentally Friendly: Yes

Limited Warranty: 3 Year from CyberPower
