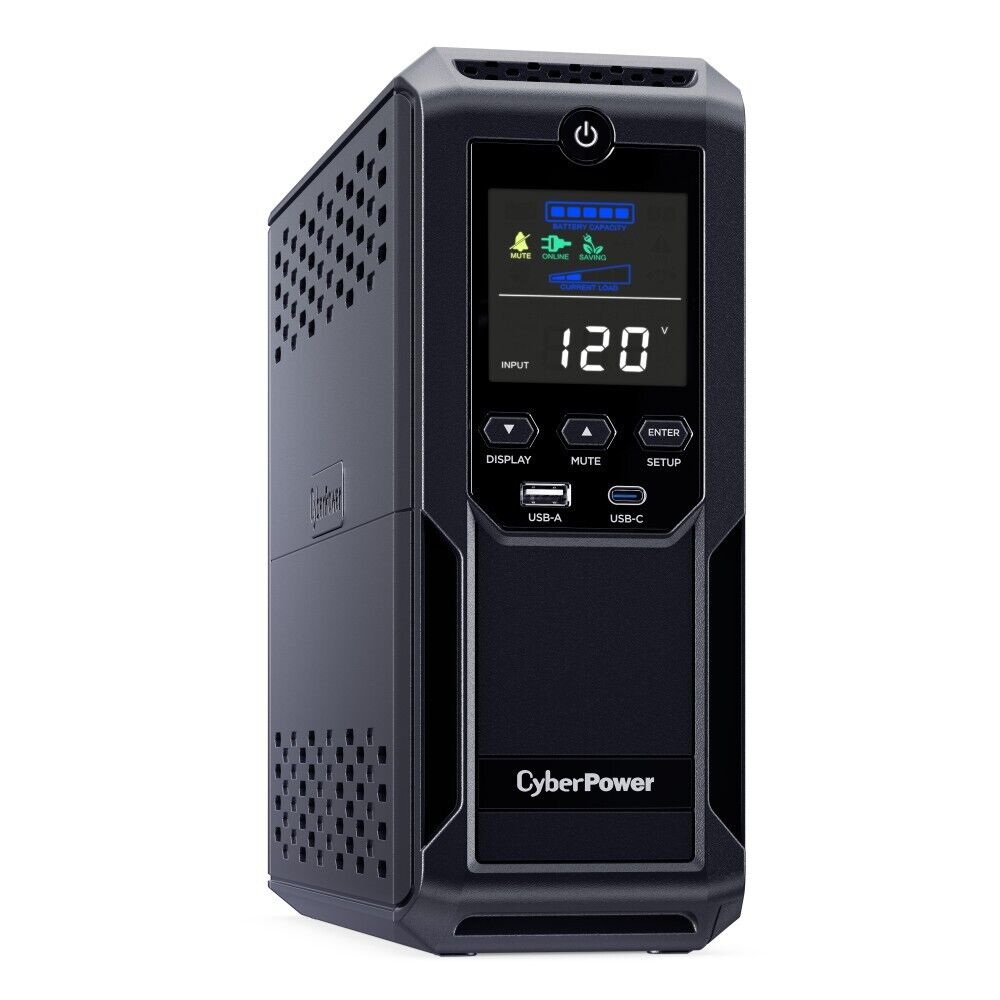

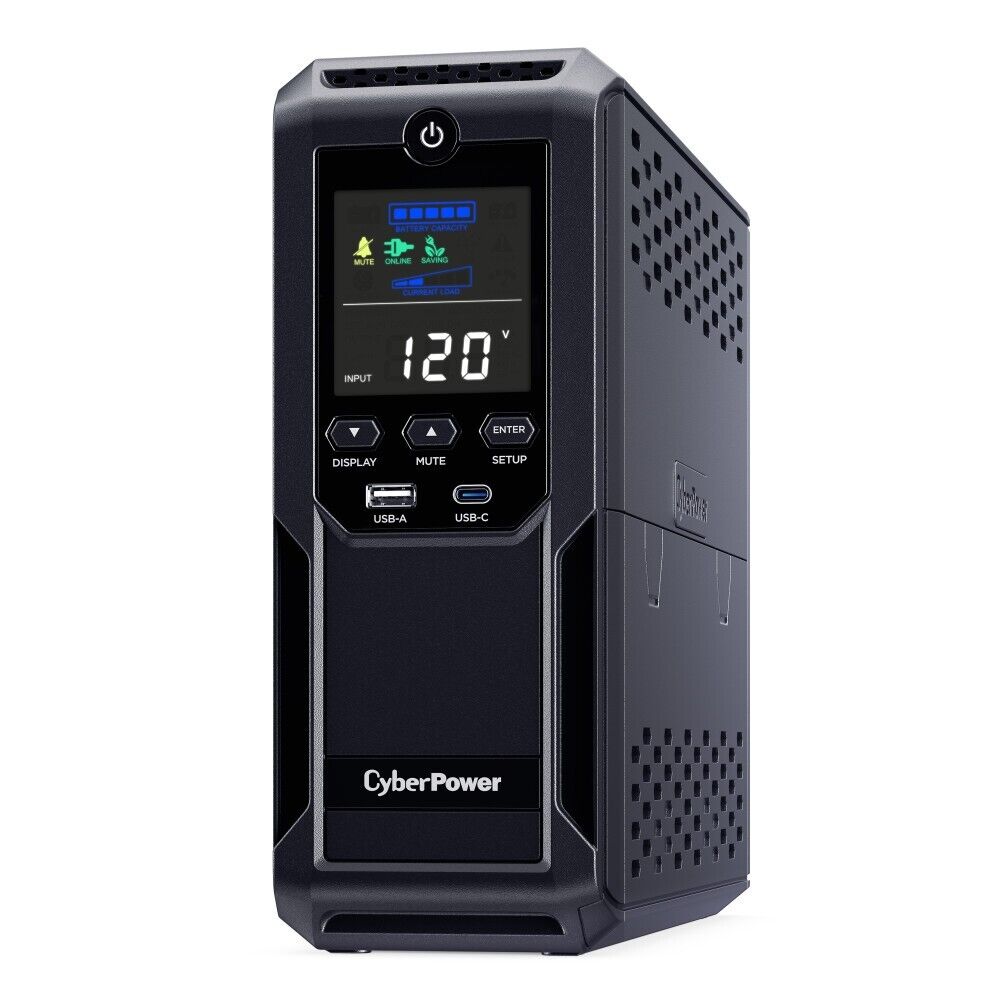

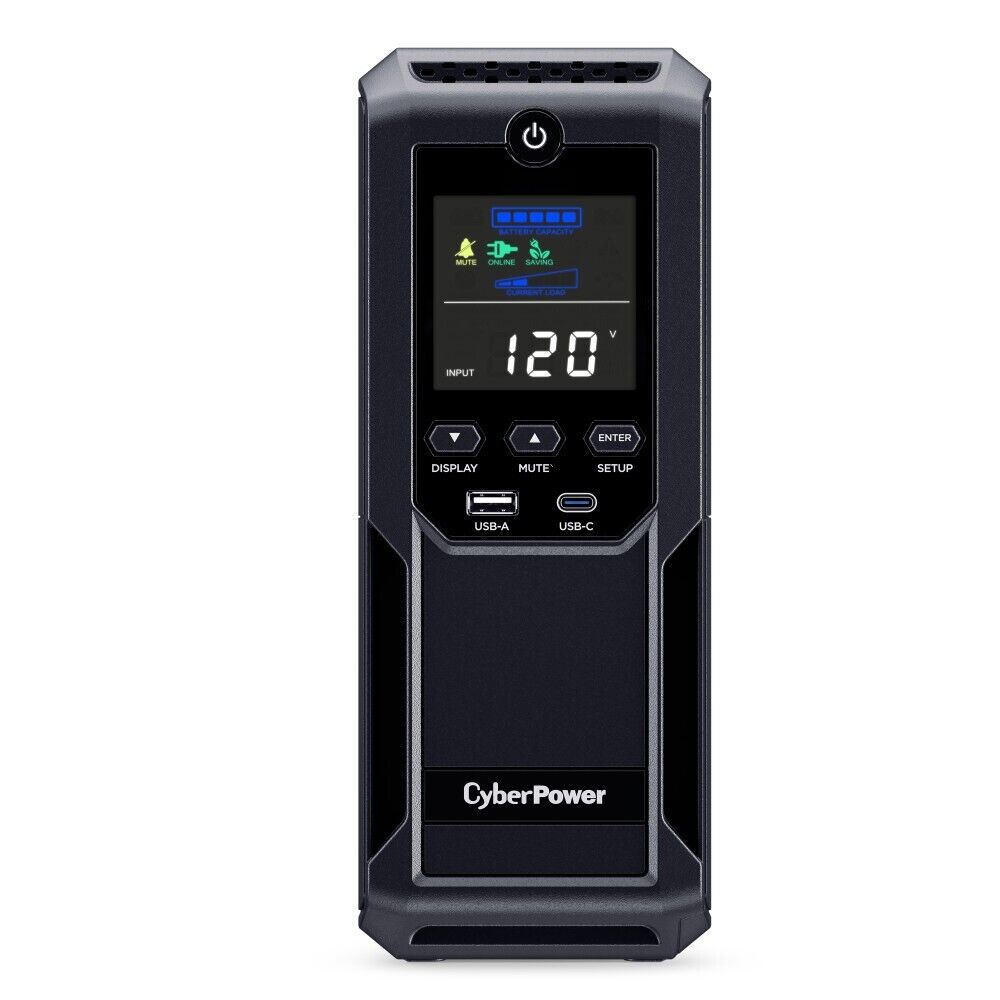

CyberPower CP1500AVRLCD3 6+6 Outlets Intelligent LCD UPS System 1500 900W 1500J

General Information

• Manufacturer: CyberPower Systems, Inc
• Manufacturer Part Number: CP1500AVRLCD3
• Brand Name: CyberPower
• Product Series: Intelligent LCD UPS
• Product Model: CP1500AVRLCD3
• Product Name: Intelligent LCD UPS CP1500AVRLCD3 1500VA Mini-tower UPS
• Product Type: Line-interactive UPS

Marketing Information:

A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP1500AVRLCD3 provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP1500AVRLCD3 uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.

Technical Information

• AVR: Yes
• Plug/Connector Type: NEMA 5-15P
• Receptacle Type:
  • NEMA 5-15R
  • USB Type A
  • USB Type C

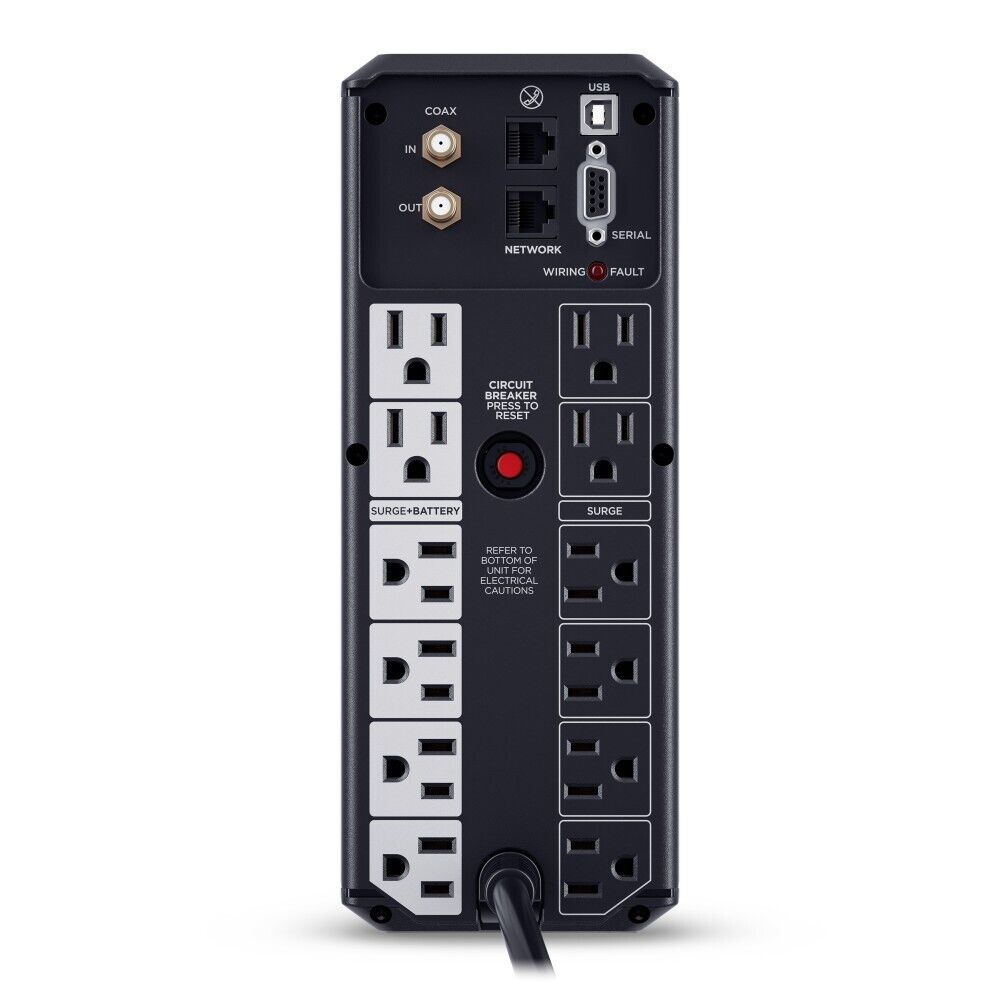

• Receptacle Detail:
  • 12 x NEMA 5-15R
  • 1 x USB Type A
  • 1 x USB Type C
• Number of Battery & Surge Outlets: 6
• Number of Surge-only Outlets: 6
• Dataline Protection:
  • RG-6
  • RJ-45
  • Coax
• Overload Protection: Yes
• Transfer Time: 4 ms
• EMI/RFI Noise Filter: Yes
• Energy Saving: GreenPower UPS™ Bypass Technology

Power Description

• Load Capacity (VA): 1500 VA
• Load Capacity (Watt): 900 W
• Input Voltage: 120 V AC
• Output Voltage: 120 V AC
• Input Frequency: 63 Hz
• Output Frequency: 60 Hz
• Waveform Type: Simulated Sine Wave
• Surge Energy Rating: 1500 J

Management

• Alarm: Battery Mode
• LED Indicators: Power On

Interfaces/Ports

• Serial Port: Yes
• USB (HID Compliant) Port: Yes

Battery Information

• Number of Batteries: 2
• Battery Characteristics: Sealed
• Battery Chemistry: Lead Acid
• Battery Size: 12V
• Battery Capacity: 9000 mAh
• Backup/Run Time (Full Load): 3 Minute
• Backup/Run Time (Half Load): 12 Minute
• Typical Battery Recharge Time: 8 Hour
• Replaceable Battery: Yes
• Environmental Conditions
• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: 5°F (-15°C) - 113°F (45°C)
• Maximum Operating Elevation: 10000 ft
• Maximum Storage Elevation: 50000 ft
• Operating Humidity: 0% - 95%
• Storage Relative Humidity: 0% - 95%

Physical Characteristics

• Color Family: Black
• Product Color: Black

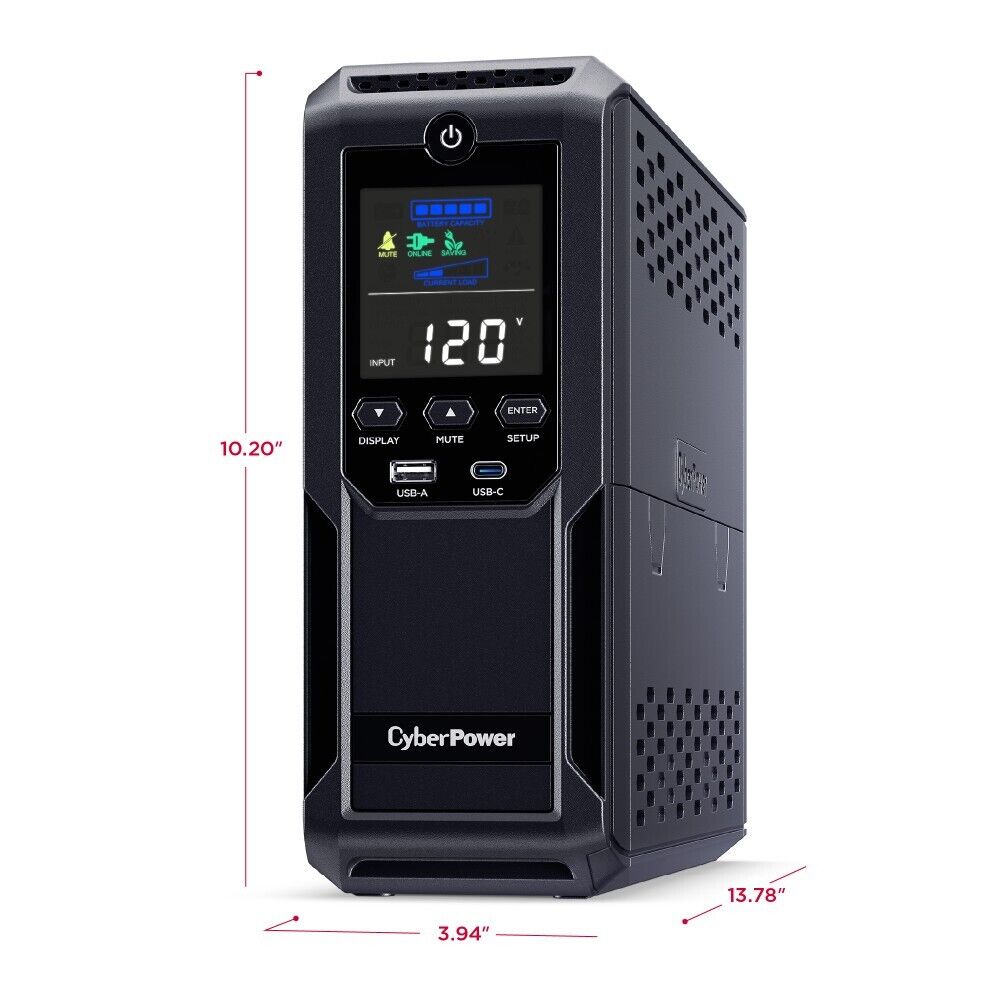

• Height: 10.2"
• Width: 3.9"
• Depth: 13.8"
• Form Factor: Mini-tower
• Weight (Approximate): 23.81 lb

Energy Star: Yes

Country of Origin: Philippines

Environmentally Friendly: Yes

Limited Warranty: 3 Year from CyberPower
