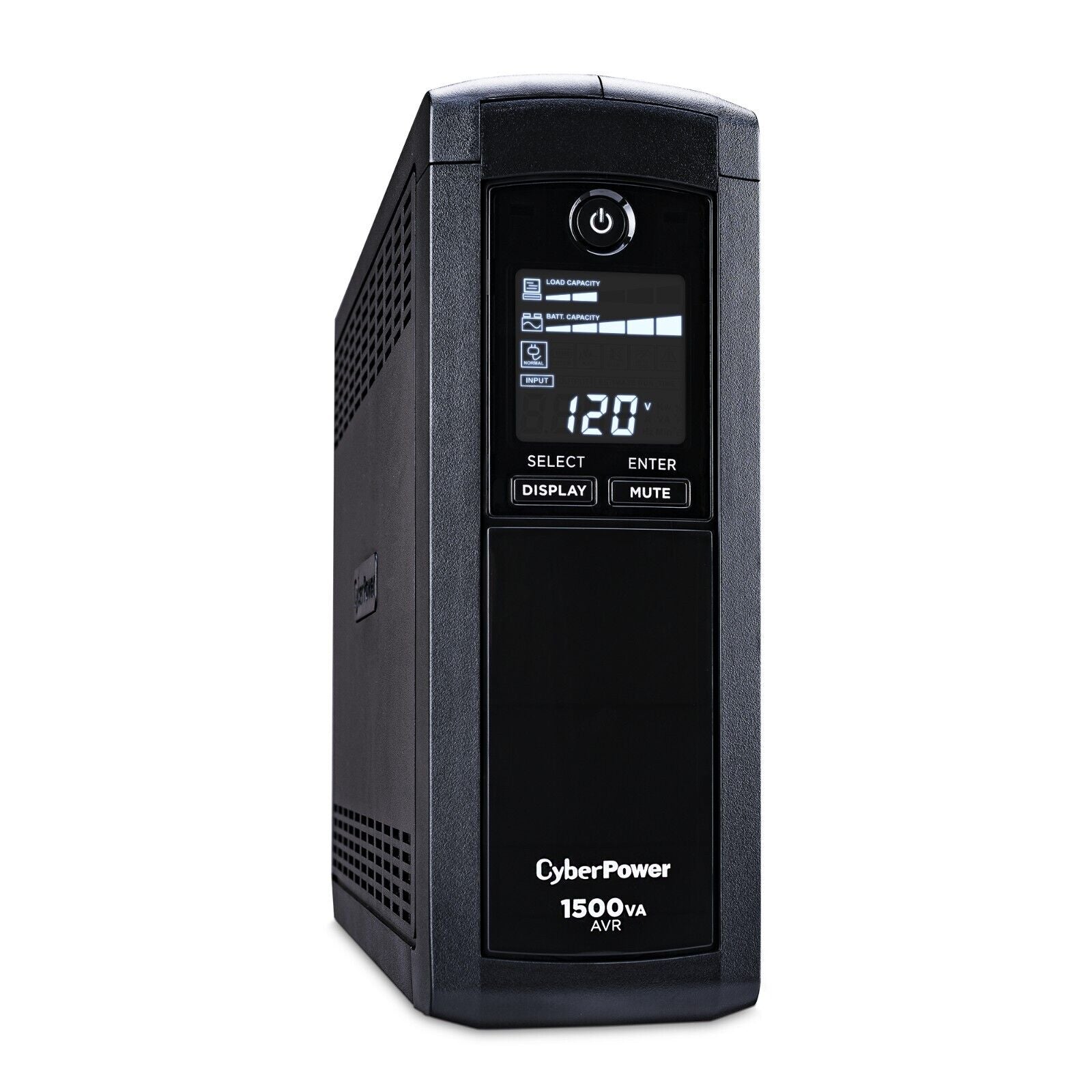

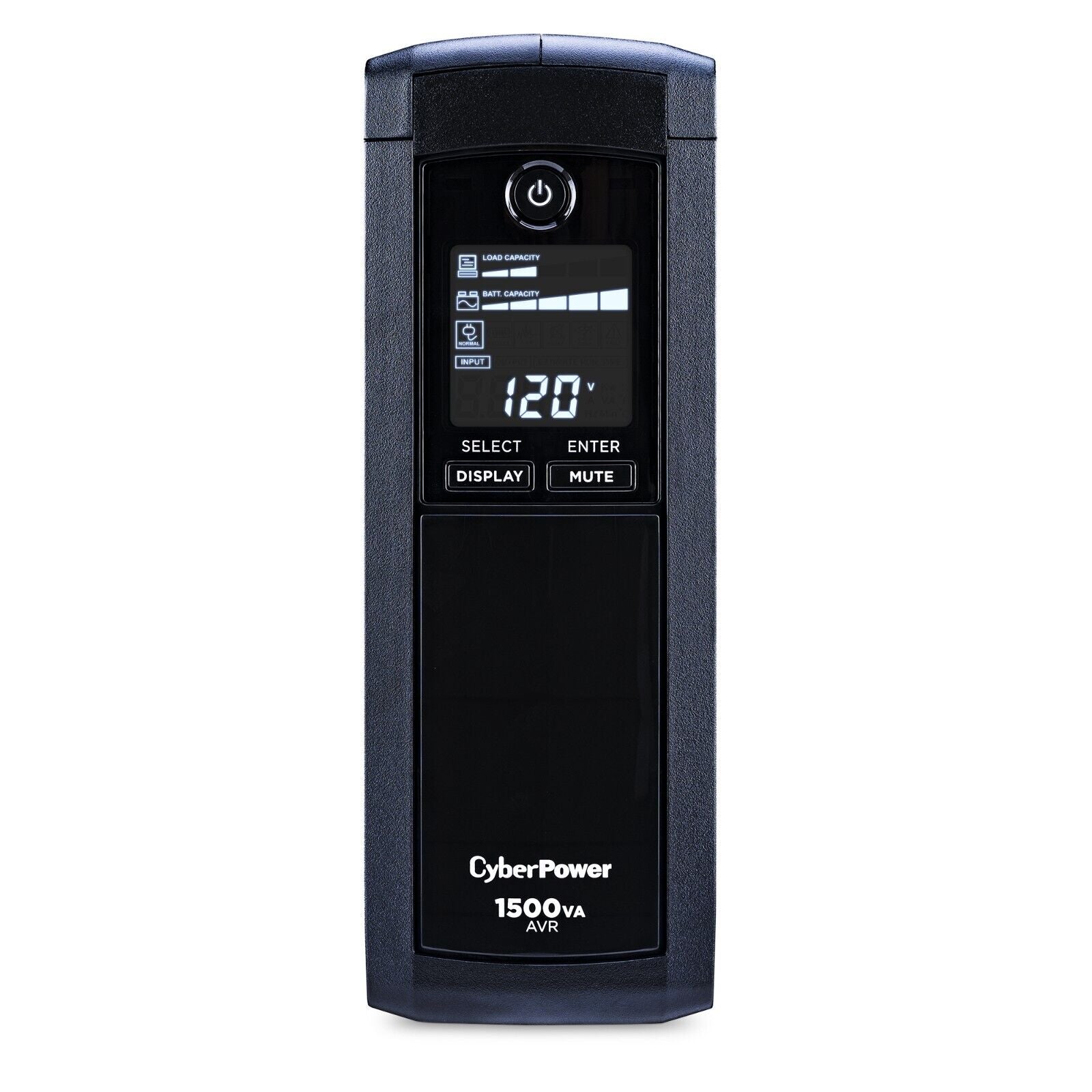

CyberPower CP1500AVRLCDTAA 6+6 Outlets Intel LCD UPS System 1500 900W 1500J TAA

General Information

• Manufacturer: CyberPower Systems, Inc
• Manufacturer Part Number: CP1500AVRLCDTAA
• Brand Name: CyberPower
• Product Series: TAA Compliant UPS & Hardware
• Product Model: CP1500AVRLCDTAA
• Product Name: CP1500AVRLCDTAA 1500VA Mini-tower UPS
• Product Condition: New
• Product Type: Line-interactive UPS

Marketing Information:

A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP1500AVRLCDTAA provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and VoIP phone systems. The CP1500AVRLCDTAA uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life.

Technical Information

• AVR: Yes
• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R

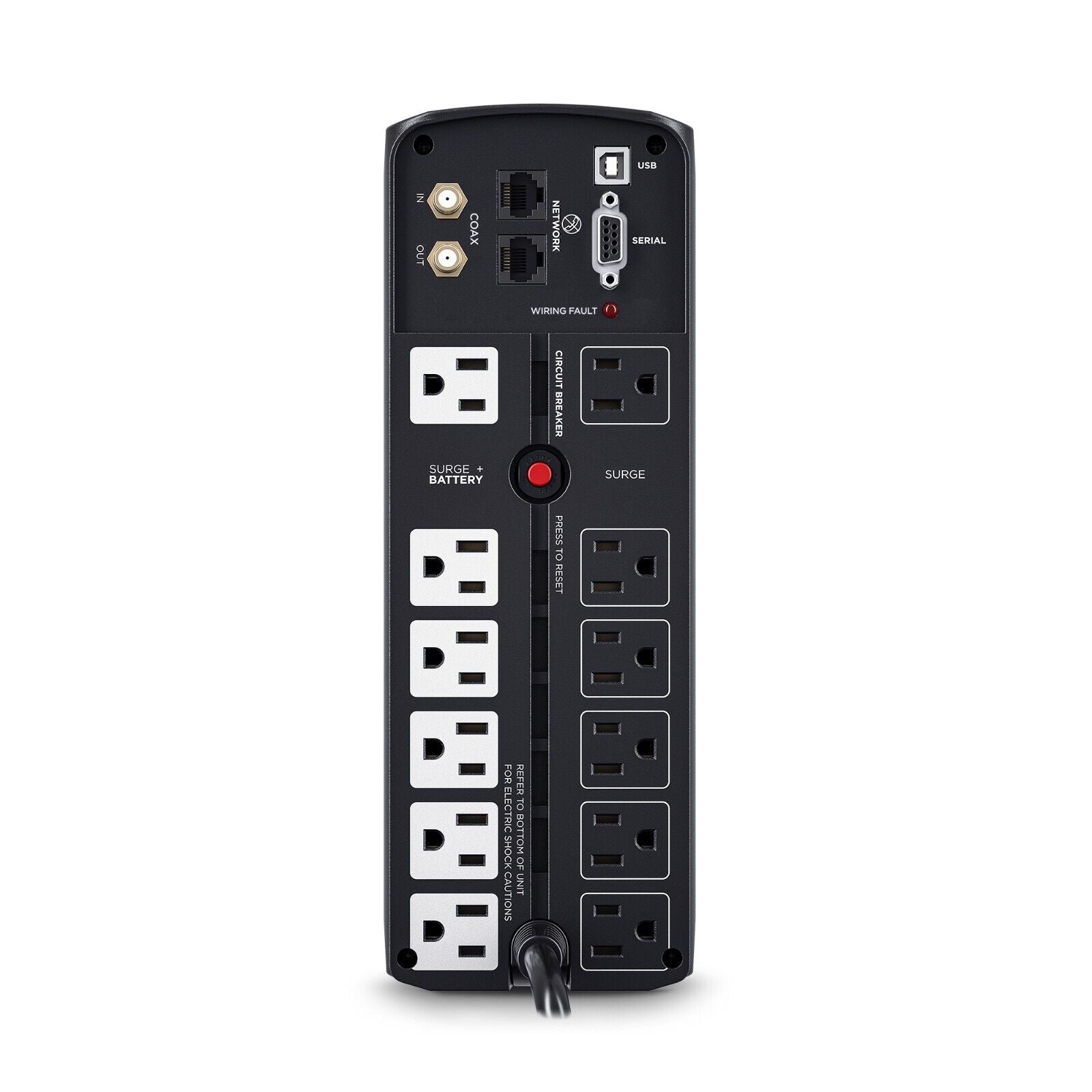

• Receptacle Detail: 12 x NEMA 5-15R
• Number of Battery & Surge Outlets: 6
• Number of Surge-only Outlets: 6
• Dataline Protection:
• RJ-45
• RG-6
• Overload Protection: Yes
• Cord Length: 6 ft
• Transfer Time: 4 ms
• EMI/RFI Noise Filter: Yes
• Energy Saving: GreenPower UPS Bypass Technology
• Application/Usage:
  • Desktop Computer
  • Workstation
  • Network Device
  • VoIP Phone System

Power Description

• Load Capacity (VA): 1500 VA
• Load Capacity (Watt): 900 W
• Input Voltage: 120 V AC
• Input Voltage Range: 90 V AC - 142 V AC
• Output Voltage: 120 V AC
• Input Frequency: 63 Hz
• Output Frequency: 60 Hz
• Waveform Type: Simulated Sine Wave
• Surge Energy Rating: 1500 J

Management

• Network Management: USB
• Alarm: Battery Mode
• Status Indicators: LED Indicators: Power On

Interfaces/Ports

• Serial Port: Yes
• USB (HID Compliant) Port: Yes

Battery Information

• Number of Batteries: 2
• Battery Characteristics: Sealed
• Battery Chemistry: Lead Acid
• Battery Size: 12V
• Battery Capacity: 9000 mAh
• Backup/Run Time (Full Load): 3 Minute
• Backup/Run Time (Half Load): 12 Minute
• Typical Battery Recharge Time: 8 Hour
• Hot Swappable: Yes
• Replaceable Battery: Yes

Environmental Conditions

• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: 5°F (-15°C) - 113°F (45°C)
• Maximum Operating Elevation: 10000 ft
• Maximum Storage Elevation: 50000 ft
• Storage Relative Humidity: 0% - 95%

Physical Characteristics

• Color Family: Black
• Product Color: Black

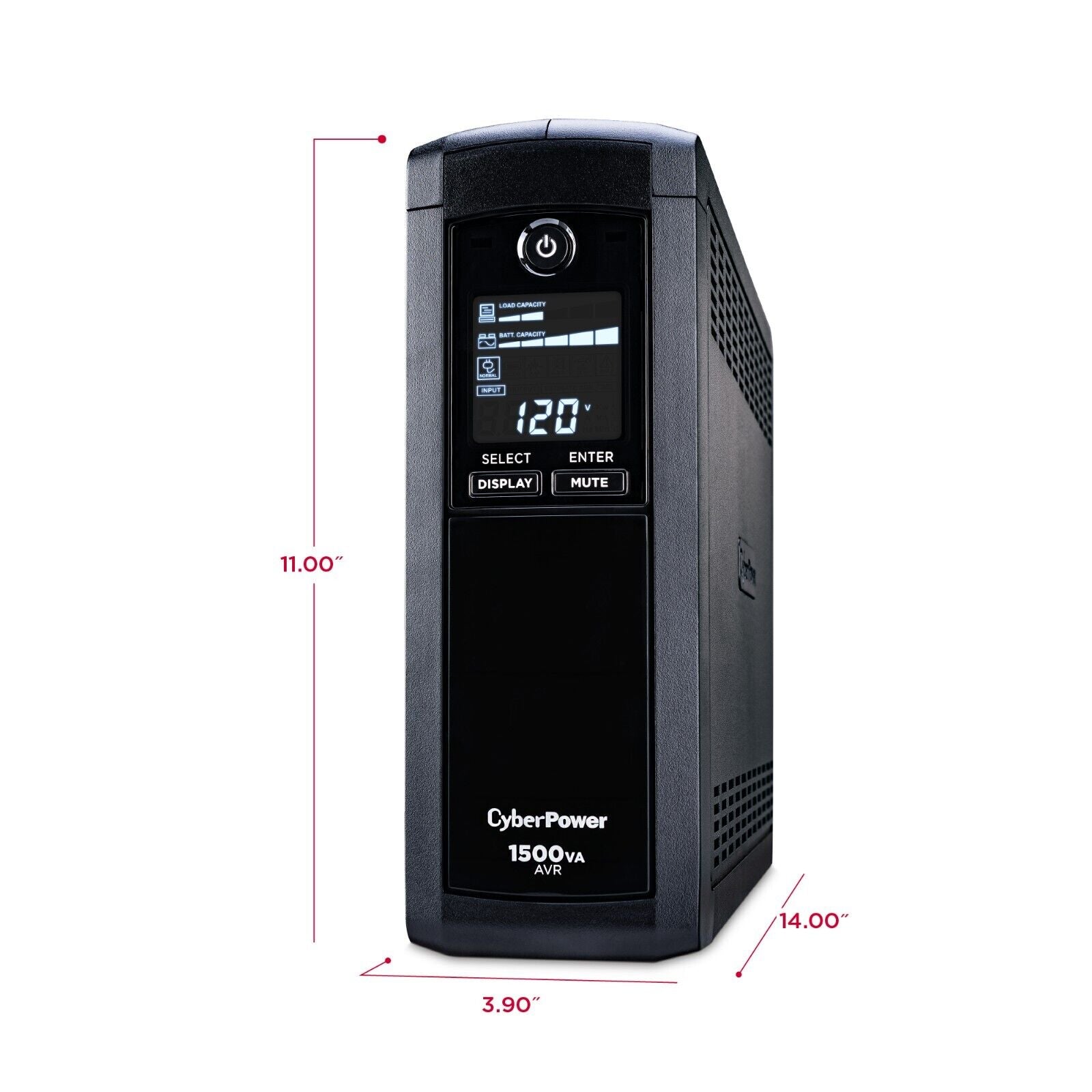

• Height: 11"
• Width: 3.9"
• Depth: 14"
• Form Factor: Mini-tower
• Weight (Approximate): 25 lb

Additional Information:

• Replacement Battery Cartridge Quantity: 1
• Plug Style: Right Angle - 45° Offset
• Automatic Voltage Regulation: Single Boost
• Overload Protection: Internal Circuitry Limiting
• Under/Over-Voltage Correction: +10%
• LCD: Multifunction LCD
• Management Cable: USB Cable
• Serial Port: 1 Dry Contact
• Software (Free Download): PowerPanel® Personal
• Operating Relative Humidity: 0 - 90 % (non-condensing)
• Operating Temperature: 32 - 104 °F (0 - 40 °C)

Certifications & Standards:

• UL1778
• cUL 107 5th
• FCC Class B
• Energy Star: Yes
• Country of Origin: Taiwan
• TAA Compliant: Yes
• Environmentally Friendly: Yes
• Limited Warranty: 3 Year from CyberPower
