CyberPower CP1500AVRT 5+5 Outlets AVR UPS System 1500VA 900W 1500J Tower 6FT CRD

General Information

• Manufacturer: CyberPower Systems, Inc
• Manufacturer Part Number: CP1500AVRT
• Brand Name: CyberPower
• Product Series: AVR UPS
• Product Model: CP1500AVRT
• Product Name: AVR CP1500AVRT 1500VA UPS
• Product Type: Line-interactive UPS

Marketing Information:

A mini-tower UPS with line interactive topology, the CyberPower AVR Series CP1500AVRT provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During longer power outages, the CP1500AVRT delivers enough battery backup power to perform a graceful shutdown to protect against the loss of data and damage to electronics. It uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life.

Technical Information

• AVR: Yes
• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R
• Receptacle Detail: 10 x NEMA 5-15R
• Number of Battery & Surge Outlets: 5
• Number of Surge-only Outlets: 5
• Dataline Protection:
  • RJ-45
  • RG-6
• Bypass Switch: Not Provided
• Emergency Power OFF: No
• Cord Length: 6 ft
• Transfer Time: 8 ms
• EMI/RFI Noise Filter: Yes
• Energy Saving: GreenPower UPS™ Bypass Technology

Power Description

• Load Capacity (VA): 1500 VA
• Load Capacity (Watt): 900 W
• Input Voltage: 120 V AC
• Input Voltage Range: 88 V AC - 144 V AC
• Output Voltage: 120 V AC
• Input Frequency: 63 Hz
• Output Frequency: 60 Hz
• Waveform Type: Simulated Sine Wave
• Surge Energy Rating: 1500 J
• Circuit Breaker: Yes

Management

• Alarm: Battery Mode
• Status Indicators: Power On

Interfaces/Ports

• Serial Port: Yes
• USB (HID Compliant) Port: Yes

Battery Information

• Number of Batteries: 2
• Battery Characteristics: Maintenance-free
• Battery Chemistry: Lead Acid
• Battery Size: 12V
• Battery Capacity: 9000 mAh
• Backup/Run Time (Full Load): 3 Minute
• Backup/Run Time (Half Load): 11 Minute
• Battery Life: 6 Year
• Typical Battery Recharge Time: 8 Hour
• Hot Swappable: Yes
• Replaceable Battery: Yes

Environmental Conditions

• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: 5°F (-15°C) - 113°F (45°C)
• Maximum Operating Elevation: 10000 ft
• Maximum Storage Elevation: 50000 ft
• Storage Relative Humidity: 0% - 95%

Physical Characteristics

• Color Family: Black
• Product Color: Black

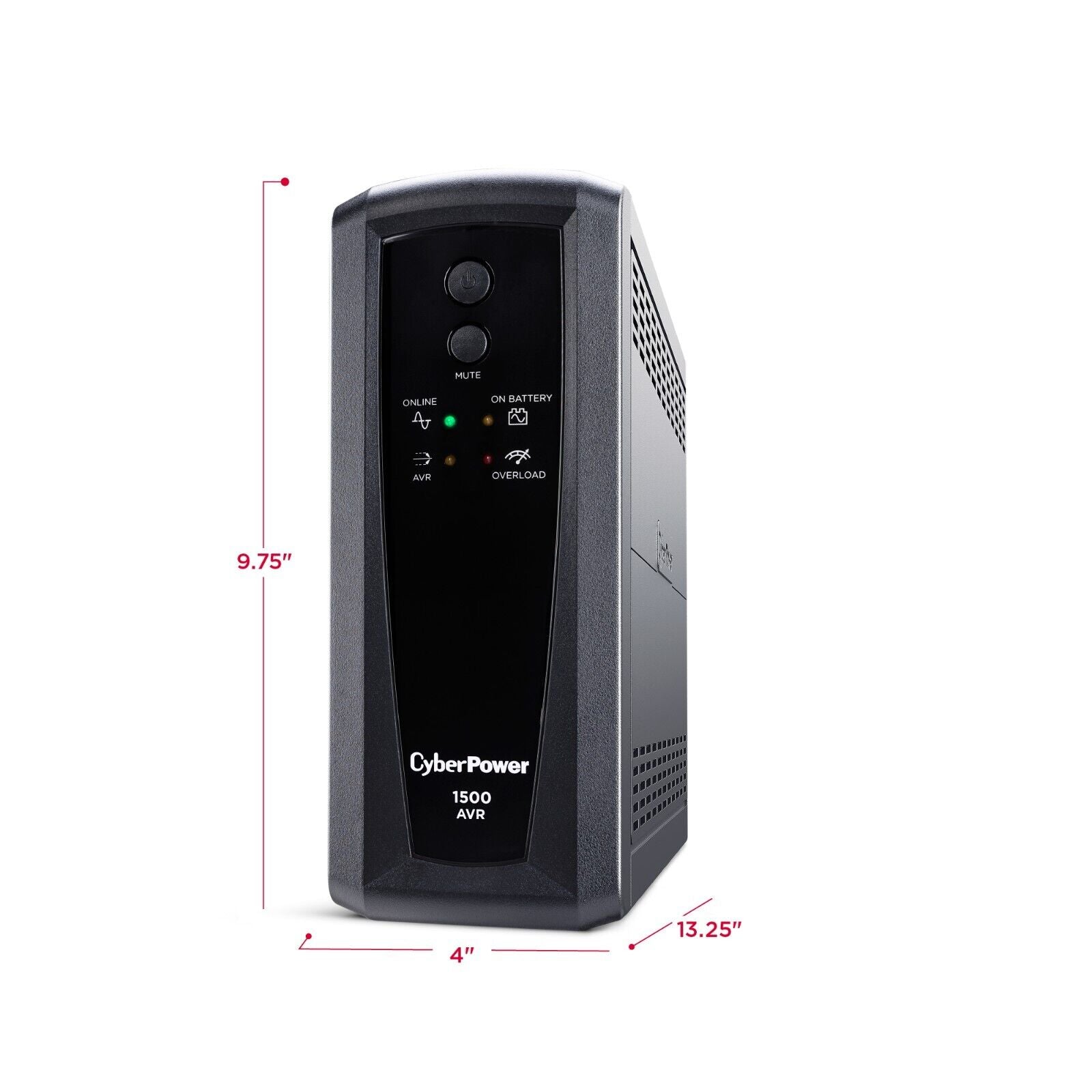

• Height: 9.8"
• Width: 3.9"
• Depth: 13.7"
• Form Factor: Mini-tower
• Weight (Approximate): 24.10 lb

Package Contents:

• AVR CP1500AVRT 1500VA UPS
• User Manual
• Power Management Software
• Warranty Card
• Coaxial Cable
• Phone Cable
• USB Cable

Additional Information:

• Replacement Battery Cartridge : RB1290X2 (for serial numbers that begin with "BHG")
• Replacement Battery Cartridge Quantity : 1
• Adjustable Voltage Range : 135 - 144 VAC
• Cord Length : 6 ft (1.8 m)
• Plug Style : Right Angle - 45° Offset
• Automatic Voltage Regulation : Single Boost
• On Battery Voltage : 120 VAC ± 5%
• Outlets - Widely Spaced : 2
• Typical Transfer Time : 8 ms
• Coax Protection RG6 COMPUTED : 1 in
• EMI/RFI Filtration COMPUTED : Yes
• Network Protection RJ45 : 1-in / 1-Out (10/100/1000)
• Coax Protection RG6 COMPUTED : 1 in
• Management Cable : USB Cable
• Serial Port : 1 Dry Contact
• Software (Free Download) : PowerPanel® Personal
• Material of Construction : Plastic
• Operating Relative Humidity : 0 - 90 % (non-condensing)
• Operating Temperature : 32 - 104 °F (0 - 40 °C)

Certifications & Standards:

• FCC Class B certified
• cUL
• UL 1778
• Software Included: PowerPanel PE
• Energy Star: Yes
• Country of Origin: China
• Environmentally Friendly: Yes
• Limited Warranty: 3 Year from CyberPower
