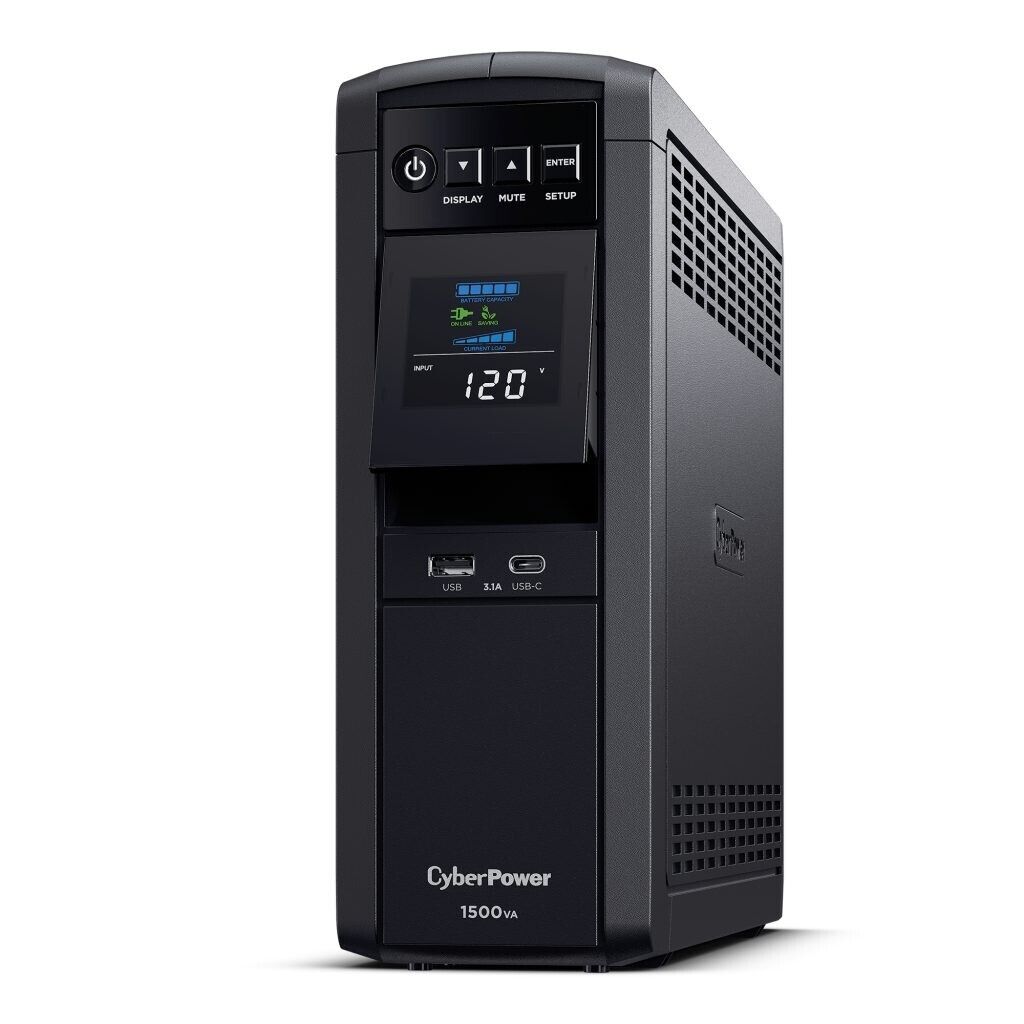

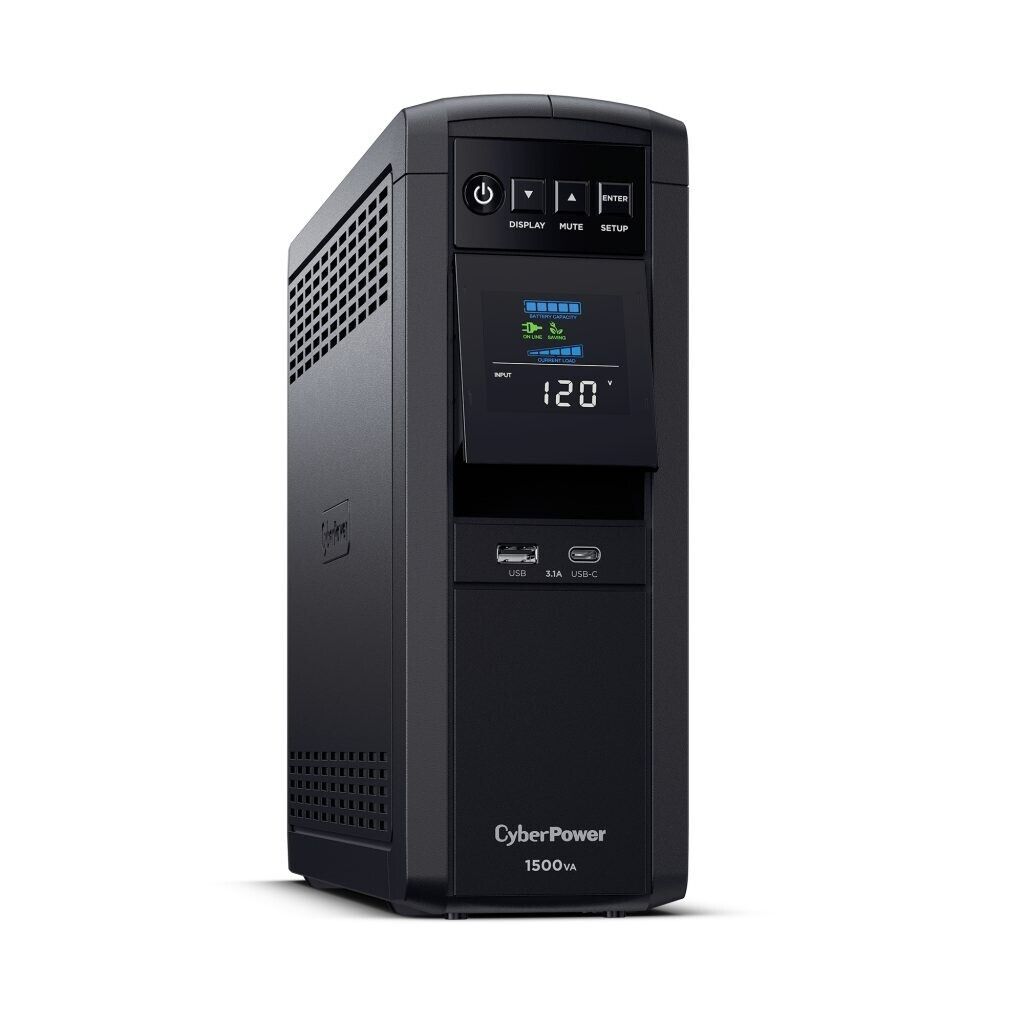

CyberPower CP1500PFCLCD 6+6 Outlets Sinewave UPS System 1500VA 1000W 1445J w 5FT

General Information

• Manufacturer: CyberPower Systems, Inc
• Manufacturer Part Number: CP1500PFCLCD
• Brand Name: CyberPower
• Product Series: PFC Sinewave UPS
• Product Model: CP1500PFCLCD
• Product Name: CP1500PFCLCD UPS 1500VA 1000W PFC compatible Pure sine wave
• Product Type: Line-interactive UPS

Marketing Information:

A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave CP1500PFCLCD provides battery backup (using sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems requiring active PFC power source compatibility.

The CP1500PFCLCD features an advanced multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. The screen tilts for easy viewing when the UPS is placed in a low position such as under a desk. Two USB charge ports (one Type-A and one Type-C) power portable devices such as mobile phones and tablets, even during a utility power failure.

The CP1500PFCLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life.

Technical Information

• AVR: Yes
• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R

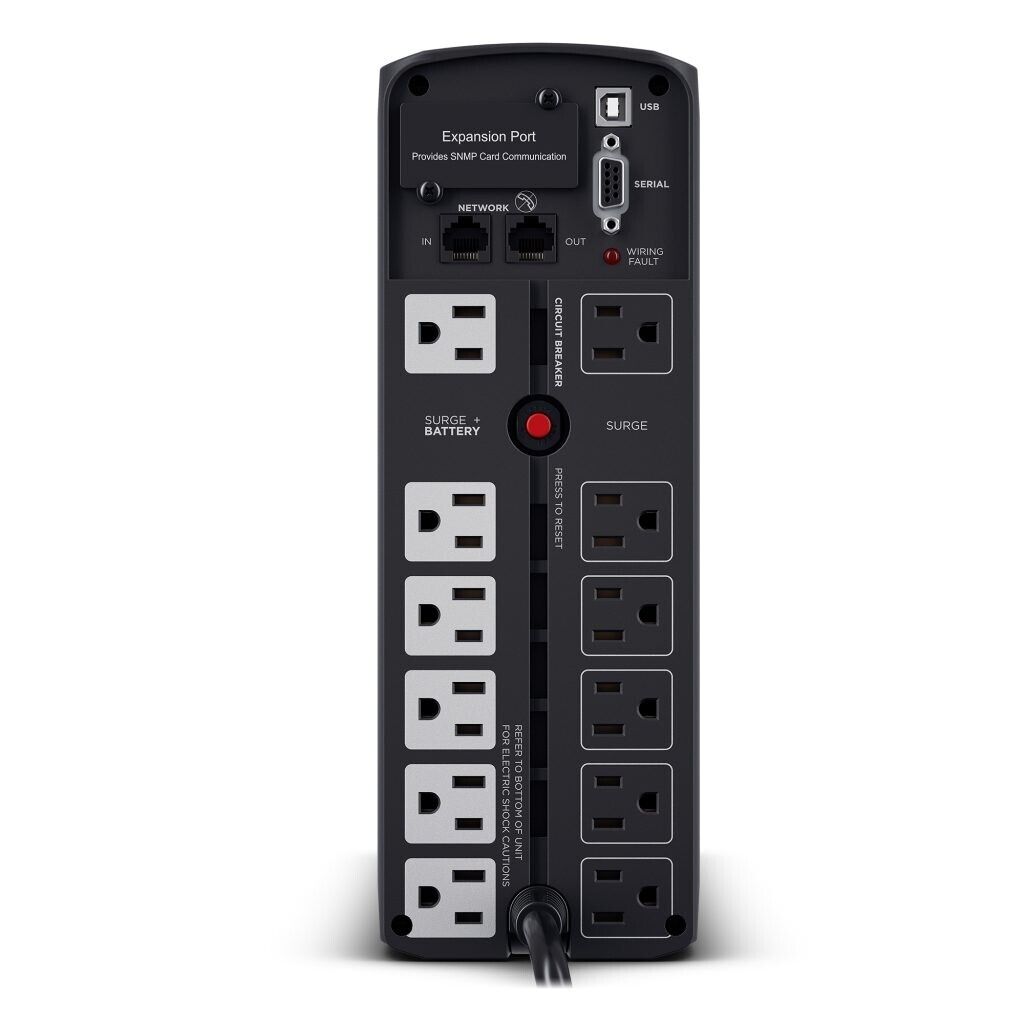

• Receptacle Detail: 12 x NEMA 5-15R
• Number of Battery & Surge Outlets: 6
• Number of Surge-only Outlets: 6
• Overload Protection: Yes
• Cord Length: 5 ft
• Transfer Time: 4 ms
• EMI/RFI Noise Filter: Yes
• Energy Saving: GreenPower UPS™ Bypass Technology

Power Description

• Load Capacity (VA): 1500 VA
• Load Capacity (Watt): 1000 W
• Input Voltage: 120 V AC
• Input Voltage Range: 88 V AC - 144 V AC
• Output Voltage: 120 V AC
• Input Frequency: 63 Hz
• Waveform Type: Sine Wave
• Surge Energy Rating: 1445 J

Management

• Network Management: SNMP/HTTP Remote Monitoring
• Alarm:
  • Low Battery
  • Overload
  • Fault
  • On Battery

Status Indicators:

• Power On
• Wiring Fault

Interfaces/Ports

• Serial Port: Yes
• USB: Yes
• USB (HID Compliant) Port: Yes

Battery Information

• DC System Voltage: 12 V DC
• Number of Batteries: 2
• Battery Characteristics: Maintenance-free
• Battery Chemistry: Lead Acid
• Battery Size: 12V
• Backup/Run Time (Full Load): 2.50 Minute
• Backup/Run Time (Half Load): 10 Minute
• Typical Battery Recharge Time: 8 Hour
• Hot Swappable: Yes
• Replaceable Battery: Yes

Environmental Conditions

• Maximum Operating Temperature: 104°F (40°C)
• Maximum Operating Elevation: 10000 ft

Physical Characteristics

• Color Family: Black
• Product Color: Black
• Height: 11"
• Width: 3.9"
• Depth: 14"
• Form Factor: Mini-tower
• Weight (Approximate): 24.90 lb

Package Contents:

• CP1500PFCLCD UPS 1500VA 1000W PFC compatible Pure sine wave
• PowerPanel Personal Edition Software
• USB Cable
• User Manual
• Registration Card
• Coax Cable

Additional Information:

• Active PFC Compatible : Yes
• Replacement Battery Cartridge Quantity : 1
• Plug Style : Right Angle - 45° Offset
• On Battery Frequency : 60 Hz ± 1%
• Automatic Voltage Regulation : Single Boost
• On Battery Voltage : 120 VAC ± 5%
• USB Charge Port Quantity : 2
• USB Charge Port Type COMPUTED : 1 Type A
• USB Charge Port Amperage COMPUTED : 3.1 Amps (Shared)
• Outlets - Widely Spaced : 2
• Overload Protection : Internal Circuitry Limiting
• Under/Over-Voltage Correction : +11.5%
• Audible Alarms : Battery Mode
• HID Compliant USB Port : Yes
• LCD : Multifunction LCD
• Management Cable : USB Cable
• Dry Contacts : Yes
• Operating Temperature : 32 - 104 °F (0 - 40 °C)
• Operating Relative Humidity : 0 - 95 % (non-condensing)
• Operating Elevation : 0 - 10000 ft (0 - 3048 m)

Certifications & Standards:

• UL1778
• cUL 107.3
• FCC DOC Class B

Software Included: PowerPanel® Business

Energy Star: Yes

Country of Origin: Philippines

Environmentally Friendly: Yes

Limited Warranty: 3 Year from CyberPower
