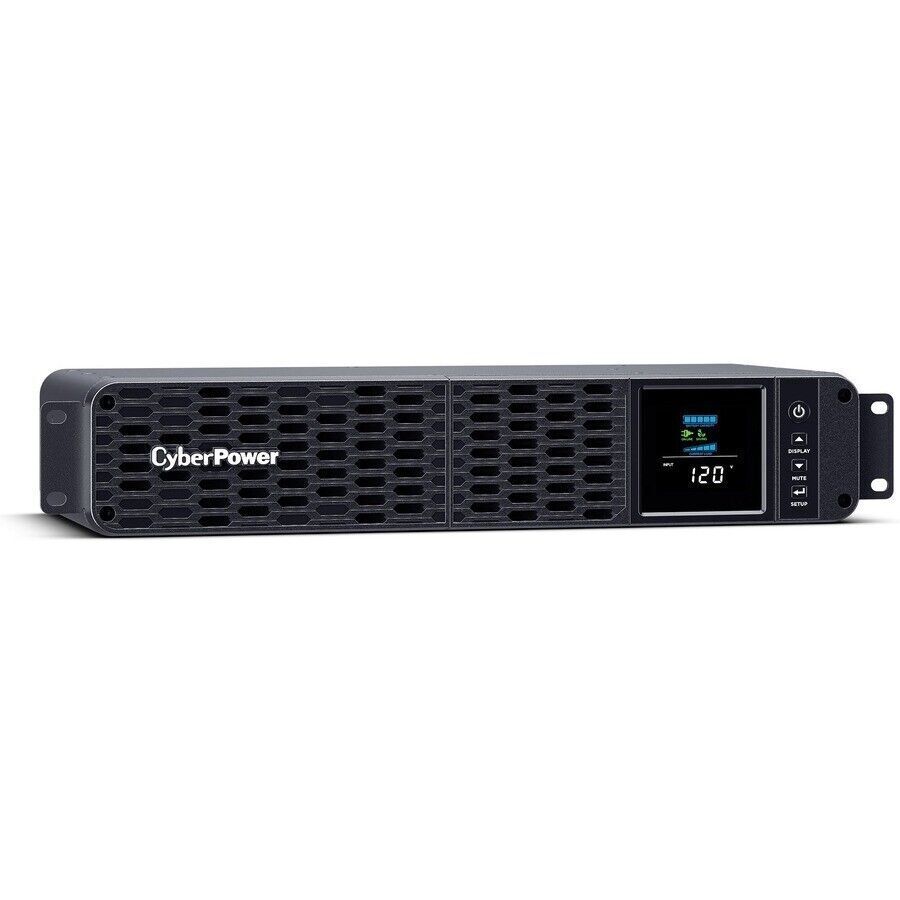

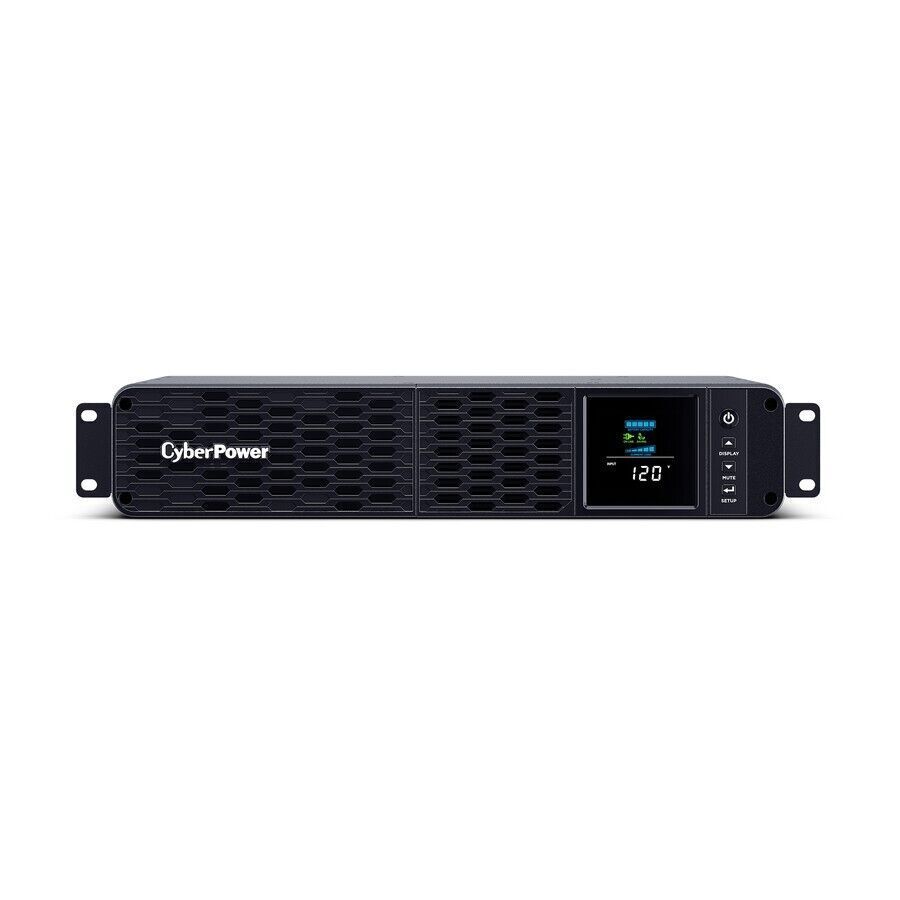

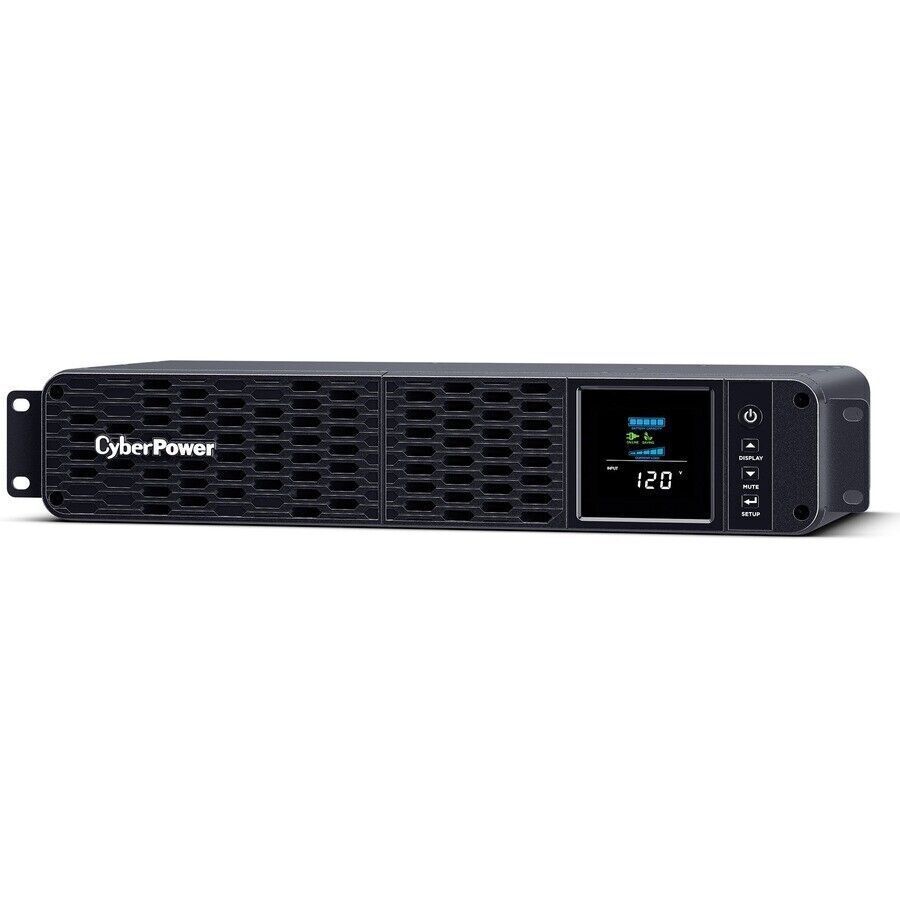

CyberPower CP1500PFCRM2U PFC Sinewave UPS Systems - 2U Rack-mountable - AVR

General Information

Manufacturer:   CyberPower Systems, Inc
Brand Name:   CyberPower
Manufacturer Part Number:   CP1500PFCRM2U
Product Line:   PFC Sinewave
Product Model:   CP1500PFCRM2U
Product Name:   CP1500PFCRM2U PFC Sinewave UPS Systems

Marketing Information:   The CP1500PFCRM2U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility.
The CP1500PFCRM2U features Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power, and a multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. Remote management and/or monitoring is available with optional purchase of a Remote Network Management Card or Cloud Monitoring Card. At only 10.5 inches in depth, the CP1500PFCRM2U fits comfortably in short-depth rack installations where space is at a premium.

Product Type:   Line-interactive UPS

Technical Information
AVR:   Yes
Plug/Connector Type:   NEMA 5-15P
Receptacle Type:   NEMA 5-15R

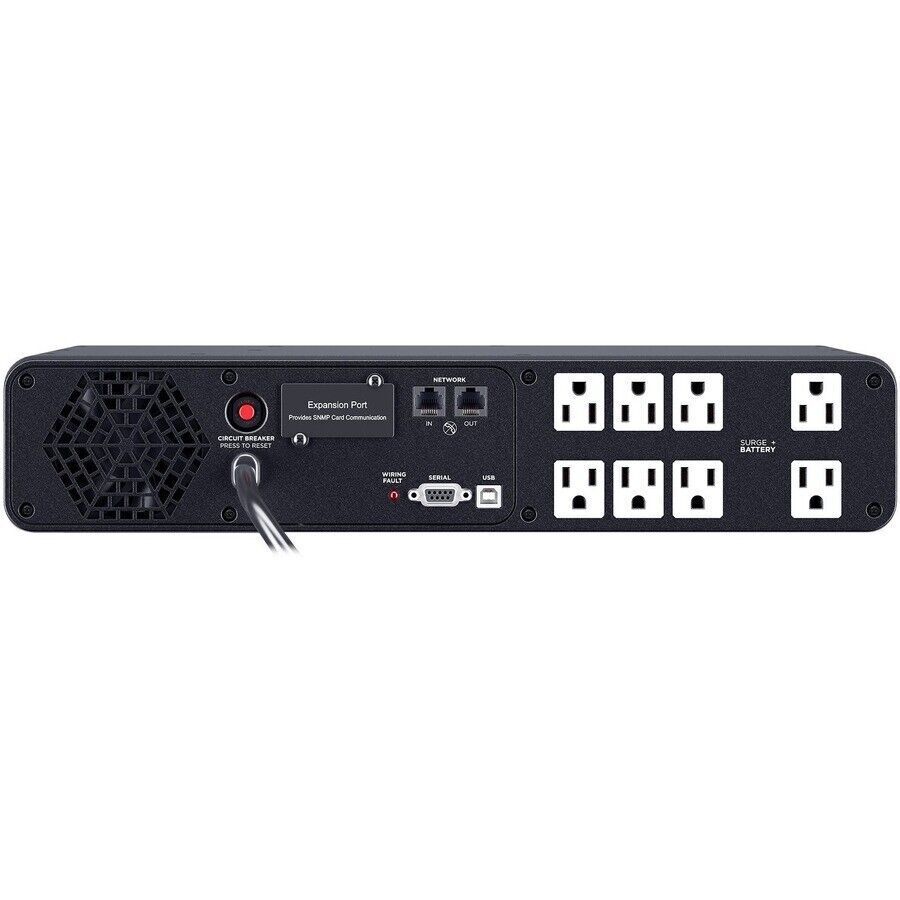

Receptacle Detail:   8 x NEMA 5-15R
Number of Battery & Surge Outlets:   8
Dataline Protection:   Coax
Overload Protection:   Yes
Transfer Time:   4 ms
EMI/RFI Noise Filter:   Yes
Application/Usage:   Surveillance System
Application/Usage:   Audio System
Application/Usage:   Network Device
Application/Usage:   POS
Application/Usage:   Security System
Application/Usage:   Storage Device

Power Description
Load Capacity:   1500 VA/1000 W
Input Voltage:   120 V AC
Input Voltage Range:   88 VAC - 144 VAC
Input Frequency:   63 Hz
Output Frequency:   60 Hz
Waveform Type:   Sine Wave
Surge Energy Rating:   1500 J

Management
Network Management:   SNMP/HTTP Remote Monitoring
Network Management:   SNMP/Webcard
Alarm:   Battery Mode
Alarm:   Fault
Alarm:   Low Battery
Alarm:   Overload

Controls/Indicators
Status Indicators:
Multifunction LCD

Interfaces/Ports
Serial Port:   Yes
USB (HID Compliant) Port:   Yes

Battery Information
DC System Voltage:   12 V DC
Number of Batteries:   2
Battery Characteristics:   Sealed
Battery Chemistry:   Lead Acid
Battery Capacity:   9000 mAh
Backup/Run Time (Full Load):   3.10 Minute
Backup/Run Time (Half Load):   10.20 Minute
Typical Battery Recharge Time:   8 Hour
Replaceable Battery:   Yes

Environmental Conditions
Maximum Operating Temperature:   104°F (40°C)
Storage Temperature:   5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation:   10000 ft
Maximum Storage Elevation:   50000 ft
Thermal Dissipation:   15.24 W

Physical Characteristics
Product Color:   Black
Height:   3.4"
Width:   17"
Depth:   10.5"
Rack Height:   2U
Form Factor:   Rack-mountable
Weight (Approximate):   26.81 lb

Miscellaneous
Energy Star:   Yes
Environmentally Friendly:   Yes
Environmental Certification:   RoHS
Environmental Certification:   GreenPower UPS

Country of Origin:   China

Warranty
Limited Warranty:   3 Year - Direct from the Manufacturer
