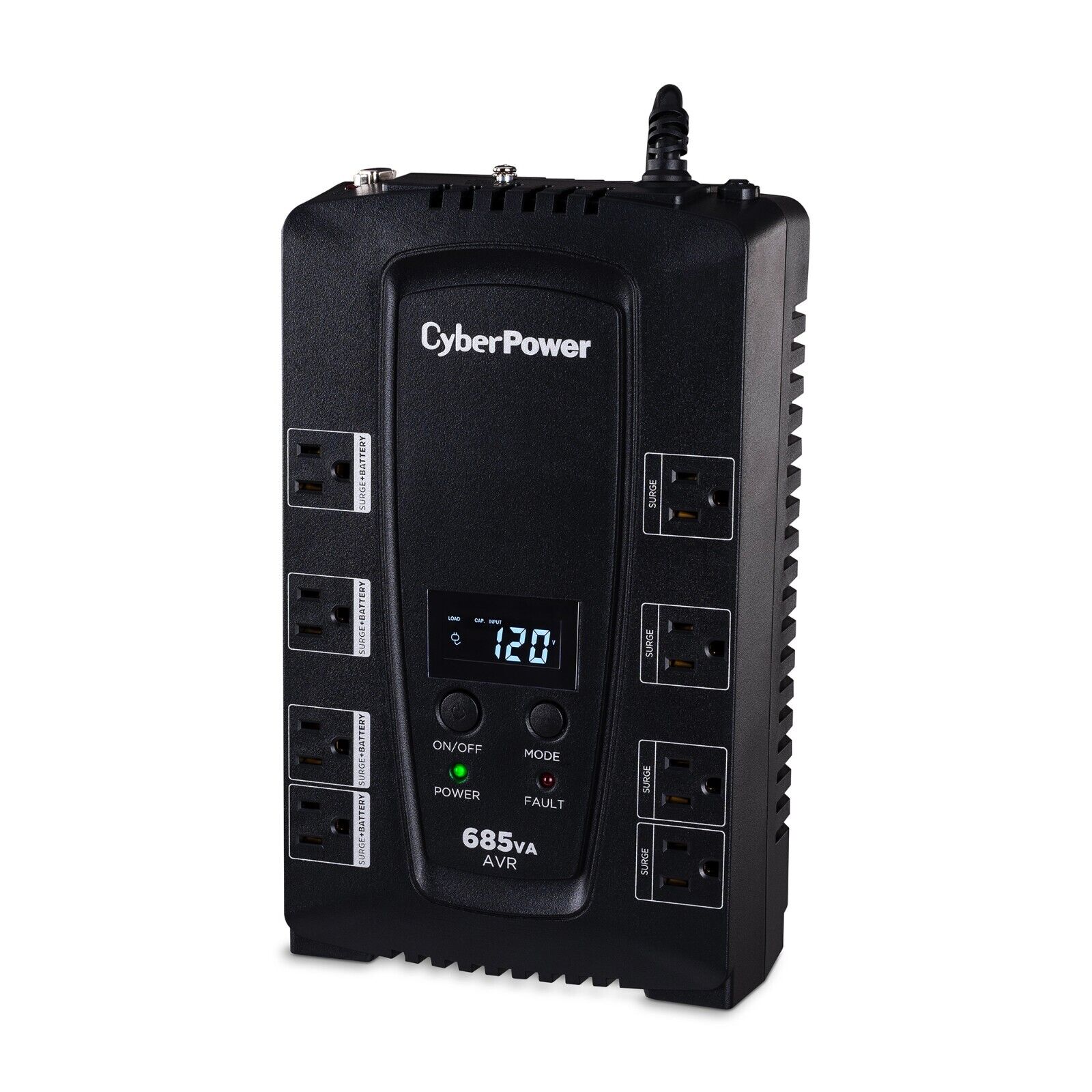

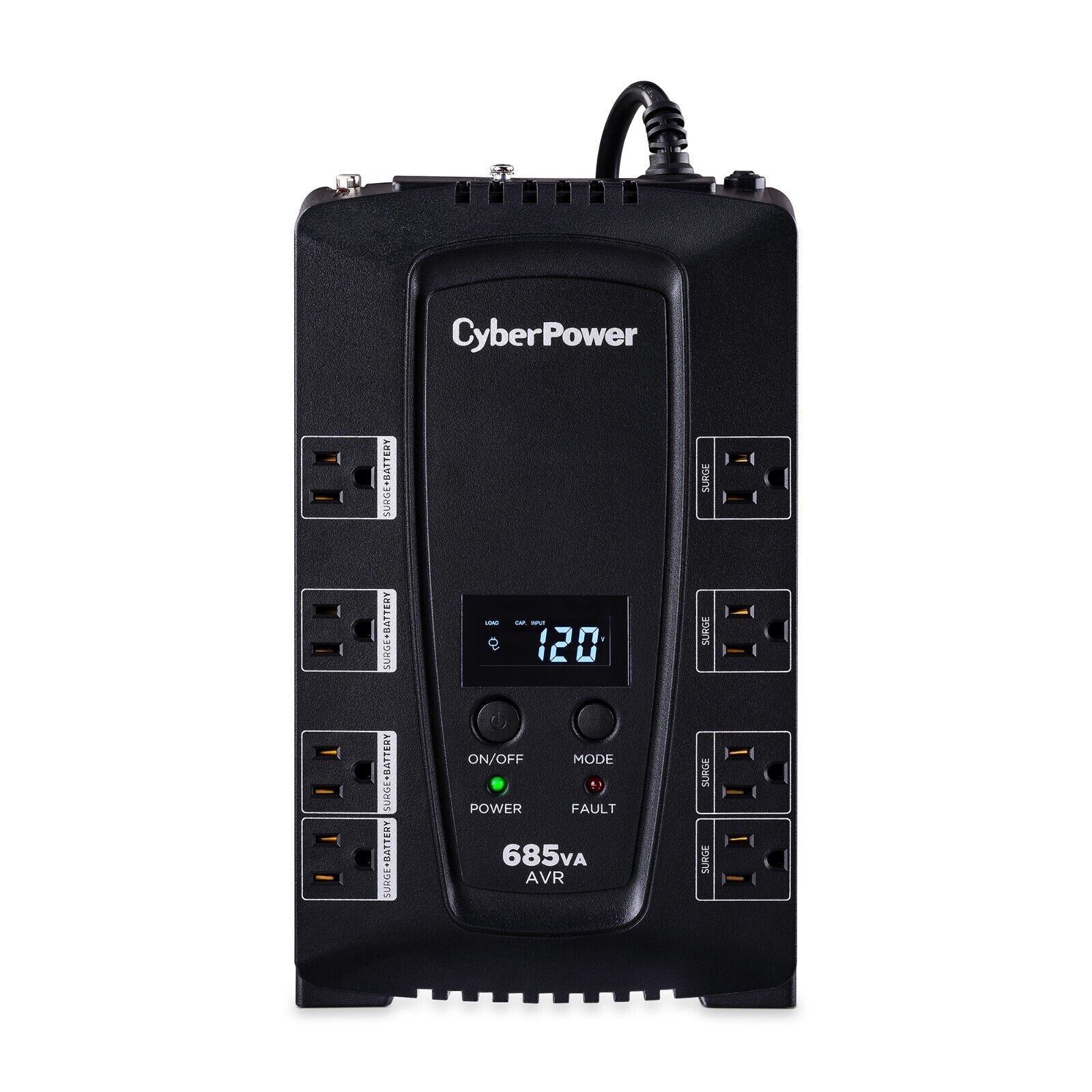

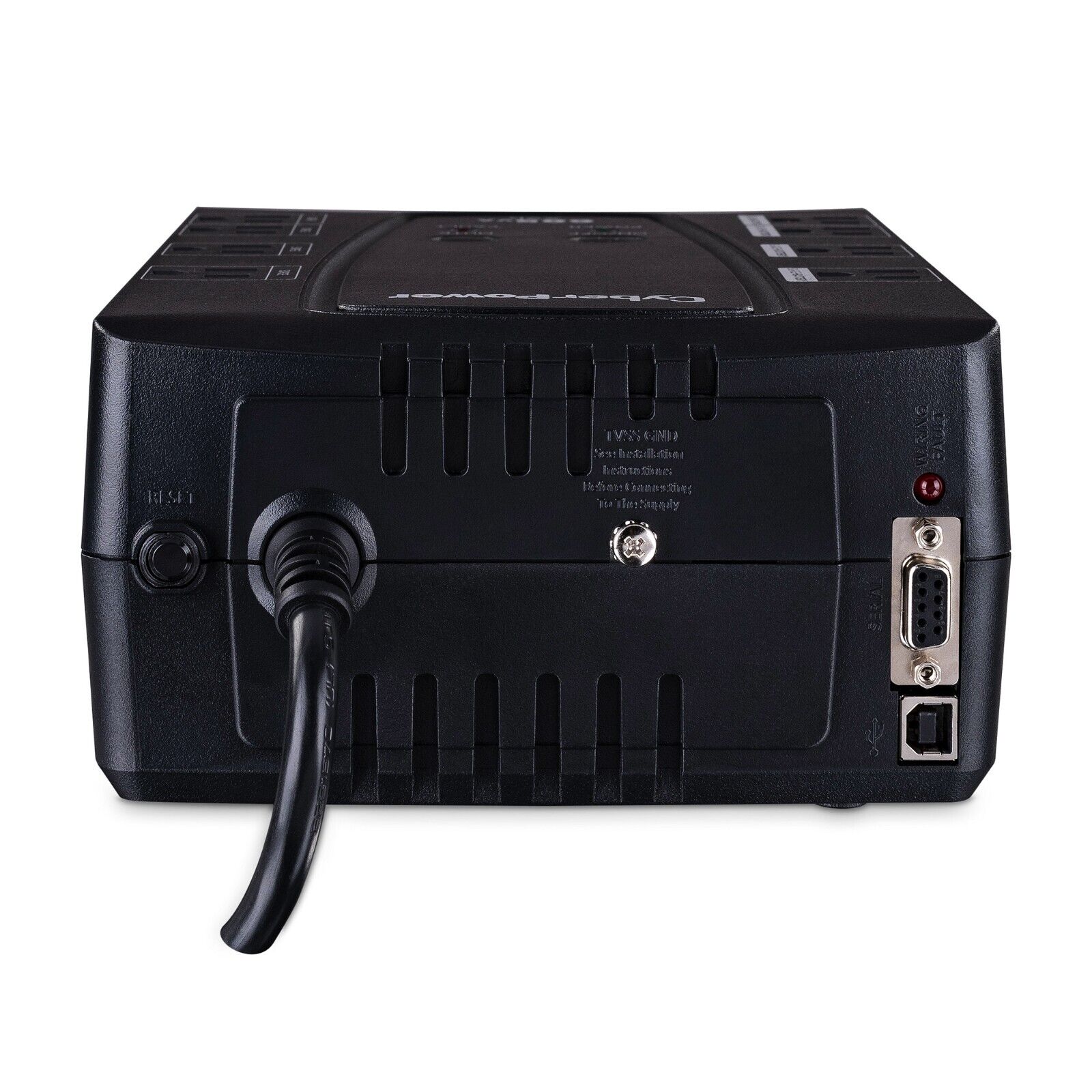

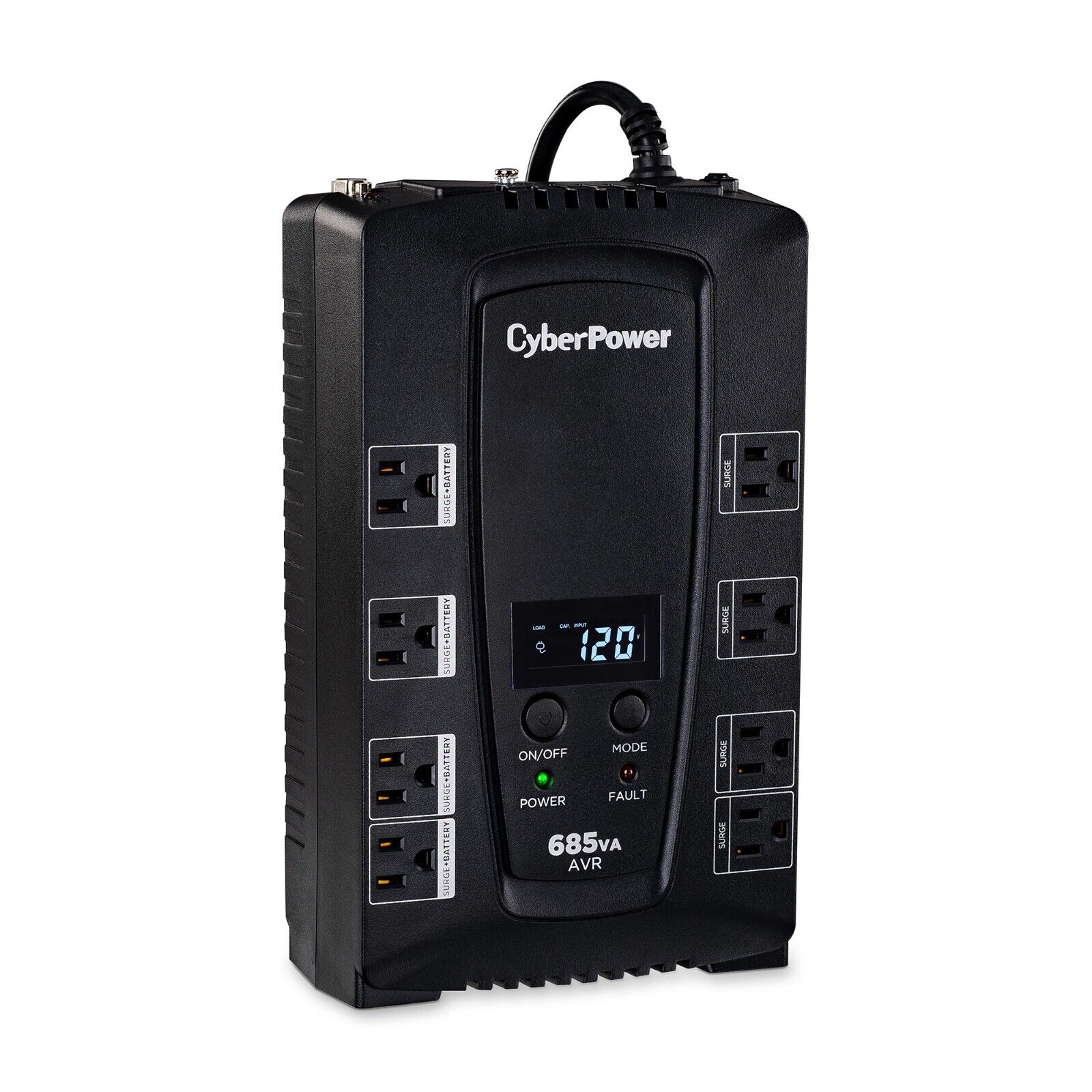

CyberPower CP685AVRLCD 4+4 Outlets Intelligent LCD UPS 685VA 390W +RJ45 RG6 RJ11

General Information

• Manufacturer: CyberPower Systems, Inc
• Manufacturer Part Number: CP685AVRLCD
• Brand Name: CyberPower
• Product Series: Intelligent LCD UPS
• Product Model: CP685AVRLCD
• Product Name: Intelligent LCD CP685AVRLCD 685VA Desktop UPS
• Product Type: Line-interactive UPS

Marketing Information

The Intelligent LCD CP685AVRLCD UPS, designed for mid- to high-end computer systems, is the only UPS in its class to feature the combined power of AVR line conditioning, multifunction LCD readout, compact footprint, and "Green UPS" cost-reducing technology.

• Works adequately in situations where the supply is prone to sags and surges
• 685 VA load capacity - work without any interruption during power outages
• Prevent critical data loss by staying powered during a blackout with up to 390 W load capacity
• Up to 2 minute runtime on full load to preserve critical data from power shortage interruptions

Technical Information

• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R
• Receptacle Detail: 8 x NEMA 5-15R
• Dataline Protection:
  • RJ-45
  • RG-6
  • RJ-11
• Emergency Power OFF: No
• Cord Length: 6 ft
• Transfer Time: 4 ms

Power Description

• Load Capacity (VA): 685 VA
• Load Capacity (Watt): 390 W
• Input Voltage: 110 V AC
• Output Voltage: 120 V AC

Interfaces/Ports

• USB: Yes

Battery Information

• Number of Batteries: 1
• Battery Chemistry: Lead Acid
• Backup/Run Time (Full Load): 2 Minute
• Backup/Run Time (Half Load): 11 Minute
• Typical Battery Recharge Time: 8 Hour
• Hot Swappable: Yes

Physical Characteristics

• Height: 6.5"
• Width: 11"
• Depth: 3.5"
• Form Factor: Desktop
• Weight (Approximate): 14 lb

Package Contents:

• Intelligent LCD CP685AVRLCD 685VA Desktop UPS
• User Manual
• USB A+B Type Cable
• Serial Cable
• Warranty Registration Card

Certifications & Standards:

• UL1778
• cUL 107.1
• FCC DOC Class B
• Software Included: PowerPanel Personal Edition Software
• Energy Star: Yes
• Environmentally Friendly: Yes
• Limited Warranty: 3 Year from CyberPower
