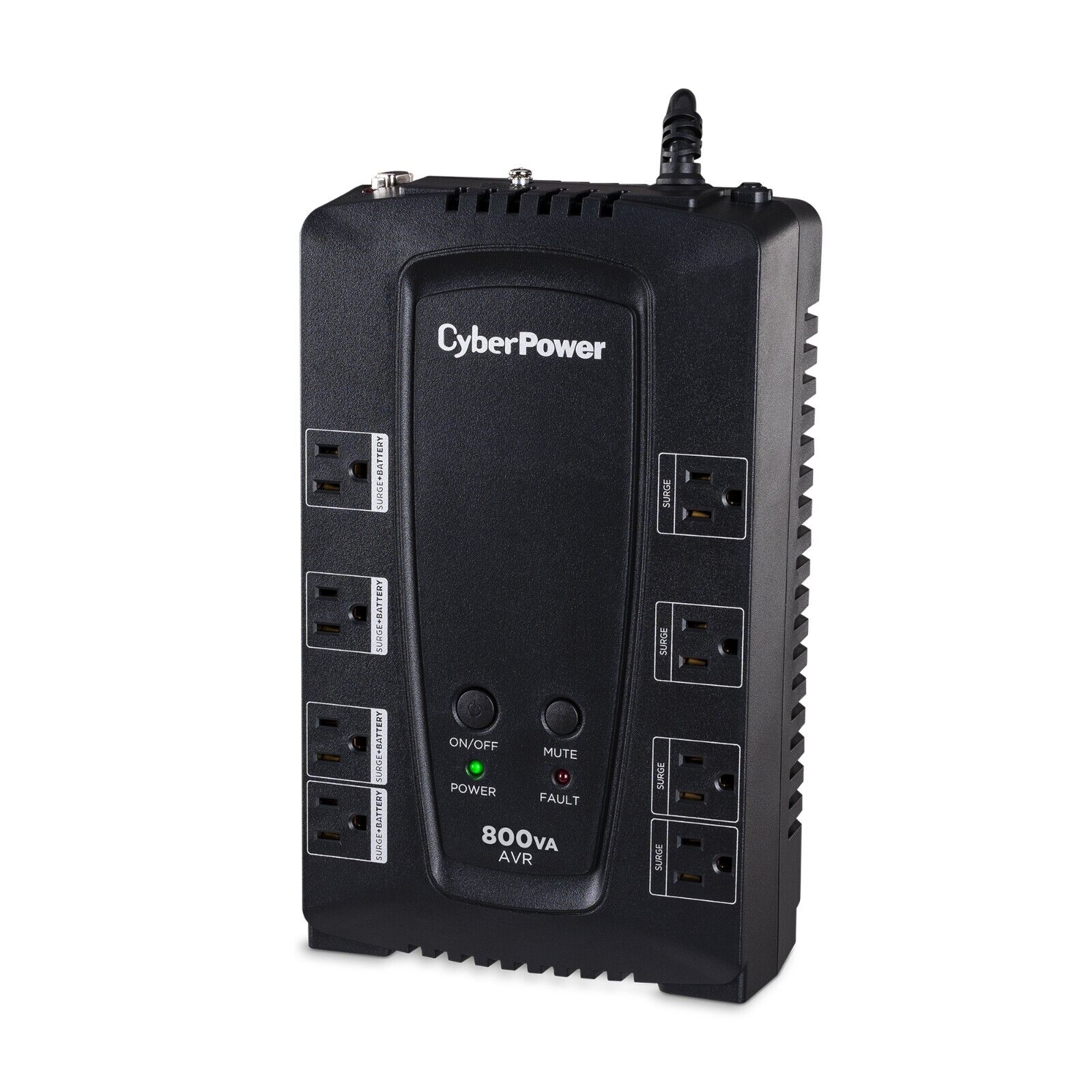

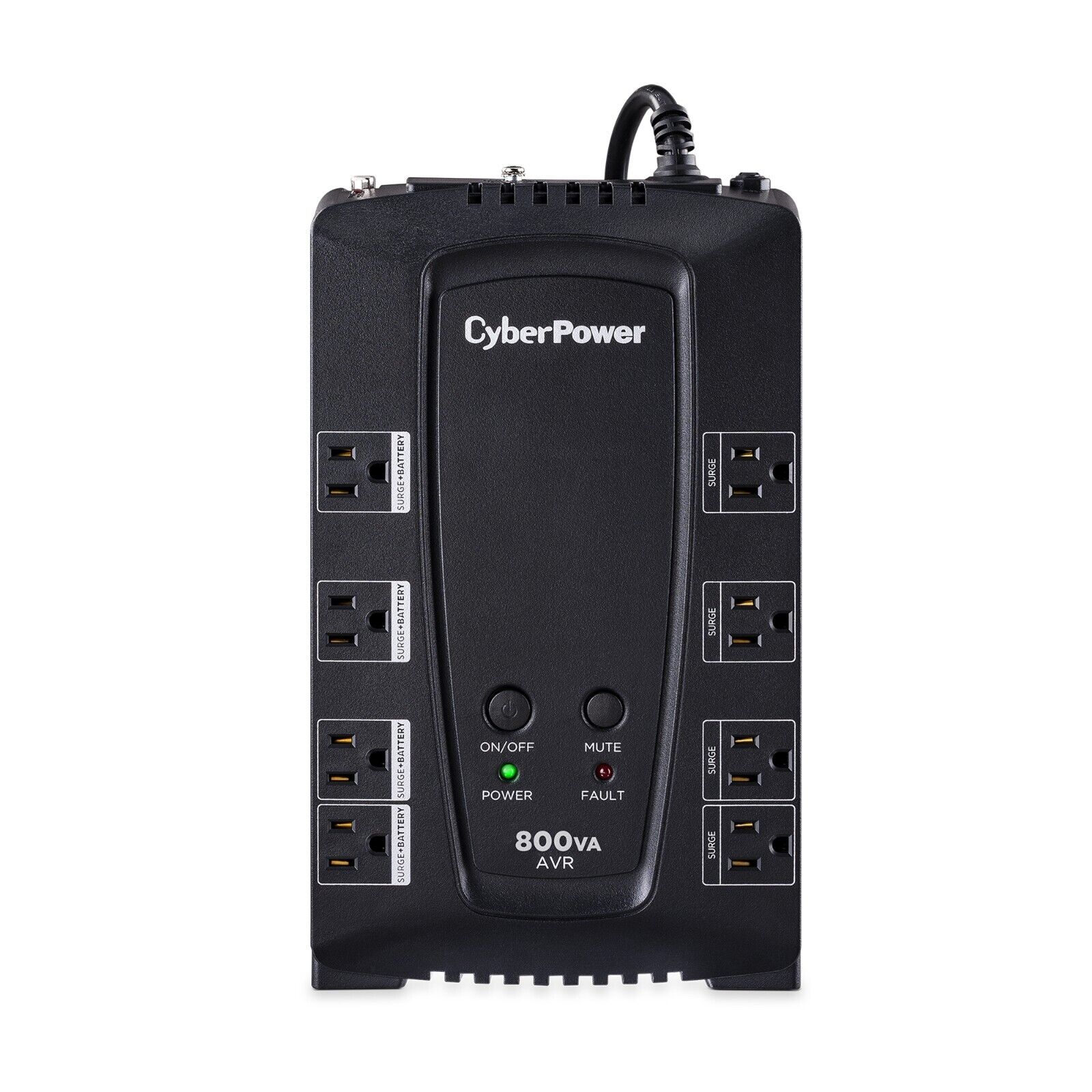

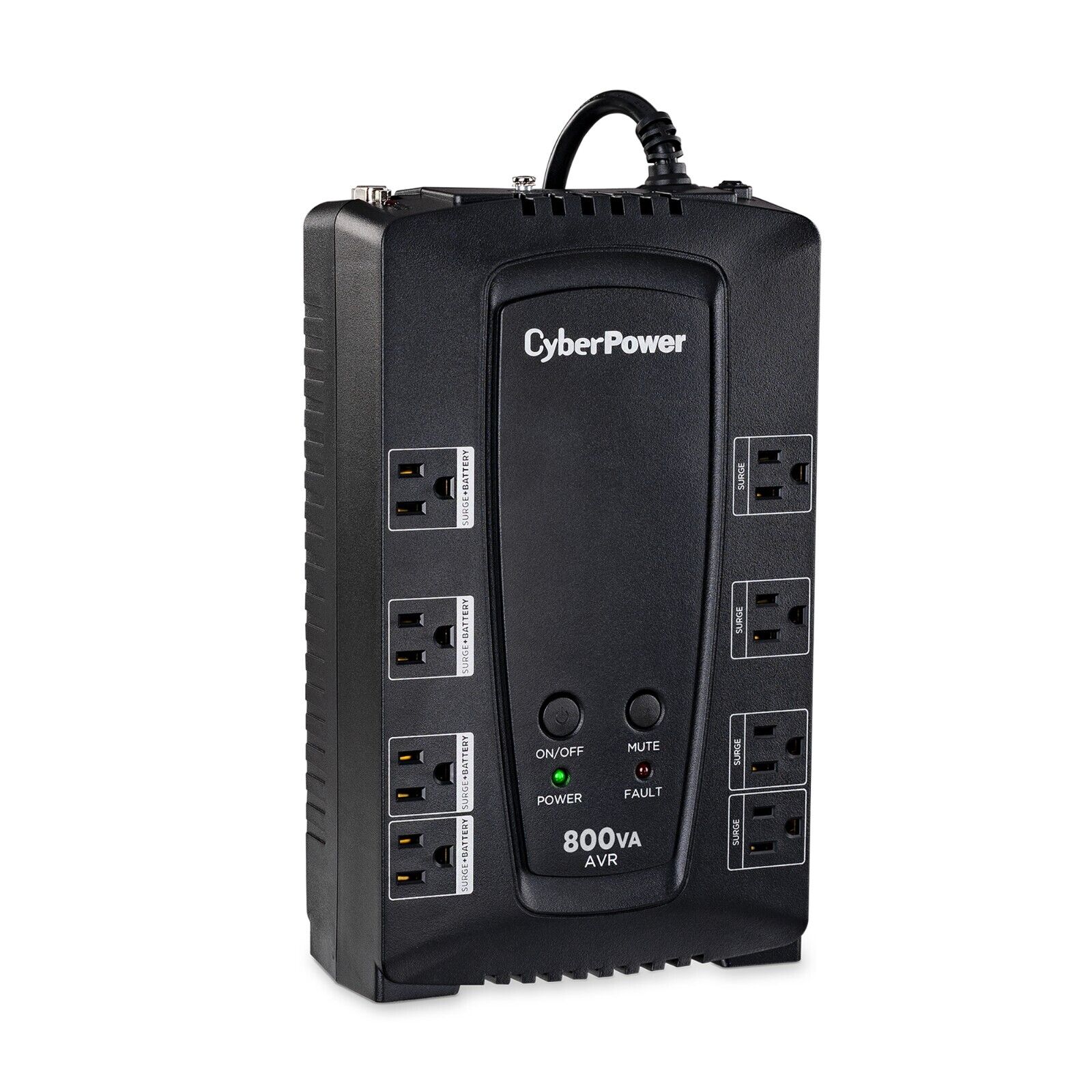

CyberPower CP800AVR 4+4 Outlets Sinwave UPS System 80VA 450W 1030J w 6FT Cord

General Information

• Manufacturer: CyberPower Systems, Inc
• Manufacturer Part Number: CP800AVR
• Brand Name: CyberPower
• Product Series: AVR UPS
• Product Model: CP800AVR
• Product Name: AVR CP800AVR 800VA UPS
• Product Type: Line-interactive UPS

Technical Information

• AVR: Yes
• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R
• Receptacle Detail: 8 x NEMA 5-15R
• Number of Battery & Surge Outlets: 4
• Number of Surge-only Outlets: 4
• Bypass Switch: Not Provided
• Emergency Power OFF: No
• Cord Length: 6 ft
• Transfer Time: 4 ms
• Energy Saving: GreenPower UPS™ Bypass
• Application/Usage:
• Desktop Computer
  • Workstation
  • Home Theater
  • Electronic Equipment
  • Home Network
  • Router
  • Modem
  • VoIP Phone System

Power Description

• Load Capacity (VA): 800 VA
• Load Capacity (Watt): 450 W
• Input Voltage: 120 V AC
• Output Voltage: 120 V AC
• Output Frequency: 60 Hz
• Waveform Type: Simulated Sine Wave
• Surge Energy Rating: 1030 J
• Circuit Breaker: Yes

Management

• Alarm:
  • Low Battery
  • On Battery
  • Overload
  • Controls/Indicators
• Status Indicators:
  • Power On
  • Wiring Fault

Interfaces/Ports

• Serial Port: Yes
• USB: Yes
• USB (HID Compliant) Port: Yes

Battery Information

• Number of Batteries: 1
• Battery Characteristics: Maintenance-free
• Battery Chemistry: Lead Acid
• Battery Size: 12V
• Battery Capacity: 9000 mAh
• Backup/Run Time (Full Load): 1.20 Minute
• Backup/Run Time (Half Load): 13.50 Minute
• Typical Battery Recharge Time: 8 Hour
• Replaceable Battery: Yes

Environmental Conditions

• Maximum Operating Temperature: 95°F (35°C)

Physical Characteristics

• Color Family: Black
• Product Color: Black
• Height: 6.8"
• Width: 11"
• Depth: 3.5"
• Form Factor: Compact
• Weight (Approximate): 12.74 lb

Package Contents:

• AVR CP800AVR 800VA UPS
• User Manual
• USB A+B Type Cable
• Serial Cable
• Warranty Registration Card

Additional Information:

• Length: 15.35"
• Automatic Voltage Regulation (AVR): Incoming AC power is electronically regulated for dips and spikes AVR takes this irregular AC power and converts it into a consistent Sinewave so sensitive electronic equipment can achieve its optimal performance
• EMI/RFI: Provides shielding against electromagnetic interference & radio frequency signals. Most commonly, this is used to prevent line noise or humming that occurs over telephone lines or stereo electronics
• Transformer-spaced Outlets - Widely spaced outlets allow you to conveniently add large transformer-based plugs without compromising the utility of other outlets
• USB Connectivity - Plug-N-Play software and convenient USB ports allow for quick and easy installation
• PowerPanel PE Smart Management Software: In event of a power outage, PowerPanel PE will not only save your open files and will also Hibernate your PC to increase the run-time on the UPS unit. PowerPanel is quickly and easily installed on any Windows-based PC and is designed to utilize minimal system resources. Diagnostic screens give immediate visuals of the UPSs status, and also include the following features: Silent operation mode, configurable system notifications, automatic self tests, adjustable high/low voltage warnings, event/data logging, and scheduled shutdowns
• Resettable Circuit Breaker: Convenient unit reset switch in case of an overload
• Convenient Mounting: Multiple mounting options: horizontal, vertical, cabinet, and wall
• Windows Vista Compliant: Power Management software has been fully tested and compliant with Windows 9x, 200x, Server, XP, and Vista

Certifications & Standards:

• FCC Class B certified
• cUL
• UL 1778
• Software Included: PowerPanel® Personal
• Energy Star: Yes
• Country of Origin: Philippines
• Environmentally Friendly: Yes
• Limited Warranty: 3 Year from CyberPower
