CyberPower CP850AVRLCD 5+4 Outlets Intelligent LCD Tower UPS System 850VA 510W

General Information

• Manufacturer: CyberPower Systems, Inc
• Manufacturer Part Number: CP850AVRLCD
• Brand Name: CyberPower
• Product Series: Intelligent LCD UPS
• Product Model: CP850AVRLCD
• Product Name: Intelligent LCD CP850AVRLCD 850 VA Tower UPS
• Product Type: Line-interactive UPS

Marketing Information:

A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP850AVRLCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP850AVRLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life.

Technical Information

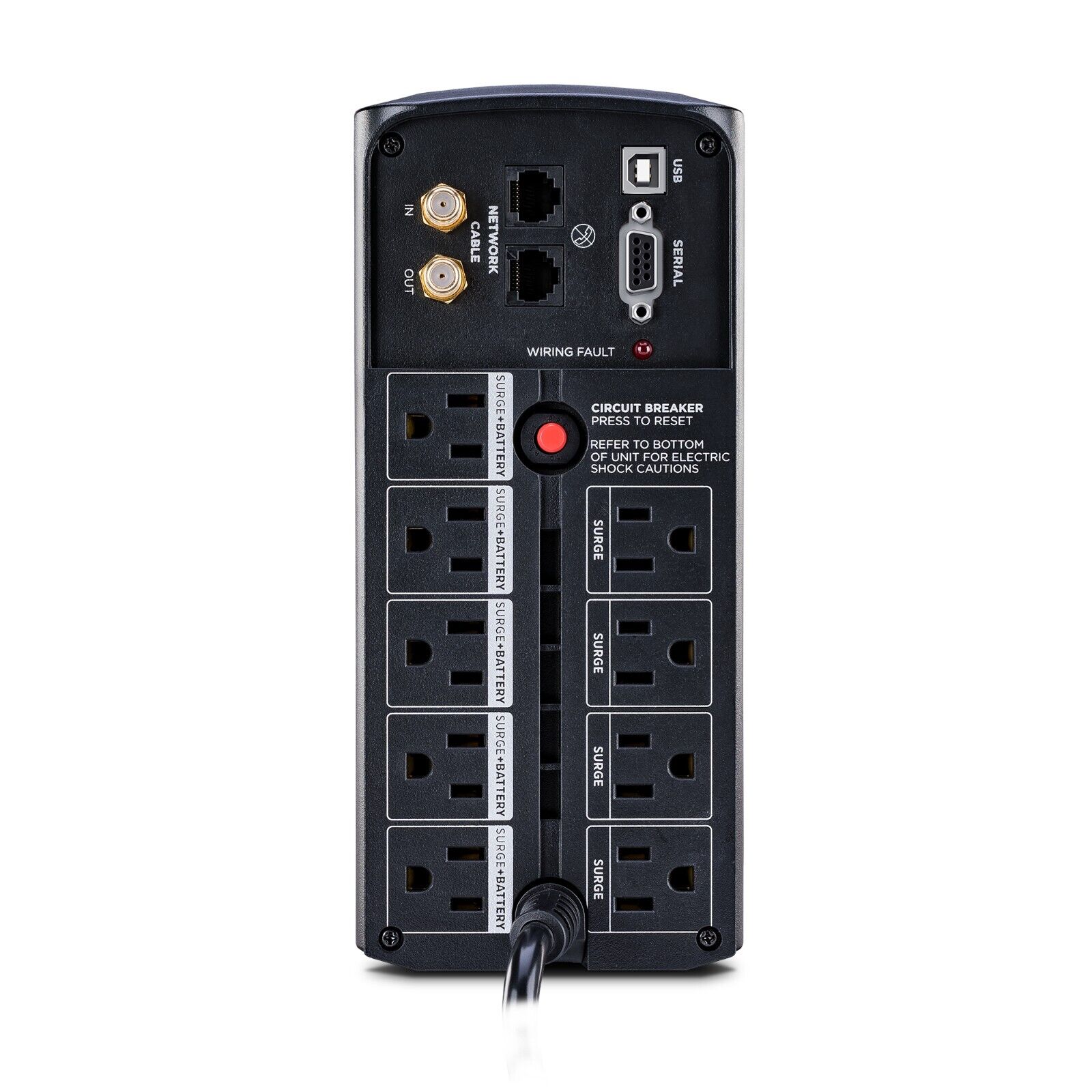

• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R
• Receptacle Detail: 9 x NEMA 5-15R
• Number of Battery & Surge Outlets: 5
• Number of Surge-only Outlets: 4
• Dataline Protection:
  • RG-6
  • RJ-45
• Overload Protection: Yes
• Cord Length: 6 ft
• Transfer Time: 4 ms
• EMI/RFI Noise Filter: Yes
• Energy Saving: GreenPower UPS™ Bypass Technology

Power Description

• Load Capacity (VA): 850 VA
• Load Capacity (Watt): 510 W
• Input Voltage: 120 V AC
• Input Voltage Range: 90 V AC - 142 V AC
• Output Voltage: 120 V AC
• Input Frequency: 63 Hz
• Waveform Type: Simulated Sine Wave
• Surge Energy Rating: 1080 J

Management

• Alarm: Battery Mode
• Status Indicators: Power On

Interfaces/Ports

• Serial Port: Yes
• USB: Yes
• USB (HID Compliant) Port: Yes

Battery Information

• Number of Batteries: 1
• Battery Chemistry: Lead Acid
• Battery Size: 12V
• Battery Capacity: 9000 mAh
• Backup/Run Time (Full Load): 3 Minute
• Backup/Run Time (Half Load): 11 Minute
• Typical Battery Recharge Time: 8 Hour
• Hot Swappable: Yes
• Replaceable Battery: Yes

Environmental Conditions

• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: 5°F (-15°C) - 113°F (45°C)
• Maximum Operating Elevation: 10000 ft
• Maximum Storage Elevation: 60"
• Storage Relative Humidity: 0% - 95%

Physical Characteristics

• Color Family: Black
• Product Color: Black

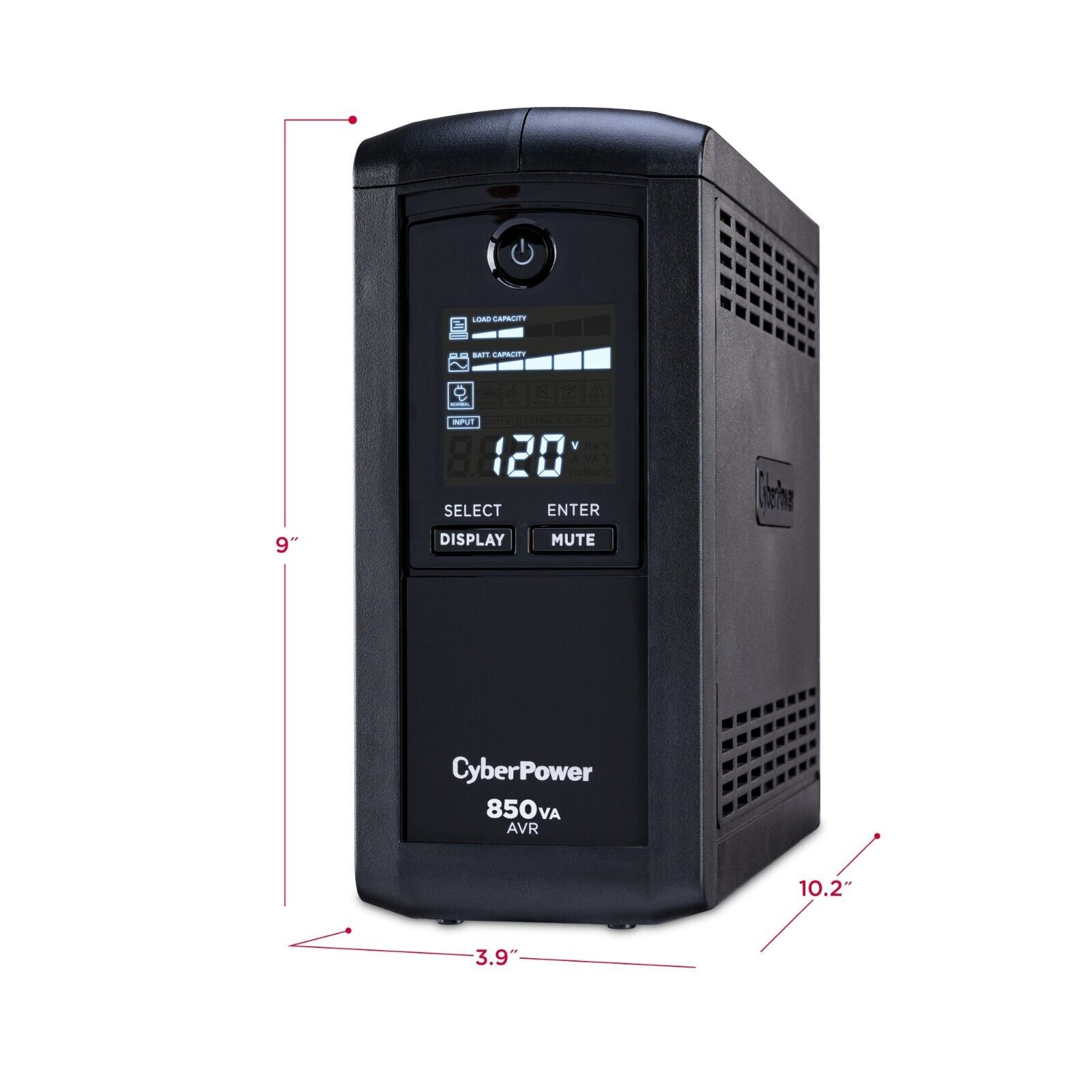

• Height: 9"
• Width: 3.9"
• Depth: 10.2"
• Form Factor: Tower
• Weight (Approximate): 15 lb

Package Contents:

• Intelligent LCD CP850AVRLCD 850 VA Tower UPS
• PowerPanel Personal Edition Software CD-ROM

Additional Information:

• Replacement Battery Cartridge Quantity : 1
• Plug Style : Right Angle - 45° Offset
• Automatic Voltage Regulation : Single Boost
• On Battery Frequency : 60 Hz ± 1%
• On Battery Voltage : 120 VAC ± 5%
• Under/Over-Voltage Correction : +10%
• Coax Protection RG6 COMPUTED : 1 in
• Network Protection RJ45 : 1-in / 1-Out (10/100/1000)
• LCD : Multifunction LCD
• Management Cable : USB Cable
• Software (Free Download) : PowerPanel® Personal
• Operating Relative Humidity : 0 - 90 % (non-condensing)

Certifications & Standards:

• UL1778
• cUL 107.1
• FCC DOC Class B
• Software Included: PowerPanel Personal Edition Software
• Energy Star: Yes
• Country of Origin: China
• Environmentally Friendly: Yes
• Limited Warranty: 3 Year from CyberPower
