CyberPower CP850PFCLCD 5+5 Outlets PFC SineWve Tower UPS System 850VA 510W 1150J

General Information

• Manufacturer: CyberPower Systems, Inc
• Manufacturer Part Number: CP850PFCLCD
• Brand Name: CyberPower
• Product Series: PFC Sinewave UPS
• Product Model: CP850PFCLCD
• Product Name: CP850PFCLCD UPS 850VA 510W PFC compatible Pure sine wave
• Product Type: Line-interactive UPS

Marketing Information:

A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave CP850PFCLCD provides battery backup (using sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems requiring active PFC power source compatibility.

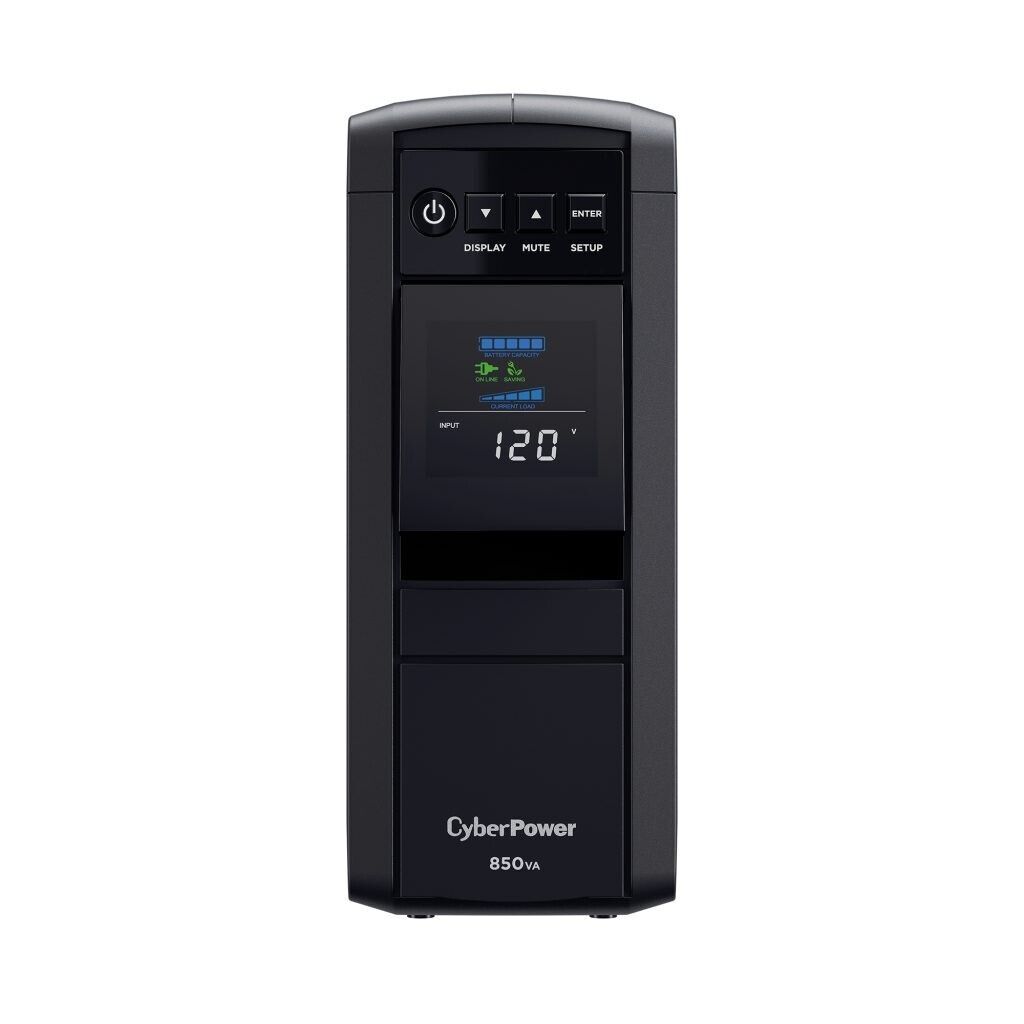

The CP850PFCLCD features an advanced multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. The screen tilts for easy viewing when the UPS is placed in a low position such as under a desk.

The CP850PFCLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life.

Technical Information

• AVR: Yes
• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R

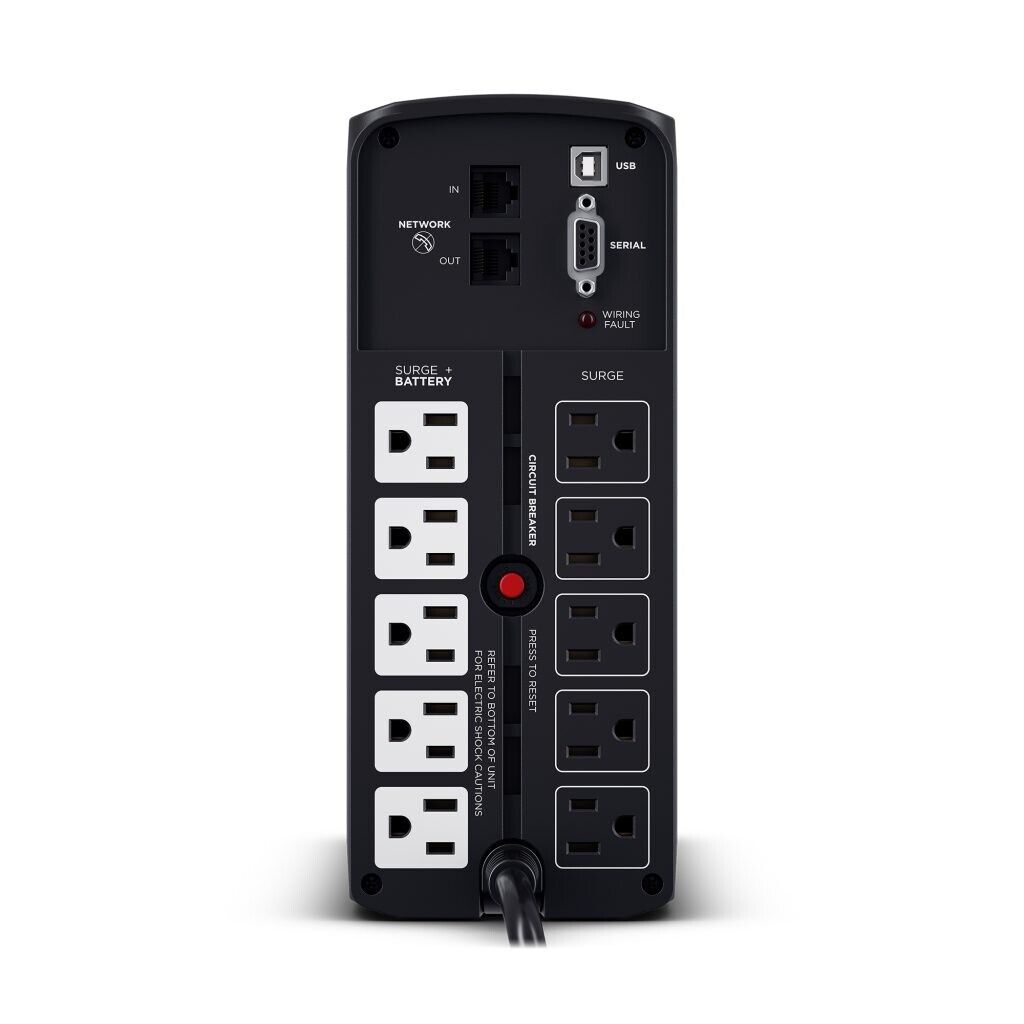

• Receptacle Detail: 10 x NEMA 5-15R
• Number of Battery & Surge Outlets: 5
• Number of Surge-only Outlets: 5
• Dataline Protection: RJ-45
• Overload Protection: Yes
• Cord Length: 5 ft
• Transfer Time: 4 ms
• EMI/RFI Noise Filter: Yes
• Energy Saving: GreenPower UPS™ Bypass Technology

Power Description

• Load Capacity (VA): 850 VA
• Load Capacity (Watt): 510 W
• Input Voltage: 120 V AC
• Input Voltage Range: 88 V AC - 144 V AC
• Output Voltage: 120 V AC
• Input Frequency: 63 Hz
• Output Frequency: 60 Hz
• Waveform Type: Sine Wave
• Surge Energy Rating: 1150 J

Management

• Alarm: Battery Mode
• Status Indicators: Power On

Interfaces/Ports

• Serial Port: Yes
• USB (HID Compliant) Port: Yes

Battery Information

• Number of Batteries: 1
• Battery Characteristics: Maintenance-free
• Battery Chemistry: Lead Acid
• Battery Size: 12V
• Battery Capacity: 9000 mAh
• Backup/Run Time (Full Load): 2 Minute
• Backup/Run Time (Half Load): 11 Minute
• Typical Battery Recharge Time: 8 Hour
• Hot Swappable: Yes
• Replaceable Battery: Yes

Environmental Conditions

• Maximum Operating Temperature: 104°F (40°C)
• Maximum Operating Elevation: 10000 ft
• Operating Humidity: 0% - 95%

Physical Characteristics

• Color Family: Black
• Product Color: Black

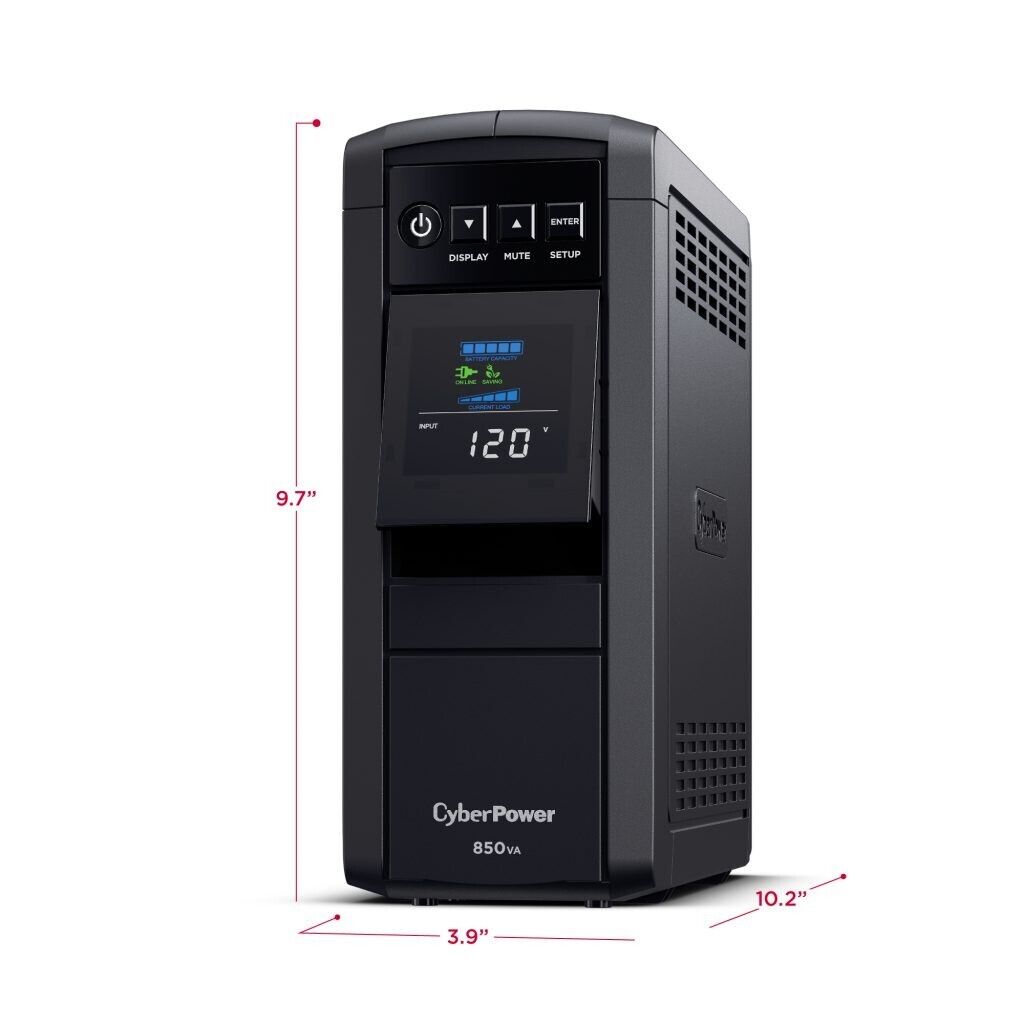

• Height: 9.7"
• Width: 3.9"
• Depth: 10.2"
• Form Factor: Mini-tower
• Weight (Approximate): 14.90 lb

Package Contents:

• CP850PFCLCD UPS 850VA 510W PFC compatible Pure sine wave
• PowerPanel Personal Edition Software
• USB Cable
• Telephone Cable
• User Manual
• Registration Card
• Coax Cable

Additional Information:

• Active PFC Compatible | Yes
• Replacement Battery Cartridge Quantity | 1
• Plug Style | Right Angle - 45° Offset
• Overload Protection | Internal Circuitry Limiting
• Under/Over-Voltage Correction | +11.5%
• Network Protection RJ45 | 1-in / 1-Out (10/100/1000) + PoE Compatible
• LCD | Multifunction LCD
• Management Cable | USB Cable
• Serial Port | 1 Dry Contact

Certifications & Standards:

• UL1778
• cUL 107.3
• FCC DOC Class B
• Software Included:
• PowerPanel Personal Edition Software

Energy Star: Yes

Country of Origin: Philippines

Environmentally Friendly: Yes

Limited Warranty: 3 Year from CyberPower
