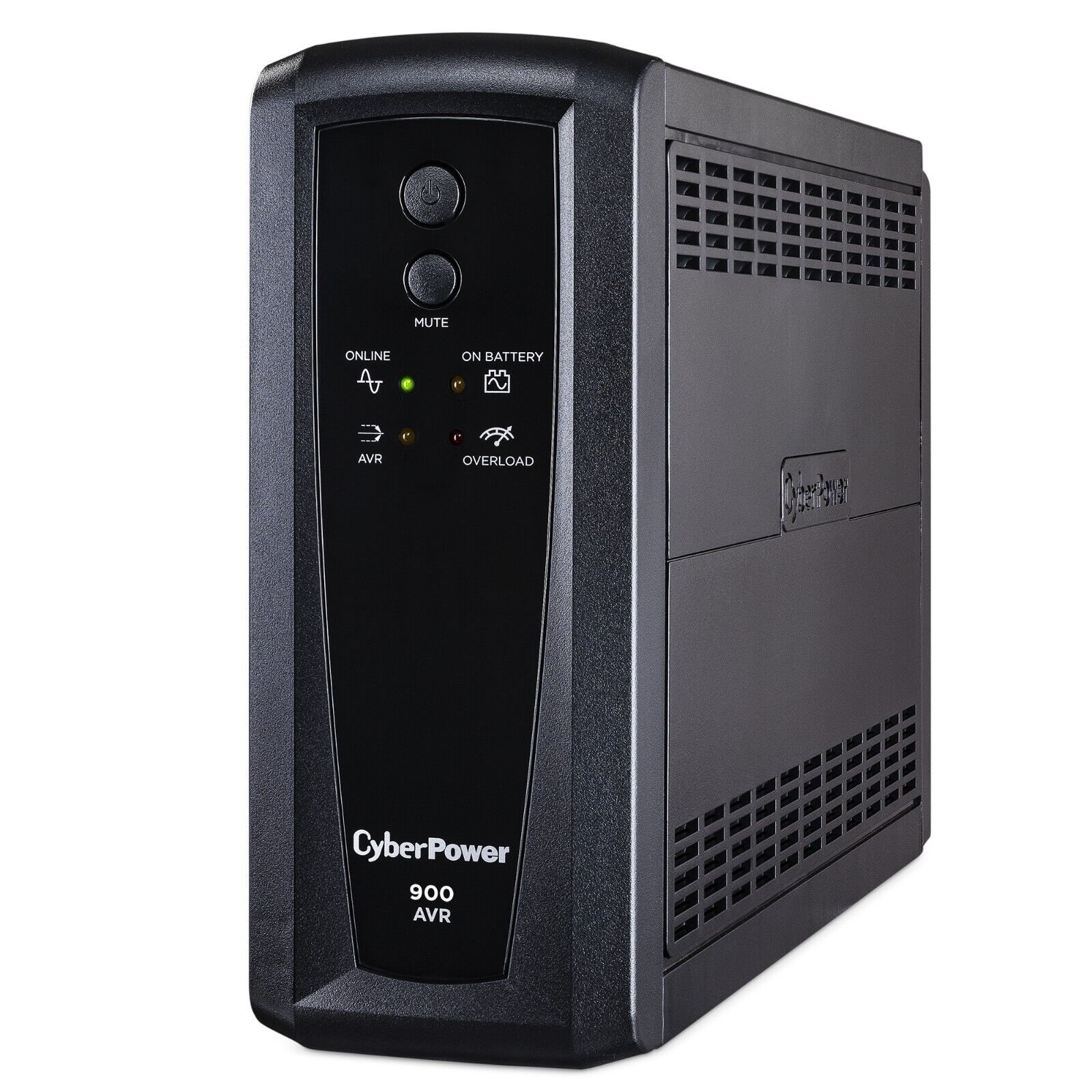

CyberPower CP900AVR 5+5 Outlets AVR UPS Tower System 900VA 560W 1500J w 6FT Cord

General Information

• Manufacturer: CyberPower Systems, Inc
• Manufacturer Part Number: CP900AVR
• Brand Name: CyberPower
• Product Series: AVR UPS
• Product Model: CP900AVR
• Product Name: AVR CP900AVR 900VA UPS

Marketing Information:

A mini-tower UPS with line interactive topology, the CyberPower AVR Series CP900AVR provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During longer power outages, the CP900AVR delivers enough battery backup power to perform a graceful shutdown to protect against the loss of data and damage to electronics. It uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.Product Type: Line-interactive UPS

Technical Information

• AVR: Yes
• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R

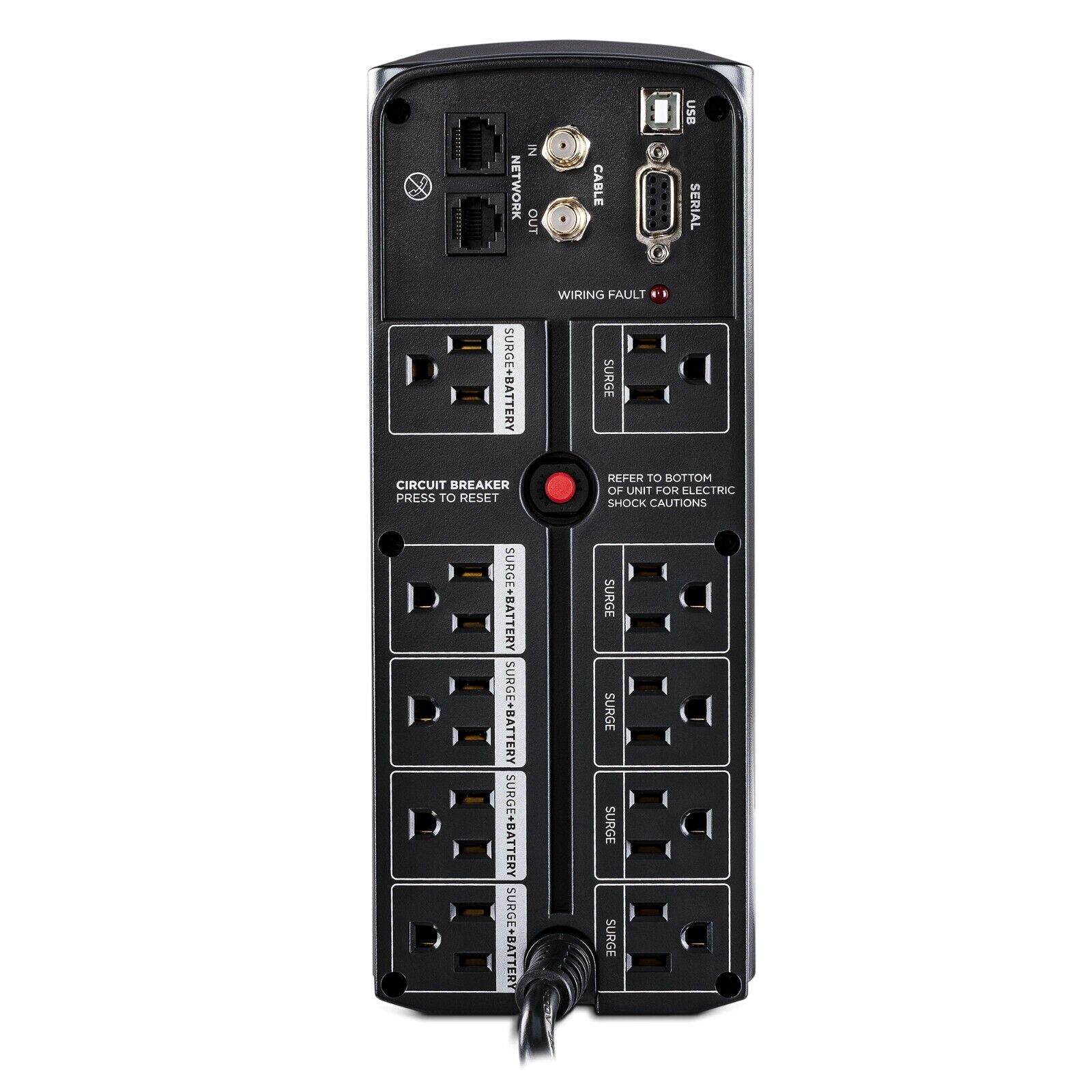

• Receptacle Detail: 10 x NEMA 5-15R
• Number of Battery & Surge Outlets: 5
• Number of Surge-only Outlets: 5
• Dataline Protection:
  • Coax
  • RJ-45
• Overload Protection: Yes
• Bypass Switch: Not Provided
• Emergency Power OFF: No
• Cord Length: 6 ft
• Transfer Time: 8 ms
• EMI/RFI Noise Filter: Yes
• Energy Saving: GreenPower UPS™ Bypass

Power Description

• Load Capacity (VA): 900 VA
• Load Capacity (Watt): 560 W
• Input Voltage: 120 V AC
• Input Voltage Range: 88 V AC - 144 V AC
• Output Voltage: 120 V AC
• Waveform Type: Simulated Sine Wave
• Surge Energy Rating: 1500 J
• Circuit Breaker: Yes

Alarm:

• Low Battery
• On Battery
• Overload
• Fault

Controls/Indicators

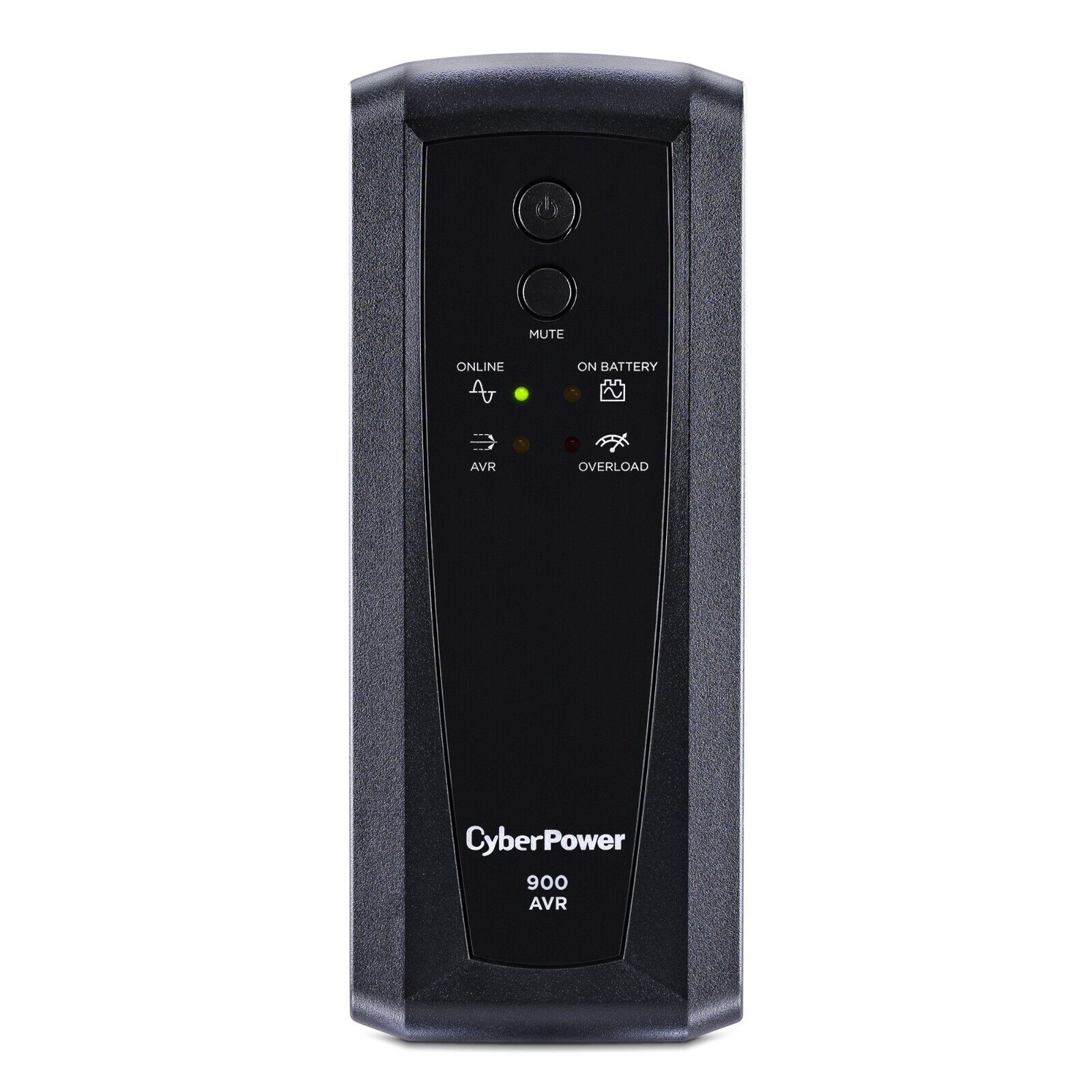

• Status Indicators:
• Power On
• Wiring Fault
• On Battery
• AVR
• Overload

Interfaces/ports

• Serial Port: Yes
• USB: Yes

Battery Information

• DC System Voltage: 12 V DC
• Number of Batteries: 2
• Battery Characteristics: Maintenance-free
• Battery Chemistry: Lead Acid
• Backup/Run Time (Full Load): 5 Minute
• Backup/Run Time (Half Load): 16 Minute
• Battery Life: 6 Year
• Typical Battery Recharge Time: 8 Hour
• Hot Swappable: Yes
• Replaceable Battery: Yes

Environmental Conditions

• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: 5°F (-15°C) - 113°F (45°C)
• Maximum Operating Elevation: 10000 ft
• Maximum Storage Elevation: 50000 ft
• Storage Relative Humidity: 0% - 95%

Physical Characteristics

• Color Family: Black
• Product Color: Black

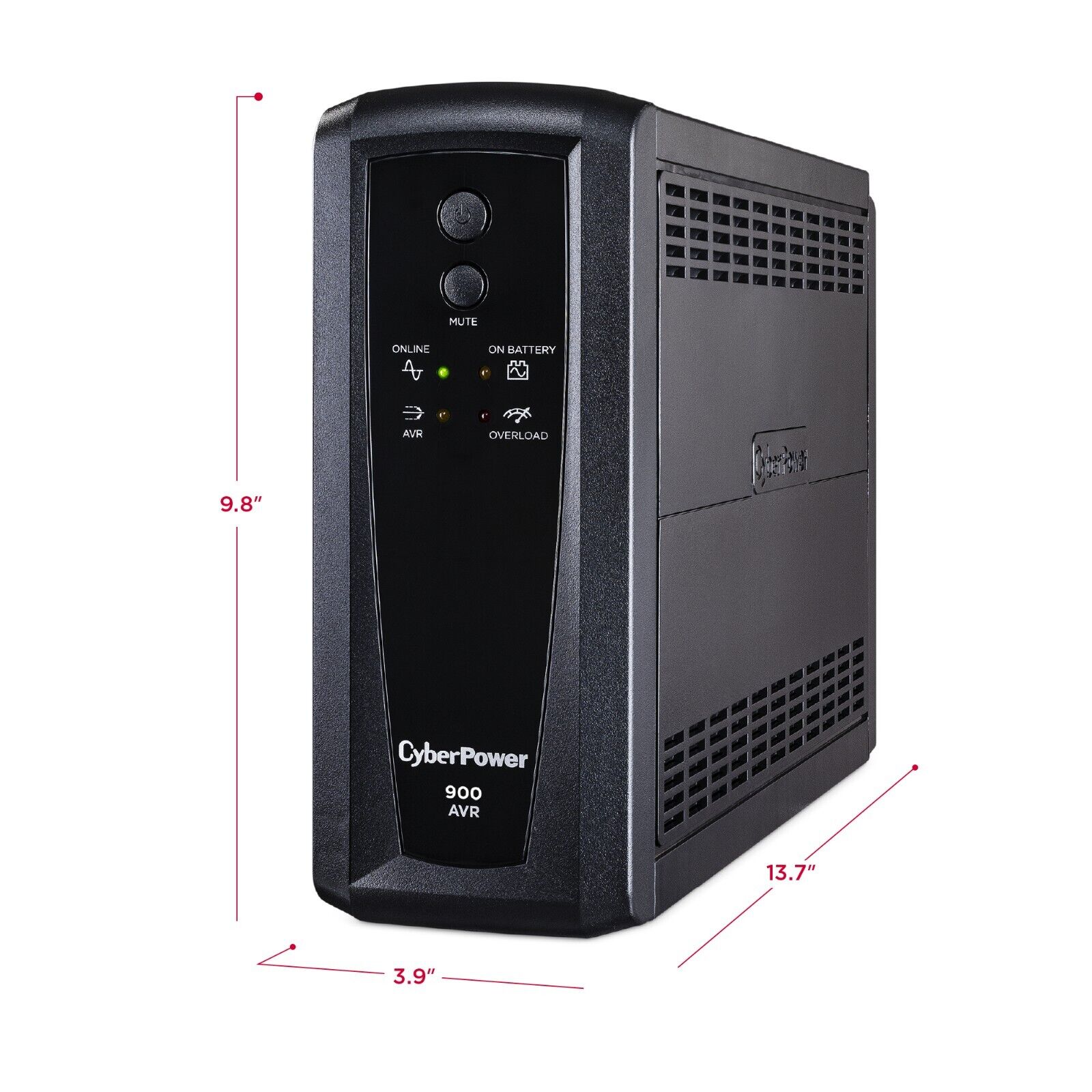

• Height: 9.8"
• Width: 3.9"
• Depth: 13.7"
• Form Factor: Mini-tower
• Weight (Approximate): 21.83 lb

Package Contents:

• AVR CP900AVR 900VA UPS
• User Manual
• Power Management Software
• Warranty Card
• Coaxial Cable
• Phone Cable
• USB Cable

Certifications & Standards:

• UL1778
• cUL 107 5th
• FCC DOC Class B
• Software Included: PowerPanel PE
• Energy Star: Yes
• Country of Origin: Philippines
• Environmentally Friendly: Yes
• Limited Warranty: 3 Year from CyberPower
