CyberPower EC450G 4+4 Outlets ECO Compact UPS System 450VA 260W 5FT Cord BLACK

General Information

• Manufacturer: CyberPower Systems, Inc
• Manufacturer Part Number: EC450G
• Brand Name: CyberPower
• Product Series: Ecologic UPS
• Product Model: EC450G
• Product Name: Ecologic EC450G 450VA Compact UPS
• Product Condition: New
• Product Type: Standby UPS

Marketing Information:

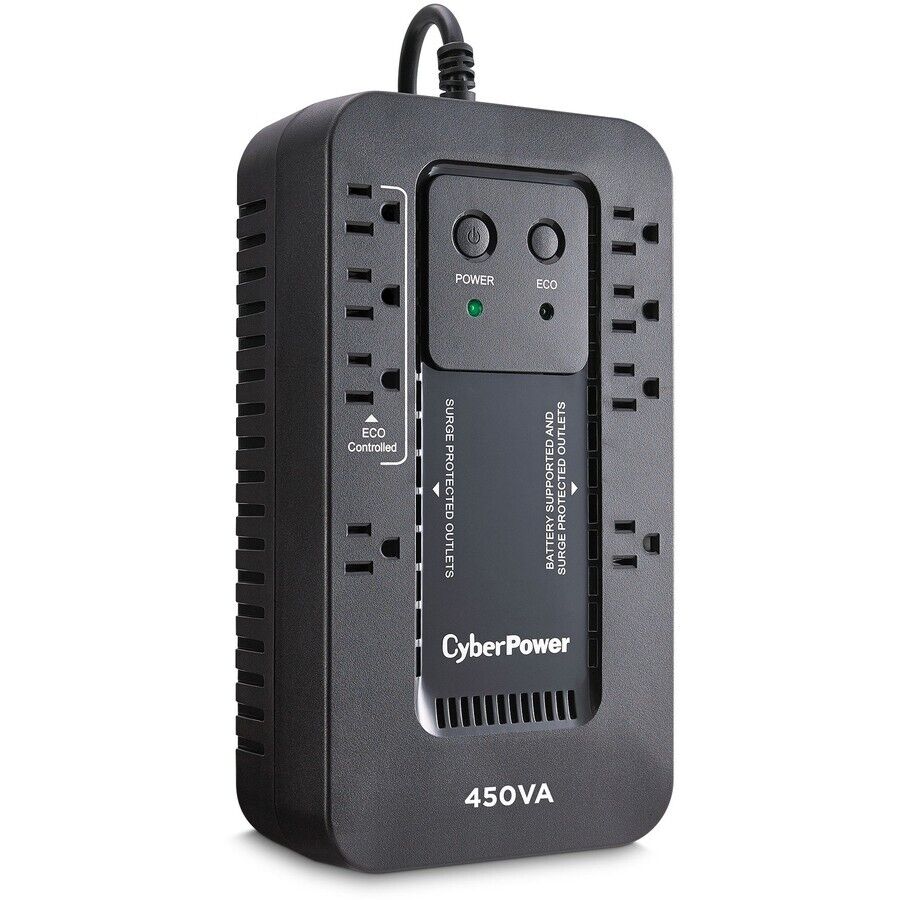

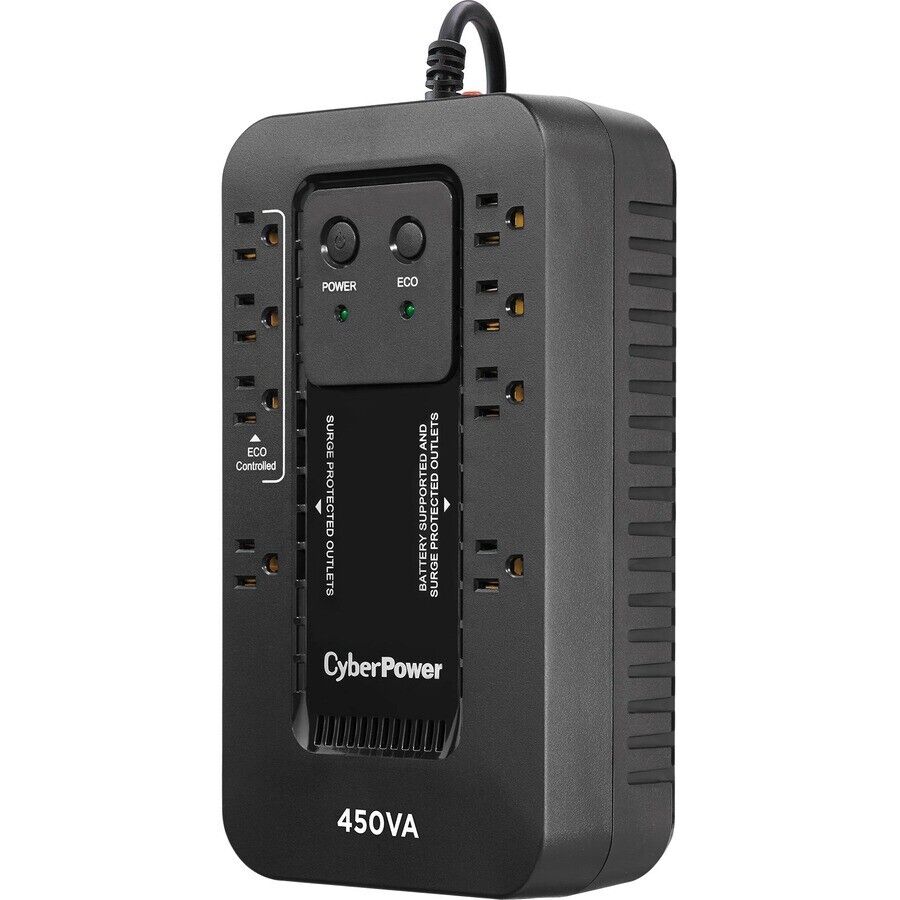

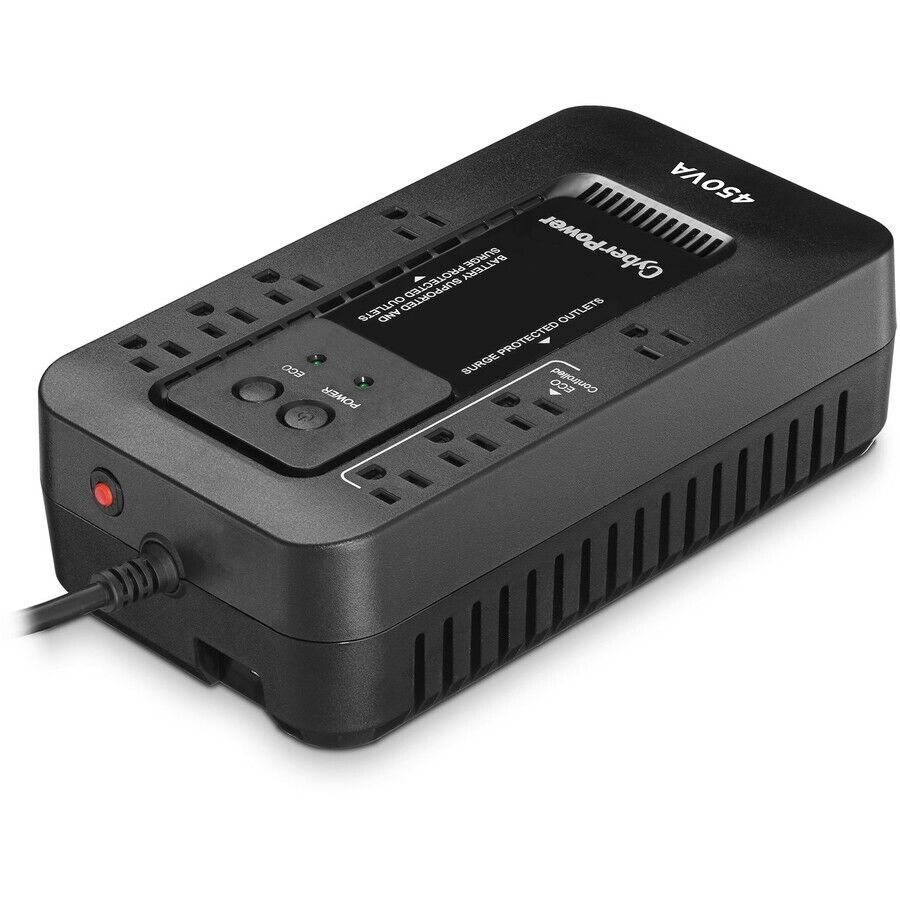

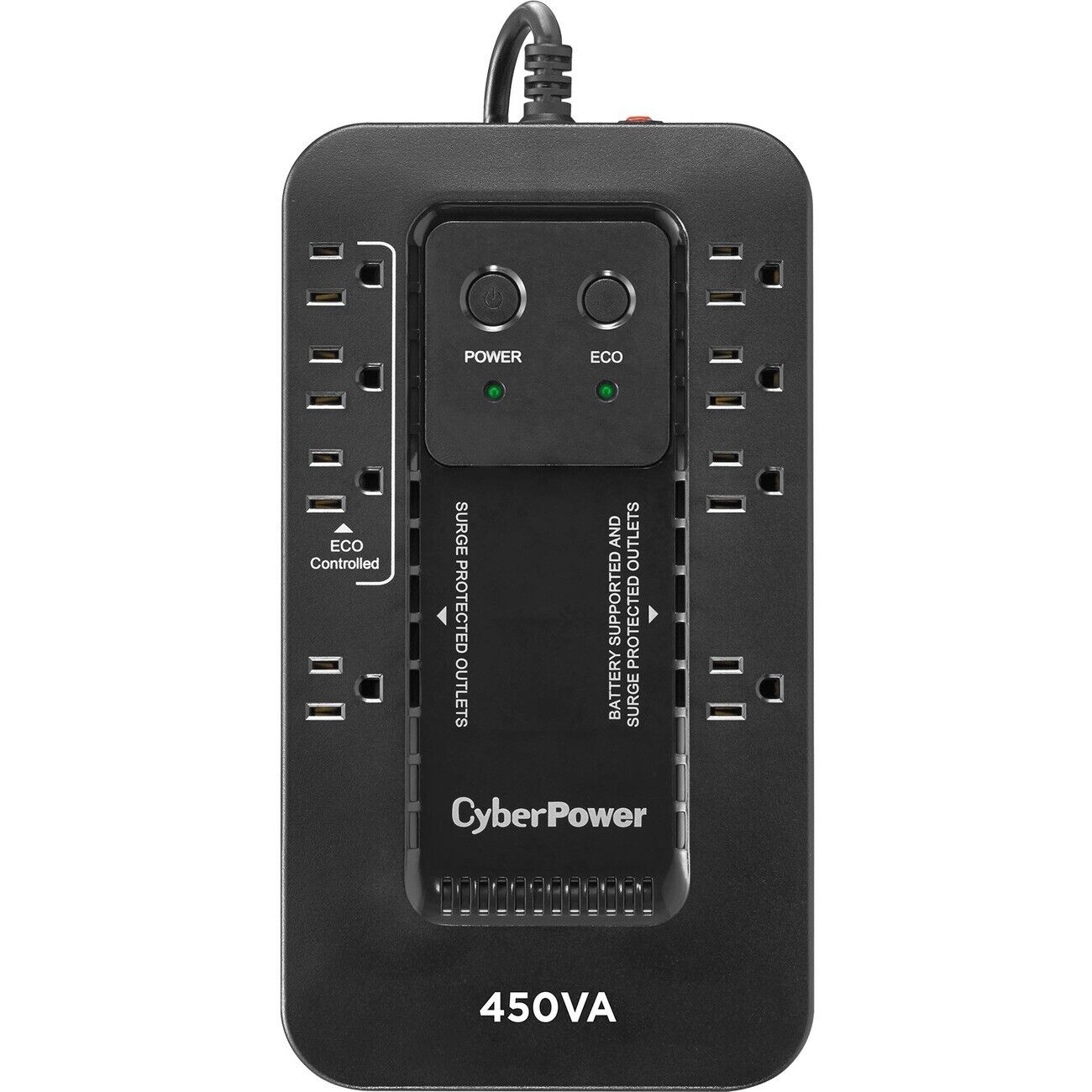

A compact UPS with standby topology, the CyberPower Ecologic EC450G provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the EC450G offers reliable power protection and battery backup. When the battery backup detects that the computer is off or in sleep mode, computer peripherals connected to the ECO Mode, surge protected outlets will be automatically turned off, reducing power usage and lowering energy costs (USB connection required).

Technical Information

• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R
• Receptacle Detail: 8 x NEMA 5-15R
• Number of Battery & Surge Outlets: 4
• Number of Surge-only Outlets: 4
• Protection Type: Surge
• Overload Protection: Yes
• Cord Length: 5 ft
• Transfer Time: 4 ms
• EMI/RFI Noise Filter: Yes
• Energy Saving: GreenPower UPS™ High-Efficiency
• Application/Usage:
  • Desktop Computer
  • Workstation
  • Network Device
  • Home Entertainment System
  • Computer Peripheral

Power Description

• Load Capacity (VA): 450 VA
• Load Capacity (Watt): 260 W
• Input Voltage: 120 V AC
• Input Voltage Range: 96 V AC - 140 V AC
• Output Voltage: 120 V AC
• Input Frequency: 63 Hz
• Output Frequency: 60 Hz
• Waveform Type: Simulated Sine Wave
• Surge Energy Rating: 526 J
• Circuit Breaker: Yes

Management

• Alarm:
  • On Battery
  • Low Battery
  • Overload
  • Fault

LED Indicators:

• Power On
• ECO On/Off

Interfaces/Ports

• USB (HID Compliant) Port: Yes

Battery Information

• DC System Voltage: 12 V DC
• Number of Batteries: 1
• Battery Characteristics: Sealed
• Battery Chemistry: Lead Acid
• Battery Size: 12V
• Battery Capacity: 2900 mAh
• Backup/Run Time (Full Load): 2 Minute
• Backup/Run Time (Half Load): 6 Minute
• Typical Battery Recharge Time: 8 Hour
• Replaceable Battery: Yes

Environmental Conditions

• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: 5°F (-15°C) - 113°F (45°C)
• Maximum Operating Elevation: 10000 ft
• Maximum Storage Elevation: 50000 ft
• Storage Relative Humidity: 0% - 95%

Physical Characteristics

• Color Family: Black
• Product Color: Black
• Height: 3.1"
• Width: 10.6"
• Depth: 5.9"
• Form Factor: Compact
• Weight (Approximate): 4.50 lb

Additional Information:

• Runtimes: 11.5 min. (90W), 3.3 min. (200W)
• Plug Style: Right Angle, 45° Offset
• Circuit Breaker: 10A
• Outlets - Eco Controlled: 3
• Outlets - Transformer-Spaced: 2
• Communication Cable: USB Cable
• Keyhole Mounting Slots: Yes
• Overload Protection: Internal Circuitry Limiting, Circuit Breaker
• Software: PowerPanel® Personal
• Operating Relative Humidity: 0 - 95% (non-condensing)
• Operating Temperature: 32°F to 104°F (0°C to 40°C)

Certifications & Standards:

• UL1778
• cUL 107.3
• FCC DOC Class B

Energy Star: Yes

Country of Origin: China

Environmentally Friendly: Yes

Limited Warranty: 3 Year from CyberPower
