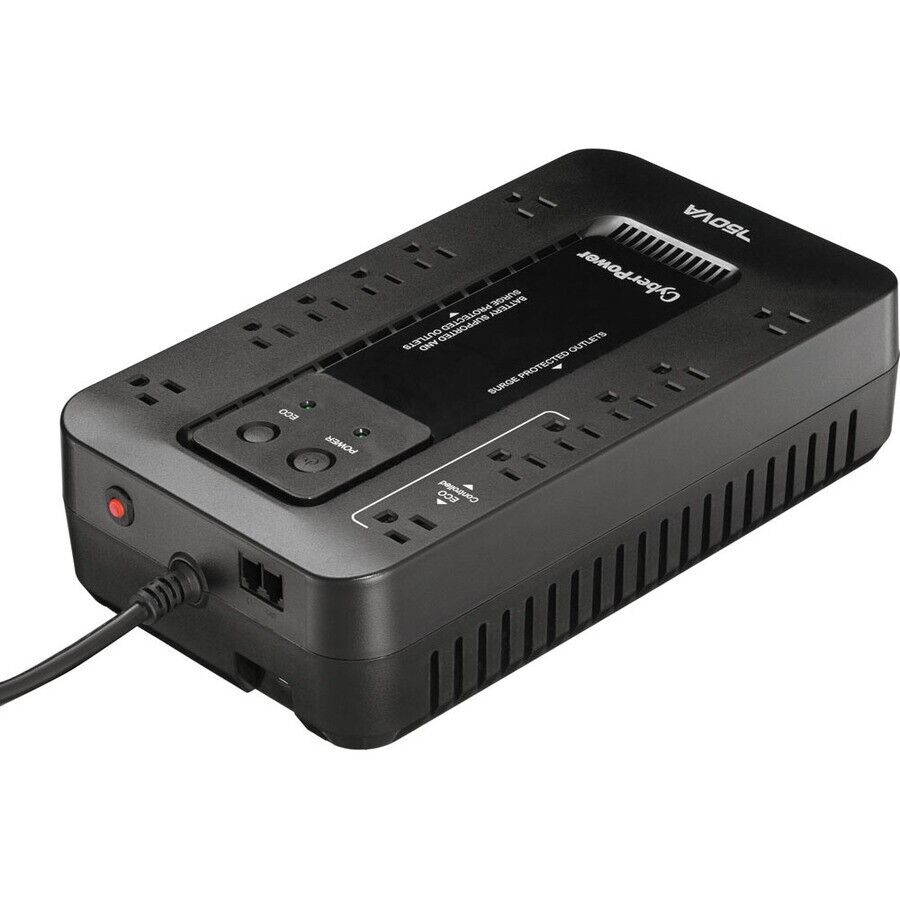

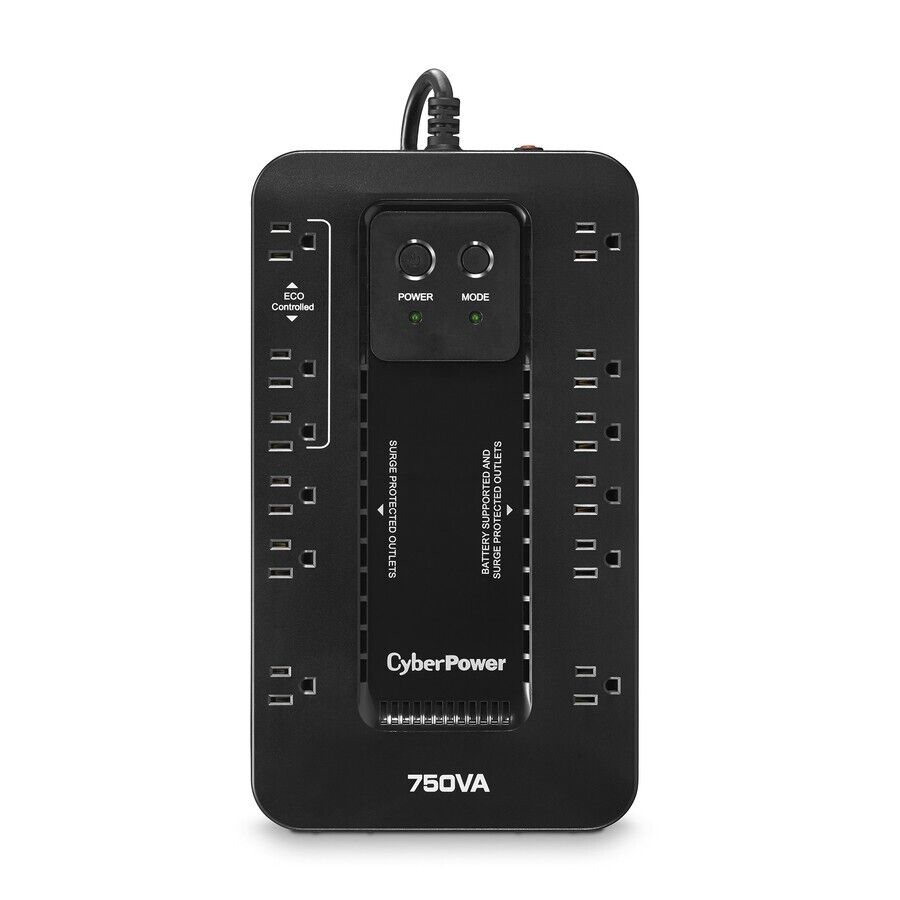

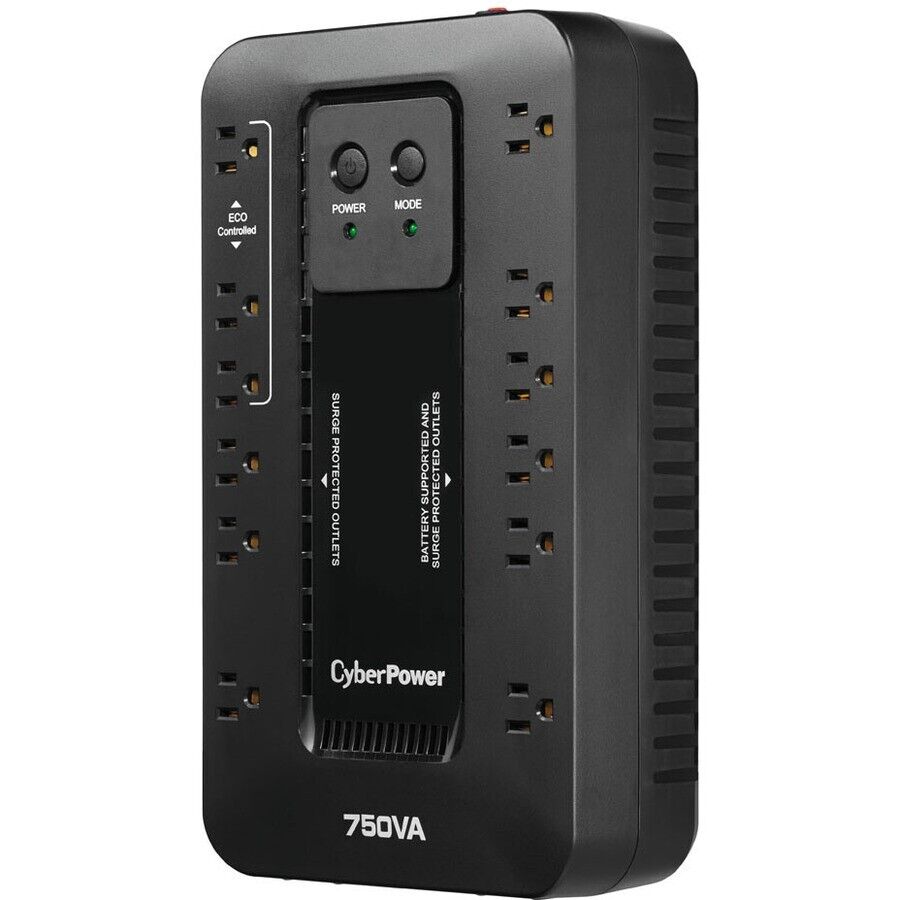

CyberPower EC750G 6+6 Outlets ECO UPS System 750VA 450W 526J 5FT Cord BLACK

General Information

• Manufacturer: CyberPower Systems, Inc
• Manufacturer Part Number: EC750G
• Brand Name: CyberPower
• Product Series: Ecologic UPS
• Product Model: EC750G
• Product Name: EC750G ECOLOGIC UPS
• Product Type: Standby UPS

Marketing Information:

A compact UPS with standby topology, the CyberPower Ecologic EC750G provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the EC750G offers reliable power protection and battery backup. When the battery backup detects that the computer is off or in sleep mode, computer peripherals connected to the ECO Mode, surge protected outlets will be automatically turned off, reducing power usage and lowering energy costs (USB connection required).

Technical Information

• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R
• Receptacle Detail: 12 x NEMA 5-15R
• Number of Battery & Surge Outlets: 6
• Number of Surge-only Outlets: 6
• Overload Protection: Yes
• Cord Length: 5 ft
• Transfer Time: 4 ms
• EMI/RFI Noise Filter: Yes
• Energy Saving: GreenPower UPS™ Bypass Technology

Power Description

• Load Capacity (VA): 750 VA
• Load Capacity (Watt): 450 W
• Input Voltage: 120 V AC
• Output Voltage: 120 V AC
• Input Frequency: 63 Hz
• Waveform Type: Simulated Sine Wave
• Surge Energy Rating: 526 J

Management

• Alarm: Battery Mode

Controls/Indicators

• Status Indicators: Power On

Interfaces/Ports

• USB: Yes

Battery Information

• Number of Batteries: 1
• Battery Characteristics: Maintenance-free, Sealed
• Battery Chemistry: Lead Acid
• Backup/Run Time (Full Load): 2.80 Minute
• Backup/Run Time (Half Load): 10 Minute
• Typical Battery Recharge Time: 8 Hour

Physical Characteristics

• Color Family: Black
• Product Color: Black
• Height: 3.1"
• Width: 12.2"
• Depth: 7"
• Form Factor: Compact
• Weight (Approximate): 7.70 lb

Package Contents:

• EC750G ECOLOGIC UPS
• PowerPanel Personal Edition Software CD
• USB Cable
• User Manual
• Registration Card

Additional Information:

• Field-serviceable Battery : Replaceable by qualified technician
• Plug Style : Right Angle - 45° Offset
• On Battery Frequency : 50/60 Hz ± 1% (auto-sensing)
• On Battery Voltage : 120 VAC ± 5%
• Outlets - Eco Controlled : 3
• Outlets - Widely Spaced : 4
• Management Cable : USB Cable
• Software (Free Download) : PowerPanel® Personal
• Keyhole Mounting Slots : Yes
• Operating Relative Humidity : 0 - 90 % (non-condensing)
• Operating Temperature : 32 - 104 °F (0 - 40 °C)

Certifications & Standards:

• UL1778
• cUL CSA C22.2 No.107.3-05
• FCC/DoC Class B

Software Included: PowerPanel Personal Edition

Energy Star: Yes

Country of Origin: China

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 3 Year from CyberPower
