CyberPower OL1500RTXL2UN 4+4 Outlets Smart App Online UPS System 1500VA 1350W

General Information

• Manufacturer: CyberPower Systems, Inc
• Manufacturer Part Number: OL1500RTXL2UN
• Brand Name: CyberPower
• Product Series: Smart App Online UPS
• Product Model: OL1500RTXL2UN
• Product Name: OL1500RTXL2UN 1.5KVA Online UPS 2U sine wave LCD 100-125V RMCARD205 RT 3YR WTY
• Product Type: Double Conversion Online UPS

Marketing Information:

Prevent business interruptions and safeguard mission-critical enterprise network equipment.

The CyberPower OL1500RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.

The OL1500RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.

Technical Information

• Plug/Connector Type:
• NEMA 5-15P
• Receptacle ype: NEMA 5-15R
• Receptacle Detail: 8 x NEMA 5-15R
• Transfer Time: 0 ns
  • Dataline Protection:
  • RJ-11
  • RJ-45
• Overload Protection: Yes
• EMI/RFI Noise Filter: Yes
• Energy Saving: ECO Mode Efficiency >95%
• Application/Usage:
  • Mission Critical Equipment
  • Network Equipment

Power Description

• Load Capacity (VA): 1500 VA
• Input Voltage: 120 V AC
• Input Voltage Range: 100 V AC - 125 V AC
• Output Voltage:
  • 100 V AC
  • 110 V AC
  • 115 V AC
  • 120 V AC
  • 125 V AC
• Input Frequency: 70 Hz
• Waveform Type: Sine Wave
• Surge Energy Rating: 1780 J

Network Management:

• SNMP/HTTP Remote Monitoring

Alarm:

• Battery Mode
• Low Battery
• Overload
• UPS Fault

Status Indicators:

• Power On
• Line Mode
• Battery Mode
• Bypass Mode
• Fault
• Replace Battery

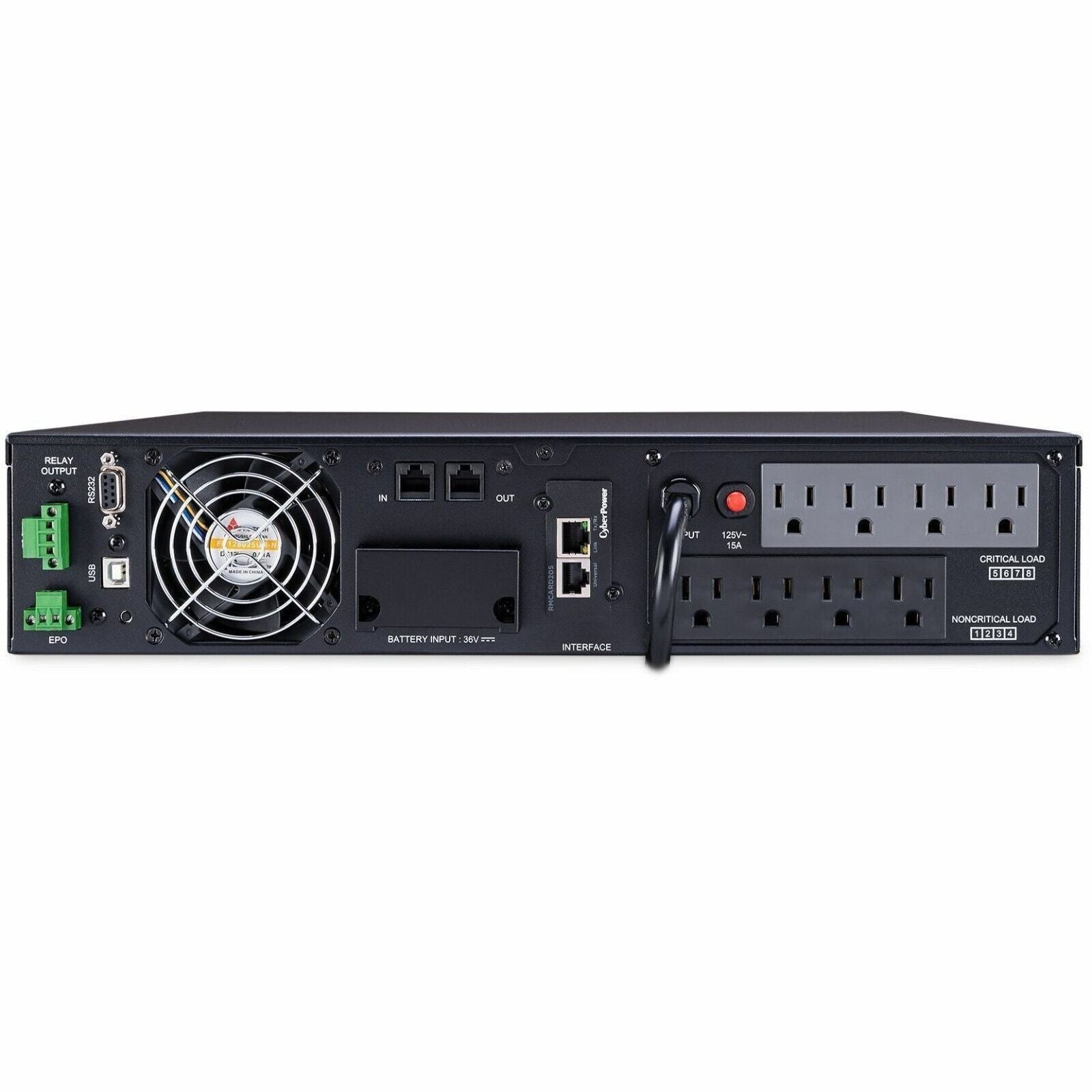

Interfaces/Ports

• Serial Port: Yes
• Modem (RJ-11): Yes
• Network (RJ-45): Yes
• USB (HID Compliant) Port: Yes
• EPO Port: Yes

Battery Information

• Number of Batteries: 3
• Battery Characteristics: Maintenance-free
• Battery Chemistry: Lead Acid
• Battery Size: 12V
• Battery Capacity: 9000 mAh
• Backup/Run Time (Full Load): 3.40 Minute
• Backup/Run Time (Half Load): 11 Minute
• Typical Battery Recharge Time: 4 Hour

Environmental Conditions

• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: -4°F (-20°C) - 113°F (45°C)
• Maximum Operating Elevation: 10000 ft
• Maximum Storage Elevation: 50000 ft
• Storage Relative Humidity: 0% - 95%
• Sound Emission (A-Weighted): 38 dB(A)
• Thermal Dissipation: 140.09 W

Physical Characteristics

• Color Family: Black
• Product Color: Black

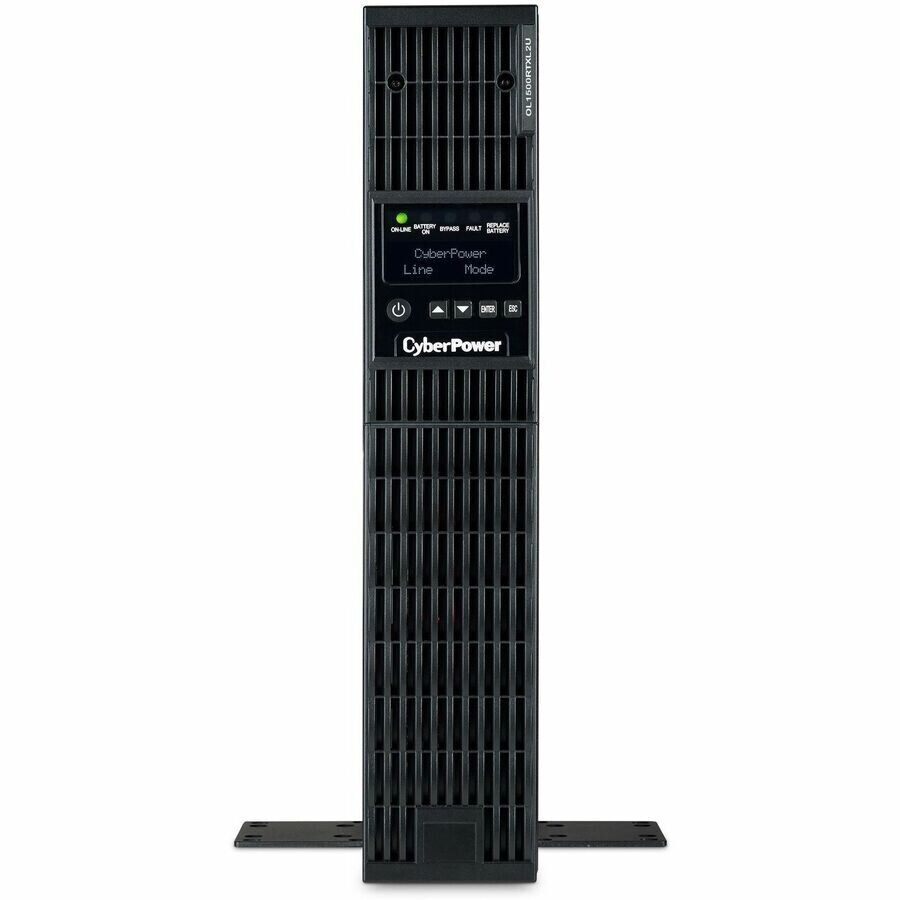

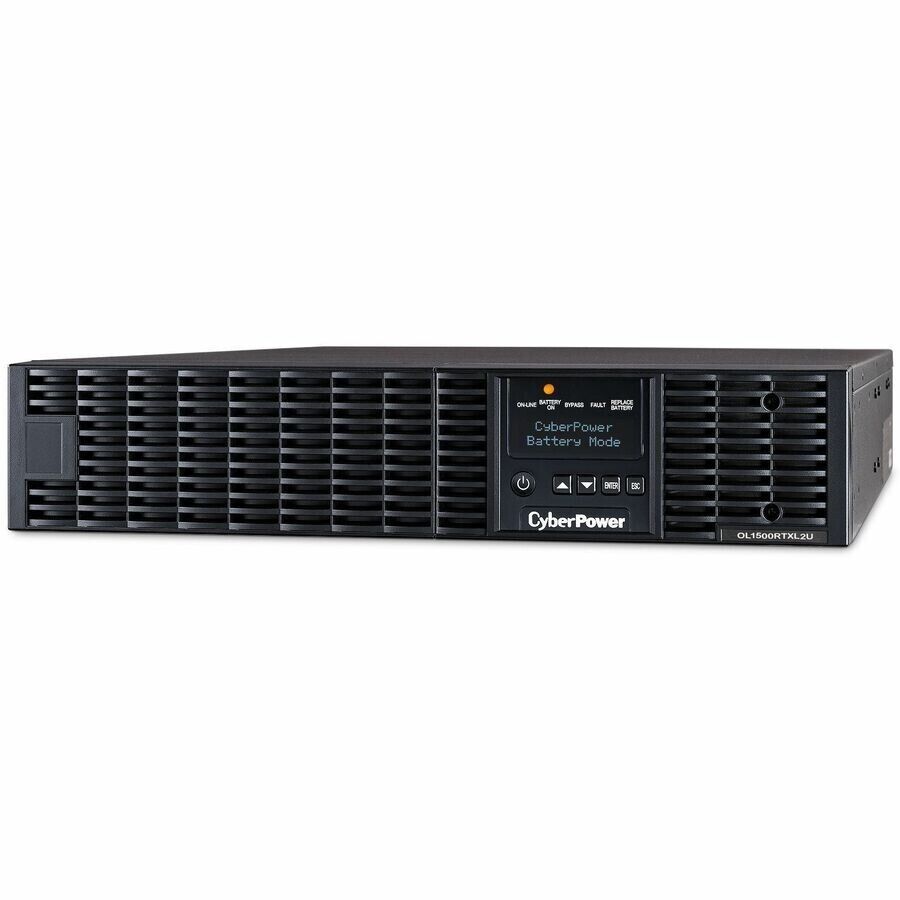

• Form Factor: Rack/Tower
• Rack Height: 2U
• Height: 3.5"
• Width: 17"
• Depth: 16.9"
• Weight (Approximate): 39.60 lb

Package Contents:

• OL1500RTXL2UN 1.5KVA Online UPS 2U sine wave LCD 100-125V RMCARD205 RT 3YR WTY
• User Manual
• USB Cable
• Phone Cable
• Serial Cable
• Registration Card
• Mounting Hardware

Additional Information:

• Replacement Battery Cartridge Quantity: 1
• Smart Battery Management (SBM) Mode: Yes
• Circuit Breaker: 15A
• Cold Start: Yes
• Input Power Factor: 0.99
• Input Voltage Range: 60 VAC - 69 VAC for 0-60% Load
• Crest Factor: 3:1
• ECO Mode Voltage Regulation: ±10%, ±15% (Configurable)
• Harmonic Distortion: < 3% at Linear Load
• On Battery Frequency: 50/60 Hz ± 0.25Hz (auto-sensing or configurable)
• Output Power Factor: 0.9
• Overload Protection: Line Mode: 105% ~ 125% Load - 1 min
• Short Circuit Protection: UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection
• VA by Input Type: 1,500 (1.5 kVA) at 120, 125 V input
• Watts by Input Type: 1,350 (1.4 kW) at 120, 125 V input
• Phone / Network Protection RJ11/RJ45: 1-In / 1-Out (Combo)
• Dry Contacts: Yes
• Expansion Slot: Yes - RMCARD205 pre-installed
• LCD: Multifunction LCD
• LED Indicators: Power On (White)
• Management Cable: USB Cable
• Removable LCD Control Panel Option: Yes - Requires DB26 cable (not included)
• Rotatable LCD Control Panel Option: Yes
• Serial Port: 1 Serial
• Upgradeable firmware: Yes
• Material of Construction: Metal
• Mounting Hardware: Yes
• ECO Mode Thermal Dissipation: 207 BTU/hr
• Operating Elevation: 0 - 10000 ft (0 - 3048 m)
• Operating Relative Humidity: 0 - 90 % (non-condensing)
• Operating Temperature: 32 - 104 °F (0 - 40 °C)
• Storage Elevation: 0 - 50000 ft (0 - 15239 m)

Certifications & Standards:

• UL 1778
• CSA C22.2 NO.107.3-05
• FCC DOC Class B

Software Included: PowerPanel® Business

Energy Star: Yes

Country of Origin: China

Environmentally Friendly: Yes

Limited Warranty: 3 Year from CyberPower
