CyberPower OL3000RTXL2UN 1+6 Outlets Smart App Online UPS System 3000VA 2700W

General Information

• Manufacturer: CyberPower Systems, Inc
• Manufacturer Part Number: OL3000RTXL2UN
• Brand Name: CyberPower
• Product Series: Smart App Online UPS
• Product Model: OL3000RTXL2UN

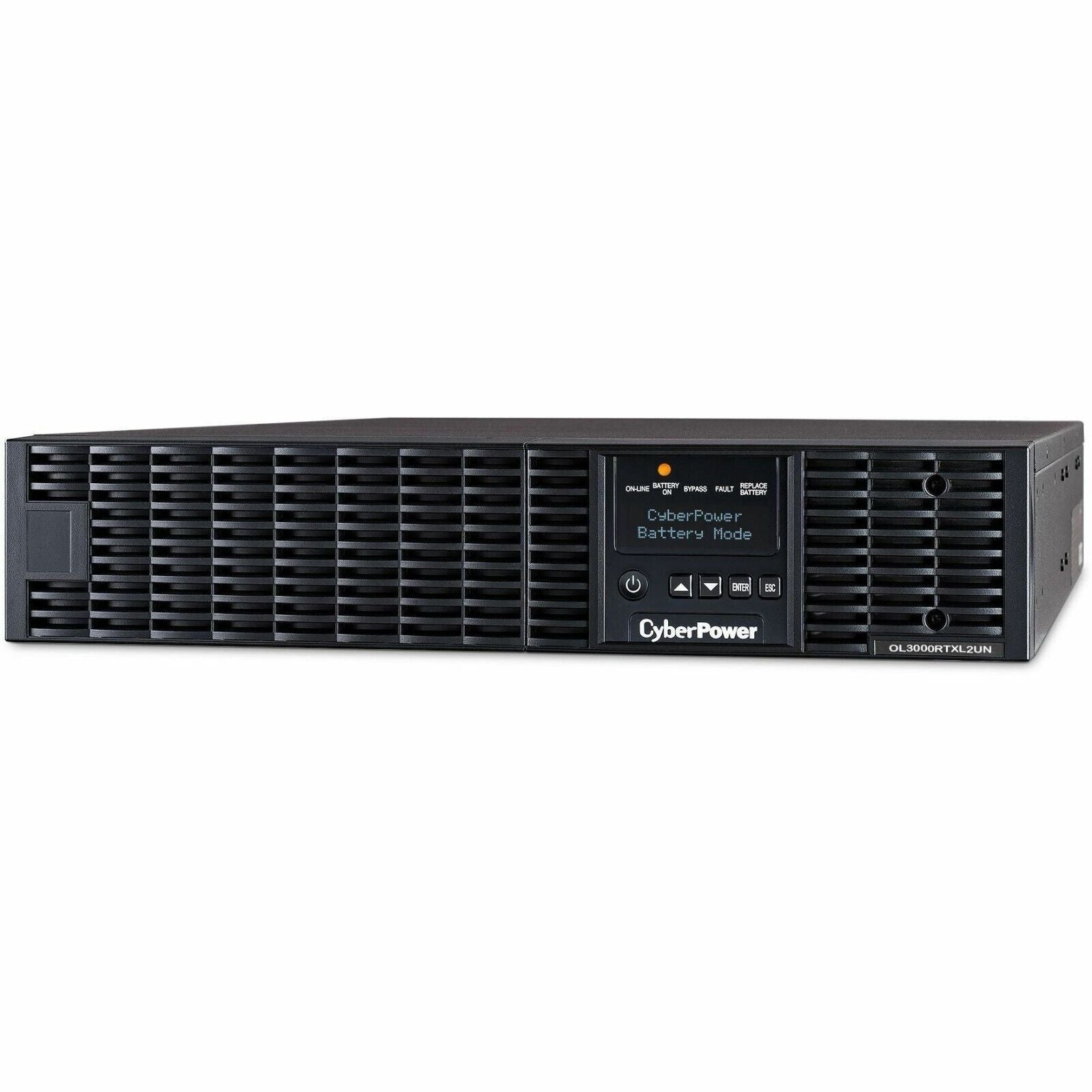

• Product Name: Smart App Online OL3000RMXL2U 3000VA Rack/Tower UPS
• Product Type: Double Conversion Online UPS

Marketing Information:

Prevent business interruptions and safeguard mission-critical enterprise network equipment.

The CyberPower OL3000RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.

The OL3000RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.

Technical Information

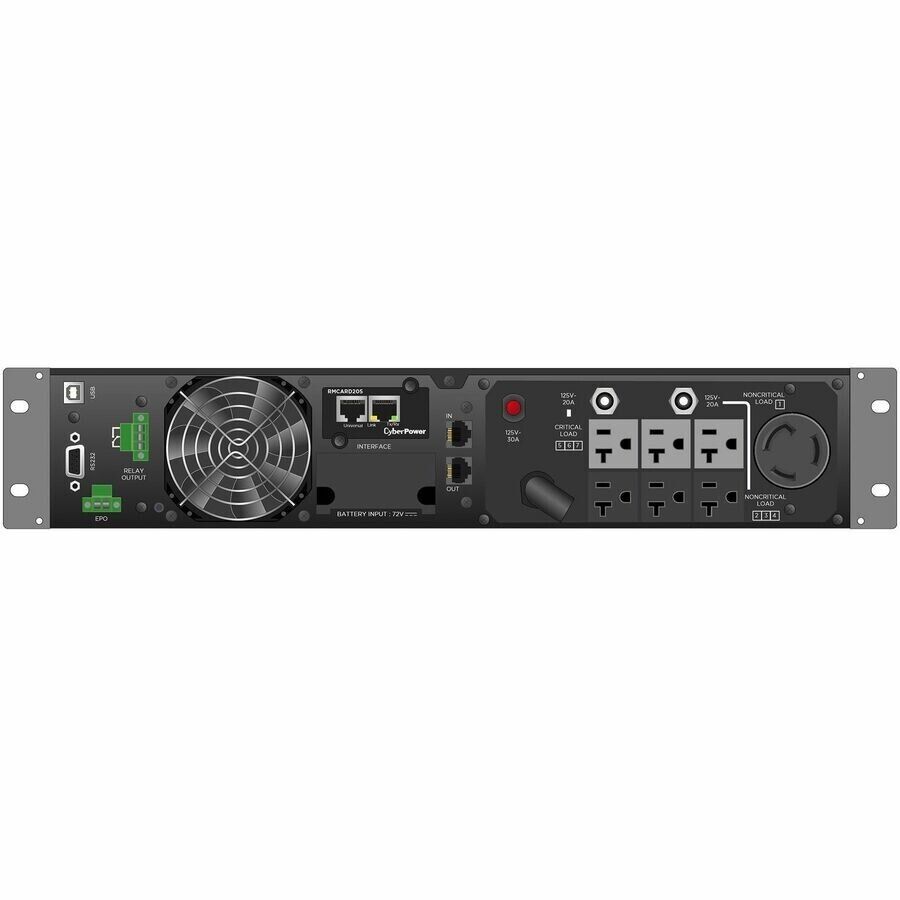

• Plug/Connector Type: NEMA L5-30P
• Receptacle Type:
  • NEMA L5-30R
  • NEMA 5-20R

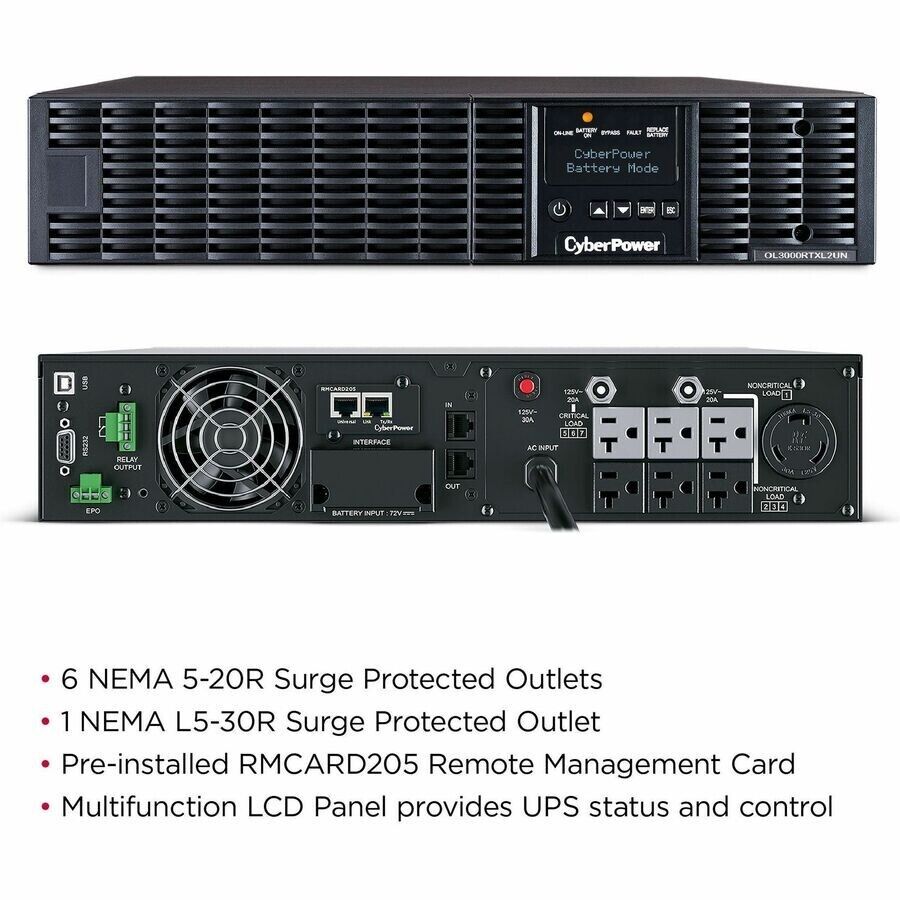

• Receptacle Detail:
  • 1 x NEMA L5-30R
  • 6 x NEMA 5-20R
• Number of Battery & Surge Outlets: 7
• Transfer Time: 0 ns
• Dataline Protection:
  • RJ-11
  • RJ-45
• Protection Type: Surge
• Overload Protection: Yes
• EMI/RFI Noise Filter: Yes
• Energy Saving: ECO Mode Efficiency >95%
• Application/Usage:
  • Server
  • Network Device
  • Storage Device
  • Network Closet
  • PBX System
  • Mission Critical Equipment

Power Description

• Load Capacity (VA): 3000 VA
• Input Voltage: 120 V AC
• Input Voltage Range: 100 V AC - 125 V AC
• Output Voltage:
  • 100 V AC
  • 110 V AC
  • 115 V AC
  • 120 V AC
  • 125 V AC
• Input Frequency: 70 Hz
• Output Frequency: 60 Hz
• Waveform Type: Sine Wave
• Surge Energy Rating: 1335 J

Management

• Alarm: Battery Mode

Status Indicators:

• LED Indicators:
• Power On (White)
• Line Mode (Green)
• Battery Mode (Yellow)
• Bypass Mode (Yellow)
• Fault (Red)
• Replace Battery (Red)

Interfaces/Ports

• Serial Port: Yes
• Modem (RJ-11): Yes
• Network (RJ-45): Yes
• USB: Yes
• USB (HID Compliant) Port: Yes
• EPO Port: Yes

Battery Information

• Number of Batteries: 6
• Battery Characteristics: Sealed
• Battery Chemistry: Lead Acid
• Battery Size: 12V
• Battery Capacity: 9000 mAh
• Backup/Run Time (Full Load): 3.50 Minute
• Backup/Run Time (Half Load): 11 Minute
• Typical Battery Recharge Time: 4 Hour
• Replaceable Battery: Yes

Environmental Conditions

• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: -4°F (-20°C) - 113°F (45°C)
• Maximum Operating Elevation: 10000 ft
• Maximum Storage Elevation: 50000 ft
• Storage Relative Humidity: 0% - 95%
• Sound Emission (A-Weighted): 55 dB(A)
• Thermal Dissipation: 260.54 W

Physical Characteristics

• Color Family: Black
• Product Color: Black
• Form Factor: Rack/Tower
• Rack Height: 2U

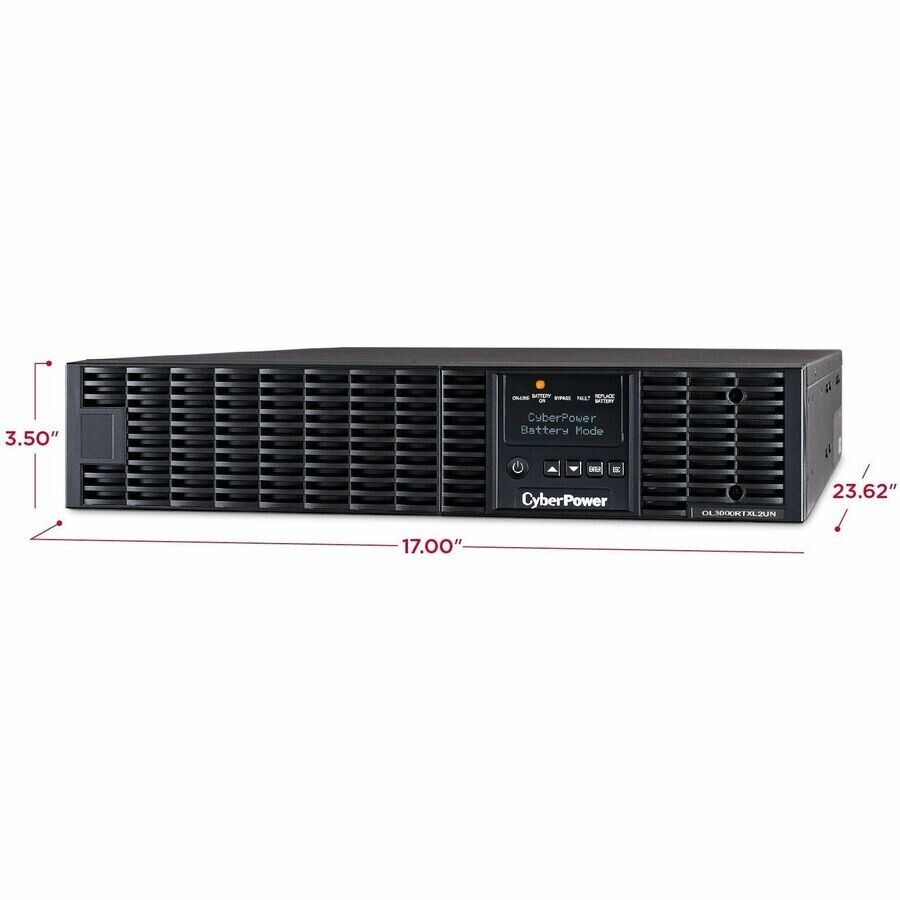

• Height: 3.5"
• Width: 17"
• Depth: 23.6"
• Weight (Approximate): 68.20 lb

Package Contents:

• Smart App Online OL3000RMXL2U 3000VA Rack/Tower UPS
• User Manual
• Registration Card
• 2 x Rackmount Rails
• 2 x Rackmount Ears
• 2 x Hanging Brackets
• Phone Line
• USB Communication Cable
• Serial Interface Cable (RS-232)
• 8 x M5X7L Black Flat Head Screws
• 12 x M5X12L Black Pan Head Screws
• 6 x M5X6l Silver Pan Head Screws
• 8 x Plastic Washers
• 12 x Screw Hole Dust Covers
• 12 x Rubber Pads
• Software Download Card

Additional Information:

• Replacement Battery Cartridge Quantity: 1
• Smart Battery Management (SBM) Mode: Yes
• Circuit Breaker: 30A
• Cold Start: Yes
• Input Power Factor: 0.99
• Input Voltage Range: 60 VAC - 69 VAC for 0-60% Load
• Crest Factor: 3:1
• ECO Mode Voltage Regulation: ±10%, ±15% (Configurable)
• Harmonic Distortion: < 3% at Linear Load
• Nominal Output Voltage: 100 - 125 VAC
• On Battery Frequency: 50/60 Hz ± 0.25Hz (auto-sensing or configurable)
• Output Power Factor: 0.9
• Overload Protection: Line Mode: 105% ~ 125% Load - 1 min
• Short Circuit Protection: UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection
• VA by Input Type: 3,000 (3.0 kVA) at 120, 125 V input
• Watts by Input Type: 2,700 (2.7 kW) at 120, 125 V input
• Phone / Network Protection RJ11/RJ45: 1-In / 1-Out (Combo)
• Audible Alarms: Battery Mode
• Dry Contacts: Yes
• Expansion Slot: Yes - RMCARD205 pre-installed
• HID Compliant USB Port: Yes
• LCD: Multifunction LCD
• Management Cable: USB Cable
• Removable LCD Control Panel Option: Yes - Requires DB26 cable (not included)
• Rotatable LCD Control Panel Option: Yes
• Upgradeable firmware: Yes
• Material of Construction: Metal
• Mounting Hardware: Yes
• Audible noise at 1m from surface of unit: 38 dBA to 55 dBA (0 to 100% load)
• ECO Mode Thermal Dissipation: 364 BTU/hr
• Operating Relative Humidity: 0 - 90 % (non-condensing)
• Operating Temperature: 32 - 104 °F (0 - 40 °C)
• Storage Relative Humidity: 0 - 95% (non-condensing)

Certifications & Standards: UL 1778

Software Included: PowerPanel® Business

Energy Star: Yes

Country of Origin: Taiwan

Environmentally Friendly: Yes

Limited Warranty: 3 Year from CyberPower
