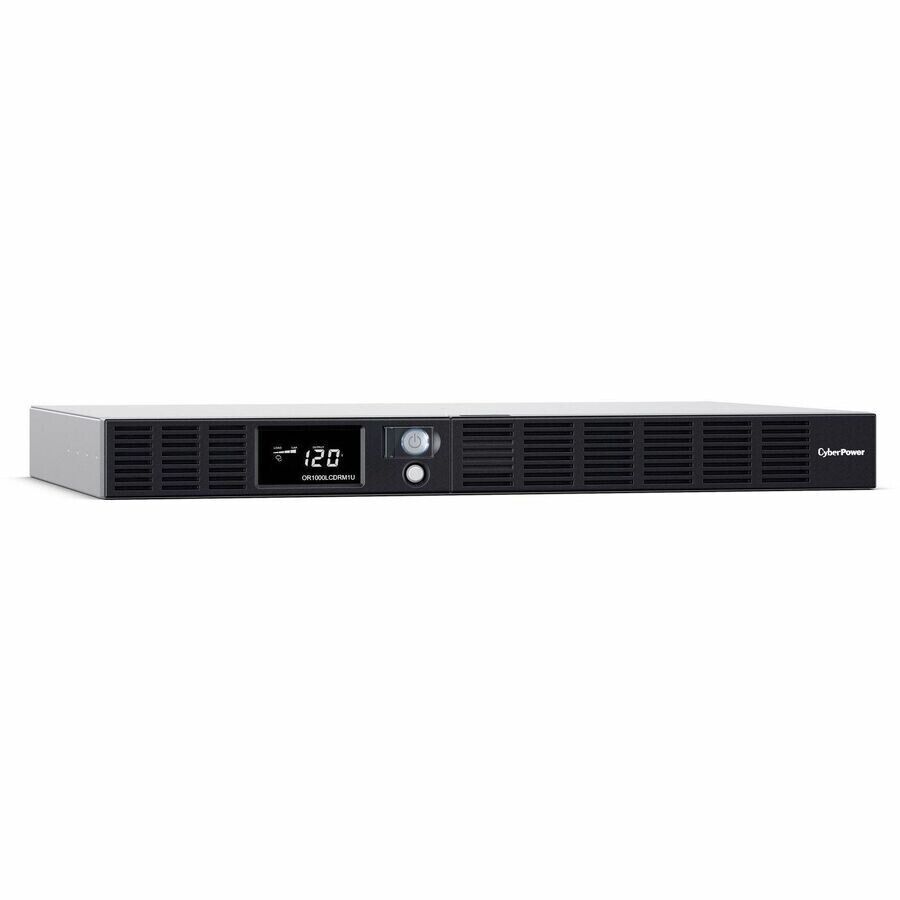

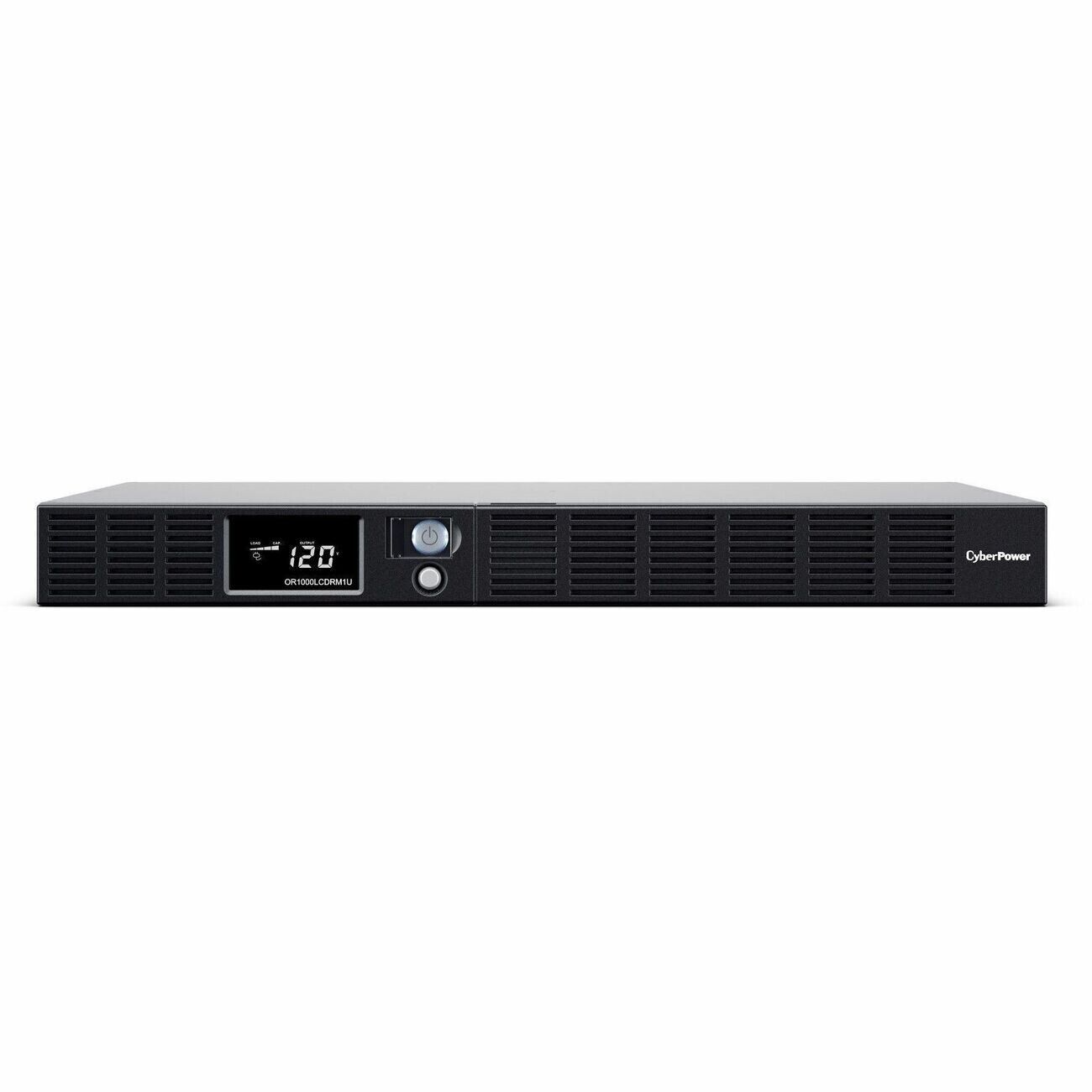

CyberPower OR1000LCDRM1U 4+2 Outlets Smart APP LCD UPS System 1000VA 600W 1U RCK

General Information

• Manufacturer: CyberPower Systems, Inc
• Manufacturer Part Number: OR1000LCDRM1U
• Brand Name: CyberPower
• Product Series: Smart App LCD UPS
• Product Model: OR1000LCDRM1U
• Product Name: Smart App LCD OR1000LCDRM1U 1000VA Rack-mountable UPS
• Product Type: Line-interactive UPS

Marketing Information:

A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR1000LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1000LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.

Technical Information

• AVR: Yes
• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R

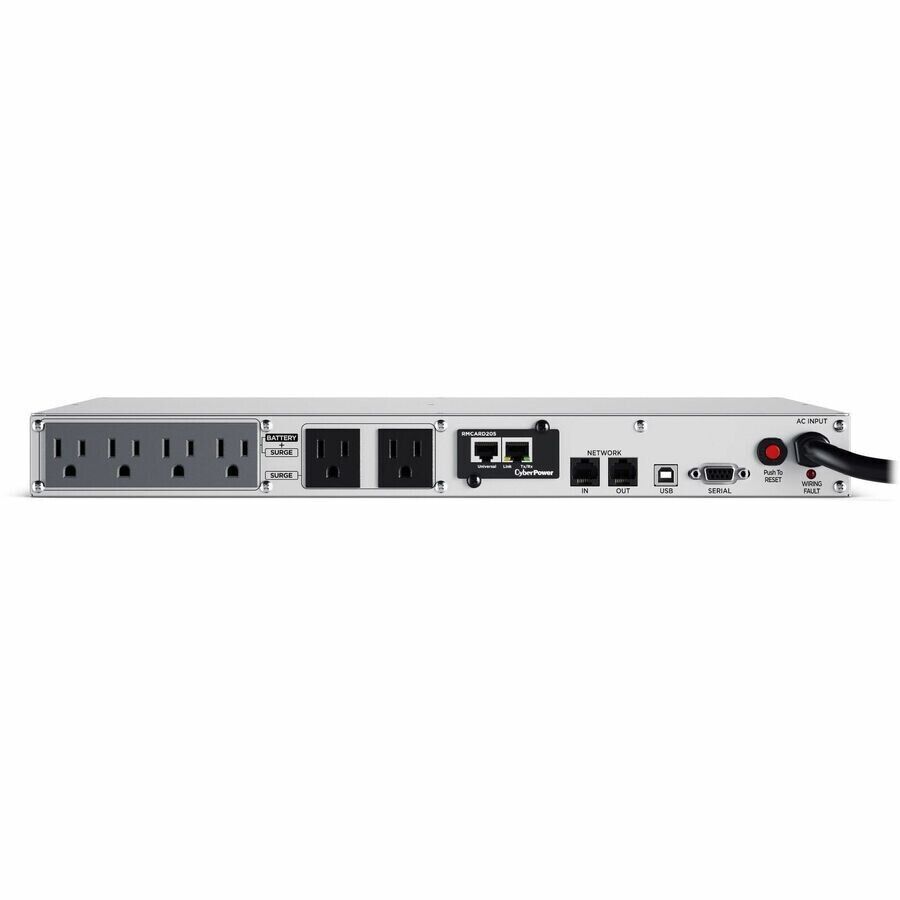

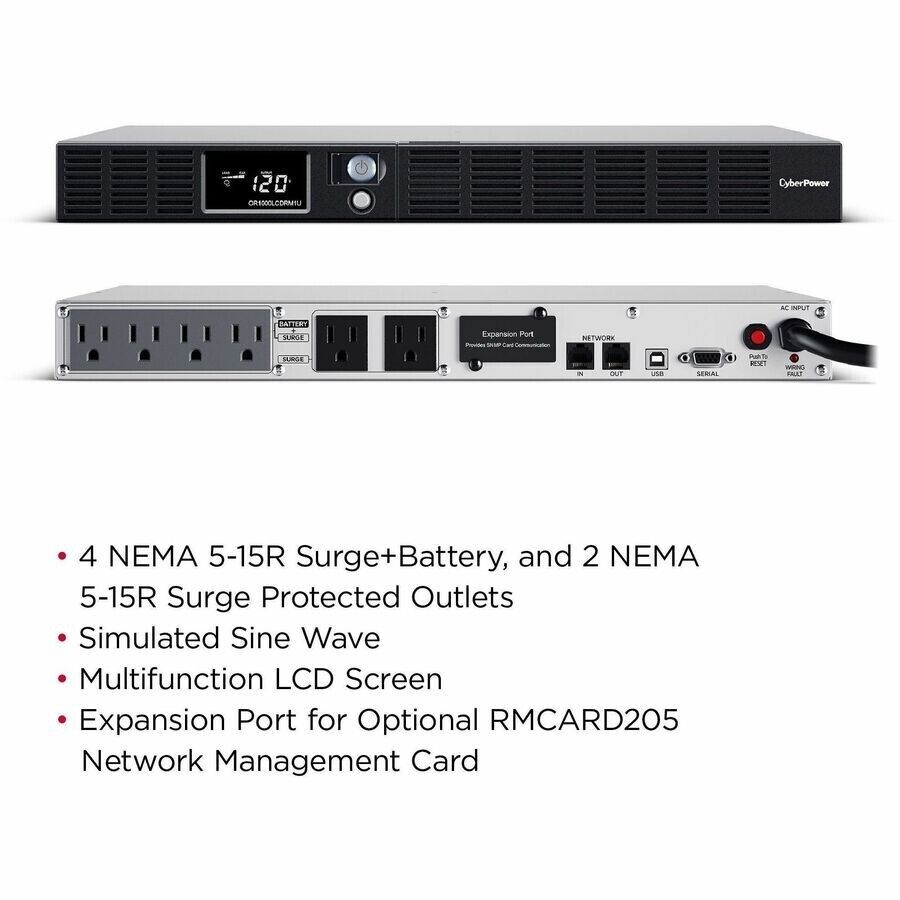

• Receptacle Detail: 6 x NEMA 5-15R
• Number of Battery & Surge Outlets: 4
• Number of Surge-only Outlets: 2
• Dataline Protection: RJ-45
• Protection Type:
  • Dataline Surge
  • Black Out
  • AC Surge
  • Sag
• Overload Protection: Yes
• Bypass Switch: Not Provided
• Emergency Power OFF: No
• Transfer Time: 8 ms
• EMI/RFI Noise Filter: Yes
• Energy Saving: GreenPower UPS™ Bypass Technology
• Application/Usage:
  • Workstation
  • Server
  • Network Device
  • Telecommunication

Power Description

• Load Capacity (VA): 1000 VA
• Load Capacity (Watt): 600 W
• Input Voltage: 120 V AC
• Input Voltage Range: 90 V AC - 140 V AC
• Input Frequency: 63 Hz
• Output Frequency: 60 Hz
• Waveform Type: Simulated Sine Wave
• Surge Energy Rating: 1150 J

Management

• Network Management: SNMP Manageable
• Alarm:
  • Low Battery
  • Fault
  • Overload
  • Battery Mode

Controls/Indicators

• Status Indicators:
• On Unit:
  • Power On
  • Wiring Fault
• LCD Panel:
  • Input Voltage
  • Output Voltage
  • Battery Capacity
  • Load Level
  • Runtime
  • On Battery
  • Overload
  • Silent Mode

Interfaces/Ports

• Serial Port: Yes
• USB: Yes
• USB (HID Compliant) Port: Yes

Battery Information

• Number of Batteries: 4
• Battery Characteristics: Maintenance-free
• Battery Chemistry: Lead Acid
• Battery Size: 6V
• Battery Capacity: 7000 mAh
• Backup/Run Time (Full Load): 3 Minute
• Backup/Run Time (Half Load): 13 Minute
• Battery Life: 6 Year
• Typical Battery Recharge Time: 8 Hour
• Hot Swappable: Yes
• Replaceable Battery: Yes

Environmental Conditions

• Maximum Operating Temperature: 95°F (35°C)
• Maximum Operating Elevation: 10000 ft
• Maximum Storage Elevation: 50000 ft

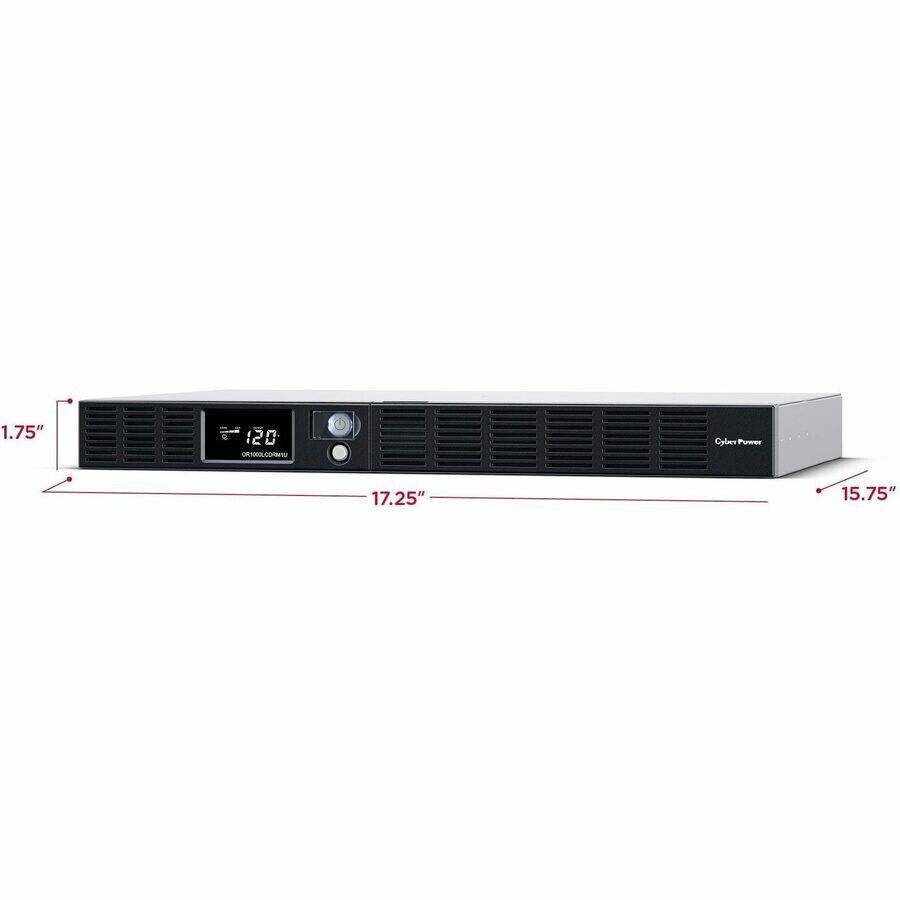

Physical Characteristics

• Color Family: Black
• Product Color: Black
• Height: 1.8"
• Width: 17.1"
• Depth: 15.6"
• Rack Height: 1U
• Form Factor: Rack-mountable
• Weight (Approximate): 30.20 lb

Package Contents:

• Smart App Intelligent LCD OR1000LCDRM1U 1000VA UPS
• User's Manual
• Rackmount Brackets
• USB A+B Type Cable

Additional Information:

• Replacement Battery Cartridge Quantity | 1
• Adjustable Voltage Range | 88 - 144 VAC
• Circuit Breaker | 15A
• Plug Style | Straight
• Automatic Voltage Regulation | Single Boost
• Network Protection RJ45 | 1-in / 1-Out (10/100/1000)
• LCD | Multifunction LCD
• Management Cable | USB Cable
• Serial Port | 1 Dry Contact
• SNMP / HTTP Remote Monitoring | Yes - with optional RMCARD205
• Material of Construction | Metal
• Operating Relative Humidity | 0 - 95 % (non-condensing)
• Storage Relative Humidity | 0 - 95% (non-condensing)
• Software Included: PowerPanel Business Edition Software

Certifications & Standards:

• FCC Class B certified
• cUL
• UL 1778

Energy Star: Yes

Country of Origin: China

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 3 Year from CyberPower
