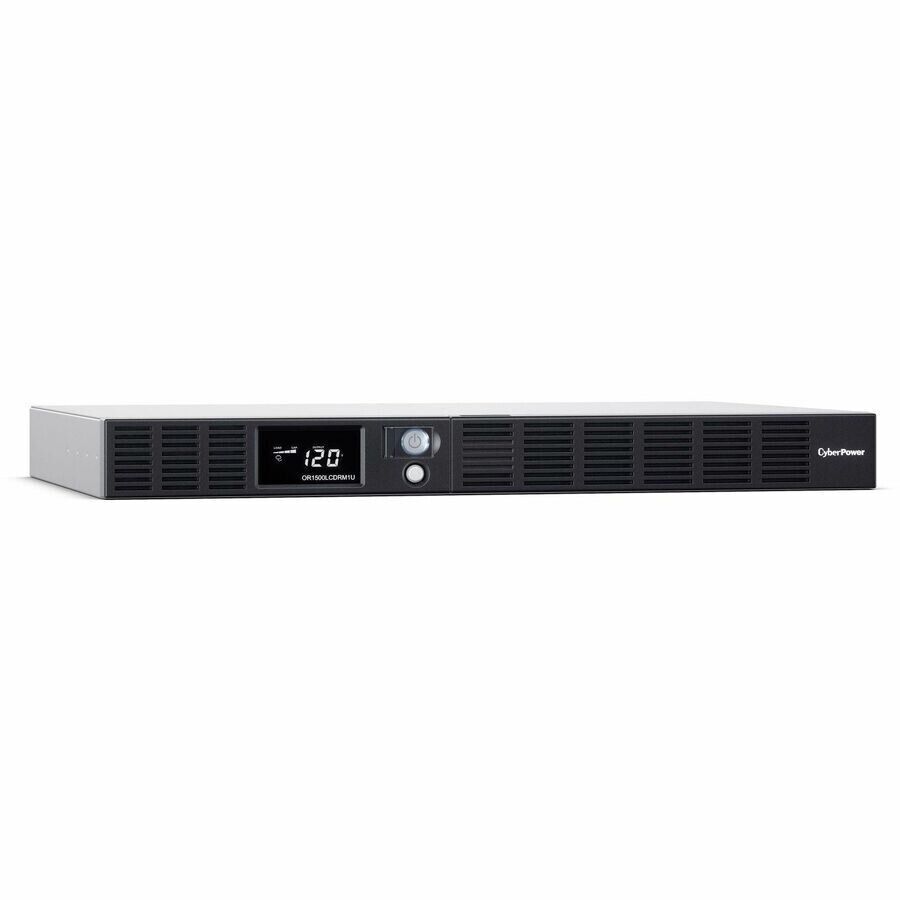

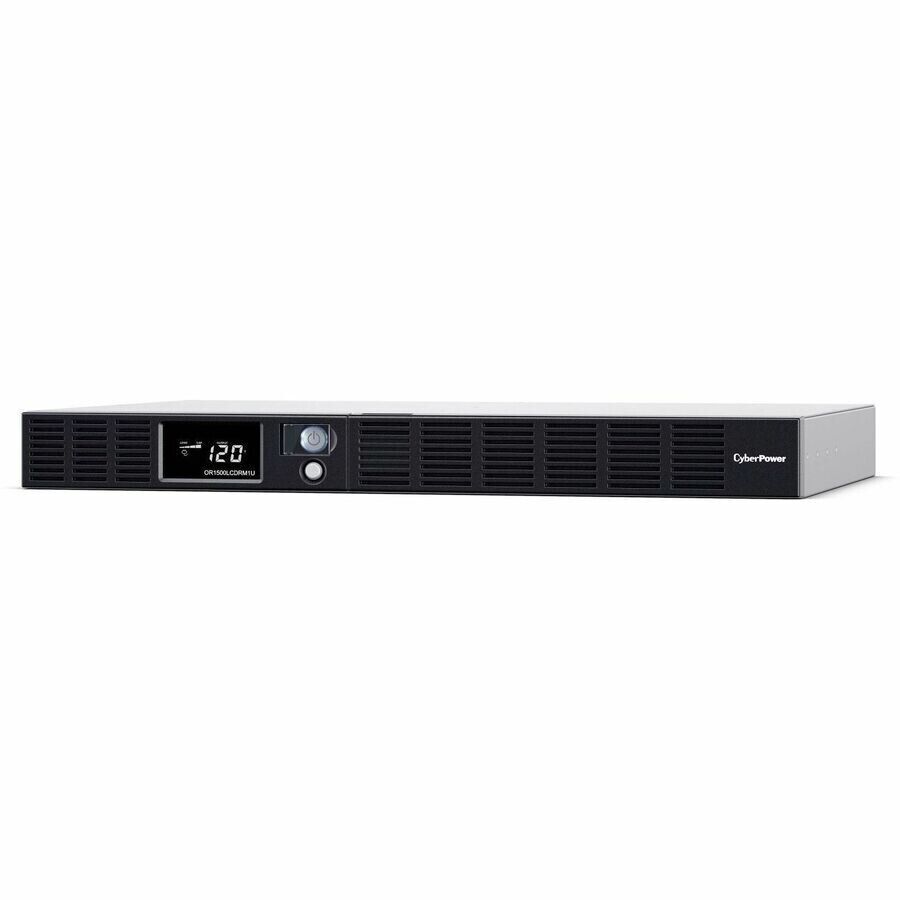

CyberPower OR1500LCDRM1U 4+2 Outlets Smart APP LCD UPS System 1500VA 900W 1U RCK

General Information

• Manufacturer: CyberPower Systems, Inc
• Manufacturer Part Number: OR1500LCDRM1U
• Brand Name: CyberPower
• Product Series: Smart App LCD UPS
• Product Model: OR1500LCDRM1U
• Product Name: Smart App OR1500LCDRM1U 1500VA UPS
• Product Type: Line-interactive UPS

Marketing Information:

A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR1500LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1500LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.

Technical Information

• AVR: Yes
• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R

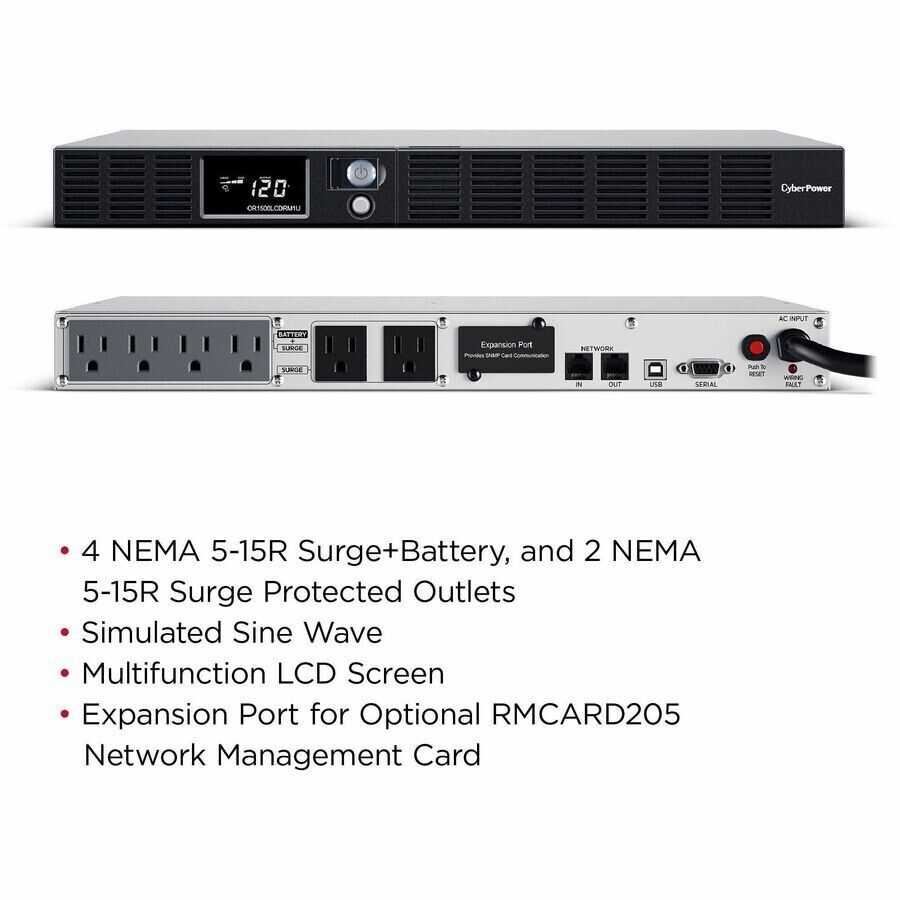

• Receptacle Detail: 6 x NEMA 5-15R
• Number of Battery & Surge Outlets: 4
• Number of Surge-only Outlets: 2
• Transfer Time: 8 ms
• Dataline Protection:
  • RJ-45
  • RJ-11
• Overload Protection: Yes
• EMI/RFI Noise Filter: Yes
• Energy Saving: GreenPower UPS™ Bypass Design

Power Description

• Load Capacity (VA): 1500 VA
• Input Voltage: 120 V AC
• Input Voltage Range: 90 V AC - 140 V AC
• Output Voltage: 120 V AC
• Input Frequency: 63 Hz
• Output Frequency: 60 Hz
• Waveform Type: Simulated Sine Wave
• Surge Energy Rating: 1150 J

Management

• Network Management: SNMP Manageable
• Alarm: Battery Mode

Controls/Indicators

• Status Indicators:
• Power On
• Multifunction LCD

Interfaces/Ports

• Serial Port: Yes
• USB: Yes
• USB (HID Compliant) Port: Yes

Battery Information

• DC System Voltage: 6 V DC
• Number of Batteries: 4
• Battery Chemistry: Lead Acid
• Battery Size: 6V
• Battery Capacity: 9000 mAh
• Backup/Run Time (Full Load): 2 Minute
• Backup/Run Time (Half Load): 11 Minute
• Typical Battery Recharge Time: 8 Hour
• Replaceable Battery: Yes

Environmental Conditions

• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: 5°F (-15°C) - 113°F (45°C)
• Maximum Operating Elevation: 10000 ft
• Maximum Storage Elevation: 50000 ft

Physical Characteristics

• Form Factor: Rack-mountable
• Rack Height: 1U
• Height: 1.8"
• Width: 17.1"
• Depth: 15.6"
• Weight (Approximate): 33 lb

Additional Information:

• Replacement Battery Cartridge Quantity | 1
• Adjustable Voltage Range | 88 - 144 VAC
• Circuit Breaker | 15A
• Plug Style | Straight
• Automatic Voltage Regulation | Single Boost
• Overload Protection | Internal Circuitry Limiting
• LCD | Multifunction LCD
• Management Cable | USB Cable
• Serial Port | 1 Dry Contact
• SNMP / HTTP Remote Monitoring | Yes - with optional RMCARD205
• Material of Construction | Metal
• Operating Relative Humidity | 0 - 95 % (non-condensing)
• Operating Temperature | 32 - 104 °F (0 - 40 °C)
• Storage Relative Humidity | 0 - 95% (non-condensing)
• Software Included: PowerPanel® Business
• Energy Star: Yes
• Environmentally Friendly: Yes

Certifications & Standards:

• UL1778
• cUL 107.1
• FCC DOC Class B

Limited Warranty: 3 Year from CyberPower
