CyberPower OR500LCDRM1U Smart App LCD UPS Systems - 500VA/300W, 120 VAC

General Information

• Manufacturer: CyberPower Systems, Inc
• Brand Name: CyberPower
• Manufacturer Part Number: OR500LCDRM1U
• Product Series: Smart App LCD UPS
• Product Model: OR500LCDRM1U
• Product Name: Smart App Intelligent LCD OR500LCDRM1U 500VA UPS
• Product Type: Line-interactive UPS

Technical Information

• AVR: Yes
• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R

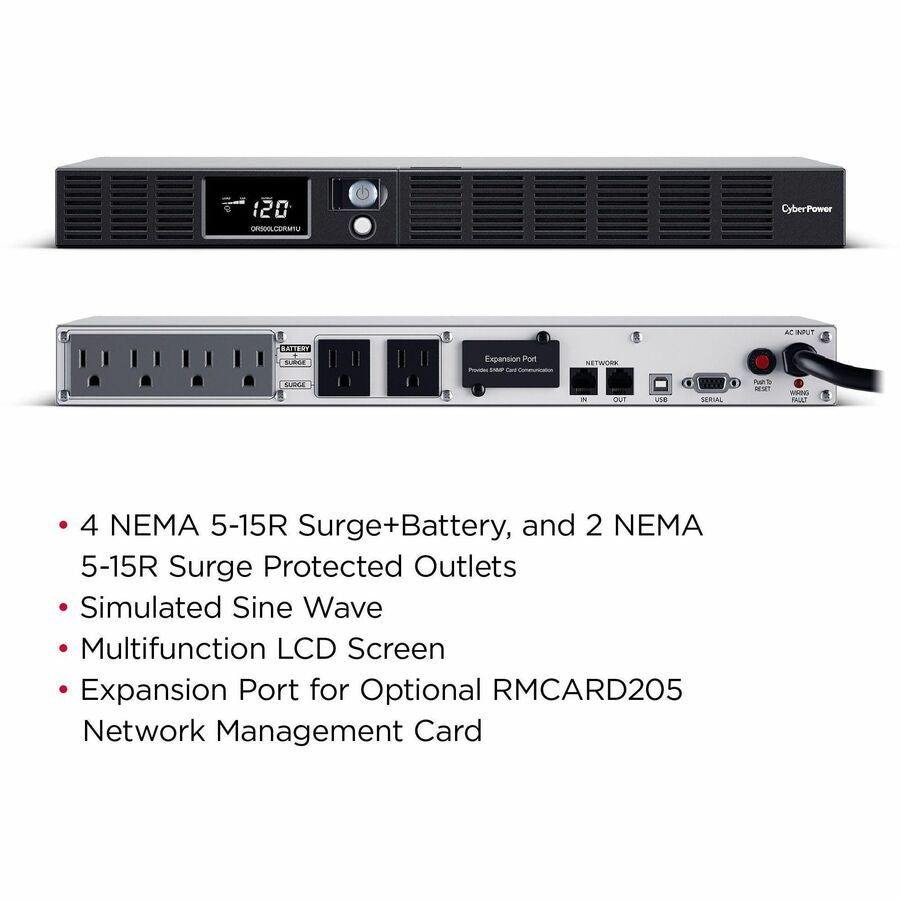

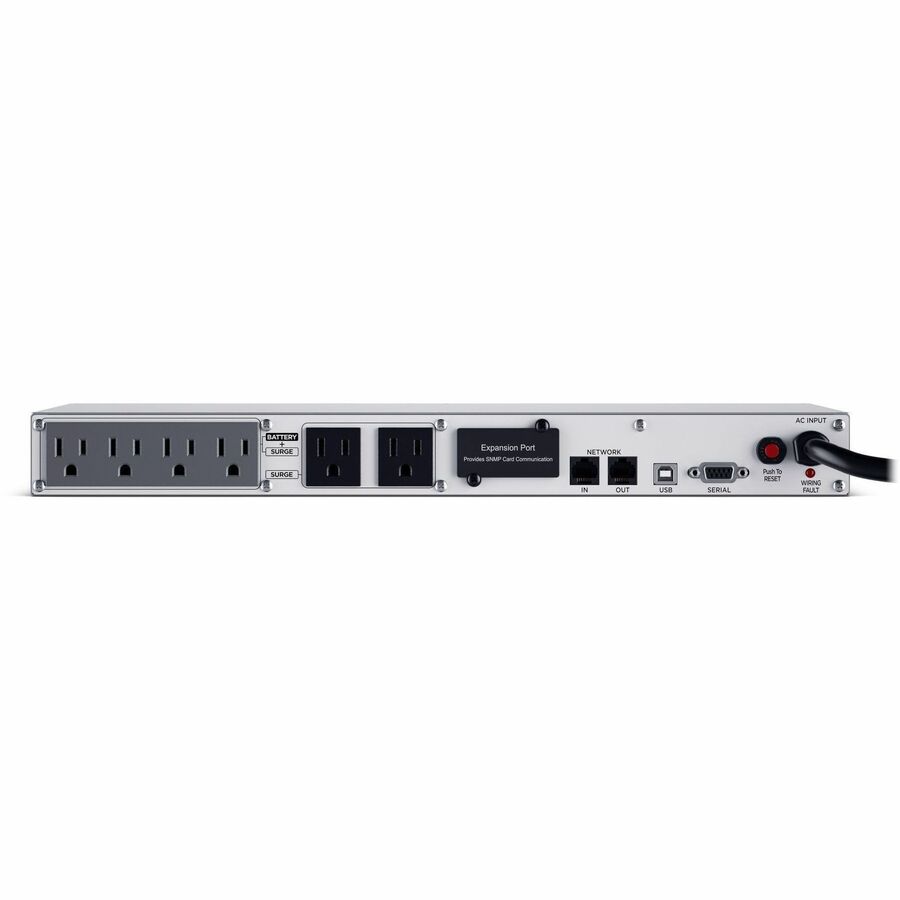

• Receptacle Detail: 6 x NEMA 5-15R
• Number of Battery & Surge Outlets: 4
• Number of Surge-only Outlets: 2
• Transfer Time: 8 ms
• Dataline Protection:
• RJ-45
• RJ-11
• Protection Type:
• Dataline Surge
• Black Out
• AC Surge
• Sag
• Overload Protection: Yes
• EMI/RFI Noise Filter: Yes
• Energy Saving: GreenPower UPS™ Bypass Technology
• Application/Usage:
• Server
• Workstation
• Network Device
• Telecommunication
• Power Description
• Load Capacity (VA): 500 VA
• Input Voltage: 120 V AC
• Input Voltage Range: 90 V AC - 140 V AC
• Output Voltage: 120 V AC
• Input Frequency: 63 Hz
• Waveform Type: Simulated Sine Wave
• Surge Energy Rating: 1150 J

Management

• Alarm:
• On Battery
• Battery Mode
• Overload

Controls/Indicators

• Status Indicators:
• On Unit: Power On
• Wiring Fault

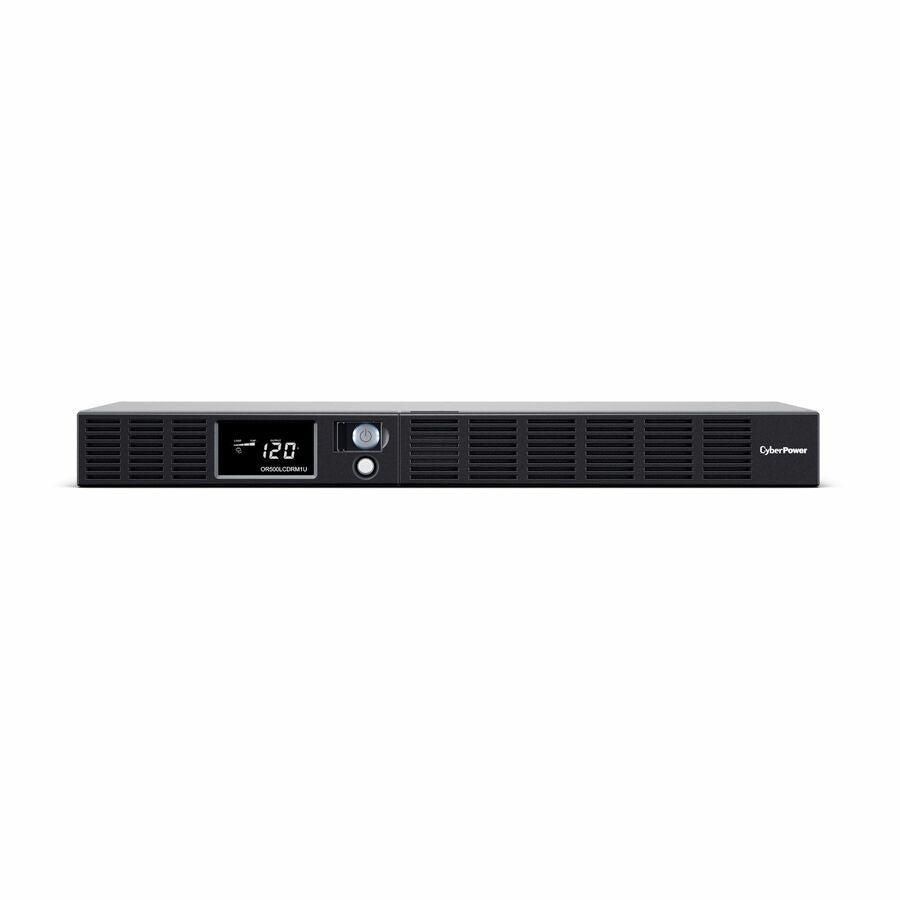

• LCD Panel:
• Input Voltage
• Output Voltage
• Battery Capacity
• Load Level
• Runtime
• On Battery
• Overload
• Silent Mode

Interfaces/Ports

• Serial Port: Yes
• USB (HID Compliant) Port: Yes

Battery Information

• Number of Batteries: 2
• Battery Characteristics: Maintenance-free
• Battery Chemistry: Lead Acid
• Battery Size: 6V
• Battery Capacity: 7000 mAh
• Backup/Run Time (Full Load): 3 Minute
• Backup/Run Time (Half Load): 12 Minute
• Typical Battery Recharge Time: 8 Hour
• Replaceable Battery: Yes

Environmental Conditions

• Maximum Operating Temperature: 104°F (40°C)
• Maximum Operating Elevation: 10000 ft
• Maximum Storage Elevation: 60"
• Storage Relative Humidity: 0% - 95%

Physical Characteristics

• Color Family: Black
• Product Color: Black
• Form Factor: Rack-mountable
• Rack Height: 1U
• Height: 1.8"
• Width: 17.1"
• Depth: 9.3"

Miscellaneous

• Package Contents:
  • Smart App Intelligent LCD OR500LCDRM1U 500VA UPS
  • Rack Ears (2)
  • User Manual
  • Power Management Software
  • Warranty Card
  • Serial Cable
  • Phone Cable
  • USB Cable

Additional Information:

• Replacement Battery Cartridge Quantity: 1
• Adjustable Voltage Range: 88 - 144 VAC
• Circuit Breaker: 15A
• Plug Style: Straight
• Automatic Voltage Regulation: Single Boost
• On Battery Frequency: 60 Hz ± 1%
• On Battery Voltage: 120 VAC ± 10%
• Output Power Factor: 0.6
• Overload Protection: Internal Circuitry Limiting
• Network Protection RJ45: 1-in / 1-Out (10/100/1000)
• LCD: Multifunction LCD
• Management Cable: USB Cable
• SNMP / HTTP Remote Monitoring: Yes - with optional RMCARD205
• Material of Construction: Metal
• Operating Relative Humidity: 0 - 95 % (non-condensing)
• Operating Temperature: 32 - 104 °F (0 - 40 °C)
• Certifications & Standards:
• FCC Class B
• cUL 107.1
• UL 1778
• Software Included: PowerPanel® Business
• Energy Star: Yes
• Country of Origin: Philippines
• Environmentally Friendly: Yes
• Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

• Limited Warranty: 3 Year from CyberPower
