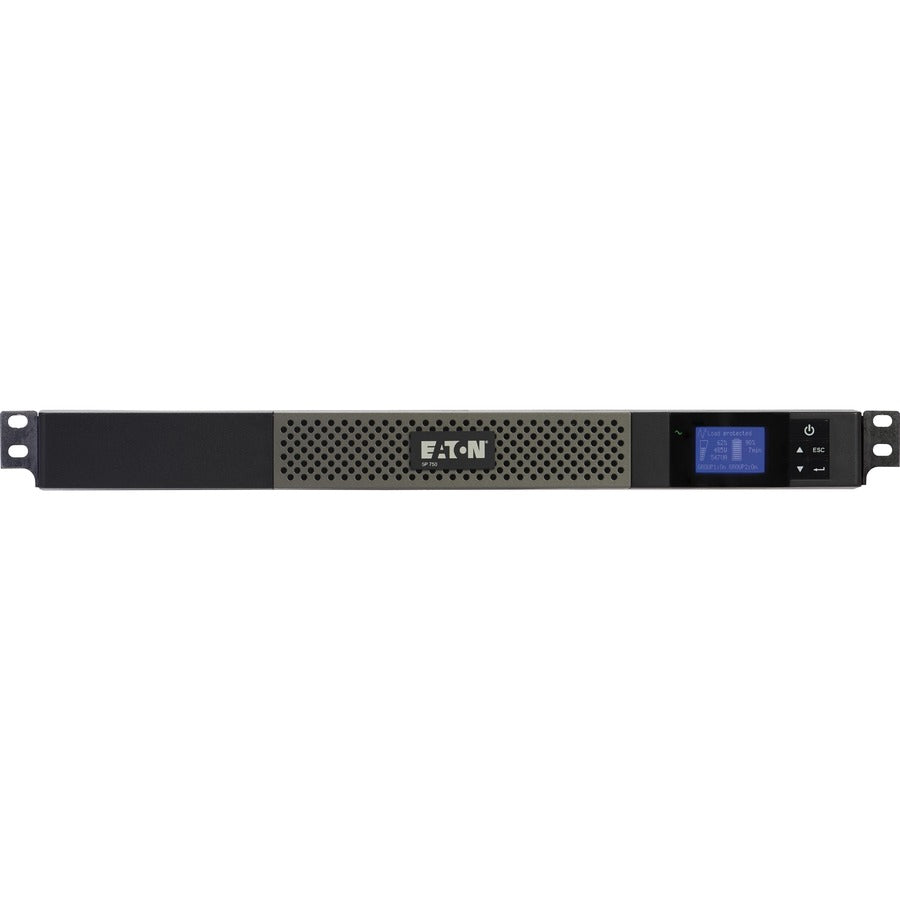

Eaton 5P750R 5P 750VA 600W 120V Line-Interactive UPS, 5-15P, 5x 5-15R Outlets

General Information

• Manufacturer: Eaton Corporation
• Brand Name: Eaton
• Manufacturer Part Number: 5P750R
• Product Model: 5P
• Product Name: 5P Rackmount UPS

Marketing Information:

• 750VA/600W/120V Battery Backup for Network Closets and Small Data Centers
• This 5P rack-mount line-interactive UPS system provides reliable battery backup for small business, education, retail, financial or healthcare networking components, including servers, VoIP phones, data storage and PoE switches. The 5P750R protects connected devices by providing 20 percent more wattage compared to traditional UPS systems.
• Reliable Battery Backup Keeps You Operational Through Power Outages
• Valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing.
• Optional Gigabit Network Interface Offers 24/7 Remote Access
• The NETWORK-M2 Gigabit network card (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. An optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.
• NEMA 5-15R Outlets Protect Your Connected Components
• Five managed 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Three outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.
• LCD Interface Keeps You Informed at a Glance
• The five-button graphical LCD provides useful information about the UPS itself, load status, events, measurements and settings. To save energy, the LCD switches to the screen saver after five minutes of inactivity. The backlight LCD automatically dims after 10 minutes of inactivity.

Product Type: Line-interactive UPS

Technical Information

• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R
• Receptacle Detail: 5 x NEMA 5-15R

Power Description

• Load Capacity (VA): 750 VA
• Load Capacity (Watt): 600 W
• Input Voltage: 110 V AC
• Output Voltage:
• 132 V AC
• 120 V AC
• 125 V AC

Interfaces/Ports

• Network (RJ-45): Yes
• USB: Yes
• Total Number of Expansion Slots: 1

Battery Information

• Battery Characteristics: Maintenance-free, Sealed
• Battery Chemistry: Lead Acid
• Backup/Run Time (Full Load): 4 Minute
• Backup/Run Time (Half Load): 12 Minute
• Hot Swappable: Yes

Physical Characteristics

• Height: 1.7"
• Width: 17.2"
• Depth: 20"
• Rack Height: 1U
• Form Factor: Rack-mountable

Miscellaneous

• Package Contents:
  • 5P Rackmount UPS
  • User Manual CD
  • Intelligent Power Software Suite CD
  • Quick Start Guide
  • USB Cable
  • RS-232 Serial Cable
  • 4-Post Rail Kit
• Certifications & Standards:
  • UL 1778
  • UL497A
  • cULus
  • CE
  • IEC 62040-2 C1-C2
  • EN 55024
  • CISPR22 Class B
  • FCC part 15 Class B
• Software Included: Intelligent Power Software Suite
• Energy Star: Yes
• Country of Origin: Philippines
• Environmentally Friendly: Yes
• Environmental Compliance:
• Restriction of Hazardous Substances (RoHS)

Warranty

• Limited Warranty: 3 Year from EATON
