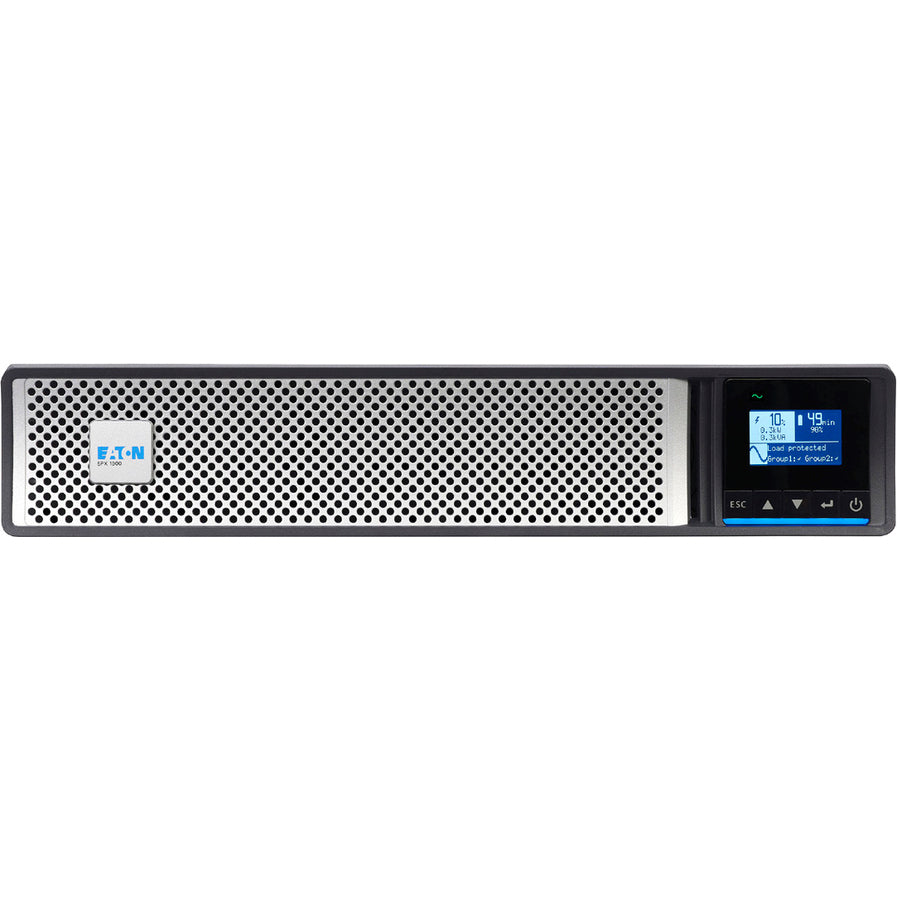

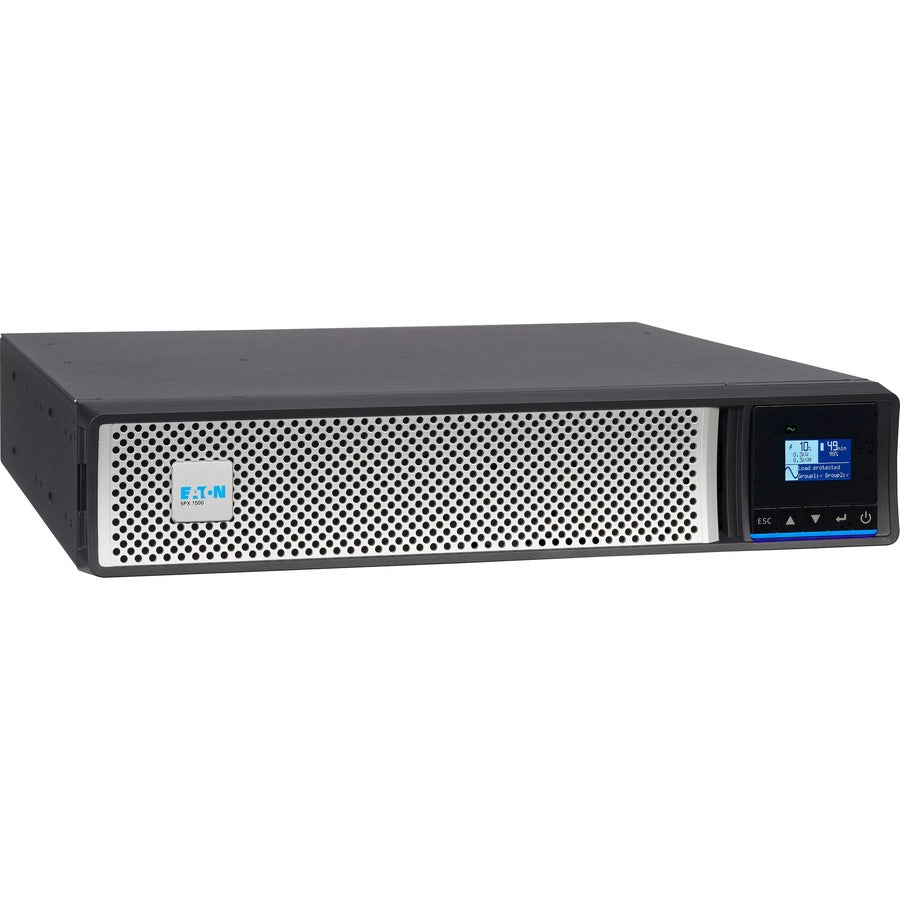

Eaton 5PX2000RTG2 5PX G2 1950VA 1950W 120V Line-Interactive UPS - 6 NEMA 5-20R

General Information

• Manufacturer: Eaton Corporation
• Brand Name: Eaton
• Manufacturer Part Number: 5PX2000RTG2
• Product Series: 5PX G2
• Product Model: 5PX2000RTG2
• Product Name: 5PX G2 UPS

Marketing Information:

• 1.95kVA/1.95kW/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments
• This 5PX G2 rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The 5PX2000RTG2 is ideal power management for small business, education, retail, financial or healthcare networking components, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.
• Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
• The field-replaceable, hot-swappable internal battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to four external battery modules (5PXEBM72RTG2, sold separately) for hours of extended runtime.
• Optional Gigabit Network Interface Offers 24/7 Remote Access
• The Network-M3 network card (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the Network-M3 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. An optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.
• NEMA Outlets Protect Your Connected Components

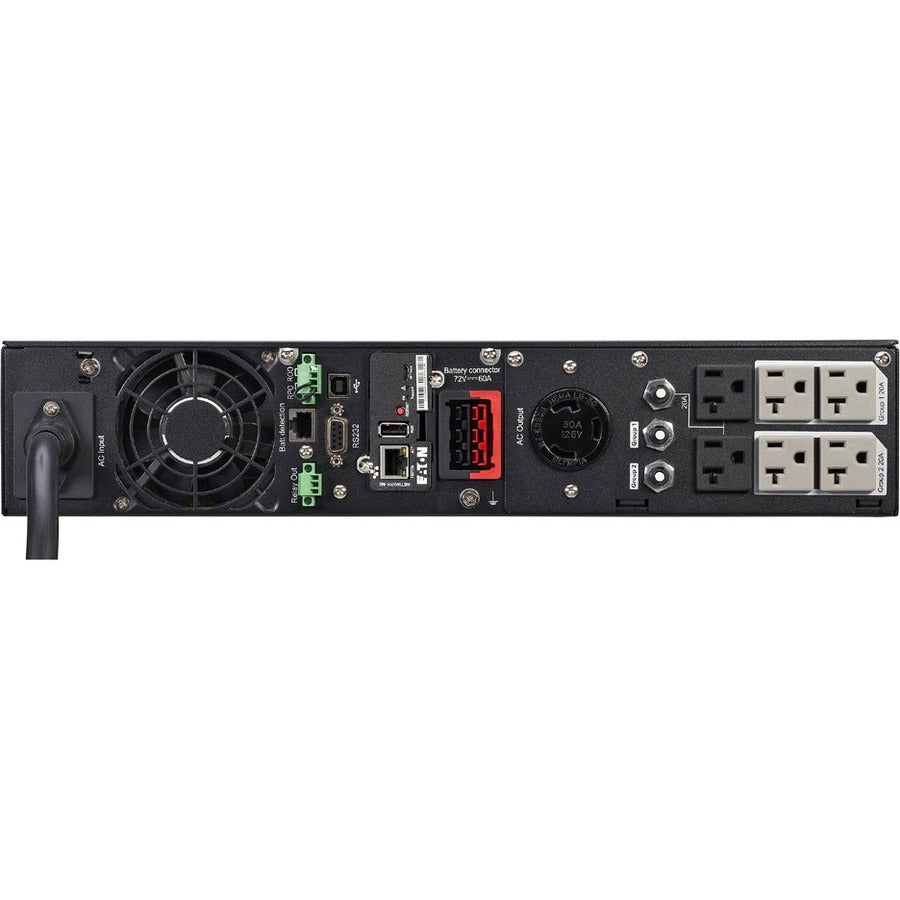

• One L5-20R and six 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.

Product Type: Line-interactive UPS

Technical Information

• Plug/Connector Type: NEMA L5-30P
• Receptacle Type:
• NEMA L5-30R
• NEMA 5-20R
• Receptacle Detail:
• 6 x NEMA 5-20R
• 1 x NEMA L5-20R

Application/Usage:

• IT Equipment
• Telecommunication
• Distribution Center
• Business
• Education
• Retail and Wholesale
• Financial
• Healthcare
• Network Device
• Server
• VoIP Phone
• Data Storage
• PoE System
• Automation Industry

Power Description

• Load Capacity (VA): 1950 VA
• Load Capacity (Watt): 1950 W
• Input Voltage: 120 V AC
• Input Frequency: 60 Hz
• Waveform Type: Pure Sine Wave

Management

• Network Management: Network-M3 Card

Controls/Indicators

• Status Indicators: LCD Display

Interfaces/Ports

• Serial Port: Yes
• USB (HID Compliant) Port: Yes

Battery Information

• Battery Characteristics: Sealed
• Battery Chemistry: Lead Acid
• Hot Swappable: Yes
• Replaceable Battery: Yes

Physical Characteristics

• Color Family: Black
• Product Color: Black
• Height: 3.4"
• Width: 17.2"
• Depth: 23.7"
• Rack Height: 2U
• Form Factor: Rack/Tower

Miscellaneous

• Package Contents:
  • 5PX G2 UPS
  • USB Cable
  • RS-232 Cable
  • Rack-Mounting Hardware
  • Tower Support Stands
  • Safety Guide
  • Quick Start Guide
• Energy Star: Yes
• Country of Origin: Philippines
• Environmentally Friendly: Yes
• Environmental Compliance:
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)

Warranty

• Limited Warranty: 3 Year from EATON
