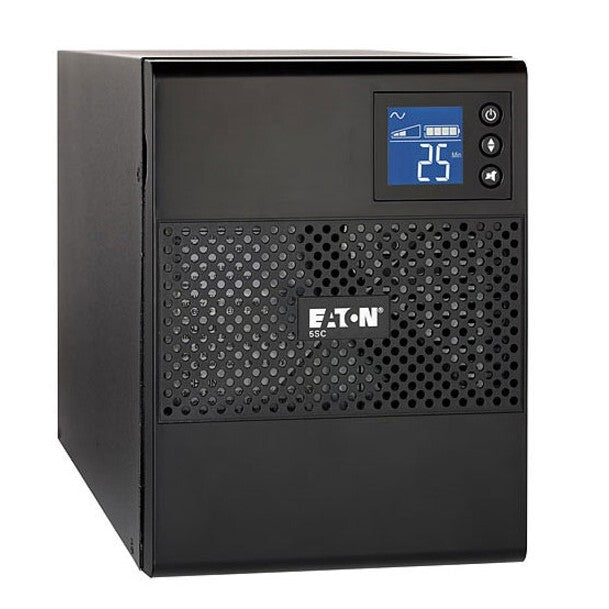

Eaton 5SC1500 8-Outlet UPS AVR Battery Backup Tower USB RJ45 RS232 1080W 1500VA

GENERAL INFORMATION

• Manufacturer: Eaton Corporation
• Manufacturer Part Number: 5SC1500
• Brand Name: Eaton
• Product Series: 5SC
• Product Name: 5SC UPS
• Product Type: Line-interactive UPS

MARKETING INFORMATION:

The flexible Eaton 5SC UPS delivers affordable and reliable protection for small business servers, storage and network equipment. The LCD interface provides clear status of UPS key parameters and allows configuration for output voltage, audible alarm and power input sensitivity. By using Eaton's Intelligent Power Manager software with the 5SC UPS you get up-to-the-minute information on the status of power in your network. The 5SC offers pure sinewave output for sensitive equipment as well as buck and boost operation to correct a wide range of input voltage variations without using batteries.

TECHNICAL INFORMATION

• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R
• Receptacle Detail: 8 x NEMA 5-15R
• Cord Length: 6 ft

POWER DESCRIPTION

• Load Capacity (VA): 1500 VA
• Load Capacity (Watt): 1080 W
• Input Voltage: 110 V AC
• Output Voltage: 120 V AC

INTERFACES/PORTS

• Serial Port: Yes
• Network (RJ-45): Yes
• USB: Yes

BATTERY INFORMATION

• Battery Characteristics: Maintenance-free, Sealed
• Battery Chemistry: Lead Acid
• Backup/Run Time (Full Load): 5 Minute
• Backup/Run Time (Half Load): 13 Minute
• Hot Swappable: No

ENVIRONMENTAL CONDITIONS

• Maximum Operating Temperature: 104°F (40°C)
• Sound Emission: 55 dB

PHYSICAL CHARACTERISTICS

• Color Family: Black
• Product Color: Black
• Height: 8.2"
• Width: 5.9"
• Depth: 16.1"
• Form Factor: Tower
• Weight (Approximate): 34 lb

PACKAGE CONTENTS:

• 5SC UPS
• User manual CD
• Intelligent Power Manager Software CD
• USB cable
• Serial Cable (RJ45 to DB9)
• Important Safety Instructions
• Limited Warranty Details

CERTIFICATIONS & STANDARDS:

• CE
• cULus
• NOM
• IEC 62040-2:2006 Cat C2
• CISPR22 Class A
• FCC Part 15 Class A

OTHER INFORMATION

• Environmentally Friendly: Yes
• Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Limited Warranty: 3 Year from EATON
