Eaton AVR550U 8-Outlet UPS AVR USB Desk Wall 300W 120V 4x Battery Power 550VA

GENERAL INFORMATION

• Manufacturer: Eaton Corporation
• Manufacturer Part Number: AVR550U
• Brand Name: Tripp Lite by Eaton
• Product Series: AVR
• Product Model: AVR550U
• Product Name: Desktop/Wall Mount Battery Backup Outlets
• Product Type: Line-interactive UPS

MARKETING INFORMATION:

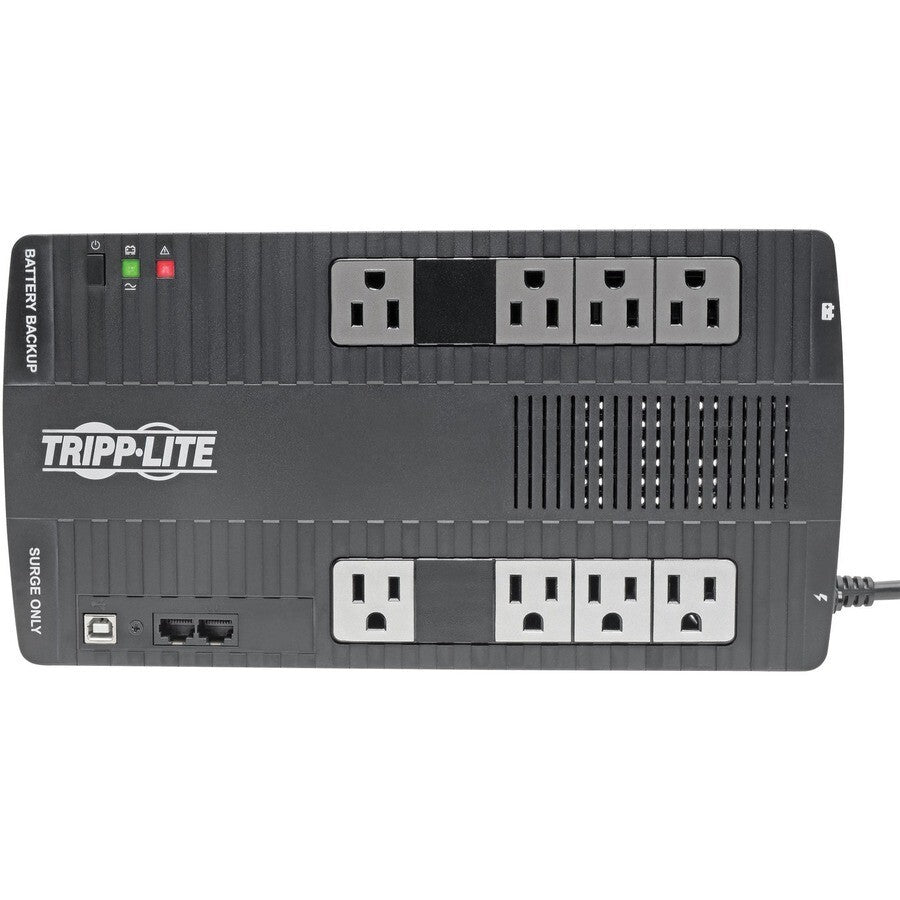

AVR Series Line-Interactive UPS System offers 550VA ultra-compact line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space-saving right-angle input plug, four battery/surge-protected outlets and four additional surge-only outlets (8 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable.

TECHNICAL INFORMATION

• AVR: Yes
• AVR Range: Boost +18% / Buck -15%
• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R
• Receptacle Detail: 8 x NEMA 5-15R
• Number of Battery & Surge Outlets: 4
• Number of Surge-only Outlets: 4

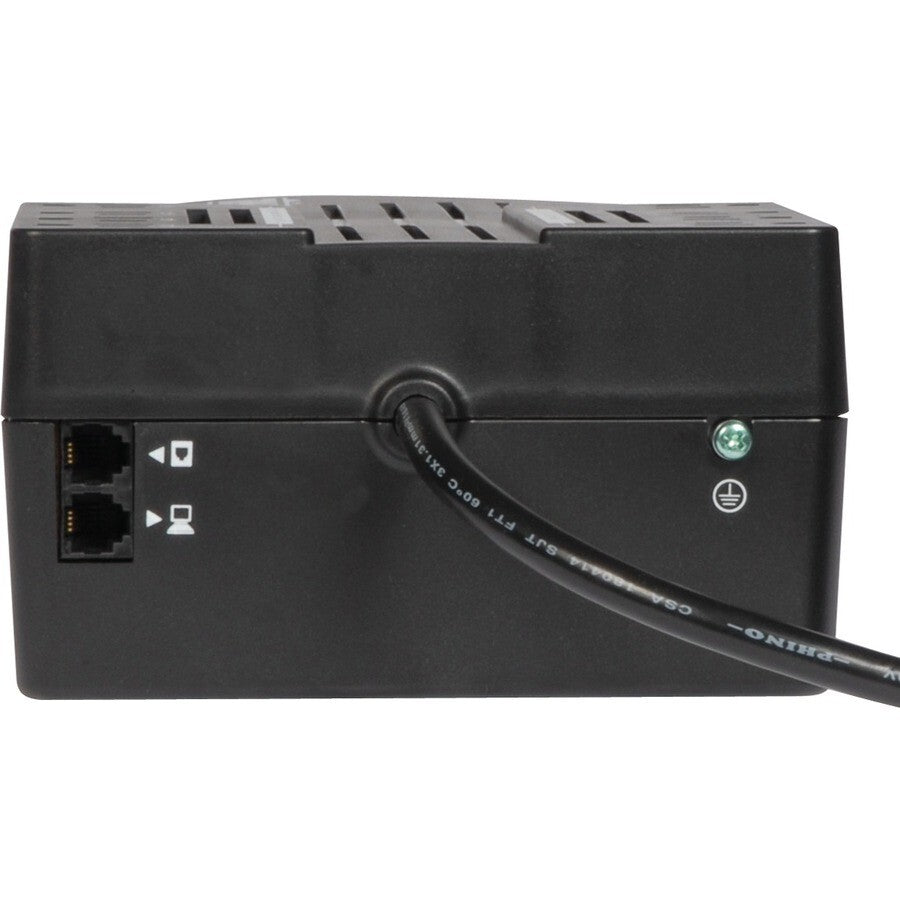

• Dataline Protection: RJ-11
• Cord Length: 6 ft
• Transfer Time: 6 ms
• EMI/RFI Noise Filter: Yes
• Phase: Single Phase
• Energy Saving: Greater than 95% efficiency - GREEN UPS

APPLICATION/USAGE:

• Printer
• Speaker
• Computer
• Router
• TV
• Blu-ray Player
• Gaming Console
• ATM
• Security System
• Digital Signage
• Media Center
• Home/Office
• Home Theater

POWER DESCRIPTION

• Load Capacity (VA): 550 VA
• Load Capacity (Watt): 300 W
• Input Voltage: 120 V AC
• Input Current: 12 A
• Output Voltage:
  • 110 V AC
  • 115 V AC
  • 120 V AC
• Input Frequency: 60 Hz
• Output Frequency: 60 Hz
• Waveform Type: Pulse-width Modulated Sine Wave
• Surge Energy Rating: 316 J

MANAGEMENT ALARM:

• Battery Backup
• Low Battery
• Overload
• Replace Battery
• Fault
• Controls/Indicators
• Status Indicators: 2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions

INTERFACES/PORTS

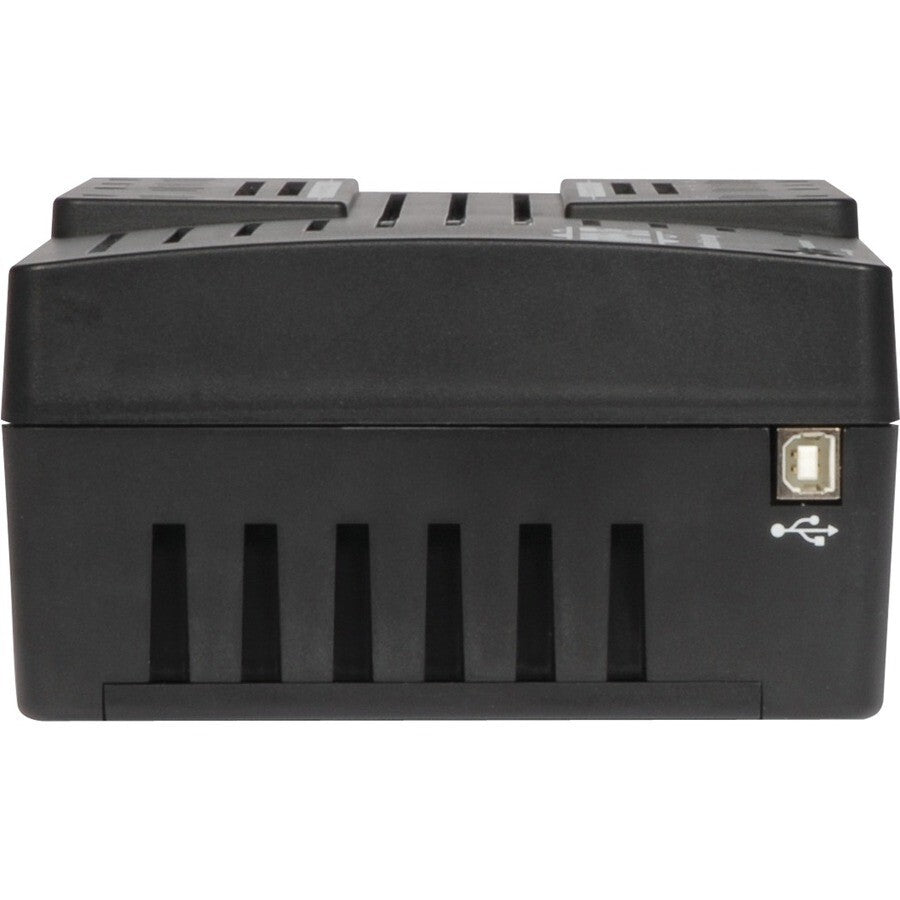

• USB: Yes
• USB (HID Compliant) Port: Yes

BATTERY INFORMATION

• DC System Voltage: 12 V DC
• Backup/Run Time (Full Load): 2 Minute
• Backup/Run Time (Half Load): 9 Minute
• Battery Life: 6 Year
• Typical Battery Recharge Time: 8 Hour
• Replaceable Battery: Yes

ENVIRONMENTAL CONDITIONS

• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: 5°F (-15°C) - 113°F (45°C)
• Maximum Operating Elevation: 10000 ft

PHYSICAL CHARACTERISTICS

• Color Family: Black
• Product Color: Black
• Height: 4.3"
• Width: 6.4"
• Depth: 12"

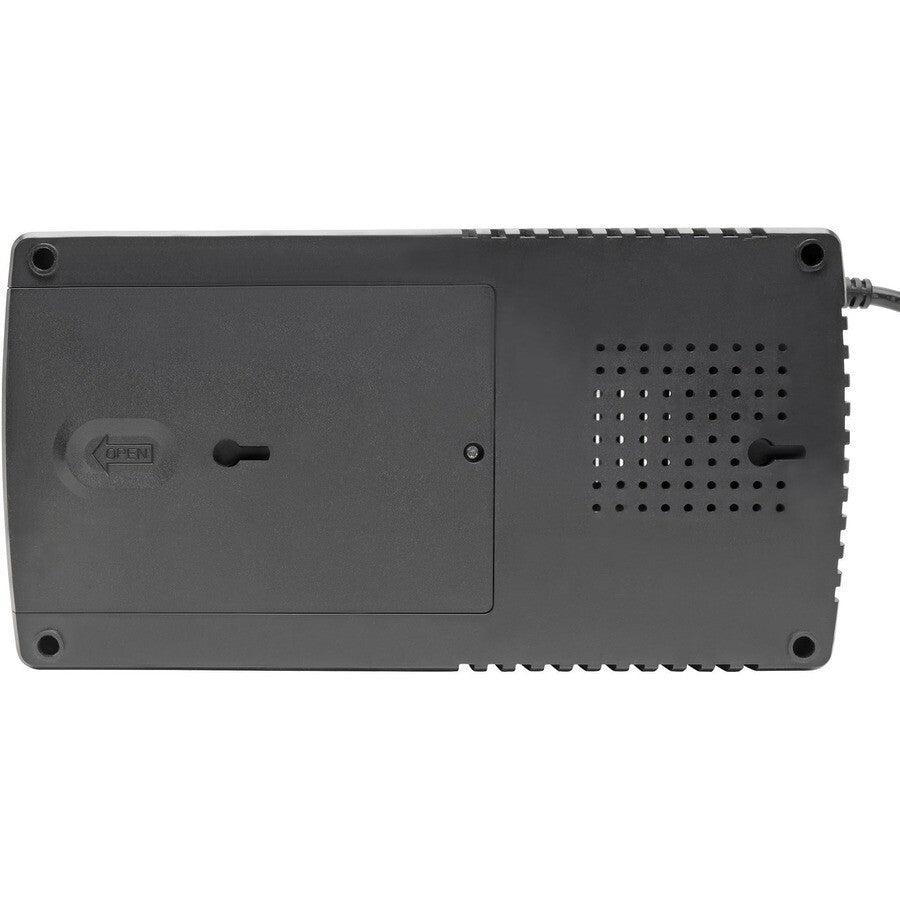

• Form Factor: Ultra-compact Desktop/Tower/Wall Mount
• Weight (Approximate): 13.69 lb

PACKAGE CONTENTS:

• Desktop/Wall Mount Battery Backup Outlets
• USB cable
• Owner's manual

CERTIFICATIONS & STANDARDS:

• Tested to UL1778 (USA)
• cUL1778 (Canada)
• NOM (Mexico)
• FCC Class B (Emissions)
• FCC Part 68
• Industry Canada (Telecommunications)

OTHER INFORMATION

• Environmentally Friendly: Yes
• Environmental Compliance:
• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Limited Warranty: 3 Year from EATON
