Eaton BC350RNC 3-Outlet US Cloud UPS Remote Monitoring 350V 210W Standy Battery

GENERAL INFORMATION

• Manufacturer: Eaton Corporation
• Manufacturer Part Number: BC350RNC
• Brand Name: Tripp Lite by Eaton
• Product Model: BC350RNC
• Product Name: BC350RNC 350VA Desktop/Surface/Wall Mountable UPS
• Packaged Quantity: 1 Each
• Product Type: Standby UPS

MARKETING INFORMATION:

350VA/210W/120V Battery Backup for PCs and Retail Point-of-Sale Applications

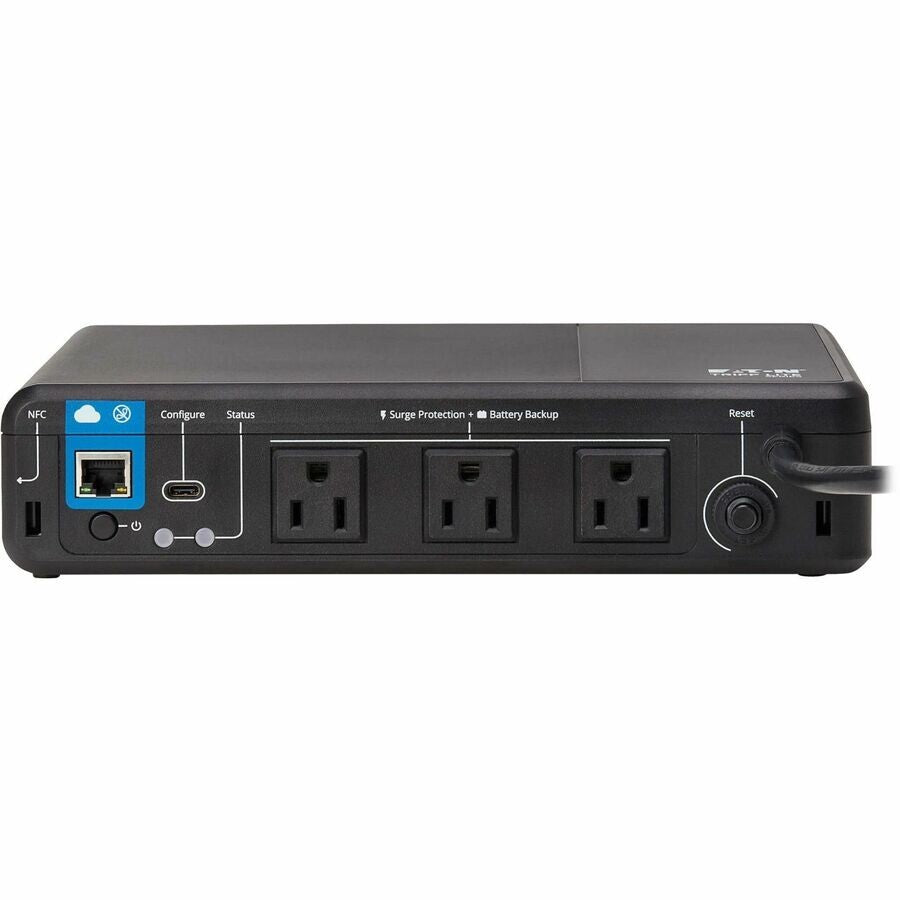

The BC350RNC standby cloud-connected UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise for home/office computing, networking and point-of-sale equipment in retail, kiosks, food service and light industrial environments. For easy access, the input power cable, Ethernet port, AC outlets, power button and status LEDs are all on the same side.

TECHNICAL INFORMATION

• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R
• Receptacle Detail: 3 x NEMA 5-15R
• Number of Battery & Surge Outlets: 3
• Overload Protection: Yes
• Cord Length: 5 ft
• Transfer Time: 6 ms
• EMI/RFI Noise Filter: Yes
• Phase: Single Phase
• Efficiency Detail: 97% (AC Mode)
• Surge Suppression: Yes

APPLICATION/USAGE:

• Computer
• POS
• Home
• Office
• Retail
• Kiosk
• Food Service
• Light Industrial Application
• Computer Peripheral

FEATURES:

• Audible Alarm
• Cold Start Function
• Green Energy Saving

POWER DESCRIPTION

• Load Capacity (VA): 350 VA
• Load Capacity (Watt): 210 W
• Input Voltage: 120 V AC
• Input Current: 3 A
• Output Voltage: 120 V AC
• Input Frequency:
  • 50 Hz
  • 60 Hz
• Output Frequency:
  • 50 Hz
  • 60 Hz
• Waveform Type: Pulse-width Modulated Sine Wave
• Surge Energy Rating: 190 J
• Circuit Breaker: Yes
• Output Power Factor: 0.6

MANAGEMENT

• Network Management: Network Card
• Alarm:
  • Battery Mode
  • Low Battery
  • Fault
• LEDs Indicators:
  • Low Battery
  • Fault
  • Power
  • Line/Battery Mode

INTERFACES/PORTS

• Network (RJ-45): Yes
• USB: Yes

BATTERY INFORMATION

• DC System Voltage: 12 V DC
• Battery Characteristics: Valve-regulated
• Battery Chemistry: Lead Acid
• Backup/Run Time (Full Load): 2 Minute
• Backup/Run Time (Half Load): 7 Minute
• Typical Battery Recharge Time: 8 Hour
• Replaceable Battery: Yes

ENVIRONMENTAL CONDITIONS

• Minimum Operating Temperature: 32°F (0°C)
• Maximum Operating Temperature: 122°F (50°C)
• Storage Temperature: 23°F (-5°C) - 122°F (50°C)
• Maximum Operating Elevation: 6562 ft
• Sound Emission (A-Weighted): 40 dB(A)

PHYSICAL CHARACTERISTICS

• Height: 2.3"
• Width: 10"
• Depth: 7.1"
• Form Factor: Desktop/Surface/Wall Mountable
• Weight (Approximate): 4.19 lb

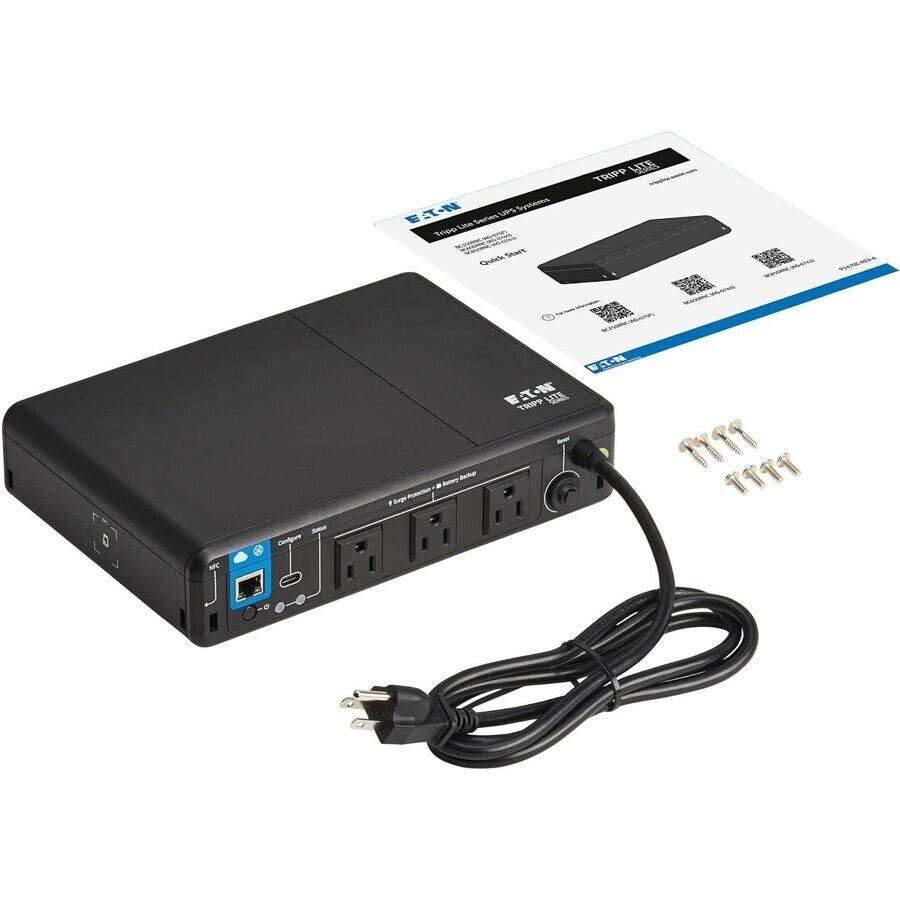

PACKAGE CONTENTS:

• BC350RNC 350VA Desktop/Surface/Wall Mountable UPS
• 4 x M4 x 12 mm Screws
• 4 x M4 x 20 mm Screws
• Quick Start Guide

CERTIFICATIONS & STANDARDS:

• CAN/CSA-C22.2 No. 107.3 (Canada)
• CSA (Canada)
• ICES (Canada)
• NOM (Mexico)
• UL 1778
• FCC Part 15 Class B (USA)
