Eaton ECO850LCD 12-Outlet UPS AVR HSB LCD Desk Wall 425W 5x Battery Power 850VA

GENERAL INFORMATION

• Manufacturer: Eaton Corporation
• Manufacturer Part Number: ECO850LCD
• Brand Name: Tripp Lite by Eaton
• Product Series: ECO
• Product Model: ECO850LCD
• Product Name: 850VA Ultra-compact Green LCD UPS Systm
• Packaged Quantity: 1 Each
• Product Type: Standby UPS

MARKETING INFORMATION:

Ultra-compact, green UPS system is the ideal green solution for complete protection against blackouts, brownouts and power surges. Its 850VA/425-watt power handling capacity supports entry-level PC systems for up to 45 minutes during blackouts. With a power efficiency rating of 99 percent, this UPS offers energy savings plus cooler operation by limiting UPS power consumption. Interactive LCD screen displays operating conditions and lets you change settings. Design also features six battery-supported outlets for computer and peripherals plus six surge suppression-only outlets for accessories not requiring battery support. Four of the surge-only outlets are ECO outlets that can be configured to automatically power off unused computer accessories. Built-in, single-line, tel/DSL (RJ11) jacks protect a modem, fax machine or phone. One USB port (USB cable included) plus free PowerAlert software enables unattended system shutdown without data loss in the case of an extended power failure.

TECHNICAL INFORMATION

• Plug/Connector Type: NEMA 5-15P
• Receptacle Type: NEMA 5-15R
• Receptacle Detail: 12 x NEMA 5-15R

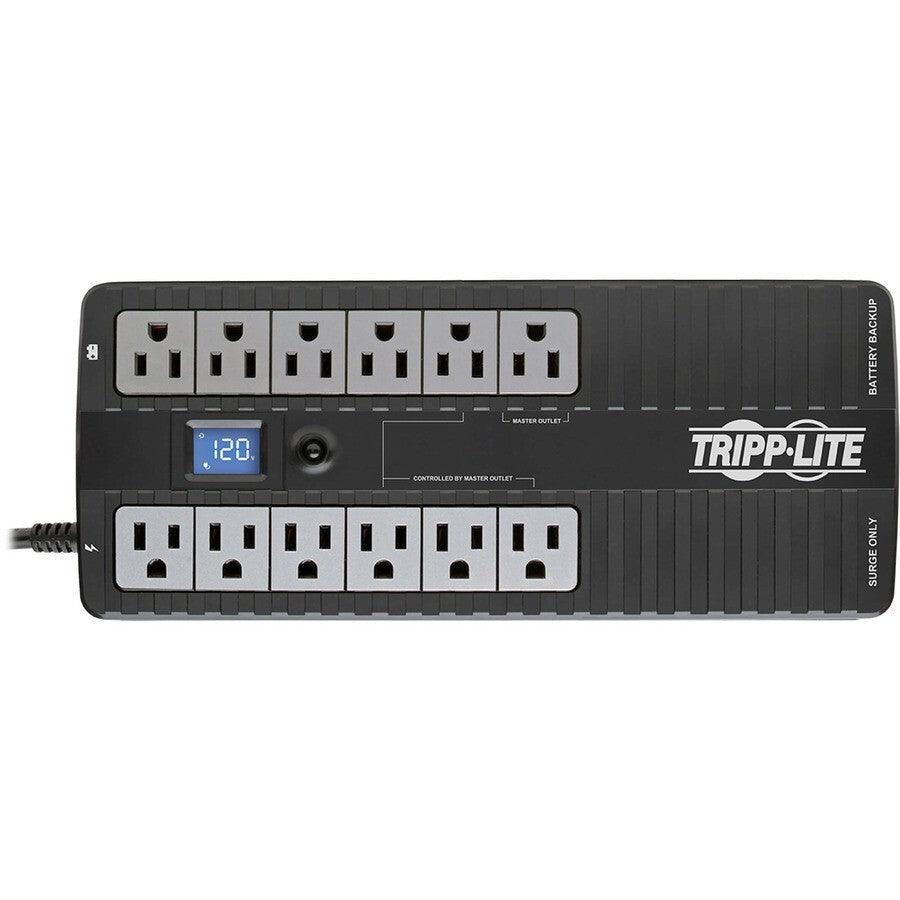

• Number of Battery & Surge Outlets: 6
• Number of Surge-only Outlets: 6
• Dataline Protection: RJ-11
• Protection Type: Black Out and Surge
• Transfer Time: 6 ms
• EMI/RFI Noise Filter: Yes
• Phase: Single Phase

APPLICATION/USAGE:

• Home/Office
• Media Center
• Kiosk
• Desktop Computer
• Home Theater
• Digital Signage
• Router
• Printer
• TV
• Blu-ray Player
• Gaming Console
• ATM
• Security System

POWER DESCRIPTION

• Load Capacity (VA): 850 VA
• Load Capacity (Watt): 425 W
• Input Voltage: 120 V AC
• Input Current: 10 A
• Output Voltage:
  • 110 V AC
  • 115 V AC
  • 120 V AC
• Input Frequency: 60 Hz
• Output Frequency: 60 Hz
• Waveform Type: Pulse-width Modulated Sine Wave
• Surge Energy Rating: 316 J

MANAGEMENT ALARM:

• Battery Backup
• Fault
• Low Battery
• Overload
• Replace Battery
• Controls/Indicators: Touchscreen LCD reports operating mode, input/output voltage, input/output frequency and load capacity

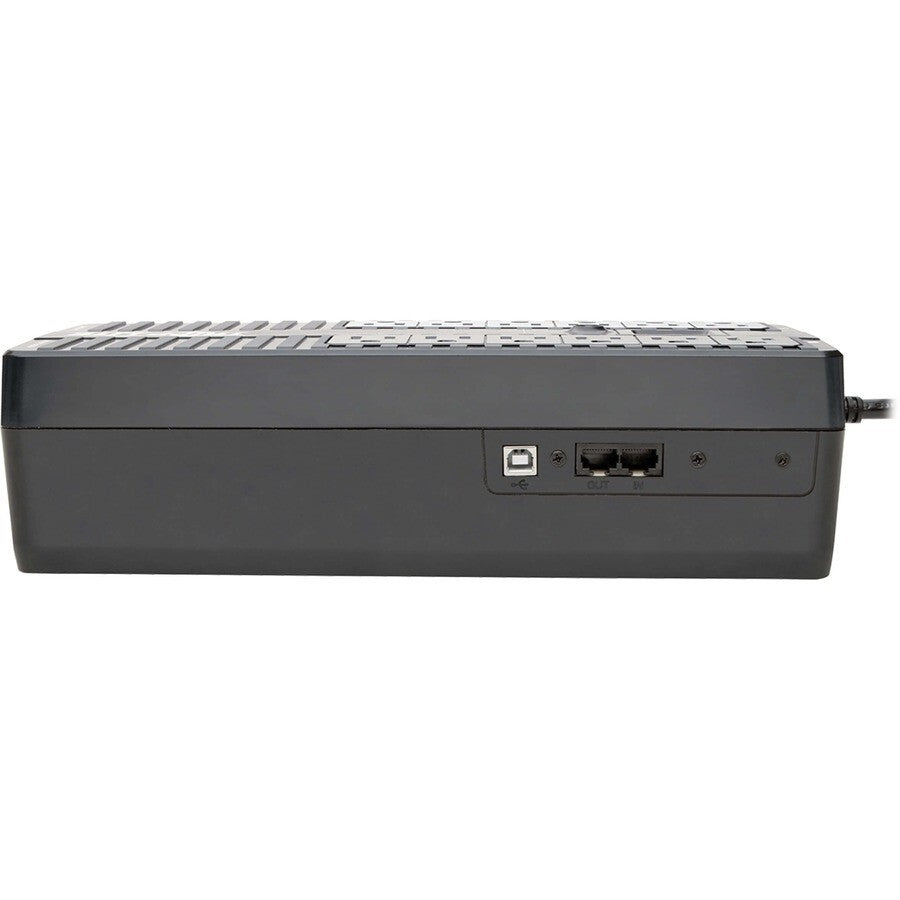

INTERFACES/PORTS

• USB: Yes
• USB (HID Compliant) Port: Yes

BATTERY INFORMATION

• DC System Voltage: 12 V DC
• Backup/Run Time (Full Load): 2.30 Minute
• Backup/Run Time (Half Load): 9 Minute
• Typical Battery Recharge Time: 8 Hour
• Replaceable Battery: Yes

ENVIRONMENTAL CONDITIONS

• Maximum Operating Temperature: 104°F (40°C)
• Storage Temperature: 5°F (-15°C) - 113°F (45°C)

PHYSICAL CHARACTERISTICS

• Color Family: Black
• Product Color: Black
• Height: 3.5"
• Width: 5.1"
• Depth: 12.2"
• Form Factor: Ultra-compact Desktop/Tower/Wall Mount
• Weight (Approximate): 6.81 lb

PACKAGE CONTENTS:

• ECO850LCD 850 VA Desktop UPS
• USB Cable
• Instruction Manual

OTHER INFORMATION

• UL Listed Certification
• Environmentally Friendly: Yes
• Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Limited Warranty: 3 Year from EATON
