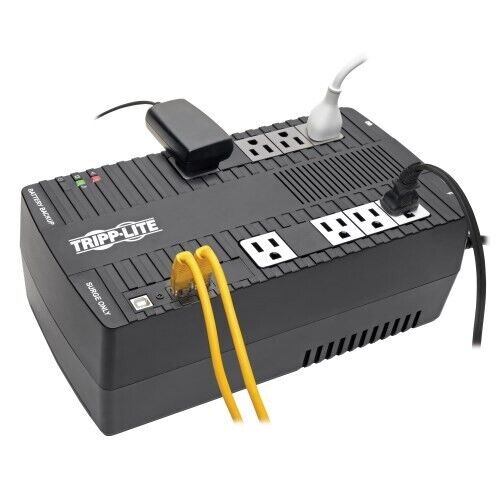

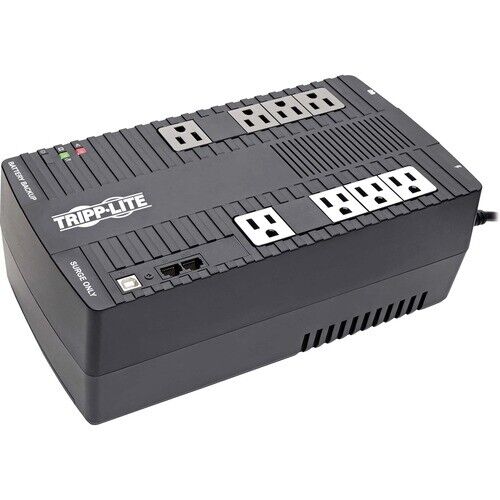

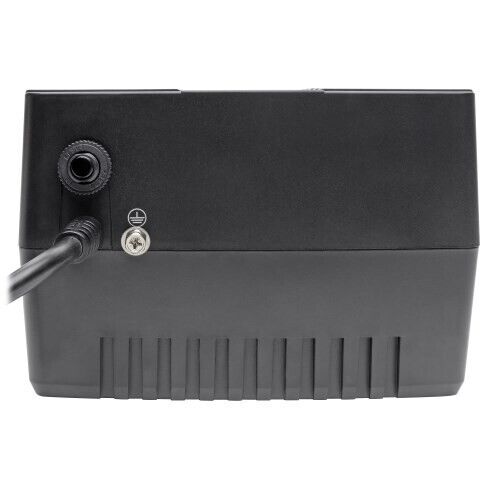

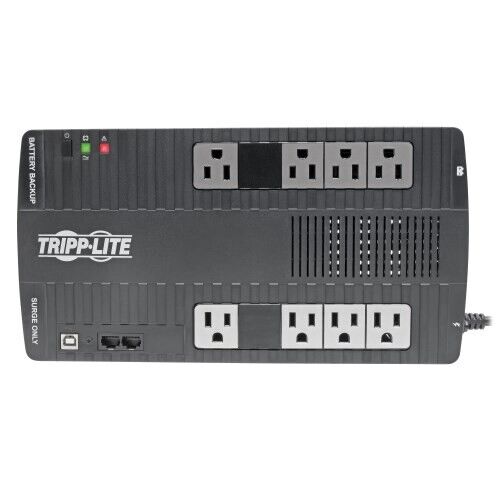

Tripp Lite AVR550U UPS 8-Outlet 550VA 300Watt 400J w Software USB Phone Cables

General Information

• SKU  45877
• Vendor:  Tripp Lite
• MPN:  AVR550U
• UPC:  037332123473

Marketing Information

Tripp Lite UPS 8-Outlet 550VA/300Watt Affordable Line-interactive Protection For PCs And Workstations

Tripp Lites AVR550U line-interactive UPS offers complete protection for PCs, workstations and other sensitive electronics in an ultra-compact, mountable housing. Prevents data loss and system downtime by providing battery-supported AC output during blackouts and Automatic Voltage Regulation (AVR) during brownouts and overvoltage's. 8 output receptacles, 2 of which are widely spaced to accommodate large transformer plugs without blocking outlets. 4 outlets feature full battery support and surge suppression, protecting computers, monitors and other vital system components from loss of power.

Key Features

• Product Type - UPS
• Connectivity - NEMA 5-15P (Input)

Detail Specifications

System overview - Ultra-compact line-interactive UPS, 4 UPS supported outlets with surge suppression and 4 surge suppression only outlets, single-line TEL/DSL surge suppression and HID compliant USB monitoring port

• Voltage compatibility - 120VAC
• Frequency compatibility - 60Hz
• Output volt amp capacity (VA) - 550
• Output watt capacity (watts) - 300
• Outlet quantity / type - Outlet quantity / type 8 NEMA 5-15R output receptacles (4 with UPS and surge suppression / 4 with surge suppression only)
• Maximum input amps - 12A
• Input connection type - NEMA 5-15P
• Input cord length - 6ft / 1.8m
• Recommended electrical service - 120V 15A
• BATTERY - Full load runtime-3 minutes , Half load runtime-10 minutes , DC system voltage - 12 VDC , Typical battery lifespan- 3 to 6 years, depending on usage , Battery recharge rate- 2-4 hours to 90 percent
• Voltage regulation description - Automatic voltage regulation maintains 120V nominal over an input voltage range of 83 to 147
• Overvoltage correction - Output voltage is reduced by 12 percent as line voltage increases to 128V or higher
• Brownout correction - Output voltage is boosted by 14 percent as line voltage decreases to 104V or lower
• LEDS ALARMS and SWITCHES - Front panel LEDs - 2 LEDs indicate line power, battery power status , Alarms - Audible alarm beeps at regular intervals to indicate battery backup operation. Alarm also sounds during self-test operation. Alarm can be disabled altogether via PowerAlert software , Switches - Combination power off / on / self-test push button switch .
• AC surge suppression - 400 joules , Dataline suppression - Single line TEL/DSL surge suppression with RJ-style phone connectors (center 2 wires protected, 260V clamping). 1 input jack and 1 output jack. Includes 1 phone cable.

Physical Characteristics

• Shipping weight - 14.25 lbs , 6.47 kg
• Unit weight - 10.95 lbs , 4.97 kg
• Unit Dimensions - 3.5x11.25x6 inches , 8.89x28.56x15.24 cm
• Shipping Dimensions - 4.75x13.5x8.75 inches , 12.07x34.29x22.23 kg
• Material of construction - ABS

KEY POINTS

• AVR550U line interactive UPS offers complete protection from blackouts, brownouts and surges on both AC and Tel/DSL line connections
• Built-in Automatic Voltage Regulation (AVR) boosts brownouts as low as 83 and reduces overvoltages up to 147 back to usable 120V nominal levels
• 8 outlets, two of which are widely spaced to accommodate large transformer plugs without blocking outlets
• 4 battery supported outlets protect computer, monitor and vital system peripherals, plus 4 additional surge suppression-only outlets for printers and other system accessories not requiring battery support
• Provides battery derived AC output during blackouts, voltage boost during brownouts and voltage reduction during overvoltages
• 550VA / 300 watt power handling ability supports a variety of PCs, workstations and other sensitive electronics
• Supports entry-level PC systems up to 17 minutes during blackout conditions
• Built-in single line Tel/DSL line surge suppression protects modem, fax machine or cordless phone
• USB port, PowerAlert software and cabling offer safe unattended shutdown without data loss during extended outages
• HID compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
