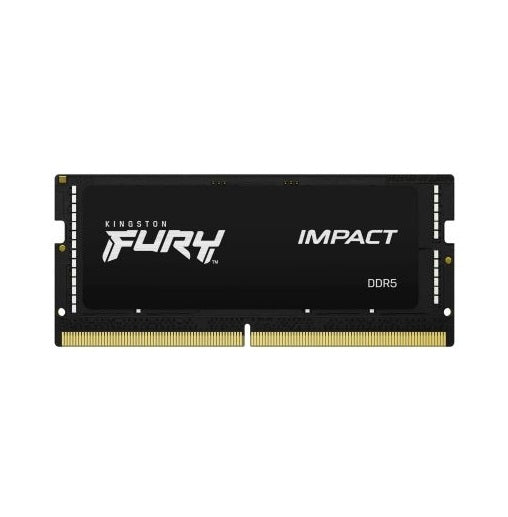

Kingston KF548S38IB-32 Memory Module 32GB 4800MT/s DDR5 CL38 SODIMM
Regular price
$98.42 USD
Sale price
$98.42 USD
Regular price
$98.42 USD
Description
Couldn't load pickup availability
Kingston KF548S38IB-32 Memory Module 32GB 4800MT/s DDR5 CL38 SODIMM
Current product
Current
Vendor:
Kingston
Kingston KF548S38IB-32 Memory Module 32GB 4800MT/s DDR5 CL38 SODIMM
Regular price
$98.42 USD
Sale price
$98.42 USD
Regular price
$98.42 USD
Options
Descriptions
Vendor: Kingston
SKU: 261950
MPN: KF548S38IB-32
Marketing Information
KF548S38IB-32
32GB 4G x 64-Bit
DDR5-4800 CL38 262-Pin SODIMM
DESCRIPTION
Kingston FURY KF548S38IB-32 is a 4G x 64-bit (32GB) DDR5-4800 CL38 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. The module supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-4800 at a low latency timing of 38-38-38 at 1.1V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each 262-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FACTORY TIMING PARAMETERS
• Default (Plug N Play): DDR5-4800 CL38-38-38 @ 1.1V
• XMP Profile #1: DDR5-4800 CL38-38-38 @ 1.1V
FEATURES
• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height 1.18” (30mm)
Detail Specifications
CL(IDD)
38 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
29.12ns(min.)
UL Rating
94 V - 0
Operating Temperature
0o C to +85o C
Storage Temperature
-55o C to +100o C
Warranty Information
Lifetime - Direct from the Manufacturer
