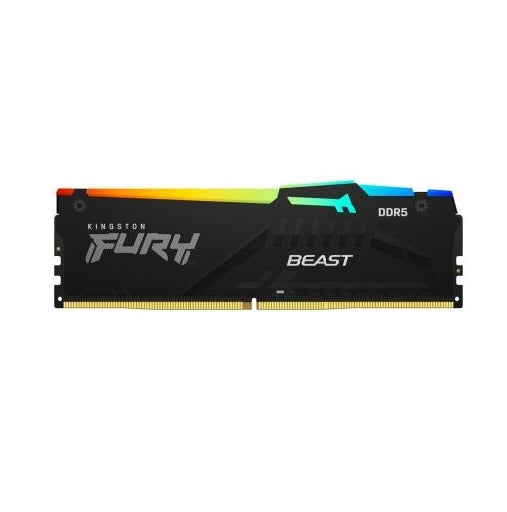

Kingston KF552C40BBA-32 Memory Module 32GB 5200MT/s DDR5 CL40 DIMM

$102.70 USD

Shipping calculated at checkout.

In stock: 1

Description

Vendor: Kingston
SKU: 264344
MPN: KF552C40BBA-32

Marketing Information
KF552C40BBA-32
32GB 4G x 64-Bit
DDR5-5200 CL40 288-Pin DIMM
DESCRIPTION
Kingston FURY KF552C40BBA-32 is a 4G x 64-bit (32GB) DDR5-5200 CL40 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. The module supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-5200 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FACTORY TIMING PARAMETERS
• Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
• XMP Profile #1: DDR5-5200 CL40-40-40 @1.25V
• XMP Profile #2: DDR5-4800 CL38-38-38 @1.1V

Detail Specifications
CL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0o C to +85o C
Storage Temperature
-55o C to +100o C

Warranty Information
Lifetime - Direct from the Manufacturer
