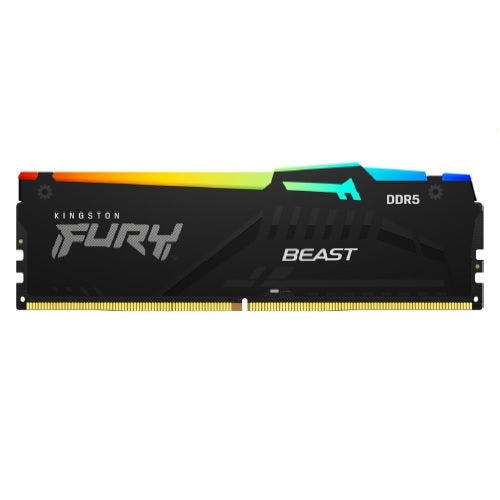

Kingston KF560C36BBEAK2-64 Fury Beast 64GB (2x32GB) 6000MT/s DDR5 RGB Memory

Marketing Information

• Kingston FURY KF560C36BBEAK2-64 is a kit of two 4G x 64-bit(32GB) DDR5-6000 CL36 SDRAM (Synchronous DRAM) 2Rx8,memory module, based on sixteen 2G x 8-bit FBGA components permodule. Each module kit supports AMD EXPO v1.0 andIntel Extreme Memory Profiles (Intel XMP) 3.0. Total kitcapacity is 64GB. Each module has been tested to run atDDR5-6000 at a low latency timing of 36-38-38 at 1.35V. TheSPDs are programmed to JEDEC standard latencyDDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMMuses gold contact fingers.

Detail Specifications

• CL(IDD): 40 cycles
• Row Cycle Time (tRCmin): 48ns(min.)
• Refresh to Active/Refresh Command Time (tRFCmin): 295ns(min.)
• Row Active Time (tRASmin): 32ns(min.)
• UL Rating: 94 V - 0
• Operating Temperature: 0oC to +85oC
• Storage Temperature: -55oC to +100oC
• FEATURES
• Power Supply: VDD equals 1.1V Typical
• VDDQ equals 1.1V Typical
• VPP equals 1.8V Typical
• VDDSPD equals 1.8V to 2.0V
• On-Die ECC
• Height 1.66 inches (42.23mm), w/heatsink
• FACTORY TIMING PARAMETERS
• Default (JEDEC): DDR5-4800 CL40-39-39 at 1.1V
• EXPO Profile number 0: DDR5-6000 CL36-38-38 at 1.35V
• EXPO Profile number 1: DDR5-5600 CL36-38-38 at 1.25V
• XMP Profile number 1: DDR5-6000 CL36-38-38 at 1.35V
• XMP Profile number 2: DDR5-5600 CL36-38-38 at 1.25V
