Cudy WR3000 AX3000 Gigabit Dual Band Wi-Fi 6 Mesh Router Retail

Marketing Information

• AX3000 Gigabit Mesh Wi-Fi 6 Router
• WR3000
• A WiFi 6 router with four Gigabit ports, suitable for home internet up to 1000 Mbps, connecting many devices, and reducing latency.
• 1.3 GHz Dual-Core CPU
• 4-Stream Dual-Band Wi-Fi 6
• 2402 Mbps + 574 Mbps Wi-Fi
• 4x Gigabit Ethernet Ports
• 200 Connected Devices
• Covers 130 m2 (1,400 ft2)
• Cudy Mesh, VPN Server and Client
• Cudy App, Cloud Control

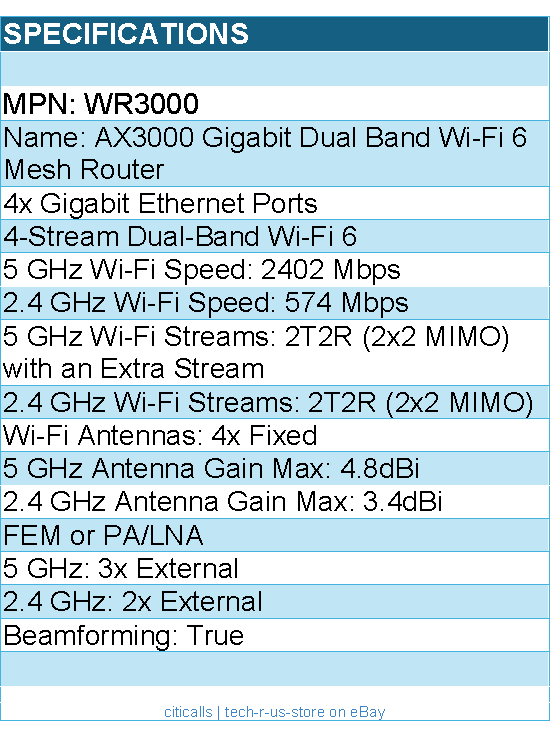

Detail Specifications

• Model Version: WR3000 1.0
• CPU
• Chipset: MT7981
• CPU Details: 1.3 GHz Dual-Core, ARM Cortex-A53
• Memory/Storage
• Flash/ROM: 16 MB (128 Mbit) NOR
• DDR/RAM: 256 MB (2 Gbit) DDR3
• Wireless
• 5 GHz Wi-Fi Speed: 2402 Mbps
• 2.4 GHz Wi-Fi Speed: 574 Mbps
• 5 GHz Wi-Fi Streams: 2T2R (2x2 MIMO) with an Extra Stream
• 2.4 GHz Wi-Fi Streams: 2T2R (2x2 MIMO)
• Wi-Fi Antennas: 4x Fixed
• 5 GHz Antenna Gain Max: 4.8dBi
• 2.4 GHz Antenna Gain Max: 3.4dBi
• FEM or PA/LNA
  • 5 GHz: 3x External
  • 2.4 GHz: 2x External
• Beamforming: True
• Range Performance
  • Max: 200 m (656 ft)
  • Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
• Wall Performance
  • Two wooden walls with thickness < 10 cm (4)
  • One concrete wall with thickness < 20 cm (7) or two concrete walls with thickness < 10 cm (4)

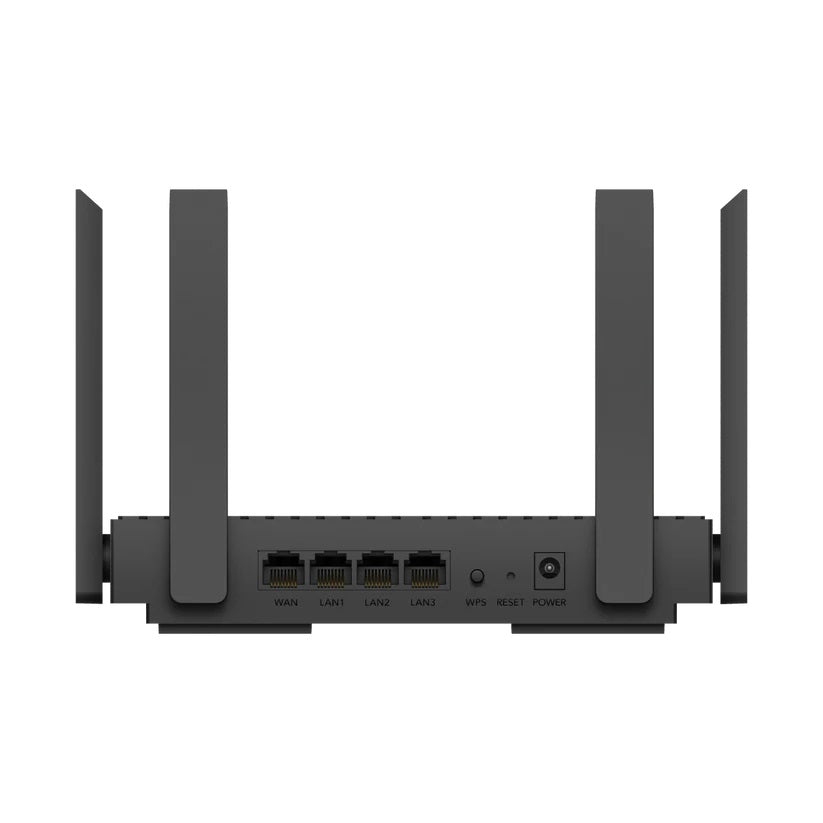

• Interfaces
• Gigabit RJ45 Ports: 4
• Ethernet Notes: 1x WAN port, the rest are LAN ports
• LED
  • System
  • Internet
  • WAN
  • LAN
  • 2.4 GHz Wi-Fi
  • 5 GHz Wi-Fi
• Physical Buttons
  • WPS Button
  • Reset Button
• Power Input
• DC Jack
• Power
• Power Methods: DC
• DC: 12V 1A
• Power Adapter
  • Input: 100 - 240 V, 50/60 Hz AC
  • Output: 12V 1A DC
• Max Power Consumption (W)
• 7.5W
• Idle Power Consumption (W)
• 3.6W
• Reliability
• Environment
  • Operating Temperature: 0 oC - 40 oC (32 oF -104 oF)
  • Storage Temperature: -40 oC - 70 oC (-40 oF - 158 oF)
  • Humidity: 10% - 90% non-condensing
  • Storage Humidity: 5% - 95% non-condensing
• Certifications
• FCC, CE
• Mechanical
• Installation
• Desktop
• Wall-mount
• Package Content
  • WR3000
  • Power Adapter
  • Ethernet Cable
  • Installation Guide

Warranty Information

• 2 years from Cudy
