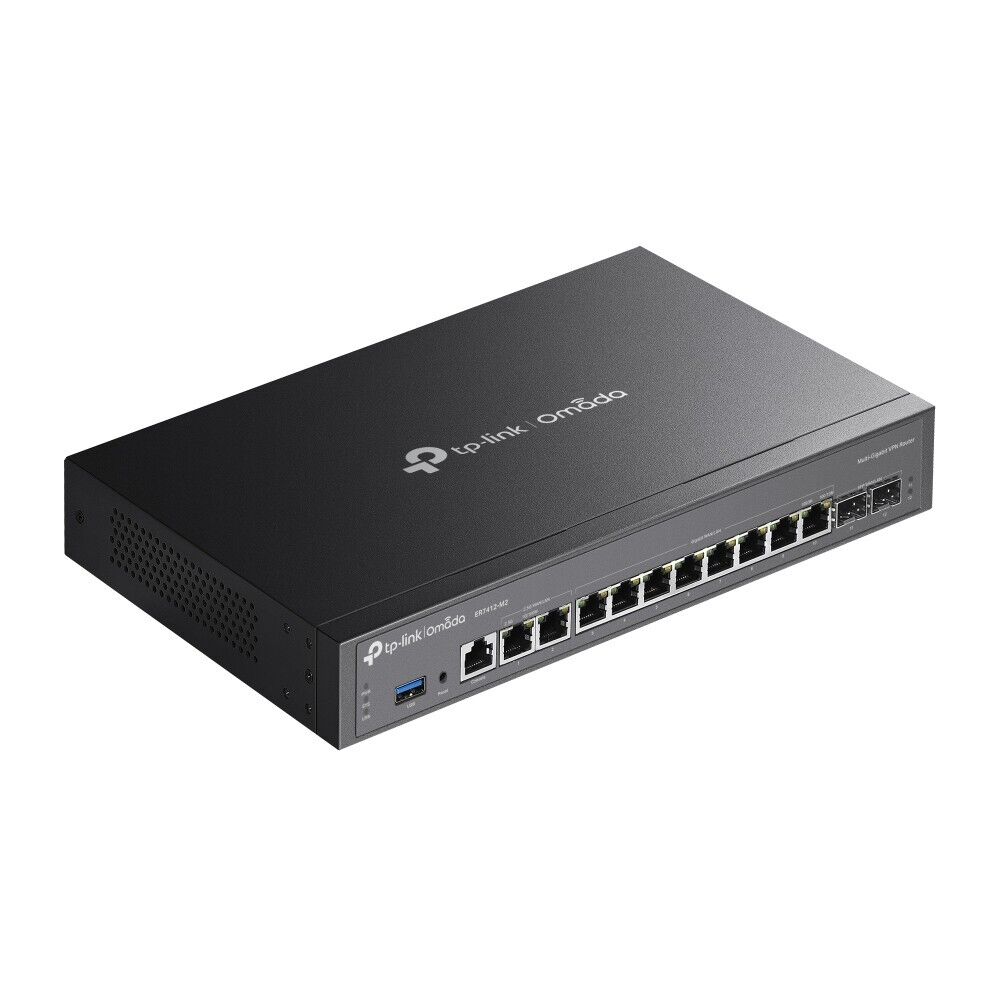

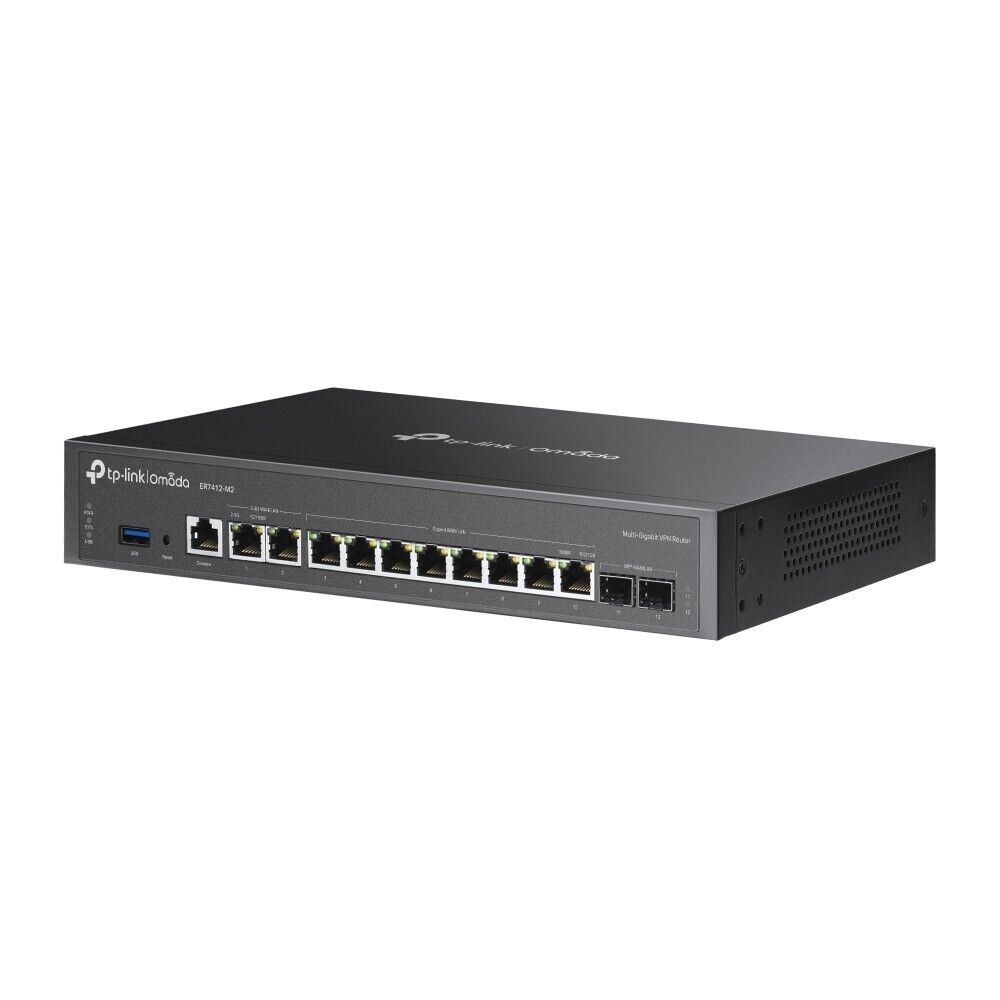

TP-Link ER7412-M2 Omada Multi-Gigabit VPN 10x GBe 2x 2.5Gbe WAN LAN SFP Gateway

ER7412-M2
Omada Multi-Gigabit VPN Gateway

• Quad-core @2.0GHz CPU
• 2× 2.5G RJ45 WAN/LAN ports
• 10× Gigabit WAN/LAN Ports (2× SFP, 8× RJ45)
• 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
• Load Balancing on up to 11 WAN ports△ increases the utilization rate of multi-line broadband
• High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
• Centralized cloud management via the web or the Omada app*
• DoS/DDoS protection, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security

SPECIFICATIONS

SECURITY

• Access Control
  • Source/Destination IP-Based ACL
  • Stateful ACL
  • IPv4/IPv6 ACL
  • Location Based ACL
• Filtering
  • WEB Group Filtering
  • URL Filtering
  • Web Security
• ARP Inspection
  • Sending GARP Packets
  • ARP Scanning
  • IP-MAC Binding
• Attack Defense
  • TCP/UDP/ICMP Flood Defense
  • Block TCP Scan (Stealth FIN/Xmas/Null)
  • Block Ping from WAN

HARDWARE FEATURES

• Standards and Protocols
  • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q
  • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP

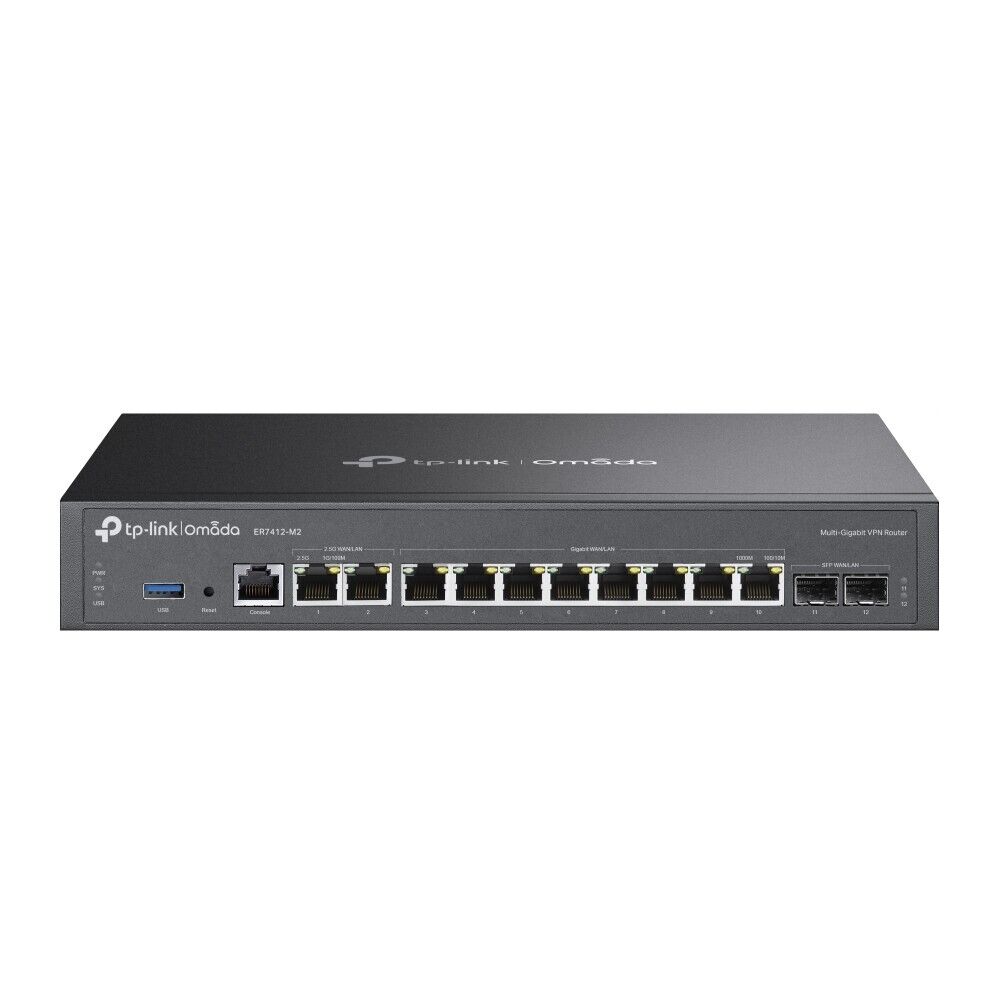

• Interface
  • 1× 2.5G RJ45 WAN/LAN Port
  • 1× 2.5G RJ45 WAN/LAN Port
  • 2× Gigabit SFP WAN/LAN Ports
  • 8× Gigabit RJ45 WAN/LAN Ports
  • 1× RJ45 Console Port
  • 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
• Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
  • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
  • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
  • 2500BASE-T: UTP category 5e, 6 cable (Max 100 m)
• Button: Reset Button

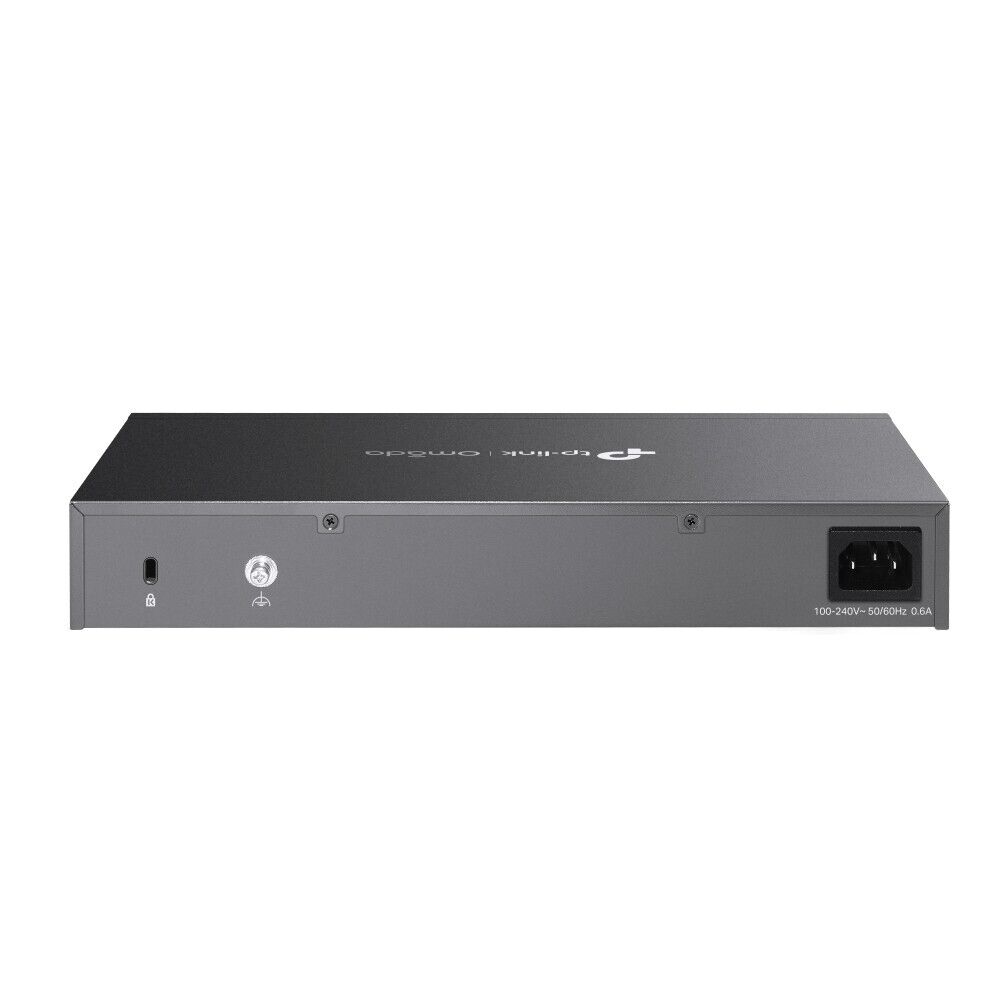

• Power Supply: 100–240 VAC, 50/60 Hz
• Flash: 128MB NAND
• DRAM: 1 GB DDR4
• Dimensions ( W x D x H ): 11.6×7.1×1.7 in (294×180×44 mm)
• Protection: 4 kV surge protection
• Enclosure: Steel
• Mounting
  • Desktop
  • Rackmountable
• Max Power Consumption: 18.5W (With USB 3.0 connected)

PERFORMANCE

• DPI Throughput: 2.2Gbps
• GRE:
  • Unencrypted: 1153.0 Mbps
  • Encrypted: 559.2 Mbps
• WireGuard VPN: 771.6 Mbps
• Concurrent Session: 1,000,000
• New Sessions /Second: 7,000
• NAT (Static IP): 2345.71 Mbps / 2351.22 Mbps
• NAT(DHCP): 2353.41 Mbps / 2353.40 Mbps
• NAT(PPPoE): 2336.52 Mbps / 2336.08 Mbps
• NAT (L2TP): 1937.53 Mbps / 1761.82 Mbps
• NAT (PPTP): 1757.54 Mbps / 2011.33 Mbps
• IPsec VPN Throughput:
  • ESP-SHA1-AES256: 1125.60 Mbps
  • ESP-SHA256-AES256: 1133.1 Mbps
  • ESP-SHA384-AES256: 1126.6 Mbps
  • ESP-SHA512-AES256: 1132.8 Mbps
• OpenVPN: UDP: 266.2 Mbps
• L2TP VPN Throughput:
  • Unencrypted: 2724.5 Mbps
  • Encrypted: 1018.4Mbps
• PPTP VPN Throughput:
  • Unencrypted: 3035 Mbps
  • Encrypted: 534.6 Mbps
• SSL VPN Throughput: 263.1 Mbps
• 66 Byte Packet forwarding rate: 1833 Mbps / 1835 Mbps
• 1,518 Byte Packet forwarding rate: 2461 Mbps / 2461 Mbps

BASIC FUNCTIONS

• WAN Connection Type:
  • Static IP/Dynamic IP
  • PPPoE (supports MRU Configuration)
  • PPTP
  • L2TP
  • Mobile Broadband: 4G/3G modem for backup via USB port
• MAC Clone: Modify WAN/LAN MAC Address†
• DHCP:
  • DHCP Server
  • DHCPv6 PD Server (only in Standalone Mode)
  • DHCP Options Customization
  • DHCP Address Reservation
  • Multi-IP Interfaces
  • Multi-Net DHCP
• IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
• VLAN: 802.1Q VLAN
• IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS

• Advanced Routing:
  • Static Routing
  • Policy Routing
  • RIP (available in Standalone Mode)
  • OSPF (available in Standalone Mode)
• Bandwidth Control: IP/Port-based Bandwidth Control
• Load Balance:
  • Intelligent Load Balance
  • Application Optimized Routing
  • Link Backup (Timing§, Failover)
  • Online Detection
• NAT:
  • One-to-One NAT
  • Multi-Net NAT
  • Virtual Server
  • Port Triggering§
  • NAT-DMZ
  • FTP/H.323/SIP/IPSec/PPTP ALG
  • UPnP
• Session Limit: IP-based Session Limit

VPN

• GRE: Only in Standalone Mode
• SSL VPN: 80 Tunnels
• IPsec VPN:
  • 150 IPSec VPN Tunnels
  • LAN-to-LAN, Client-to-LAN
  • Main, Aggressive Negotiation Mode
  • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
  • IPsec Failover
  • IKE v1/v2
  • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
  • NAT Traversal (NAT-T)
  • Dead Peer Detection (DPD)
  • Perfect Forward Secrecy (PFS)
• PPTP VPN:
  • PPTP VPN Server
  • PPTP VPN Client (15)**
  • 150 Tunnels
  • PPTP with MPPE Encryption
• L2TP VPN:
  • L2TP VPN Server
  • L2TP VPN Client (15)**
  • 150 Tunnels
  • L2TP over IPSec
• OpenVPN:
  • OpenVPN Server
  • OpenVPN Client (11)**
  • 121 OpenVPN Tunnels
  • "Certificate + Account" Mode
  • Full Mode
• WireGuard VPN: • 20 Tunnels

AUTHENTICATION

• Web Authentication:
  • No Authentication
  • Simple Password*
  • Hotspot (Local User/Voucher*/SMS*/Radius*)
  • External Radius Server
  • External Portal Server*
  • LDAP

MANAGEMENT

• Omada App: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management:
  • Omada Cloud-Based Controller
  • Omada Hardware Controller
  • Omada Software Controller
• Cloud Access: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
• Maintenance:
  • Web Management Interface
  • Remote Management
  • Export & Import Configuration
  • SNMP v1/v2c/v3*
  • Diagnostics (Ping & Traceroute)§
  • NTP Synchronize§
  • Port Mirroring
  • CLI (only in Standalone Mode)
  • Syslog Support
• Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
• Management Features:
  • Automatic Device Discovery*
  • Batch Configuration*
  • Batch Firmware Upgrading*
  • Intelligent Network Monitoring*
  • Abnormal Event Warnings*
  • Unified Configuration*
  • Reboot Schedule*

OTHER INFORMATION

• Certification: CE, FCC
• System Requirements:
  • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
  • MAC OS, NetWare, UNIX or Linux
• Environment:
  • Operating Temperature: 0–45 ℃ (32–113 ℉);
  • Storage Temperature: -40–70 ℃ (-40–158 ℉)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% non-condensing

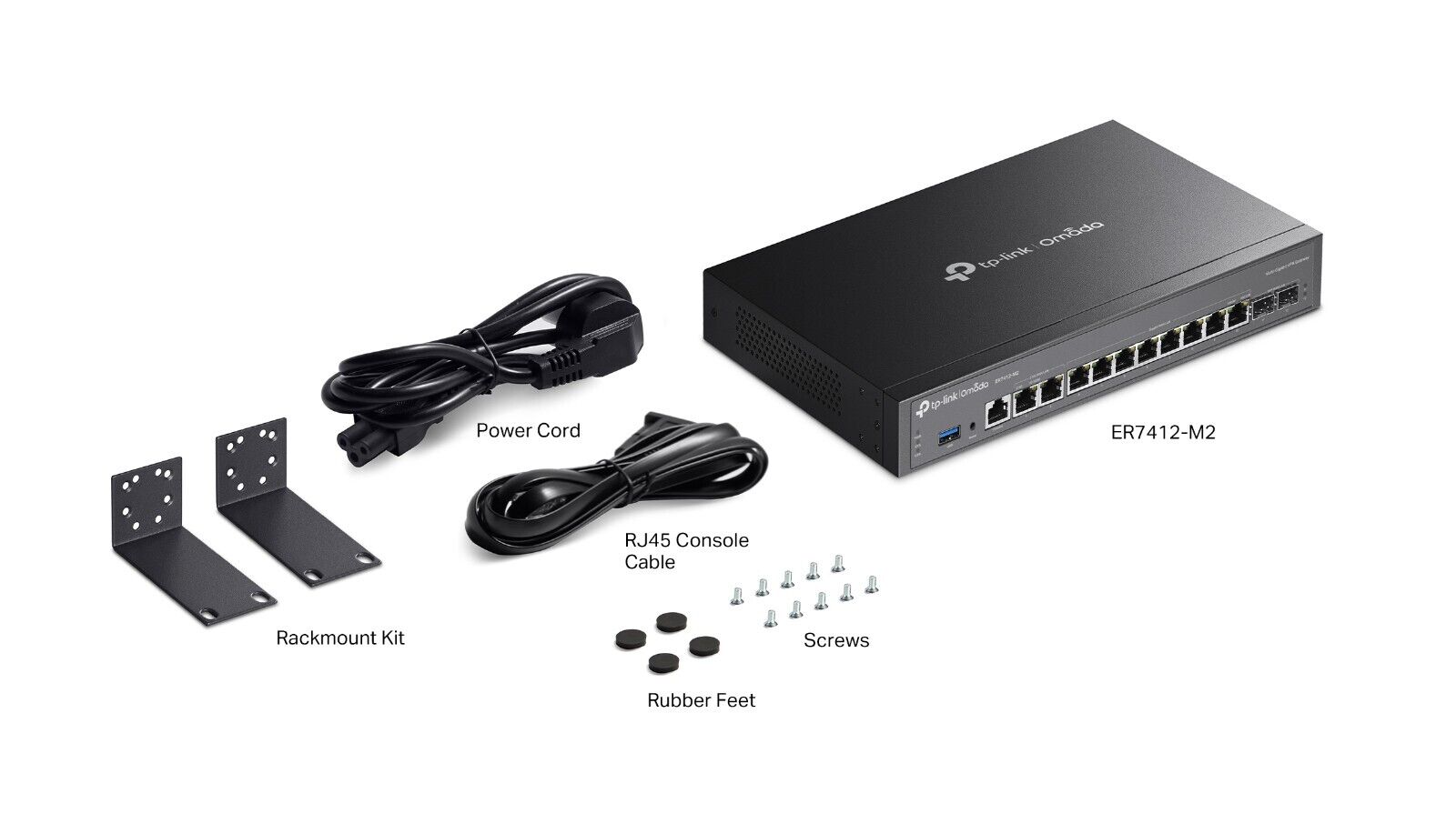

PACKAGE CONTENTS

• ER7412-M2
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• RJ45 Console Cord
