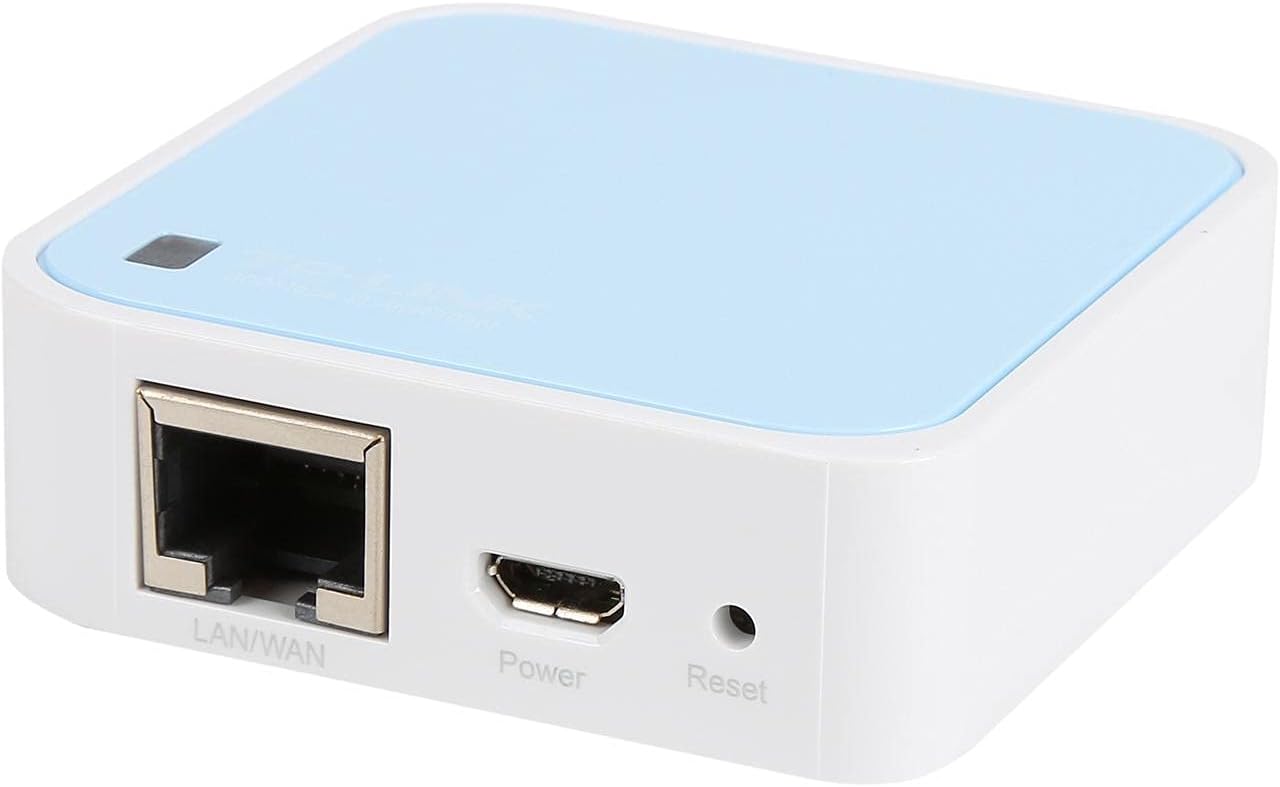

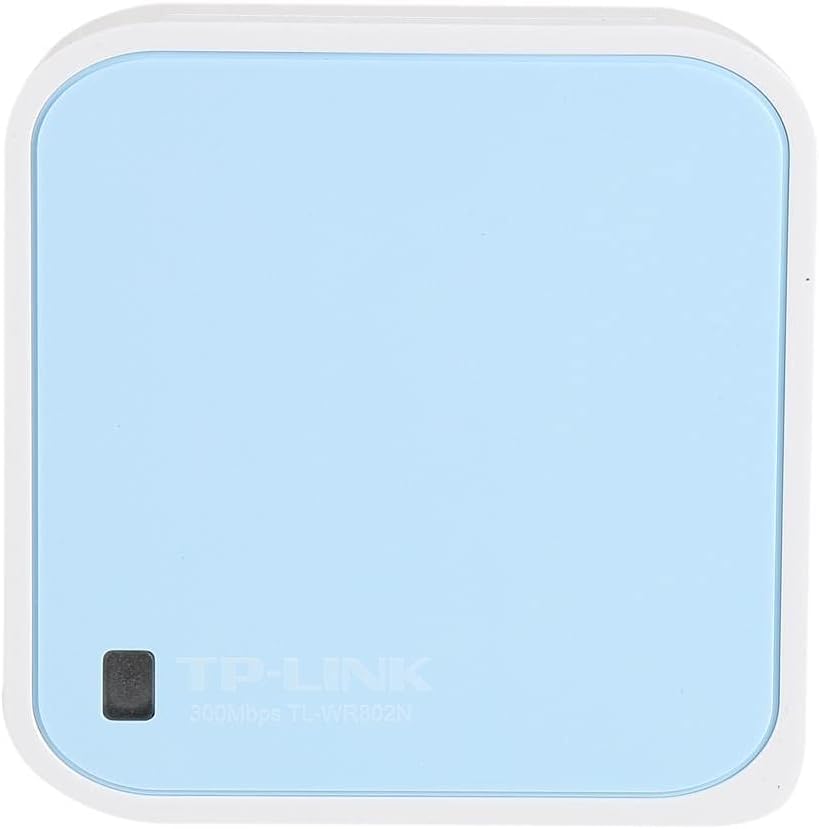

TP-Link TL-WR802N N300 Pocket AP Router 2.4GHz 802.11n g b Retail

Marketing Information

The TL-WR802N is designed for use with tablets, smart phones, handheld game consoles and other portable electronic wireless devices. The devices, which can be powered by an external power adapter or USB connection to a computer, can conveniently connect to the Internet and share the connection around an average sized room at 300Mbps. The devices tiny size makes it ideal for use on the road and is powerful enough to satisfy almost any basic wireless application requirement.

Portable and Compact Ideal for Home and Travel Use

The TL-WR802N is the perfect travel companion for anyone who needs fast, easy Internet access on the go. Portable and compact design easily fits into a pocket or the palm of your hand. Simply plug a hotel rooms WAN cable into the port provided and enter a default password to instantly create a wireless hotspot in the room.

Flexible Power Supply Easy to Take on the Road

TL-WR802N can be powered by an external power adapter or via a USB connection to a computer. When traveling, users can plug the TL-WR802N into computers USB port and share Wi-Fi connection with family and friends.

Multiple Operation Modes

TL-WR802N supports Router (default), AP, Client, Repeater and WISP modes to enable various wireless applications to give users a more dynamic and comprehensive wireless networking experience.

Detail Specifications

• HARDWARE FEATURES
• Interface:
  • 1 10/100Mbps WAN/LAN Port
  • 1 Micro USB Port
  • 1 Reset Button
• Wireless Standards:IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Antenna Type:On-Board
• WIRELESS FEATURES
• Frequency:
• 2.4-2.4835GHz
• Signal Rate:
• 11n: Up to 300Mbps(dynamic)
• 11g: Up to 54Mbps(dynamic)
• 11b: Up to 11Mbps(dynamic)
• Reception Sensitivity:
• 270M: -65dBmat10% PER
• 130M: -70dBmat10% PER
• 108M: -82dBmat10% PER
• 54M: -73dBmat10% PER
• 11M: -82dBmat8% PER
• 6M: -86dBmat10% PER
• 1M: -90dBmat8% PER
• Transmit Power:
• CE:
• <20dBm(2.4GHz)
• FCC:
• <30dBm
• Wireless Modes:Router Mode, Repeater Mode, Client Mode, AP Mode, WISP Router Mode
• Wireless Functions:Enable/Disable Wireless Radio, WMM, Wireless Statistics
• Wireless Security:64/128/152-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• SOFTWARE FEATURES
  • WAN Type:Dynamic IP/Static IP/PPPoE/ PPTP/L2TP
  • DHCP:Server, Client, DHCP Client List, Address Reservation
  • Quality of Service:WMM, Bandwidth Control
  • Port Forwarding:Virtual Server, Port Triggering, UPnP, DMZ
  • Dynamic DNS:DynDns, Comexe, NO-IP
  • VPN Pass-Through:PPTP, L2TP, IPSec (ESP Head)
  • Access Control:Local Management Control, Host List, Access Schedule, Rule Management
• Firewall Security:
  • DoS, SPI Firewall
  • IP Address Filter/MAC Address Filter/Domain Filter
  • IP and MAC Address Binding
• Management:
  • Access Control
  • Local Management
  • Remote Management
• OTHERS
• Certification:CE, FCC, RoHS
• Package Contents:
  • TL-WR802N
  • Power Adapter
  • USB Cable
  • Ethernet cable
  • Quick Installation Guide
  • Resource CD
• System Requirements:Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8.1/8/7, MACOS, NetWare, UNIX or Linux
• Warranty Information: 2 years from TP-Link
