1 4

StarTech SV565UTPHDU USB HDMI Over CAT5e/CAT6 Hdmi KVM Externdar up to 330Ft
$1,023.93 USD $1,023.93 USD $914.99 USD
Shipping calculated at checkout.
Out of stock
Description

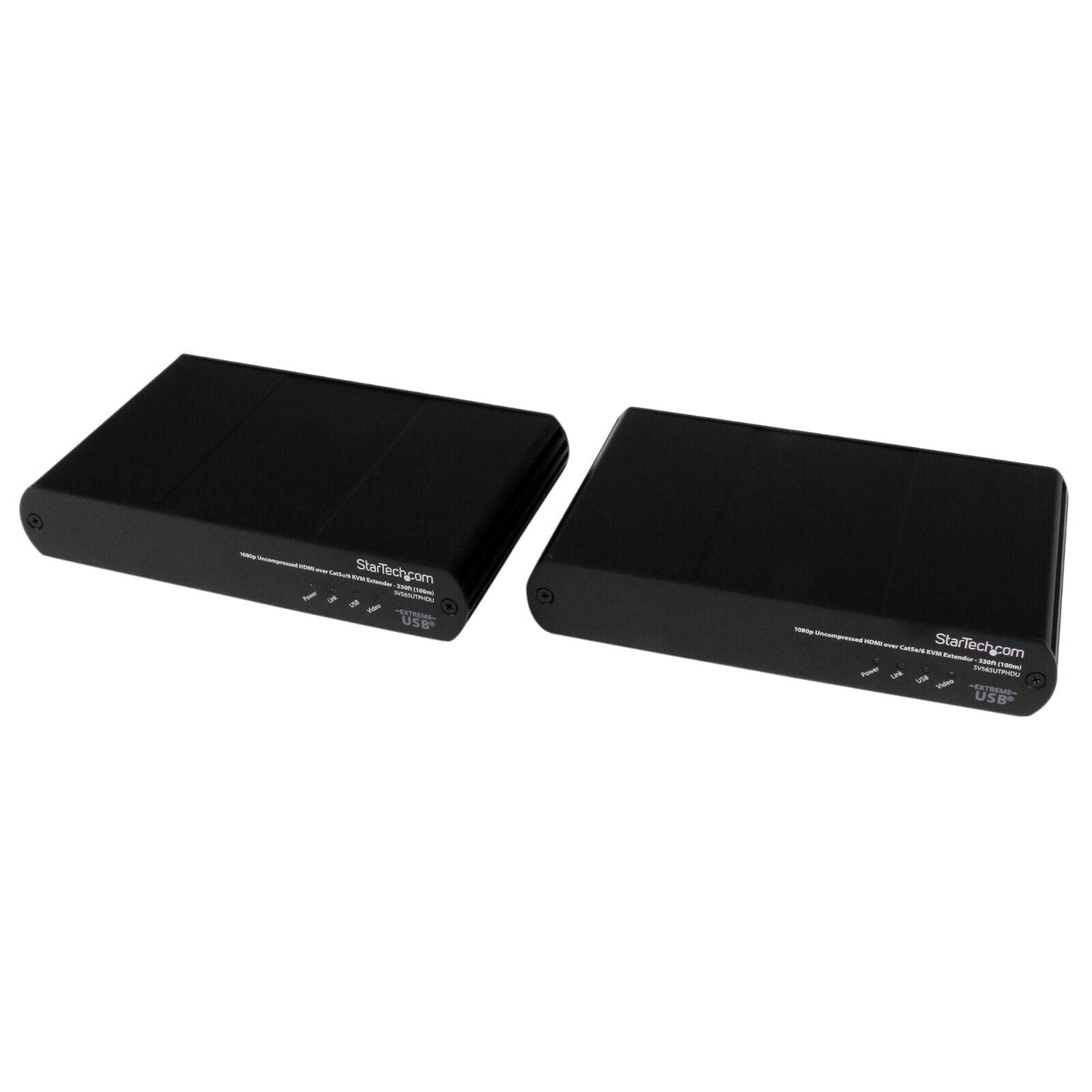

USB HDMI over Cat 5e / Cat 6 KVM Console Extender w/ 1080p Uncompressed Video - 330ft (100m)

Operate a PC from up to 100m away, with uncompressed 1080p HDMI® video and USB keyboard / mouse

Product ID: SV565UTPHDU

..

Warranty Information
Warranty
2 Years
Connector(s)
Console Interface(s)
1 - HDMI (19 pin)
3 - USB 2.0 Type-A (4 pin, 480Mbps)
1 - RJ-45
Host Connectors
1 - USB B (4 pin)
1 - HDMI (19 pin)
1 - RJ-45
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Humidity
20~80% RH (Non-Condensing)
Hardware
Audio
No
KVM Ports
1
PC Interface
USB
PC Video Type
HDMI
Number of Monitors Supported
1
Rack-Mountable
No
Daisy-Chain
Yes

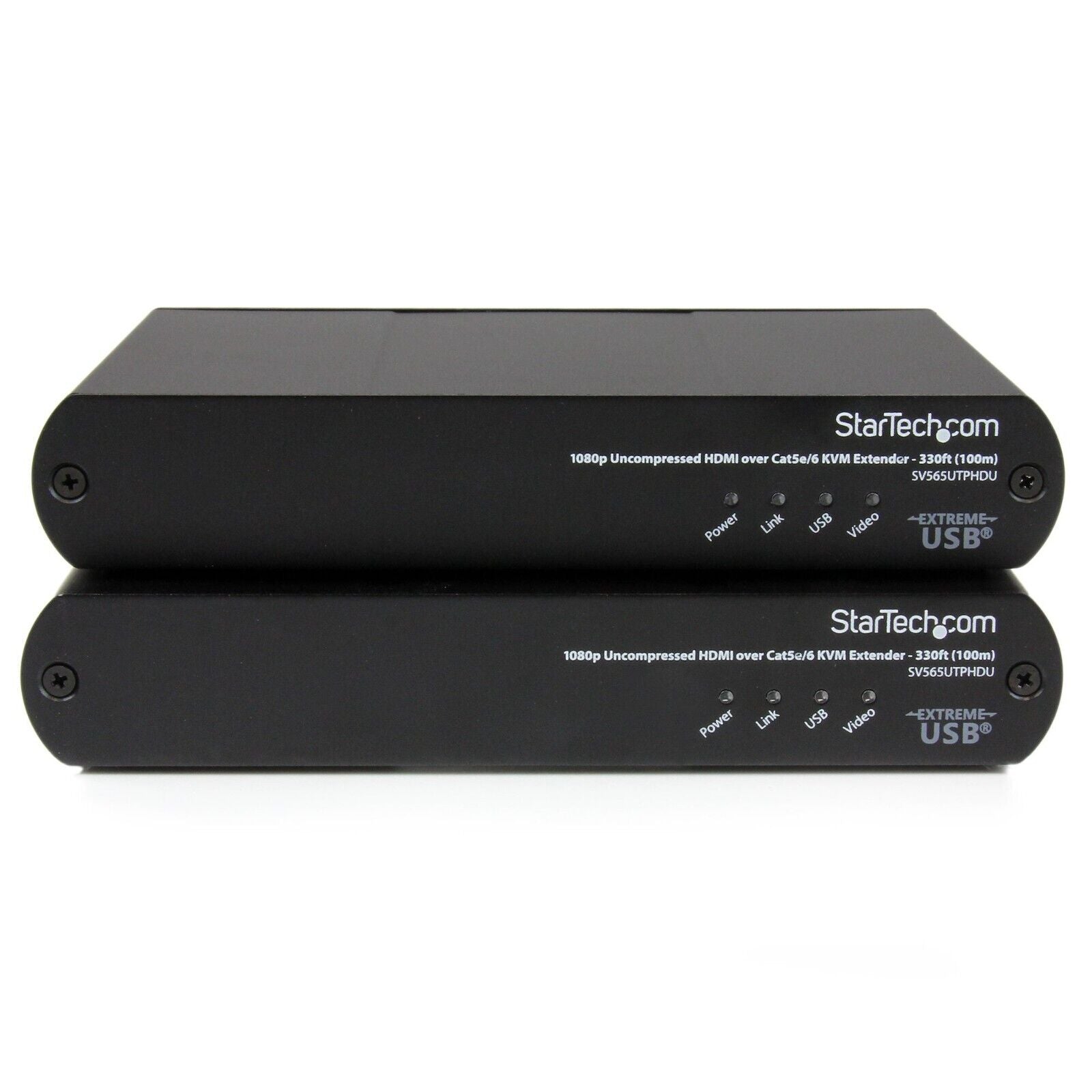

Indicators
LED Indicators
1 - Power
1 - Link
1 - USB
1 - Video
Packaging Information
Package Height
4.0 in [10.2 cm]
Package Length
14.8 in [37.6 cm]
Package Width
8.3 in [21.2 cm]
Package Quantity
1
Shipping (Package) Weight
6.3 lb [2.9 kg]
Performance
IP Control
No
Maximum Data Transfer Rate
30 Mbps (USB)
Max Transfer Distance
100m [328]
Maximum Digital Resolutions
Full uncompressed 1080p and 1920x1200
Color Depth
30/36-bit Deep Color
Physical Characteristics
Color
Black
Material
Aluminum
Product Length
6.9 in [17.5 cm]
Product Width
4.4 in [11.2 cm]
Product Height
1.2 in [3.0 cm]
Weight of Product
1.9 lb [0.8 kg]
Power
Power Source
2 AC Adapters Included
Input Voltage
100 - 240 AC
Input Current
0.6 A
Output Voltage
5 DC
Output Current
3 A
Center Tip Polarity
Positive
Plug Type
C
Power Consumption (In Watts)
15
Software
OS Compatibility
OS independent; No software or drivers required
Special Notes / Requirements
Note
Product measurements indicate a single unit only (either Host or Remote)
Config port: reserved for manufacturer use
What's in the Box
Included in Package
1 - local transmitter unit
1 - remote receiver unit
1 - mounting kit
1 - HDMI cable
1 - USB cable
2 - universal power adapters (NA, EU ,UK)
1 - quick-start guide

Shipping Notes:

All our StarTech products are normally shipped within 1-2 business days from any of our warehouse locations below:

  • Monrovia, CA 91016 (Most usual)
  • Fort Worth, TX 76155
  • Carol Stream, IL 60188
  • Moore, SC 29369
  • Hazelton, PA 18202

…MJ5
