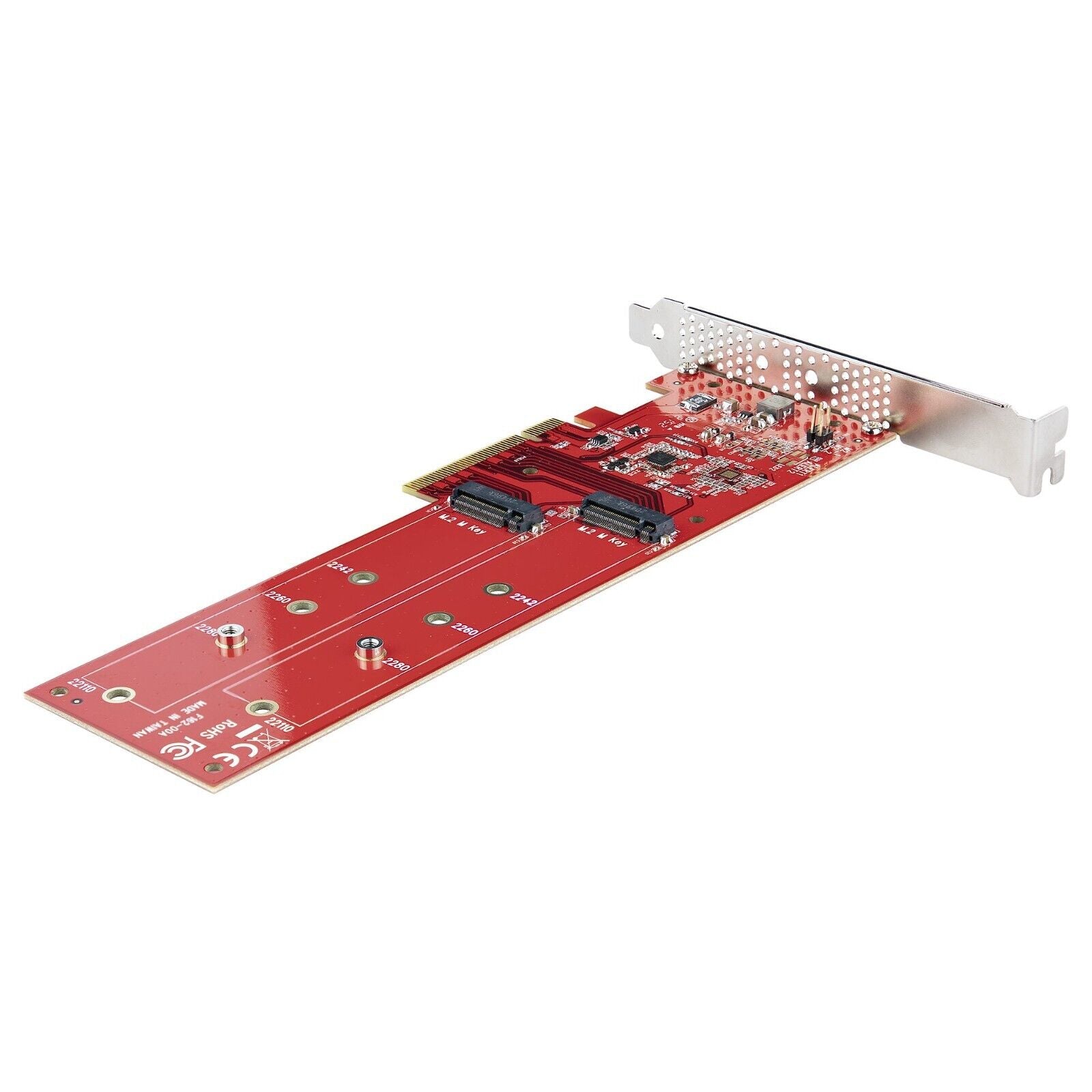

StarTech DUAL-M2-PCIe-CARD-B Dual M.2 PCIe x4 x8 SSD Adapter Card AHCI NVMe
Regular price
$89.60 USD
Sale price
$89.60 USD
Regular price
$79.99 USD
Description
Couldn't load pickup availability
StarTech DUAL-M2-PCIe-CARD-B Dual M.2 PCIe x4 x8 SSD Adapter Card AHCI NVMe
Current product
Current
Vendor:
Startech
StarTech DUAL-M2-PCIe-CARD-B Dual M.2 PCIe x4 x8 SSD Adapter Card AHCI NVMe
Regular price
$89.60 USD
Sale price
$89.60 USD
Regular price
$79.99 USD
Options
Descriptions
Dual M.2 PCIe SSD Adapter Card, PCIe x8 / x16 to Dual NVMe or AHCI M.2 SSDs, PCI Express 4.0, 7.8GBps/Drive, Bifurcation Required - Windows/Linux Compatible - TAA
Dual M.2 NVMe / AHCI | PCIe 4.0 x8 or x16 Slot | Bifurcation
Product ID: DUAL-M2-PCIE-CARD-B
..
Warranty Information
Warranty
2 Years
Connector(s)
Drive Connectors
2 - M.2 (NVMe, M-Key, PCIe x4)
Host Connectors
1 - PCI Express x8
Environmental
Operating Temperature
-40°C to 80°C (-40°F to 176°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Humidity
15 ~ 90% RH
Hardware
Interface
M.2 PCIe
Bus Type
PCI Express
Number of Drives
2
Drive Size
22 mm - M.2 NVMe
Compatible Drive Types
M.2 (PCIe, NVMe, M-Key, NGFF)
Drive Installation
Fixed
Supported Drive Height(s)
2242
2260
2280
22110
Indicators
LED Indicators
2 - Header pins, for drive activity
Packaging Information
Package Length
11.4 in [29.0 cm]
Package Width
6.7 in [17.0 cm]
Package Height
1.2 in [3.0 cm]
Shipping (Package) Weight
6.8 oz [192.0 g]
Package Quantity
1
Performance
Type and Rate
PCI Express 4.0 (16 Gbps per lane)
Hardware Raid Supported
No
Hot Swap Capability
No
MTBF
6,493,014 hrs
Physical Characteristics
Color
Red
Product Length
9.0 in [22.8 cm]
Product Width
4.0 in [10.2 cm]
Product Height
0.9 in [2.2 cm]
Weight of Product
2.6 oz [74.0 g]
Software
OS Compatibility
No Drivers or Software Required
Special Notes / Requirements
System and Cable Requirements
For multiple drives to be detected by the host system, bifurcation support is required on the computer/motherboard.
Note
NVMe SSDs require drivers provided by the manufacture of the drive or may be natively provided by the OS (Windows®️ 8 and later - Mac OS 10.10.3 and later). Earlier OS versions do not have native NVMe support.
Consult the documentation that came with the Computer/Motherboard for details regarding how to enable and configure PCIe Bifurcation.
What's in the Box
Included in Package

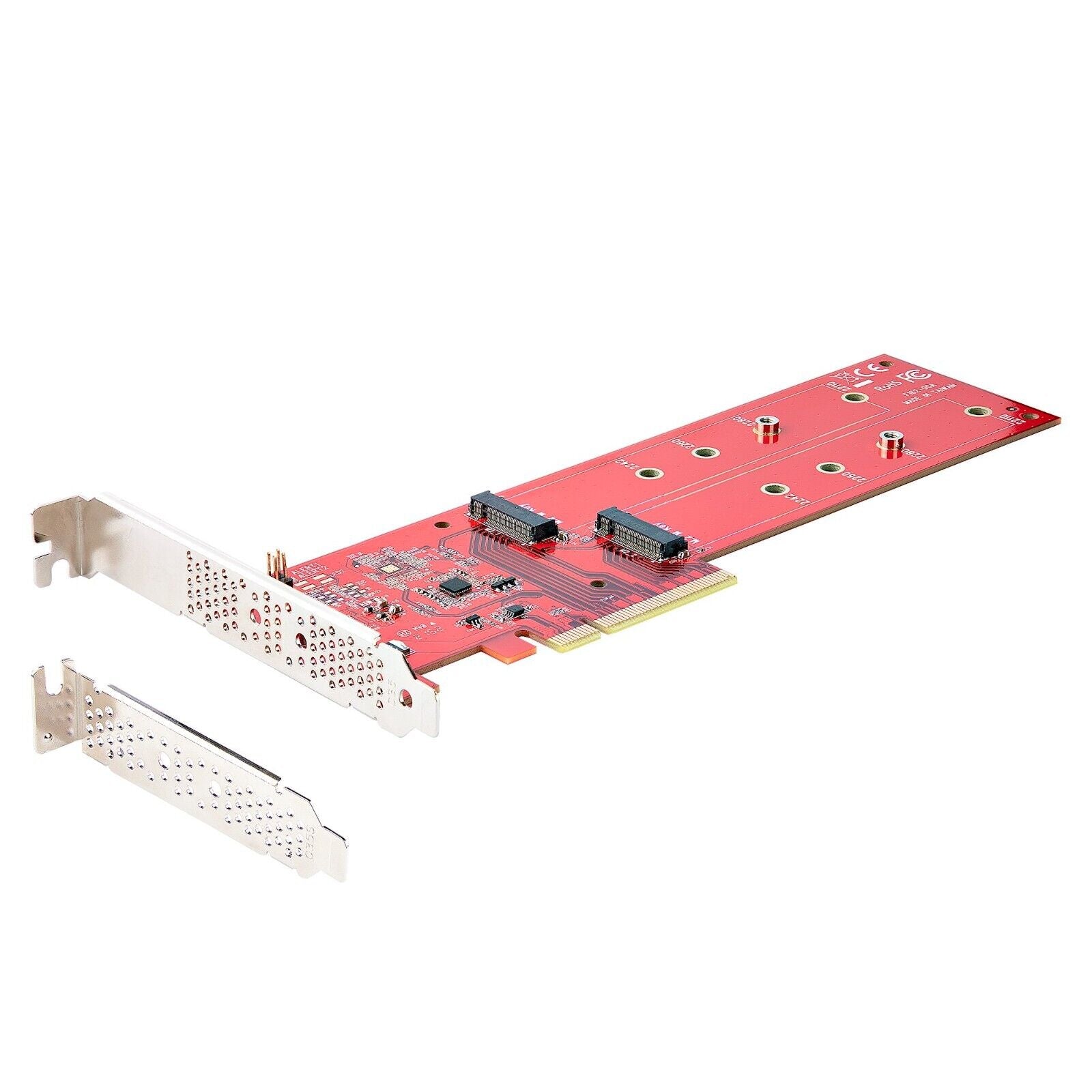

1 - PCIe to M.2 Adapter Card
1 - Low Profile Bracket
1 - Quick-Start Guide
1 - Set of Mounting Screws
