StarTech ICUSB23208FD 8 Port USB to Serial RS232 Adapter HUB Rack DIN Bracket
Regular price
$336.70 USD
Sale price
$336.70 USD
Regular price
$336.70 USD
Description
Couldn't load pickup availability
StarTech ICUSB23208FD 8 Port USB to Serial RS232 Adapter HUB Rack DIN Bracket
Current product
Current
Vendor:
Startech
StarTech ICUSB23208FD 8 Port USB to Serial RS232 Adapter HUB Rack DIN Bracket
Regular price
$336.70 USD
Sale price
$336.70 USD
Regular price
$336.70 USD
Options
Descriptions
8-Port USB-to-Serial Adapter Hub - TAA
Convert a single USB port into eight serial ports, and connect multiple hubs together for a scalable solution
Product ID: ICUSB23208FD
..
Warranty Information
Warranty
2 Years
Connector(s)
Connector Type(s)
1 - USB B (4 pin)
8 - DB-9 (9 pin, D-Sub)
Environmental
Operating Temperature
-40°C to 85°C (-40°F to 185°F)
Storage Temperature
-65°C to 150°C (-85°F to 302°F)
Humidity
20~80% RH (Non-condensing)
Hardware
Ports
8
Interface
Serial
Bus Type
USB 2.0
Port Style
External Hub
Chipset ID
FTDI - FT4232
Indicators
LED Indicators
8 - Data Transmit
8 - Data Receive
Packaging Information
Package Height
2.4 in [6.2 cm]
Package Length
17.7 in [45.0 cm]
Shipping (Package) Weight
4.5 lb [2.1 kg]
Package Width
8.5 in [21.6 cm]
Package Quantity
1
Performance
Maximum Data Transfer Rate
480 Mbps
Serial Protocol
RS-232
Max Baud Rate
921.6 Kbps
Data Bits
7, 8
FIFO
256 Bytes
Parity
Odd, Even, Mark, Space, None
Stop Bits
1, 2
MTBF
67,114 hours
Physical Characteristics
Weight of Product
3.0 lb [1.4 kg]
Color
Black
Material
Aluminum
Cable Length
35.4 in [900 mm]
Product Length
16.9 in [43 cm]
Product Width
4.7 in [12 cm]
Product Height
1.8 in [4.5 cm]
Power
Input Voltage
100 - 240 AC
Input Current
1.5 A
Output Voltage
12V DC
Output Current
3 A
Center Tip Polarity
Positive
Plug Type
B
Power Consumption (In Watts)
36
Software
OS Compatibility
Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 10 ARM, 11, 11 ARM
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
macOS 10.6 to 10.15, 11.0, 12.0, 13.0, 14.0
Linux 2.4.x and up - LTS Versions only
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
macOS 10.6 to 10.15, 11.0, 12.0, 13.0, 14.0
Linux 2.4.x and up - LTS Versions only

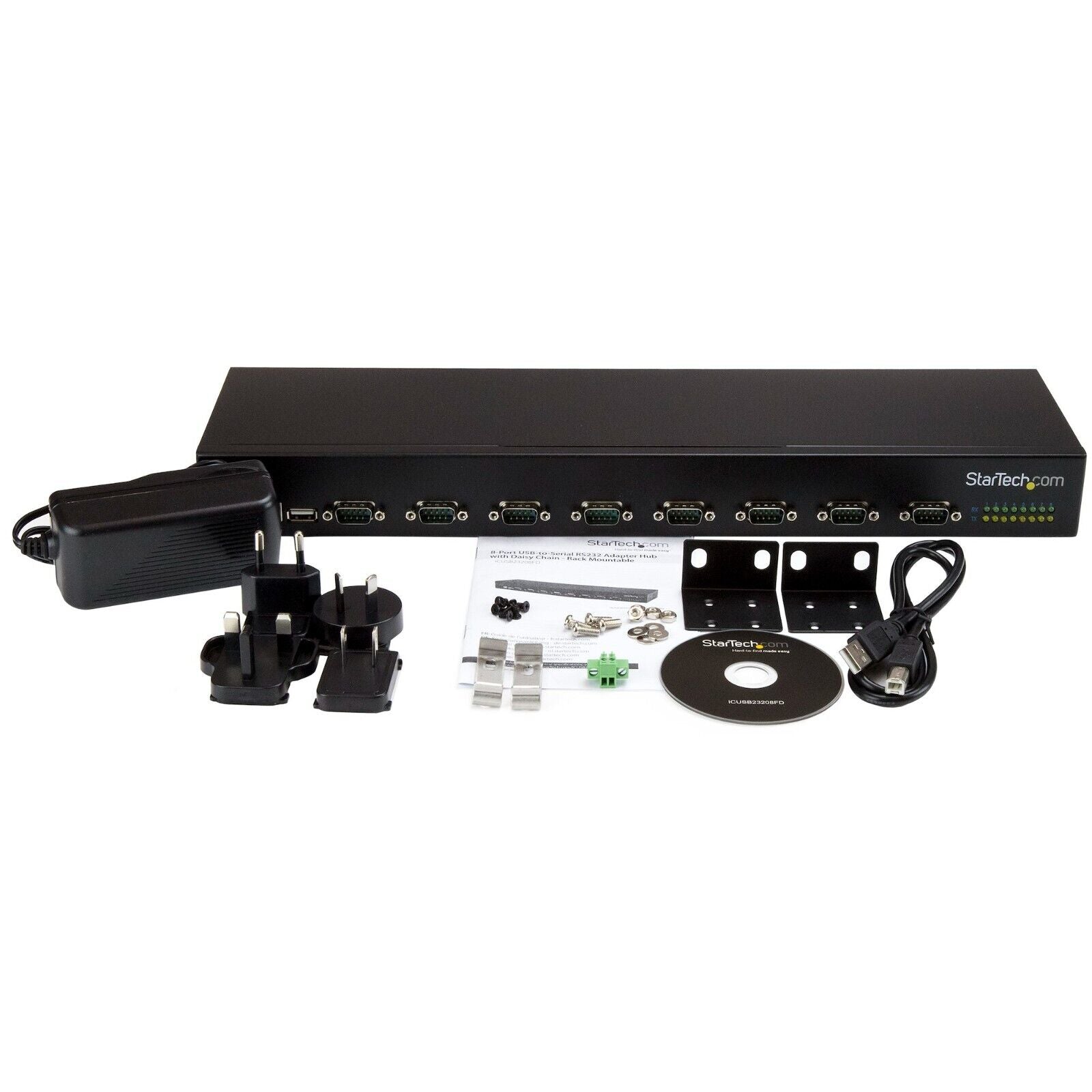

What's in the Box
Included in Package
1 - 8-port USB to RS232 hub
1 - 18 in. [46 mm] USB 2.0 cable
2 - rack-mounting brackets
8 - rack-mounting screws
2 - DIN-rail mounting brackets
4 - DIN-rail mounting screws
4 - washers
4 - nuts
1 - universal power adapter (NA/JP, UK, EU, ANZ)
1 - driver CD
1 - terminal block plug
1 - quick-start guide
