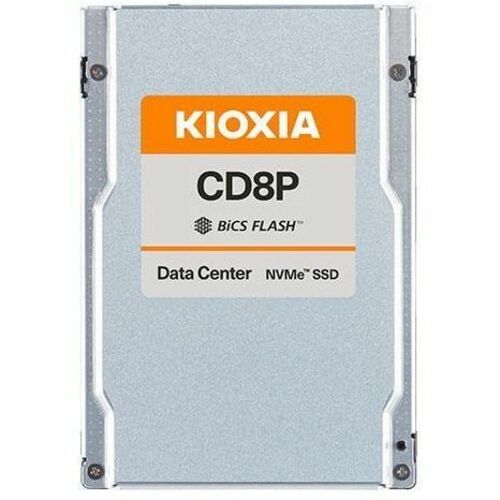

Kioxia KCD8XPUG30T7 SSD - 30.7T 2.5 PCIe5 CD8P-R SDF7280GEB 1 DWPD SIE Bare

$3,986.41 USD

Shipping calculated at checkout.

Out of stock

Description

Marketing Information

Data Center NVMe™ Read Intensive SSD

KIOXIA CD8P-R Series is a read intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing and virtualization. Built with a PCIe® 5.0 (32 GT/s x4) interface, the CD8P-R Series SSDs deliver consistent performance up to 2,000K IOPS (random read) and 200K IOPS (random write), and realize 60 % to 80 % increase in sequential read performance when compared to previous generation PCIe® 4.0 SSDs (KIOXIA CD8-R Series).

Featuring KIOXIA BiCS FLASH™ generation 5 TLC flash memory, CD8P-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 30.72 TB, making them well-suited for hyperscale data center applications.

Key Applications

Hyperscale
IoT and big data analytics
Online transaction processing (OLTP)
(transactional and relational databases)
Virtualized environments
Streaming media and content delivery networks

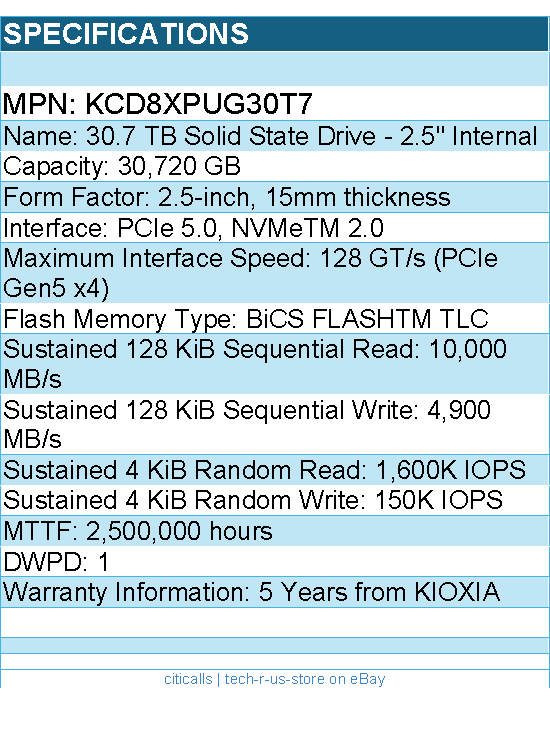

Detail Specifications

MPN: KCD8XPUG30T7
Capacity: 30,720 GB
Basic Specifications
Form Factor: 2.5-inch, 15mm thickness
lnterface: PCIe 5.0, NVMeTM 2.0
Maximum Interface Speed: 128 GT/s (PCIe Gen5 x4)
Flash Memory Type: BiCS FLASHTM TLC
Performance (Up to)
Sustained 128 KiB Sequential Read: 10,000 MB/s
Sustained 128 KiB Sequential Write: 4,900 MB/s
Sustained 4 KiB Random Read: 1,600K IOPS
Sustained 4 KiB Random Write: 150K IOPS
Power Requirements
Supply Voltage: 12 V +/- 10 %, 3.3 V +/- 15 %
Power Consumption (Active): 24 W typ.
Power Consumption (Ready): 5.5 W typ.
Reliability
MTTF: 2,500,000 hours
DWPD: 1
Environmental
Temperature (Operating): 0 oC to 72 oC
Temperature (Non-operating): -40 oC to 85 oC
Humidity (Operating): 5 % to 95 % R.H.
Vibration (Operating): 21.27 m/s2 ( 2.17 Grms ) ( 5 to 800 Hz )
Shock (Operating): 9.8 km/s2 ( 1,000 G ) ( 0.5 ms )

Warranty Information

5 Years from KIOXIA
